Matched Angular Contact Ball Bearings

Product Description

BLS Angular contact ball bearings have raceways in the inner and outer rings that are offset in relation to each other in the direction of the bearing axis. These bearings are designed to accommodate combined loads and reach high speeds. The contact angle α is defined as the angle between the line joining the contact points of the ball and the raceways in the radial plane, and a line perpendicular to the bearing axis. The load carrying capacity of angular contact ball bearings increases with the increasing of contact angle. Angular contact ball bearings are generally used in pairs or even more with spacers.

BLS offers comprehensive ranges of angular contact ball bearings, which are available in:
– Single row and double row
– Open and sealed types
– Contact angle of 15, 30 or 40 degree
– Chrome steel, ceramic or hybrid materials
– Polyamide, steel and brass cage assemblies

Inquire Now

Product Details

Deep Groove Ball Bearings

Matched Angular Contact Ball Bearings

I have all the models you need, these are just some of them, please contact us now

<td height="19" style=""%3

Bearing			Boundary Dimensions					Basic Load Rating		Limiting Speed1)		Distance of		Shoulder						Mass
Designation2)			(mm)					( kN )		(rpm)		working points		Dimensions						(kg)

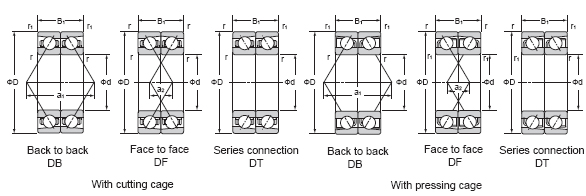

								With cutting cage				(mm)		(mm)
Back to back	Face to face	Series	d	D	B1	r	r1	Cr	Cor	Grease	Oil	a1	a2	da	db	Da	Db	ra	rb	Approx
DB	DF	connection				(min.)	(min.)							(min.)	(min.)	(max.)	(max.)	(max.)	(max.)
		DT
7000BDB	7000BDF	7000BDT	10	26	16	0.3	0.15	7.55	4.35	20000	27000	23.1	7.1	12.5	0	23.5	24.8	0.3	0.15	0.042
7000CDB	7000CDF	7000CDT	10	26	16	0.3	0.15	8.6	4.95	37000	50000	12.7	3.3	12.5	0	23.5	24.8	0.3	0.15	0.042
7000DB	7000DF	7000DT	10	26	16	0.3	0.15	8.1	4.65	27000	34000	18.2	2.2	12.5	0	23.5	24.8	0.3	0.15	0.042
7001BDB	7001BDF	7001BDT	12	28	16	0.3	0.15	8.1	5.05	18000	24000	25.2	9.2	14.5	0	25.5	26.8	0.3	0.15	0.048
7001CDB	7001CDF	7001CDT	12	28	16	0.3	0.15	9.4	5.85	32000	43000	13.5	2.5	14.5	0	25.5	26.8	0.3	0.15	0.048
7001DB	7001DF	7001DT	12	28	16	0.3	0.15	8.8	5.45	23000	29000	19.9	3.9	14.5	0	25.5	26.8	0.3	0.15	0.048
7002BDB	7002BDF	7002BDT	15	32	18	0.3	0.15	9.05	6.3	15000	20000	29.2	11.1	17.5	0	29.5	30.8	0.3	0.15	0.07
7002CDB	7002CDF	7002CDT	15	32	18	0.3	0.15	10.7	7.4	28000	37000	15.3	2.7	17.5	0	29.5	30.8	0.3	0.15	0.068
7002DB	7002DF	7002DT	15	32	18	0.3	0.15	9.95	6.85	20000	26000	22.6	4.6	17.5	0	29.5	30.8	0.3	0.15	0.068
7003BDB	7003BDF	7003BDT	17	35	20	0.3	0.15	9.9	7.5	14000	18000	32.2	12.2	19.5	0	32.5	33.8	0.3	0.15	0.096
7003CDB	7003CDF	7003CDT	17	35	20	0.3	0.15	11.9	8.95	25000	33000	17.1	2.9	19.5	0	32.5	33.8	0.3	0.15	0.087
7003DB	7003DF	7003DT	17	35	20	0.3	0.15	10.9	8.25	18000	23000	25.3	5.3	19.5	0	32.5	33.8	0.3	0.15	0.09
7004BDB	7004BDF	7004BDT	20	42	24	0.6	0.3	15.2	11.1	11000	15000	38.4	14.4	24.5	0	37.5	39.5	0.3	0.3	0.158
7004CDB	7004CDF	7004CDT	20	42	24	0.6	0.3	18	13.2	21000	28000	20.4	3.6	24.5	0	37.5	39.5	0.3	0.3	0.158
7004DB	7004DF	7004DT	20	42	24	0.6	0.3	16.7	12.2	15000	19000	30.2	6.2	24.5	0	47.5	39.5	0.3	0.3	0.158
7005BDB	7005BDF	7005BDT	25	47	24	0.6	0.3	16.6	13.4	10000	13000	42.3	18.3	29.5	0	42.5	44.5	0.3	0.3	0.182
7005CDB	7005CDF	7005CDT	25	47	24	0.6	0.3	20.0.	16	18000	24000	21.7	2.3	29.5	0	42.5	44.5	0.3	0.3	0.182
7005DB	7005DF	7005DT	25	47	24	0.6	0.3	18.3	14.8	13000	17000	32.9	8.9	29.5	0	42.5	44.5	0.3	0.3	0.182
7006BDB	7006DF	7006DT	30	55	26	1	0.6	23.6	20.2	11000	14000	37.5	11.5	35.5	0	49.5	50.5	1	0.5	0.266
7007BDB	7007BDF	7007BDT	35	62	28	1	0.6	25.7	22.8	7400	9900	55.1	27.1	40.5	0	56.5	57.5	1	0.5	0.341
7007CDB	7007CDF	7007CDT	35	62	28	1	0.6	31	27.4	13000	18000	27	1	40.5	0	56.5	57.5	1	0.5	0.338
7007DB	7007DF	7007DT	35	62	28	1	0.6	28.4	25.2	9800	12000	42.3	14.3	40.5	0	56.5	57.5	1	0.5	0.339
7008BDB	7008BDF	7008BDT	40	68	30	1	0.6	27.4	26.4	6600	8900	60.5	30.5	45.5	0	62.5	63.5	1	0.5	0.424
7008CDB	7008CDF	7008CDT	40	68	30	1	0.6	33.4	31.8	12000	16000	29.5	0.5	45.5	0	62.5	63.5	1	0.5	0.417
7008DB	7008DF	7008DT	40	68	30	1	0.6	30.4	29.2	8900	11000	46.3	16.3	45.5	0	62.5	63.5	1	0.5	0.419
7009BDB	7009BDF	7009BDT	45	75	32	1	0.6	32.5	32	6000	8000	66.3	34.3	50.5	0	69.5	70.5	1	0.5	0.546
7009CDB	7009CDF	7009CDT	45	75	32	1	0.6	39.6	38.5	11000	15000	32.1	0.1	50.5	0	69.5	70.5	1	0.5	0.531
7009DB	7009DF	7009DT	45	75	32	1	0.6	36.2	35.4	8000	10000	50.7	18.7	50.5	0	69.5	70.5	1	0.5	0.531
7010BDB	7010BDF	7010BDT	50	80	32	1	0.6	34.5	36.2	5500	7400	70.5	38.5	55.5	0	74.5	75.5	1	0.5	0.595
7010CDB	7010CDF	7010CDT	50	80	32	1	0.6	42.2	43.9	10000	13000	33.6	1.6	55.5	0	74.5	75.5	1	0.5	0.576
7010DB	7010DF	7010DT	50	80	32	1	0.6	38.4	40.2	7300	9200	53.8	21.8	55.5	0	74.5	75.5	1	0.5	0.576
7011BDB	7011BDF	7011BDT	55	90	36	1.1	0.6	45.4	47.5	5000	6600	78.8	42.8	62	0	83	85.5	1	0.6	0.862
7011CDB	7011CDF	7011CDT	55	90	36	1.1	0.6	55.4	57.3	9100	12000	37.4	1.4	62	0	83	85.5	1	0.6	0.849
7011DB	7011DF	7011DT	55	90	36	1.1	0.6	50.5	52.5	6600	8300	59.9	23.9	62	0	83	85.5	1	0.6	0.85
7012BDB	7012BDF	7012BDT	60	95	36	1.1	0.6	46.4	50.7	4600	6200	83	47	67	0	88	90.5	1	0.6	0.921
7012CDB	7012CDF	7012CDT	60	95	36	1.1	0.6	56.9	61.3	8500	11000	38.8	2.8	67	0	88	90.5	1	0.6	0.892
7012DB	7012DF	7012DT	60	95	36	1.1	0.6	51.8	56.1	6200	7700	62.8	26.8	67	0	88	90.5	1	0.6	0.894
7013BDB	7013BDF	7013BDT	65	100	36	1.1	0.6	48.9	56.6	4300	5800	87.6	51.6	72	0	93	95.5	1	0.6	0.983
7013CDB	7013CDF	7013CDT	65	100	36	1.1	0.6	60.2	68.7	7900	11000	40.2	4.2	72	0	93	95.5	1	0.6	0.964
7013DB	7013DF	7013DT	65	100	36	1.1	0.6	54.7	62.8	5800	7200	65.9	29.9	72	0	93	95.5	1	0.6	0.965
7014BDB	7014BDF	7014BDT	70	110	40	1.1	0.6	62.1	71.1	4000	5300	95.5	55.5	77	0	103	103	1	0.6	1.32
7014CDB	7014CDF	7014CDT	70	110	40	1.1	0.6	76.2	86	7300	9700	44.1	4.1	77	0	103	103	1	0.6	1.32
7014DB	7014DF	7014DT	70	110	40	1.1	0.6	69.3	78.7	5300	6600	72	32	77	0	103	103	1	0.6	1.32
7015BDB	7015BDF	7015BDT	75	115	40	1.1	0.6	63.5	75.2	3800	5000	99.7	59.7	82	0	108	110.5	1	0.6	1.38
7015CDB	7015CDF	7015CDT	75	115	40	1.1	0.6	78	91.3	6900	9200	45.5	5.5	82	0	108	110.5	1	0.6	1.38
7015DB	7015DF	7015DT	75	115	40	1.1	0.6	70.9	83.4	5000	6300	74.9	34.9	82	0	108	110.5	1	0.6	1.38
7016BDB	7016BDF	7016BDT	80	125	44	1.1	0.6	77.7	91.3	3500	4600	108	64	87	0	118	120.5	1	0.6	1.86
7016CDB	7016CDF	7016CDT	80	125	44	1.1	0.6	95.3	111	6400	8500	49.5	5.5	87	0	118	120.5	1	0.6	1.86
7016DB	7016DF	7016DT	80	125	44	1.1	0.6	86.7	101	4600	5800	81.2	37.2	87	0	118	120.5	1	0.6	1.86
7017BDB	7017BDF	7017BDT	85	130	44	1.1	0.6	79.3	96.7	3000	4400	113	69	92	0	123	125.5	1	0.6	1.94
7017CDB	7017CDF	7017CDT	85	130	44	1.1	0.6	97.6	117	6000	8000	51.1	7.1	92	0	123	125.5	1	0.6	1.94
7017DB	7017DF	7017DT	85	130	44	1.1	0.6	88.6	107	4400	5500	84.7	40.7	92	0	123	125.5	1	0.6	1.94
7018BDB	7018BDF	7018BDT	90	140	48	1.5	1	94.9	114	3100	4100	120.5	72.5	98.5	0	131.5	134.5	1.5	0.8	2.52
7018CDB	7018CDF	7018CDT	90	140	48	1.5	1	116	138	5700	7500	54.8	6.8	98.5	0	131.5	134.5	1.5	0.8	2.52
7018DB	7018DF	7018DT	90	140	48	1.5	1	106	127	4100	5100	90.4	42.4	98.5	0	131.5	134.5	1.5	0.8	2.52
7019BDB	7019BDF	7019BDT	95	145	48	1.5	1	96.8	121	2900	3900	126.4	78.4	103.5	0	136.5	139.5	1.5	0.8	2.64
7019CDB	7019CDF	7019CDT	95	145	48	1.5	1	119	147	5300	7100	56.7	8.7	103.5	0	136.5	139.5	1.5	0.8	2.64
7019DB	7019DF	7019DT	95	145	48	1.5	1	108	134	3900	4800	94.5	46.5	103.5	0	136.5	139.5	1.5	0.8	2.64
7020BDB	7020BDF	7020BDT	100	150	48	1.5	1	99.4	127	2800	3800	128.9	80.9	108.5	0	141.5	144.5	1.5	0.8	2.74
7020CDB	7020CDF	7020CDT	100	150	48	1.5	1	122	154	5200	6900	57.5	9.5	108.5	0	141.5	144.5	1.5	0.8	2.74
7020DB	7020DF	7020DT	100	150	48	1.5	1	111	141	3800	4700	96.2	48.2	108.5	0	141.5	144.5	1.5	0.8	2.74
7021BDB	7021BDF	7021BDT	105	160	52	2	1	116	148	2600	3500	137.2	85.2	115	0	150	154.5	2	1	3.46
7021CDB	7021CDF	7021CDT	105	160	52	2	1	143	179	4800	6400	62	10	115	0	150	154.5	2	1	3.46
7021DB	7021DF	7021DT	105	160	52	2	1	130	164	3500	4400	103.7	51.7	115	0	150	154.5	2	1	3.46
7022BDB	7022BDF	7022BDT	110	170	56	2	1	134	167	2500	3300	145.5	89.5	120	0	160	164.5	2	1	4.28
7022CDB	7022CDF	7022CDT	110	170	56	2	1	164	203	4600	6100	65.5	9.5	120	0	160	164.5	2	1	4.28
7022DB	7022DF	7022DT	110	170	56	2	1	149	186	3300	4200	108.9	52.9	120	0	160	164.5	2	1	4.28
7024BDB	7024BDF	7024BDT	120	180	56	2	1	140	186	2300	3100	153.9	97.9	130	0	170	174.5	2	1	4.54
7024CDB	7024CDF	7024CDT	120	180	56	2	1	173	226	4300	5700	68.2	12.2	130	0	170	174.5	2	1	4.54
7024DB	7024DF	7024DT	120	180	56	2	1	157	206	4400	5900	114.2	58.2	130	0	170	174.5	2	0.8	4.54
7200BDB	7200BDF	7200BDT	10	30	18	0.6	0.3	6.95	4.05	18000	23000	26.2	8.2	14.5	12.5	25.5	27.5	0.6	0.3	0.062
7200CDB	7200CDF	7200CDT	10	30	18	0.6	0.3	8.1	4.7	32000	43000	14.5	3.5	14.5	12.5	25.5	27.5	0.6	0.3	0.062
7200DB	7200DF	7200DT	10	30	18	0.6	0.3	7.55	4.4	23000	29000	20.8	2.8	14.5	12.5	25.5	27.5	0.6	0.3	0.062
7201BDB	7201BDF	7201BDT	12	32	20	0.6	0.3	11.3	6.8	16000	21000	28.5	8.5	16.5	14.5	27.5	29.5	0.6	0.3	0.076
7201CDB	7201CDF	7201CDT	12	32	20	0.6	0.3	12.8	7.7	30000	40000	15.9	4.1	16.5	14.5	27.5	29.5	0.6	0.3	0.076
7201DB	7201DF	7201DT	12	32	20	0.6	0.3	12.1	7.25	22000	27000	22.7	2.7	16.5	14.5	27.5	29.5	0.6	0.3	0.076
7202BDB	7202BDF	7202BDT	15	35	22	0.6	0.3	12.1	7.85	14000	19000	32.4	10.4	19.5	17.5	30.5	32.5	0.6	0.3	0.096
7202CDB	7202CDF	7202CDT	15	35	22	0.6	0.3	14.1	9.15	26000	35000	17.8	4.2	19.5	17.5	30.5	32.5	0.6	0.3	0.096
7202DB	7202DF	7202DT	15	35	22	0.6	0.3	13.2	8.55	19000	24000	25.7	3.7	19.5	17.5	30.5	32.5	0.6	0.3	0.096
7203BDB	7203BDF	7203BDT	17	40	24	0.6	0.3	15.2	10.1	12000	17000	36.3	12.3	21.5	19.5	35.5	37.5	0.6	0.3	0.146
7203CDB	7203CDF	7203CDT	17	40	24	0.6	0.3	17.07	11.8	23000	30000	19.8	4.2	21.5	19.5	35.5	37.5	0.6	0.3	0.144
7203DB	7203DF	7203DT	17	40	24	0.6	0.3	16.5	11	17000	21000	28.8	4.8	21.5	19.5	35.5	37.5	0.6	0.3	0.144
7204BDB	7204BDF	7204BDT	20	47	28	1	0.6	21.6	15.4	10000	14000	42.9	14.9	25.5	24.5	41.5	42.5	0.5	0.5	0.224
7204CDB	7204CDF	7204CDT	20	47	28	1	0.6	25.2	18	19000	26000	23.2	4.8	25.5	24.5	41.5	42.5	0.5	0.5	0.224
7204DB	7204DF	7204DT	20	47	28	1	0.6	23.5	16.8	14000	17000	33.9	5.9	25.5	24.5	41.5	42.5	0.5	0.5	0.224
7205BDB	7205BDF	7205BDT	25	52	30	1	0.6	22.7	17.4	9200	12000	47.7	17.7	30.5	29.5	46.5	47.5	0.5	0.5	0.287
7205CDB	7205CDF	7205CDT	25	52	30	1	0.6	26.9	20.5	17000	23000	25.5	4.5	30.5	29.5	46.5	47.5	1	0.5	0.279
7205DB	7205DF	7205DT	25	52	30	1	0.6	24.9	19	12000	15000	37.5	7.5	30.5	29.5	46.5	47.5	0.5	0.5	0.28
7206BDB	7006BDF	7006BDT	30	55	26	1	0.6	21.3	18.4	8500	11000	48.7	22.7	35.5	0	49.5	50.5	1	0.5	0.266
7206BDB	7206BDF	7206BDT	30	62	32	1	0.6	31.6	25	7700	10000	55.2	23.2	35.5	34.5	56.5	57.5	1	0.5	0.416
7206CDB	7006CDF	7006CDT	30	55	26	1	0.6	25.7	22	16000	21000	24.4	1.6	35.5	0	49.5	50.5	1	0.5	0.266
7206CDB	7206CDF	7206CDT	30	62	32	1	0.6	37.4	29.5	14000	19000	28.5	3.5	35.5	34.5	65	57.5	1	0.5	0.416
7206DB	7206DF	7206DT	30	62	32	1	0.6	34.7	27.4	10000	13000	43	11	35.5	34.5	56.5	57.5	1	0.5	0.416
7207BDB	7207BDF	7207BDT	35	72	34	1.1	0.6	41.6	34.1	6600	8800	62.7	28.7	42	39.5	65	67.5	1	0.6	0.63
7207CDB	7207CDF	7207CDT	35	72	34	1.1	0.6	49.4	40.2	12000	16000	31.6	2.4	42	39.5	65	67.5	1	0.6	0.622
7207DB	7207DF	7207DT	35	72	34	1.1	0.6	45.7	37.3	8800	11000	48.5	14.5	42	39.5	65	67.5	1	0.6	0.623
7208BDB	7208BDF	7208BDT	40	80	36	1.1	0.6	49.7	42.7	6000	8000	68.3	32.3	47	44.5	73	75.5	1	0.6	0.764
7208CDB	7208CDF	7208CDT	40	80	36	1.1	0.6	59.1	50.4	11000	15000	34.1	1.9	47	44.5	73	75.5	1	0.6	0.764
7208DB	7208DF	7208DT	40	80	36	1.1	0.6	54.6	46.7	8000	10000	52.7	16.7	47	44.5	73	75.5	1	0.6	0.764
7209BDB	7209BDF	7209BDT	45	85	38	1.1	0.6	55.8	48.6	5600	7500	72.8	34.8	52	49.5	78	80.5	1	0.6	0.934
7209CDB	7209CDF	7209CDT	45	85	38	1.1	0.6	66.3	57.4	10000	14000	36.2	1.8	52	49.5	78	80.5	1	0.6	0.928
7209DB	7209DF	7209DT	45	85	38	1.1	0.6	61.3	53.2	7500	9400	56	18	52	49.5	78	80.5	1	0.6	0.921
7210BDB	7210BDF	7210BDT	50	90	40	1.1	0.6	58	53.5	5100	6800	79.2	39.2	57	54.5	83	85.5	1	0.6	1.04
7210CDB	7210CDF	7210CDT	50	90	40	1.1	0.6	69.6	63.6	9400	12000	38.9	1.1	57	54.5	83	85.5	1	0.6	1.02
7210DB	7210DF	7210DT	50	90	40	1.1	0.6	64	58.7	6800	8500	60.7	20.7	57	54.5	83	85.5	1	0.6	1.02
7211BDB	7211BDF	7211BDT	55	100	42	1.5	1	71.6	67.6	4600	6100	87.3	45.3	63.5	60.5	91.5	94.5	1.5	0.8	1.27
7211CDB	7211CDF	7211CDT	55	100	42	1.5	1	85.9	80.4	8400	11000	42.2	0.2	63.5	60.5	91.5	94.5	1.5	0.8	1.27
7211DB	7211DF	7211DT	55	100	42	1.5	1	79.1	74.2	6100	7600	66.6	24.6	63.5	60.5	91.5	94.5	1.5	0.8	1.27
7212BDB	7212BDF	7212BDT	60	110	44	1.5	1	86.8	83.3	4100	5500	95	51	68.5	65.5	101.5	104.5	1.5	0.8	1.64
7212CDB	7212CDF	7212CDT	60	110	44	1.5	1	104	99	7500	10000	45.3	1.3	68.5	65.5	101.5	104.5	1.5	0.8	1.64
7212DB	7212DF	7212DT	60	110	44	1.5	1	95.7	91.5	5500	6900	72.3	28.3	68.5	65.5	101.5	104.5	1.5	0.8	1.64
7213BDB	7213BDF	7213BDT	65	120	46	1.5	1	99	98.7	3900	5200	100.6	54.6	73.5	70.5	111.5	111.5	1.5	0.8	2.04
7213CDB	7213CDF	7213CDT	65	120	46	1.5	1	119	117	7100	9400	47.8	1.8	73.5	70.5	111.5	111.5	1.5	0.8	2.04
7213DB	7213DF	7213DT	65	120	46	1.5	1	109	108	5200	6400	76.4	30.4	73.5	70.5	111.5	111.5	1.5	0.8	2.04
7214BDB	7214BDF	7214BDT	70	125	48	1.5	1	103	101	3700	4900	105.8	57.8	78.5	75.5	116.5	116.5	1.5	0.8	2.24
7214CDB	7214CDF	7214CDT	70	125	48	1.5	1	123	120	6700	8900	50.1	2.1	78.5	75.5	116.5	116.5	1.5	0.8	2.24
7214DB	7214DF	7015CDT	70	125	48	1.5	1	113	111	4900	6100	80.3	32.3	78.5	75.5	116.5	116.5	1.5	0.8	2.24
7215BDB	7215BDF	7215BDT	75	130	50	1.5	1	116	119	3500	4600	111	61	83.5	80.5	121.5	124.5	1.5	0.8	2.46
7215CDB	7215CDF	7215CDT	75	130	50	1.5	1	140	141	6400	8500	52.5	2.5	83.5	80.5	121.5	124.5	1.5	0.8	2.46
7215DB	7215DF	7215DT	75	130	50	1.5	1	129	130	4600	5800	84.2	34.2	83.5	80.5	121.5	124.5	1.5	0.8	2.46
7216BDB	7216BDF	7216BDT	80	140	52	2	1	125	130	3200	4300	118.5	66.3	90	85.5	13	134.5	2	1	3.26
7216CDB	7216CDF	7216CDT	80	140	52	2	1	151	155	5900	7900	55.5	3.5	90	85.5	0	134.5	2	1	3.2
7216DB	7216DF	7216DT	80	140	52	2	1	139	143	4300	5400	89.5	37.5	90	85.5	130	134.5	2	1	3.2
7217BDB	7217BDF	7217BDT	85	150	56	2	1	145	152	3000	4000	126.6	70.6	95	90.5	140	144.5	2	1	3.74
