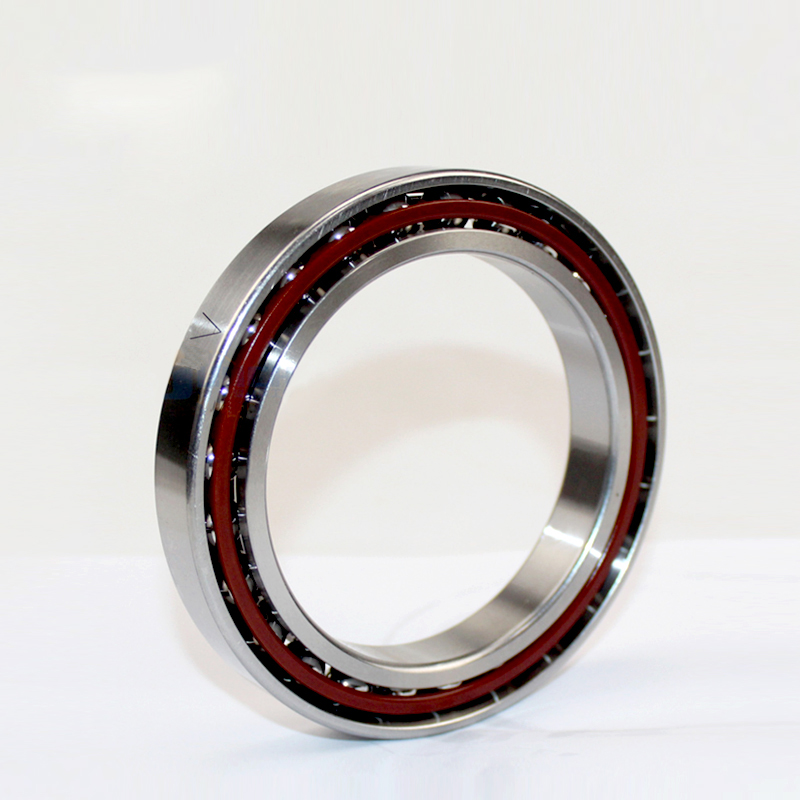

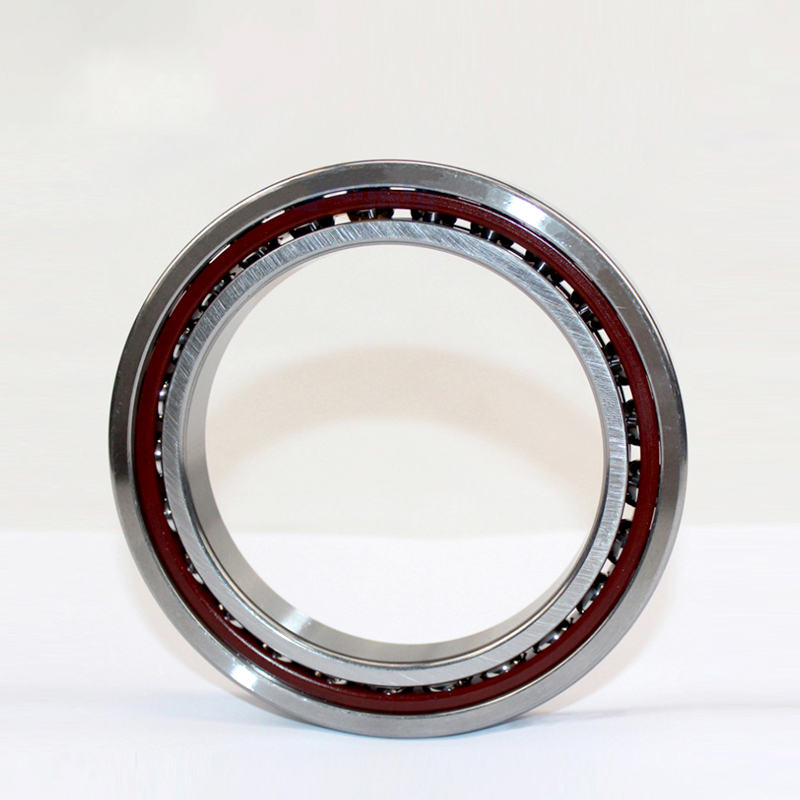

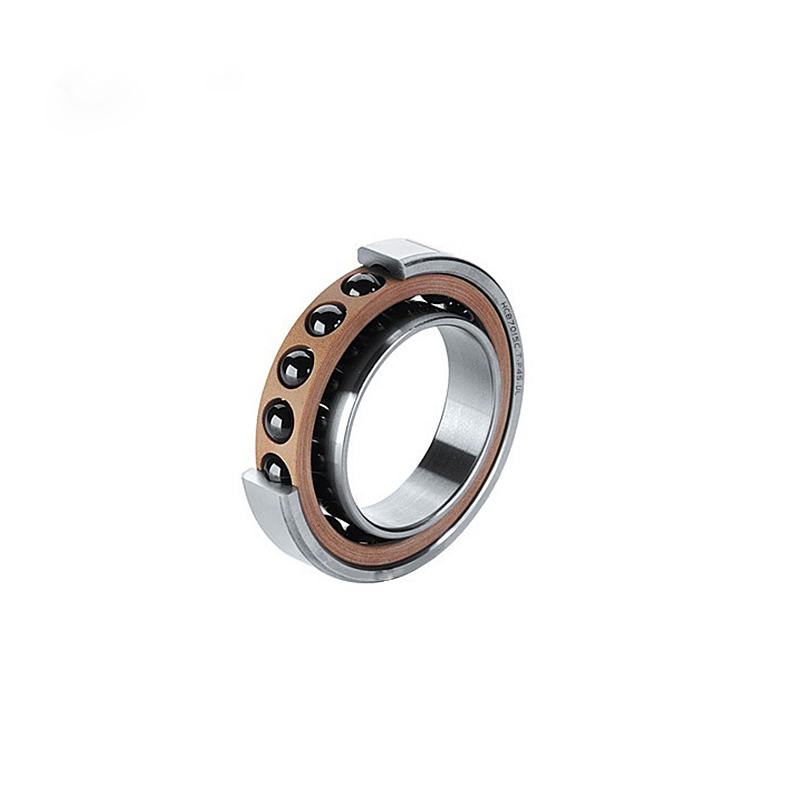

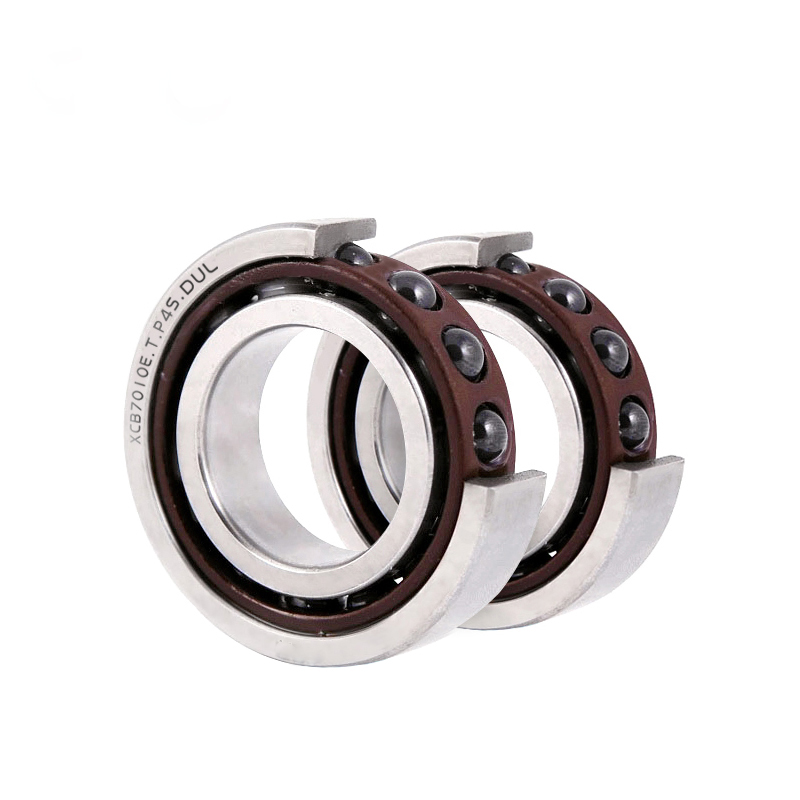

Ceramic Precision Spindle Bearings - HC, HCS types

Product Description

BLS Angular contact ball bearings have raceways in the inner and outer rings that are offset in relation to each other in the direction of the bearing axis. These bearings are designed to accommodate combined loads and reach high speeds. The contact angle α is defined as the angle between the line joining the contact points of the ball and the raceways in the radial plane, and a line perpendicular to the bearing axis. The load carrying capacity of angular contact ball bearings increases with the increasing of contact angle. Angular contact ball bearings are generally used in pairs or even more with spacers.

BLS offers comprehensive ranges of angular contact ball bearings, which are available in:
– Single row and double row
– Open and sealed types
– Contact angle of 15, 30 or 40 degree
– Chrome steel, ceramic or hybrid materials
– Polyamide, steel and brass cage assemblies

Inquire Now Next Product

Product Details

Deep Groove Ball Bearings

I have all the models you need, these are just some of them, please contact us now

Bearing Code	Dimensions						Mass	Load rating		Speed		dimensions
	d	D	B	rsmin	r1smin	a	(kg)	Cr	Cor	Grease	Oil	da h12	Da H12	ramax
	mm	mm	mm	mm	mm	mm		KN	KN	rpm	rpm	mm	mm	mm
HCB7000C.2RSD.T.P4S.UL	10	26	8	0.3	0.3	6	0.02	2.9	1.43	80000		12.5	23.5	0.3
HCB7000C.T.P4S.UL	10	26	8	0.3	0.3	6	0.02	2.9	1.43	80000	130000	12.5	23.5	0.3
HCB7000E.2RSD.T.P4S.UL	10	26	8	0.3	0.3	8	0.02	2.8	1.4	67000		12.5	23.5	0.3
HCB7000E.T.P4S.UL	10	26	8	0.3	0.3	8	0.02	2.8	1.4	67000	100000	12.5	23.5	0.3
HCB7001C.2RSD.T.P4S.UL	12	28	8	0.3	0.3	7	0.02	3.25	1.8	70000		16.5	25.5	0.3
HCB7001C.T.P4S.UL	12	28	8	0.3	0.3	7	0.02	3.25	1.8	70000	110000	16.5	25.5	0.3
HCB7001E.2RSD.T.P4S.UL	12	28	8	0.3	0.3	9	0.02	3.15	1.73	60000		16.5	25.5	0.3
HCB7001E.T.P4S.UL	12	28	8	0.3	0.3	9	0.02	3.15	1.73	60000	90000	16.5	25.5	0.3
HCB7002C.2RSD.T.P4S.UL	15	32	9	0.3	0.3	8	0.03	4.3	2.36	60000		19	29	0.3
HCB7002C.T.P4S.UL	15	32	9	0.3	0.3	8	0.03	4.3	2.36	60000	90000	19	29	0.3
HCB7002E.2RSD.T.P4S.UL	15	32	9	0.3	0.3	10	0.03	4.15	2.24	50000		19	29	0.3
HCB7002E.T.P4S.UL	15	32	9	0.3	0.3	10	0.03	4.15	2.24	50000	75000	19	29	0.3
HCB7003C.2RSD.T.P4S.UL	17	35	10	0.3	0.3	9	0.03	6	3.45	53000		21	32	0.3
HCB7003C.T.P4S.UL	17	35	10	0.3	0.3	9	0.03	6	3.45	53000	80000	21	32	0.3
HCB7003E.2RSD.T.P4S.UL	17	35	10	0.3	0.3	11	0.03	5.7	3.25	45000		21	32	0.3
HCB7003E.T.P4S.UL	17	35	10	0.3	0.3	11	0.03	5.7	3.25	45000	67000	21	32	0.3
HCB7004C.2RSD.T.P4S.UL	20	42	12	0.6	0.6	10	0.06	7.2	4.15	45000		25	37	0.6
HCB7004C.T.P4S.UL	20	42	12	0.6	0.6	10	0.06	7.2	4.15	45000	67000	25	37	0.6
HCB7004E.2RSD.T.P4S.UL	20	42	12	0.6	0.6	13	0.06	6.95	4	38000		25	37	0.6
HCB7004E.T.P4S.UL	20	42	12	0.6	0.6	13	0.06	6.95	4	38000	56000	25	37	0.6
HCB7005C.2RSD.T.P4S.UL	25	47	12	0.6	0.6	11	0.07	10	6.3	38000		30	42	0.6
HCB7005C.T.P4S.UL	25	47	12	0.6	0.6	11	0.07	10	6.3	38000	56000	30	42	0.6
HCB7005E.2RSD.T.P4S.UL	25	47	12	0.6	0.6	14	0.07	9.5	6	34000		30	42	0.6
HCB7005E.T.P4S.UL	25	47	12	0.6	0.6	14	0.07	9.5	6	34000	50000	30	42	0.6
HCB7006C.2RSD.T.P4S.UL	30	55	13	1	1	12	0.1	10.4	7.2	32000		36	49	1
HCB7006C.T.P4S.UL	30	55	13	1	1	12	0.1	10.4	7.2	32000	48000	36	49	1
HCB7006E.2RSD.T.P4S.UL	30	55	13	1	1	17	0.1	10	6.8	28000		36	49	1
HCB7006E.T.P4S.UL	30	55	13	1	1	17	0.1	10	6.8	28000	43000	36	49	1
HCB7007C.2RSD.T.P4S.UL	35	62	14	1	1	14	0.14	13.2	9.5	28000		41	56	1
HCB7007C.T.P4S.UL	35	62	14	1	1	14	0.14	13.2	9.5	28000	43000	41	56	1
HCB7007E.2RSD.T.P4S.UL	35	62	14	1	1	18	0.14	12.5	9	24000		41	56	1
HCB7007E.T.P4S.UL	35	62	14	1	1	18	0.14	12.5	9	24000	38000	41	56	1
HCB7008C.2RSD.T.P4S.UL	40	68	15	1	1	15	0.18	14.3	11	26000		46	62	1
HCB7008C.T.P4S.UL	40	68	15	1	1	15	0.18	14.3	11	26000	40000	46	62	1
HCB7008E.2RSD.T.P4S.UL	40	68	15	1	1	20	0.18	13.4	10.6	22000		46	62	1
HCB7008E.T.P4S.UL	40	68	15	1	1	20	0.18	13.4	10.6	22000	36000	46	62	1
HCB7009C.2RSD.T.P4S.UL	45	75	16	1	1	16	0.2	19	14.6	24000		51	69	1
HCB7009C.T.P4S.UL	45	75	16	1	1	16	0.2	19	14.6	24000	38000	51	69	1
HCB7009E.2RSD.T.P4S.UL	45	75	16	1	1	22	0.2	18	14	20000		51	69	1
HCB7009E.T.P4S.UL	45	75	16	1	1	22	0.2	18	14	20000	34000	51	69	1
HCB7010C.2RSD.T.P4S.UL	50	80	16	1	1	17	0.22	19.6	16	22000		56	74	1

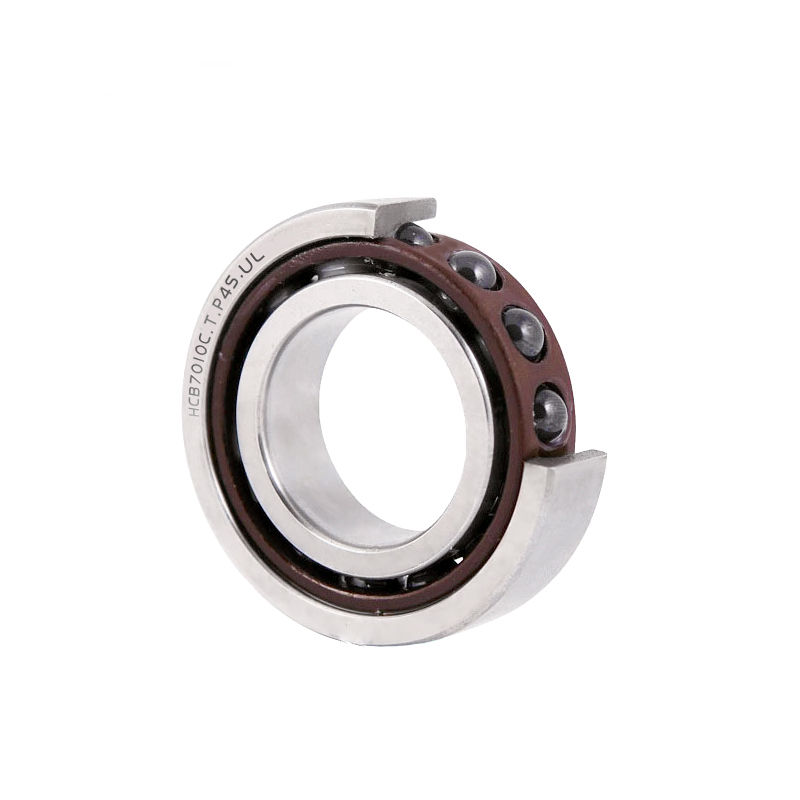

HCB7010C.T.P4S.UL	50	80	16	1	1	17	0.22	19.6	16	22000	36000	56	74	1
HCB7010E.2RSD.T.P4S.UL	50	80	16	1	1	23	0.22	18.6	15.3	18000		56	74	1
HCB7010E.T.P4S.UL	50	80	16	1	1	23	0.22	18.6	15.3	18000	30000	56	74	1
HCB7011C.2RSD.T.P4S.UL	55	90	18	1.1	1.1	19	0.33	26	21.6	19000		62	83	1
HCB7011C.T.P4S.UL	55	90	18	1.1	1.1	19	0.33	26	21.6	19000	32000	62	83	1
HCB7011E.2RSD.T.P4S.UL	55	90	18	1.1	1.1	26	0.33	25	20.4	17000		62	83	1
HCB7011E.T.P4S.UL	55	90	18	1.1	1.1	26	0.33	25	20.4	17000	28000	62	83	1
HCB7012C.2RSD.T.P4S.UL	60	95	18	1.1	1.1	19	0.35	27	23.2	18000		67	88	1
HCB7012C.T.P4S.UL	60	95	18	1.1	1.1	19	0.35	27	23.2	18000	30000	67	88	1
HCB7012E.2RSD.T.P4S.UL	60	95	18	1.1	1.1	27	0.35	25.5	22	15000		67	88	1
HCB7012E.T.P4S.UL	60	95	18	1.1	1.1	27	0.35	25.5	22	15000	24000	67	88	1
HCB7013C.2RSD.T.P4S.UL	65	100	18	1.1	1.1	20	0.37	27.5	24.5	17000		72	93	1
HCB7013C.T.P4S.UL	65	100	18	1.1	1.1	20	0.37	27.5	24.5	17000	28000	72	93	1
HCB7013E.2RSD.T.P4S.UL	65	100	18	1.1	1.1	28	0.37	26	23.6	15000		72	93	1
HCB7013E.T.P4S.UL	65	100	18	1.1	1.1	28	0.37	26	23.6	15000	24000	72	93	1
HCB7014C.2RSD.T.P4S.UL	70	110	20	1.1	1.1	22	0.52	34	30	16000		77	102	1
HCB7014C.T.P4S.UL	70	110	20	1.1	1.1	22	0.52	34	30	16000	26000	77	102	1
HCB7014E.2RSD.T.P4S.UL	70	110	20	1.1	1.1	31	0.52	32.5	29	13000		77	102	1
HCB7014E.T.P4S.UL	70	110	20	1.1	1.1	31	0.52	32.5	29	13000	20000	77	102	1
HCB7015C.2RSD.T.P4S.UL	75	115	20	1.1	1.1	23	0.55	35.5	32.5	15000		82	107	1
HCB7015C.T.P4S.UL	75	115	20	1.1	1.1	23	0.55	35.5	32.5	15000	24000	82	107	1
HCB7015E.2RSD.T.P4S.UL	75	115	20	1.1	1.1	32	0.55	33.5	30.5	13000		82	107	1
HCB7015E.T.P4S.UL	75	115	20	1.1	1.1	32	0.55	33.5	30.5	13000	20000	82	107	1
HCB7016C.2RSD.T.P4S.UL	80	125	22	1.1	1.1	25	0.73	44	40.5	14000		88	117	1
HCB7016C.T.P4S.UL	80	125	22	1.1	1.1	25	0.73	44	40.5	14000	22000	88	117	1
HCB7016E.2RSD.T.P4S.UL	80	125	22	1.1	1.1	35	0.73	41.5	39	12000		88	117	1
HCB7016E.T.P4S.UL	80	125	22	1.1	1.1	35	0.73	41.5	39	12000	19000	88	117	1
HCB7017C.2RSD.T.P4S.UL	85	130	22	1.1	1.1	25	0.77	45	43	13000		96	122	1
HCB7017C.T.P4S.UL	85	130	22	1.1	1.1	25	0.77	45	43	13000	20000	96	122	1
HCB7017E.2RSD.T.P4S.UL	85	130	22	1.1	1.1	36	0.77	42.5	40.5	11000		96	122	1
HCB7017E.T.P4S.UL	85	130	22	1.1	1.1	36	0.77	42.5	40.5	11000	18000	96	122	1
HCB7018C.2RSD.T.P4S.UL	90	140	24	1.5	1.5	27	1	53	50	12000		100	131	1.5
HCB7018C.T.P4S.UL	90	140	24	1.5	1.5	27	1	53	50	12000	19000	100	131	1.5
HCB7018E.2RSD.T.P4S.UL	90	140	24	1.5	1.5	39	1	50	47.5	10000		100	131	1.5
HCB7018E.T.P4S.UL	90	140	24	1.5	1.5	39	1	50	47.5	10000	17000	100	131	1.5
HCB7019C.2RSD.T.P4S.UL	95	145	24	1.5	1.5	28	1	54	53	11000		105	136	1.5
HCB7019C.T.P4S.UL	95	145	24	1.5	1.5	28	1	54	53	11000	18000	105	136	1.5
HCB7019E.2RSD.T.P4S.UL	95	145	24	1.5	1.5	40	1	51	51	9500		105	136	1.5
HCB7019E.T.P4S.UL	95	145	24	1.5	1.5	40	1	51	51	9500	16000	105	136	1.5
HCB7020C.2RSD.T.P4S.UL	100	150	24	1.5	1.5	29	1.08	56	56	11000		107	133	0.6
HCB7020C.T.P4S.UL	100	150	24	1.5	1.5	29	1.08	56	56	11000	18000	107	133	0.6
HCB7020E.2RSD.T.P4S.UL	100	150	24	1.5	1.5	41	1.08	53	53	9000		107	133	0.6
HCB7020E.T.P4S.UL	100	150	24	1.5	1.5	41	1.08	53	53	9000	15000	107	133	0.6
HCB7021C.2RSD.T.P4S.UL	105	160	26	2	2	31	1.44	57	60	10000		116	150	2
HCB7021C.T.P4S.UL	105	160	26	2	2	31	1.44	57	60	10000	16000	116	150	2
HCB7021E.2RSD.T.P4S.UL	105	160	26	2	2	44	1.44	54	57	8500		116	150	2
HCB7021E.T.P4S.UL	105	160	26	2	2	44	1.44	54	57	8500	14000	116	150	2
HCB7022C.2RSD.T.P4S.UL	110	170	28	2	2	33	1.69	75	76.5	9500		121	159	2
HCB7022C.T.P4S.UL	110	170	28	2	2	33	1.69	75	76.5	9500	16000	121	159	2
HCB7022E.2RSD.T.P4S.UL	110	170	28	2	2	47	1.69	72	72	8000		121	159	2
HCB7022E.T.P4S.UL	110	170	28	2	2	47	1.69	72	72	8000	13000	121	159	2
HCB7024C.2RSD.T.P4S.UL	120	180	28	2	2	34	1.8	78	81.5	8500		131	169	2
HCB7024C.T.P4S.UL	120	180	28	2	2	34	1.8	78	81.5	8500	14000	131	169	2
HCB7024E.2RSD.T.P4S.UL	120	180	28	2	2	49	1.8	73.5	76.5	7500		131	169	2
HCB7024E.T.P4S.UL	120	180	28	2	2	49	1.8	73.5	76.5	7500	12000	131	169	2
HCB7026C.2RSD.T.P4S.UL	130	200	33	2	2	39	2.62	100	104	7500		142	189	2
HCB7026C.T.P4S.UL	130	200	33	2	2	39	2.62	100	104	7500	12000	142	189	2
HCB7026E.2RSD.T.P4S.UL	130	200	33	2	2	55	2.62	95	98	6700		142	189	2
HCB7026E.T.P4S.UL	130	200	33	2	2	55	2.62	95	98	6700	10000	142	189	2
HCB7028C.2RSD.T.P4S.UL	140	210	33	2	2	40	2.9	102	110	7000		152	199	2
HCB7028C.T.P4S.UL	140	210	33	2	2	40	2.9	102	110	7000	11000	152	199	2
HCB7028E.2RSD.T.P4S.UL	140	210	33	2	2	57	2.9	96.5	104	6300		152	199	2
HCB7028E.T.P4S.UL	140	210	33	2	2	57	2.9	96.5	104	6300	9500	152	199	2
HCB71900C.2RSD.T.P4S.UL	10	22	6	0.3	0.15	5	0.01	2.08	1.06	90000		12	19.5	0.3
HCB71900C.T.P4S.UL	10	22	6	0.3	0.15	5	0.01	2.08	1.06	90000	150000	12	19.5	0.3
HCB71900E.2RSD.T.P4S.UL	10	22	6	0.3	0.15	7	0.01	2	1	75000		12	19.5	0.3
HCB71900E.T.P4S.UL	10	22	6	0.3	0.15	7	0.01	2	1	75000	100000	12	19.5	0.3
HCB71901C.2RSD.T.P4S.UL	12	24	6	0.3	0.15	5	0.01	2.32	1.29	80000		15	21.5	0.3
HCB71901C.T.P4S.UL	12	24	6	0.3	0.15	5	0.01	2.32	1.29	80000	130000	15	21.5	0.3
HCB71901E.2RSD.T.P4S.UL	12	24	6	0.3	0.15	7	0.01	2.2	1.22	67000		15	21.5	0.3
HCB71901E.T.P4S.UL	12	24	6	0.3	0.15	7	0.01	2.2	1.22	67000	100000	15	21.5	0.3
HCB71902C.2RSD.T.P4S.UL	15	28	7	0.3	0.15	6	0.01	3.45	2	63000		18	25.5	0.3
HCB71902C.T.P4S.UL	15	28	7	0.3	0.15	6	0.01	3.45	2	63000	95000	18	25.5	0.3
HCB71902E.2RSD.T.P4S.UL	15	28	7	0.3	0.15	9	0.01	3.35	1.93	56000		18	25.5	0.3
HCB71902E.T.P4S.UL	15	28	7	0.3	0.15	9	0.01	3.35	1.93	56000	85000	18	25.5	0.3
HCB71903C.2RSD.T.P4S.UL	17	30	7	0.3	0.15	7	0.02	3.65	2.2	60000		20	27.5	0.3
HCB71903C.T.P4S.UL	17	30	7	0.3	0.15	7	0.02	3.65	2.2	60000	90000	20	27.5	0.3
HCB71903E.2RSD.T.P4S.UL	17	30	7	0.3	0.15	9	0.02	3.45	2.08	50000		20	27.5	0.3
HCB71903E.T.P4S.UL	17	30	7	0.3	0.15	9	0.02	3.45	2.08	50000	75000	20	27.5	0.3
HCB71904C.2RSD.T.P4S.UL	20	37	9	0.3	0.15	8	0.03	5	3.2	50000		24	33.5	0.3
HCB71904C.T.P4S.UL	20	37	9	0.3	0.15	8	0.03	5	3.2	50000	75000	24	33.5	0.3
HCB71904E.2RSD.T.P4S.UL	20	37	9	0.3	0.15	11	0.03	4.8	3.05	43000		24	33.5	0.3
HCB71904E.T.P4S.UL	20	37	9	0.3	0.15	11	0.03	4.8	3.05	43000	63000	24	33.5	0.3
HCB71905C.2RSD.T.P4S.UL	25	42	9	0.3	0.15	9	0.04	5.2	3.55	43000		29	38.5	0.3
HCB71905C.T.P4S.UL	25	42	9	0.3	0.15	9	0.04	5.2	3.55	43000	63000	29	38.5	0.3
HCB71905E.2RSD.T.P4S.UL	25	42	9	0.3	0.15	12	0.04	5.3	3.8	36000		29	38.5	0.3
HCB71905E.T.P4S.UL	25	42	9	0.3	0.15	12	0.04	5.3	3.8	36000	53000	29	38.5	0.3
HCB71906C.2RSD.T.P4S.UL	30	47	9	0.3	0.15	10	0.05	6	4.65	36000		34	43.5	0.3
HCB71906C.T.P4S.UL	30	47	9	0.3	0.15	10	0.05	6	4.65	36000	53000	34	43.5	0.3
HCB71906E.2RSD.T.P4S.UL	30	47	9	0.3	0.15	14	0.05	5.6	4.4	32000		34	43.5	0.3
HCB71906E.T.P4S.UL	30	47	9	0.3	0.15	14	0.05	5.6	4.4	32000	48000	34	43.5	0.3
HCB71907C.2RSD.T.P4S.UL	35	55	10	0.6	0.3	11	0.07	8.15	6.55	30000		40	51.5	0.6
HCB71907C.T.P4S.UL	35	55	10	0.6	0.3	11	0.07	8.15	6.55	30000	45000	40	51.5	0.6
HCB71907E.2RSD.T.P4S.UL	35	55	10	0.6	0.6	16	0.07	7.65	6.3	26000		40	51.5	0.6
HCB71907E.T.P4S.UL	35	55	10	0.6	0.6	16	0.07	7.65	6.3	26000	40000	40	51.5	0.6
HCB71908C.2RSD.T.P4S.UL	40	62	12	0.6	0.3	13	0.1	12.2	9.65	28000		45	58.5	0.6
HCB71908C.T.P4S.UL	40	62	12	0.6	0.3	13	0.1	12.2	9.65	28000	43000	45	58.5	0.6
HCB71908E.2RSD.T.P4S.UL	40	62	12	0.6	0.3	18	0.1	11.4	9.15	24000		45	58.5	0.6
HCB71908E.T.P4S.UL	40	62	12	0.6	0.3	18	0.1	11.4	9.15	24000	38000	45	58.5	0.6
HCB71909C.2RSD.T.P4S.UL	45	68	12	0.6	0.3	14	0.11	12.9	10.8	24000		50	63.5	0.6
HCB71909C.T.P4S.UL	45	68	12	0.6	0.3	14	0.11	12.9	10.8	24000	38000	50	63.5	0.6
HCB71909E.2RSD.T.P4S.UL	45	68	12	0.6	0.3	19	0.11	12.2	10.4	22000		50	63.5	0.6
HCB71909E.T.P4S.UL	45	68	12	0.6	0.3	19	0.11	12.2	10.4	22000	36000	50	63.5	0.6
HCB71910C.2RSD.T.P4S.UL	50	72	12	0.6	0.3	20	0.11	12.2	11	20000	34000	55	67.5	0.6
HCB71910E.2RSD.T.P4S.UL	50	72	12	0.6	0.3	14	0.11	13.2	11.6	22000		55	67.5	0.6
HCB71910E.2RSD.T.P4S.UL	50	72	12	0.6	0.3	20	0.11	12.2	11	20000		55	67.5	0.6
HCB71910E.T.P4S.UL	50	72	12	0.6	0.3	14	0.11	13.2	11.6	22000	36000	55	67.5	0.6
HCB71911C.2RSD.T.P4S.UL	55	80	13	1	0.3	16	0.15	16	14.3	20000		60	75.5	0.6
HCB71911C.T.P4S.UL	55	80	13	1	0.3	16	0.15	16	14.3	20000	34000	60	75.5	0.6
HCB71911E.2RSD.T.P4S.UL	55	80	13	1	0.3	22	0.15	15	13.4	18000		60	75.5	0.6
HCB71911E.T.P4S.UL	55	80	13	1	0.3	22	0.15	15	13.4	18000	30000	60	75.5	0.6
HCB71912C.2RSD.T.P4S.UL	60	85	13	1	0.3	16	0.16	16.6	16	19000		65	80.5	0.6
HCB71912C.T.P4S.UL	60	85	13	1	0.3	16	0.16	16.6	16	19000	32000	65	80.5	0.6
HCB71912E.2RSD.T.P4S.UL	60	85	13	1	0.3	23	0.16	15.6	15	17000		65	80.5	0.6
HCB71912E.T.P4S.UL	60	85	13	1	0.3	23	0.16	15.6	15	17000	28000	65	80.5	0.6
HCB71913C.2RSD.T.P4S.UL	65	90	13	1	0.3	17	0.17	17	16.6	15000		70	85.5	0.6
HCB71913C.T.P4S.UL	65	90	13	1	0.3	17	0.17	17	16.6	15000	24000	70	85.5	0.6
HCB71913E.2RSD.T.P4S.UL	65	90	13	1	0.3	17	0.17	16	15	15000		70	85.5	0.6
HCB71913E.T.P4S.UL	65	90	13	1	0.3	17	0.17	16	15	15000	24000	70	85.5	0.6
HCB71914C.2RSD.T.P4S.UL	70	100	16	1	0.3	19	0.28	23.2	22.8	16000		76	94.5	0.6
HCB71914C.T.P4S.UL	70	100	16	1	0.3	19	0.28	23.2	22.8	16000	26000	76	94.5	0.6
HCB71914E.2RSD.T.P4S.UL	70	100	16	1	0.3	28	0.28	22	21.6	14000		76	94.5	0.6
HCB71914E.T.P4S.UL	70	100	16	1	0.3	28	0.28	22	21.6	14000	22000	76	94.5	0.6
HCB71915C.2RSD.T.P4S.UL	75	105	16	1	0.3	20	0.3	23.6	24	16000		81	99	0.6
HCB71915C.T.P4S.UL	75	105	16	1	0.3	20	0.3	23.6	24	16000	26000	81	99	0.6
HCB71915E.2RSD.T.P4S.UL	75	105	16	1	0.3	29	0.3	22	22.8	13000		81	99	0.6
HCB71915E.T.P4S.UL	75	105	16	1	0.3	29	0.3	22	22.8	13000	20000	81	99	0.6
HCB71916C.2RSD.T.P4S.UL	80	110	16	1	0.3	21	0.31	24	25	15000		86	104	0.6
HCB71916C.T.P4S.UL	80	110	16	1	0.3	21	0.31	24	25	15000	24000	86	104	0.6
HCB71916E.2RSD.T.P4S.UL	80	110	16	1	0.3	30	0.31	22.4	23.6	13000		86	104	0.6
HCB71916E.T.P4S.UL	80	110	16	1	0.3	30	0.31	22.4	23.6	13000	20000	86	104	0.6
HCB71917C.2RSD.T.P4S.UL	85	120	18	1	0.3	23	0.44	31	32.5	14000		92	114	0.6
HCB71917C.T.P4S.UL	85	120	18	1	0.3	23	0.44	31	32.5	14000	22000	92	114	0.6
HCB71917E.2RSD.T.P4S.UL	85	120	18	1	0.3	33	0.44	29	30.5	12000		92	114	0.6
HCB71917E.T.P4S.UL	85	120	18	1	0.3	33	0.44	29	30.5	12000	19000	92	114	0.6
HCB71918C.2RSD.T.P4S.UL	90	125	18	1.1	0.6	23	0.46	31.5	34	13000		97	119	0.6
HCB71918C.T.P4S.UL	90	125	18	1.1	0.6	23	0.46	31.5	34	13000	20000	97	119	0.6
HCB71918E.2RSD.T.P4S.UL	90	125	18	1.1	0.6	34	0.46	30	32	11000		97	119	0.6
HCB71918E.T.P4S.UL	90	125	18	1.1	0.6	34	0.46	30	32	11000	18000	97	119	0.6
HCB71919C.2RSD.T.P4S.UL	95	130	18	1.1	0.6	24	0.5	32	35.5	12000		102	124	0.6
HCB71919C.T.P4S.UL	95	130	18	1.1	0.6	24	0.5	32	35.5	12000	19000	102	124	0.6
HCB71919E.2RSD.T.P4S.UL	95	130	18	1.1	0.6	35	0.5	30.5	33.5	10000		102	124	0.6
HCB71919E.T.P4S.UL	95	130	18	1.1	0.6	35	0.5	30.5	33.5	10000	17000	102	124	0.6
HCB71920C.2RSD.T.P4S.UL	100	140	20	1.1	0.6	26	0.66	40.5	44	11000		107	133	0.6
HCB71920C.T.P4S.UL	100	140	20	1.1	0.6	26	0.66	40.5	44	11000	18000	107	133	0.6
HCB71920E.2RSD.T.P4S.UL	100	140	20	1.1	0.6	38	0.66	38	42.5	9500		107	133	0.6
HCB71920E.T.P4S.UL	100	140	20	1.1	0.6	38	0.66	38	42.5	9500	16000	107	133	0.6
HCB71921C.2RSD.T.P4S.UL	105	145	20	1.1	0.6	27	0.7	40	45	11000		112	138	0.6
HCB71921C.T.P4S.UL	105	145	20	1.1	0.6	27	0.7	40	45	11000	18000	112	138	0.6
HCB71921E.2RSD.T.P4S.UL	105	145	20	1.1	0.6	39	0.7	38	42.5	9000		112	138	0.6
HCB71921E.T.P4S.UL	105	145	20	1.1	0.6	39	0.7	38	42.5	9000	15000	112	138	0.6
HCB71922C.2RSD.T.P4S.UL	110	150	20	1.1	0.6	27	0.72	40.5	46.5	10000		117	143	0.6
HCB71922C.T.P4S.UL	110	150	20	1.1	0.6	27	0.72	40.5	46.5	10000	17000	117	143	0.6
HCB71922E.2RSD.T.P4S.UL	110	150	20	1.1	0.6	40	0.72	39	44	9000		117	143	0.6
HCB71922E.T.P4S.UL	110	150	20	1.1	0.6	40	0.72	39	44	9000	15000	117	143	0.6
HCB71924C.2RSD.T.P4S.UL	120	165	22	1.1	0.6	30	1	51	58.5	9000	15000	128	157	0.6
HCB71924C.T.P4S.UL	120	165	22	1.1	0.6	30	1	51	58.5	9000	15000	128	157	0.6
HCB71924E.2RSD.T.P4S.UL	120	165	22	1.1	0.6	44	1	48	55	8000	13000	128	157	0.6
HCB71924E.T.P4S.UL	120	165	22	1.1	0.6	44	1	48	55	8000	13000	128	157	0.6
HCB71926C.2RSD.T.P4S.UL	130	180	24	1.5	0.6	33	1.34	60	69.5	8500		139	171	0.6
HCB71926C.T.P4S.UL	130	180	24	1.5	0.6	33	1.34	60	69.5	8500	14000	139	171	0.6
HCB71926E.2RSD.T.P4S.UL	130	180	24	1.5	0.6	48	1.34	45.5	53	7000		139	171	0.6
HCB71926E.T.P4S.UL	130	180	24	1.5	0.6	48	1.34	45.5	53	7000	11000	139	171	0.6
HCB71928C.2RSD.T.P4S.UL	140	190	24	1.5	0.6	34	1.42	62	76.5	7500		149	181	0.6
HCB71928C.T.P4S.UL	140	190	24	1.5	0.6	34	1.42	62	76.5	7500	12000	149	181	0.6
HCB71928E.2RSD.T.P4S.UL	140	190	24	1.5	0.6	51	1.42	47.5	57	6700		149	181	0.6
HCB71928E.T.P4S.UL	140	190	24	1.5	0.6	51	1.42	47.5	57	6700	10000	149	181	0.6
HCB7200C.2RSD.T.P4S.UL	10	30	9	0.6	0.6	7	0.03	4	2.04	67000		14.5	25.5	0.6
HCB7200C.T.P4S.UL	10	30	9	0.6	0.6	7	0.03	4	2.04	67000	100000	14.5	25.5	0.6
HCB7200E.2RSD.T.P4S.UL	10	30	9	0.6	0.6	9	0.03	3.9	1.96	60000		14.5	25.5	0.6
HCB7200E.T.P4S.UL	10	30	9	0.6	0.6	9	0.03	3.9	1.96	60000	90000	14.5	25.5	0.6
HCB7201C.2RSD.T.P4S.UL	12	32	10	0.6	0.6	8	0.03	5.3	2.7	63000		16.5	27.5	0.6
HCB7201C.T.P4S.UL	12	32	10	0.6	0.6	8	0.03	5.3	2.7	63000	95000	16.5	27.5	0.6
HCB7201E.2RSD.T.P4S.UL	12	32	10	0.6	0.6	10	0.03	5.1	2.6	53000		16.5	27.5	0.6
HCB7201E.T.P4S.UL	12	32	10	0.6	0.6	10	0.03	5.1	2.6	53000	80000	16.5	27.5	0.6
HCB7202C.2RSD.T.P4S.UL	15	35	11	0.6	0.6	9	0.04	6.7	3.45	56000		19.5	30.5	0.6
HCB7202C.T.P4S.UL	15	35	11	0.6	0.6	9	0.04	6.7	3.45	56000	85000	19.5	30.5	0.6
HCB7202E.2RSD.T.P4S.UL	15	35	11	0.6	0.6	11	0.04	6.4	3.35	48000		19.5	30.5	0.6
HCB7202E.T.P4S.UL	15	35	11	0.6	0.6	11	0.04	6.4	3.35	48000	70000	19.5	30.5	0.6
HCB7203C.2RSD.T.P4S.UL	17	40	12	0.6	0.6	10	0.06	7.5	4.05	50000		22.5	34.5	0.6
HCB7203C.T.P4S.UL	17	40	12	0.6	0.6	10	0.06	7.5	4.05	50000	75000	22.5	34.5	0.6
HCB7203E.2RSD.T.P4S.UL	17	40	12	0.6	0.6	13	0.06	7.2	3.9	43000		22.5	34.5	0.6
HCB7203E.T.P4S.UL	17	40	12	0.6	0.6	13	0.06	7.2	3.9	43000	63000	22.5	34.5	0.6
HCB7204C.2RSD.T.P4S.UL	20	47	14	1	1	12	0.09	10	5.6	40000		26.5	40.5	1
HCB7204C.T.P4S.UL	20	47	14	1	1	12	0.09	10	5.6	40000	60000	26.5	40.5	1
HCB7204E.2RSD.T.P4S.UL	20	47	14	1	1	15	0.09	9.65	5.4	36000		26.5	40.5	1
HCB7204E.T.P4S.UL	20	47	14	1	1	15	0.09	9.65	5.4	36000	53000	26.5	40.5	1
HCB7205C.2RSD.T.P4S.UL	25	52	15	1	1	13	0.11	10.8	6.55	36000		31.5	45.5	1
HCB7205C.T.P4S.UL	25	52	15	1	1	13	0.11	10.8	6.55	36000	53000	31.5	45.5	1
HCB7205E.2RSD.T.P4S.UL	25	52	15	1	1	17	0.11	10.4	6.2	32000		31.5	45.5	1
HCB7205E.T.P4S.UL	25	52	15	1	1	17	0.11	10.4	6.2	32000	48000	31.5	45.5	1
HCB7206C.2RSD.T.P4S.UL	30	62	16	1	1	14	0.17	16	10.2	30000		37.5	54.5	1
HCB7206C.T.P4S.UL	30	62	16	1	1	14	0.17	16	10.2	30000	45000	37.5	54.5	1
HCB7206E.2RSD.T.P4S.UL	30	62	16	1	1	19	0.17	15.3	9.8	26000		37.5	54.5	1
HCB7206E.T.P4S.UL	30	62	16	1	1	19	0.17	15.3	9.8	26000	40000	37.5	54.5	1
HCB7207C.2RSD.T.P4S.UL	35	72	17	1.1	1.1	16	0.27	17.6	12.5	26000		44	63	1
HCB7207C.T.P4S.UL	35	72	17	1.1	1.1	16	0.27	17.6	12.5	26000	40000	44	63	1
HCB7207E.2RSD.T.P4S.UL	35	72	17	1.1	1.1	21	0.27	16.6	12	22000		44	63	1
HCB7207E.T.P4S.UL	35	72	17	1.1	1.1	21	0.27	16.6	12	22000	36000	44	63	1
HCB7208C.2RSD.T.P4S.UL	40	80	18	1.1	1.1	17	0.32	22	15.6	24000		48	72	1
HCB7208C.T.P4S.UL	40	80	18	1.1	1.1	17	0.32	22	15.6	24000	38000	48	72	1
HCB7208E.2RSD.T.P4S.UL	40	80	18	1.1	1.1	23	0.32	21.2	15	20000		48	72	1
HCB7208E.T.P4S.UL	40	80	18	1.1	1.1	23	0.32	21.2	15	20000	34000	48	72	1
HCB7209C.2RSD.T.P4S.UL	45	85	19	1.1	1.1	18	0.37	23.2	17.3	22000		52.5	78	1
HCB7209C.T.P4S.UL	45	85	19	1.1	1.1	18	0.37	23.2	17.3	22000	36000	52.5	78	1
HCB7209E.2RSD.T.P4S.UL	45	85	19	1.1	1.1	25	0.37	22	16.3	18000		52.5	78	1
HCB7209E.T.P4S.UL	45	85	19	1.1	1.1	25	0.37	22	16.3	18000	30000	52.5	78	1
HCB7210C.2RSD.T.P4S.UL	50	90	20	1.1	1.1	19	0.38	30	22	20000		57	83	1
HCB7210C.T.P4S.UL	50	90	20	1.1	1.1	19	0.38	30	22	20000	34000	57	83	1
HCB7210E.2RSD.T.P4S.UL	50	90	20	1.1	1.1	26	0.38	28	21.2	17000		57	83	1
HCB7210E.T.P4S.UL	50	90	20	1.1	1.1	26	0.38	28	21.2	17000	28000	57	83	1
HCB7211C.2RSD.T.P4S.UL	55	100	21	1.5	1.5	21	0.55	32	26	18000		63	92	1.5
HCB7211C.T.P4S.UL	55	100	21	1.5	1.5	21	0.55	32	26	18000	30000	63	92	1.5
HCB7211E.2RSD.T.P4S.UL	55	100	21	1.5	1.5	29	0.55	30.5	24.5	15000		63	92	1.5
HCB7211E.T.P4S.UL	55	100	21	1.5	1.5	29	0.55	30.5	24.5	15000	24000	63	92	1.5
HCB7212C.2RSD.T.P4S.UL	60	110	22	1.5	1.5	23	0.69	38	30.5	16000		69.5	101.5	1.5
HCB7212C.T.P4S.UL	60	110	22	1.5	1.5	23	0.69	38	30.5	16000	26000	69.5	101.5	1.5
HCB7212E.2RSD.T.P4S.UL	60	110	22	1.5	1.5	31	0.69	36	29	14000		69.5	101.5	1.5
HCB7212E.T.P4S.UL	60	110	22	1.5	1.5	31	0.69	36	29	14000	22000	69.5	101.5	1.5
HCB7213C.2RSD.T.P4S.UL	65	120	23	1.5	1.5	24	0.86	46.5	37.5	15000		75.5	109.5	1.5
HCB7213C.T.P4S.UL	65	120	23	1.5	1.5	24	0.86	46.5	37.5	15000	24000	75.5	109.5	1.5
HCB7213E.2RSD.T.P4S.UL	65	120	23	1.5	1.5	33	0.86	44	36	13000		75.5	109.5	1.5
HCB7213E.T.P4S.UL	65	120	23	1.5	1.5	33	0.86	44	36	13000	20000	75.5	109.5	1.5
HCB7214C.2RSD.T.P4S.UL	70	125	24	1.5	1.5	25	0.95	48	40.5	14000		80	115	1.5
HCB7214C.T.P4S.UL	70	125	24	1.5	1.5	25	0.95	48	40.5	14000	22000	80	115	1.5
HCB7214E.2RSD.T.P4S.UL	70	125	24	1.5	1.5	35	0.95	45.5	39	12000		80	115	1.5
HCB7214E.T.P4S.UL	70	125	24	1.5	1.5	35	0.95	45.5	39	12000	19000	80	115	1.5
HCB7215C.2RSD.T.P4S.UL	75	130	25	1.5	1.5	26	1.05	50	44	14000		85	120	1.5
HCB7215C.T.P4S.UL	75	130	25	1.5	1.5	26	1.05	50	44	14000	22000	85	120	1.5
HCB7215E.2RSD.T.P4S.UL	75	130	25	1.5	1.5	36	1.05	47.5	41.5	12000		85	120	1.5
HCB7215E.T.P4S.UL	75	130	25	1.5	1.5	36	1.05	47.5	41.5	12000	19000	85	120	1.5

Products Pdf

Tags: Ceramic Precision Spindle Bearings

Inquiry
