| Material | AISI521100 |
| Metric Size | 0.4mm - 100mm |
| Inch Size | 1/64" - 4" |
| Hardness | 60HRC - 66HRC |
| Grade | G5 G10 G16 G20 G24 G28 G40 G60 |
| Hole | Drilling, Threading |
| Surface | Polishing, Satin, Sandblasting |
| Plating | Plating, Painting, Coating |

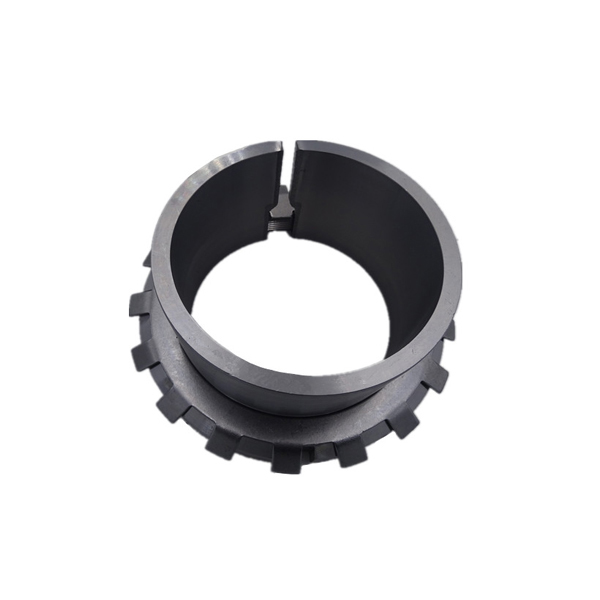

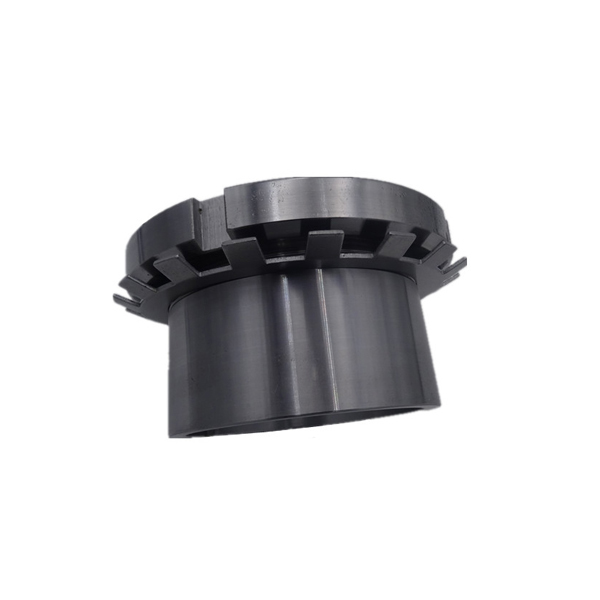

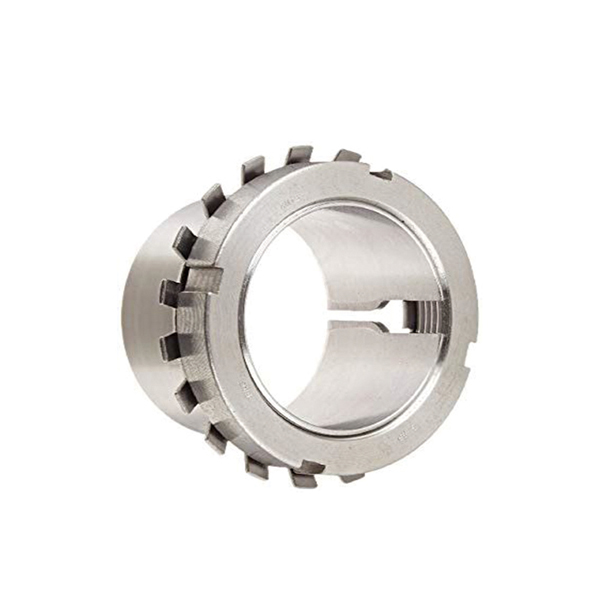

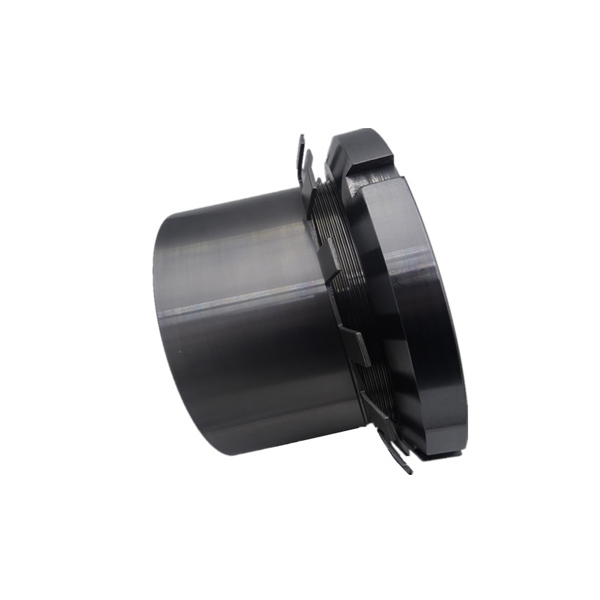

| H3 Series Adapter Sleeve |
| No. | Dimension(mm) | Bearing No. | Weight(kg) |
| d | d1 | B1 | d2 | Spherical Ball Bearing | Spherical Roller Bearing |
| H302 | 15 | 12 | 22 | 25 | 1302K 2202K |
|
|
| H303 | 17 | 14 | 24 | 28 | 1303K 2203K |
|
|
| H304 | 20 | 17 | 28 | 32 | 1304K 2204K | 21304K | 0.04 |
| H305 | 25 | 20 | 29 | 38 | 1305K 2205K | 21305K | 0.071 |
| H306 | 30 | 25 | 31 | 45 | 1306K 2206K | 21306K | 0.095 |
| H307 | 35 | 30 | 35 | 52 | 1307K 2207K | 21307K | 0.14 |
| H308 | 40 | 35 | 36 | 58 | 1308K 2208K | 21308K 22208K | 0.17 |
| H309 | 45 | 40 | 39 | 65 | 1309K 2209K | 21309K 22209K | 0.23 |
| H310 | 50 | 45 | 42 | 70 | 1310K 2210K | 21310K 22210K | 0.27 |
| H311 | 55 | 50 | 45 | 75 | 1311K 2211K | 21311K 22211K | 0.32 |
| H312 | 60 | 55 | 47 | 80 | 1312K 2212K | 21312K 22212K | 0.36 |
| H313 | 65 | 60 | 50 | 85 | 1313K 2213K | 21313K 22213K | 0.42 |
| H314 | 70 | 60 | 52 | 92 | 1314K 2214K | 21314K 22214K | 0.67 |
| H315 | 75 | 65 | 55 | 98 | 1315K 2215K | 21315K 22215K | 0.78 |
| H316 | 80 | 70 | 59 | 105 | 1316K 2216K | 21316K 22216K | 0.95 |
| H317 | 85 | 75 | 63 | 110 | 1317K 2217K | 21317K 22217K | 1.1 |
| H318 | 90 | 80 | 65 | 120 | 1318K 2218K | 21318K 22218K | 1.3 |
| H319 | 95 | 85 | 68 | 125 | 1319K 2219K | 21319K 22219K | 1.4 |
| H320 | 100 | 90 | 71 | 130 | 1320K 2220K | 21320K 22220K | 1.6 |
| H322 | 110 | 100 | 77 | 145 | 1322K 2222K | 21322K 22222K | 2.05 |
1.FREE SAMPLES:
contact us by email or trade manager, we will send the free sampls according to your request.
2. World Class Bearing:We provide our customers with all type of indigenous bearing with world class quality.
3. OEM or Non Stand Bearings: Any requirement for Non standard bearings is Easily Fulfilled by us due to
its vast knowledge and links in the industry.
4. Genuine products With Excellent Quality: Company has always proved the
100% quality products it provides with genuine intent.
5.After Sales Service and technical Assistance: Company provides after sales service and technical assistance
as per the customers requirement and needs.
6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.
7. Cost Saving: We provide long-life, shock-resistant and high reliability bearings with
excellent quality and better performance. Resulting in increased cost saving.
8.Attending customer queries promptly: We believe that if customer are satisfied then it proves our worth well. Customers are always given quick support.
