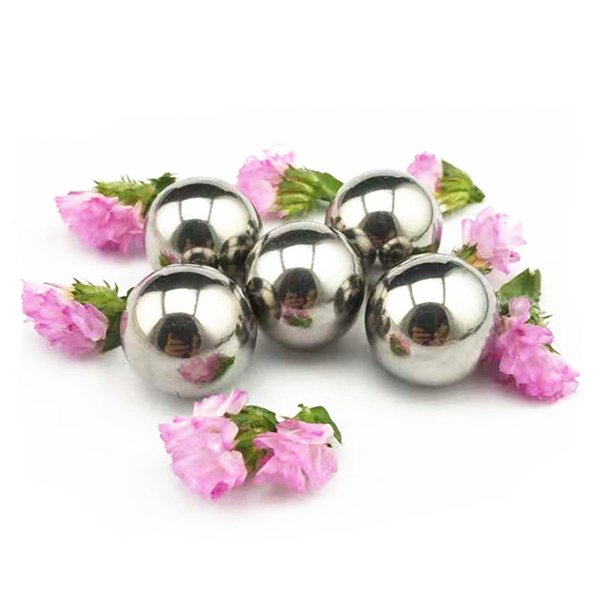

| Material | AISI521100 |
| Metric Size | 0.4mm - 100mm |
| Inch Size | 1/64" - 4" |
| Hardness | 60HRC - 66HRC |
| Grade | G5 G10 G16 G20 G24 G28 G40 G60 |
| Hole | Drilling, Threading |
| Surface | Polishing, Satin, Sandblasting |
| Plating | Plating, Painting, Coating |

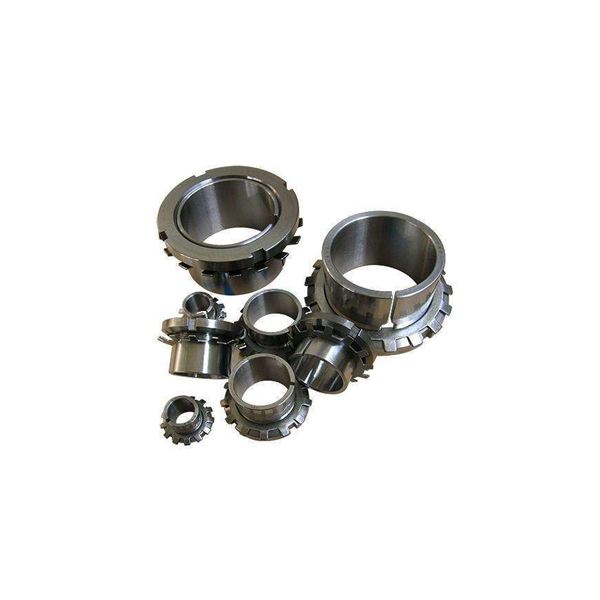

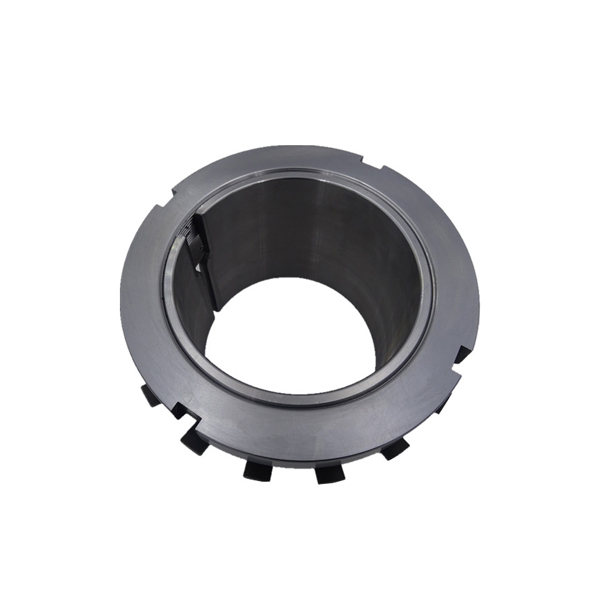

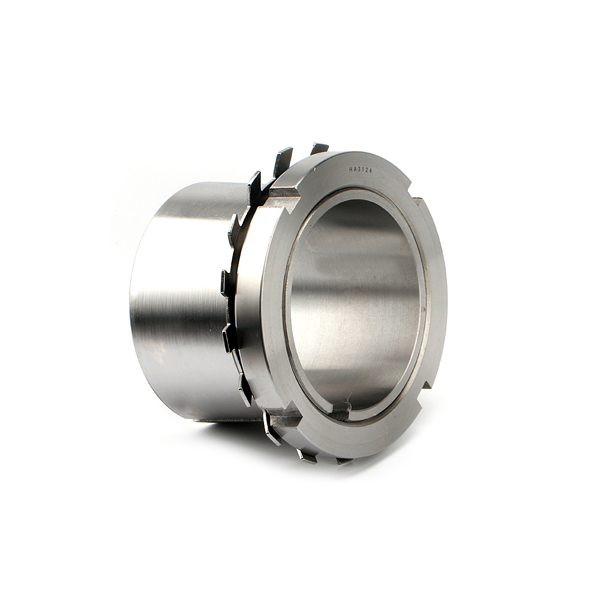

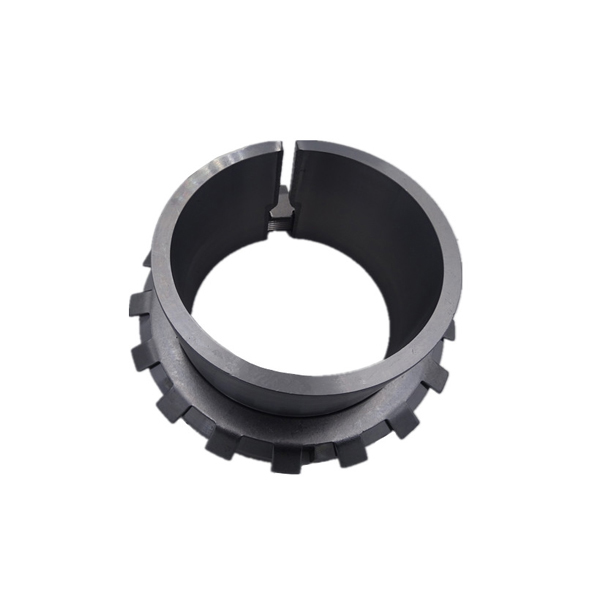

| H31 Series Adapter Sleeve |
| Model | Dimension(mm) | Bearing No. | Weight(kg) |
| d | d1 | B1 | d2 | Spherical roller bearing |
| H3120 | 100 | 90 | 76 | 130 | 23120K |
| 1.8 |
| H3122 | 110 | 100 | 81 | 145 | 23122K | 22222K | 2.1 |
| H3124 | 120 | 110 | 88 | 155 | 23124K | 22224K | 2.5 |
| H3126 | 130 | 115 | 92 | 165 | 23126K | 22226K | 3.45 |
| H3128 | 140 | 125 | 97 | 180 | 23128K | 22228K | 4.1 |
| H3130 | 150 | 135 | 111 | 195 | 23130K | 22230K | 5.25 |
| H3132 | 160 | 140 | 119 | 210 | 23132K | 22232K | 7.25 |
| H3134 | 170 | 150 | 122 | 220 | 23134K | 22234K | 8.1 |
| H3136 | 180 | 160 | 131 | 230 | 23136K | 22236K | 9.15 |
| H3138 | 190 | 170 | 141 | 240 | 23138K | 22238K | 10.5 |
| H3140 | 200 | 180 | 150 | 250 | 23140K | 22240K | 12 |
| H3144 | 220 | 200 | 161 | 280 | 23144K | 22244K | 15 |
| H3148 | 240 | 220 | 172 | 300 | 23148K | 22248K | 16 |
| H3152 | 260 | 240 | 190 | 330 | 23152K | 22252K | 21 |
| H3156 | 280 | 260 | 195 | 350 | 23156K | 22256K | 23 |
| H3160 | 300 | 280 | 208 | 380 | 23160K | 22260K | 29 |
| H3164 | 320 | 300 | 226 | 400 | 23164K | 22264K | 32 |
| H3168 | 340 | 320 | 254 | 440 | 23168K | -- | 50 |
| H3172 | 360 | 340 | 259 | 460 | 23172K | -- | 56 |
| H3176 | 380 | 360 | 264 | 490 | 23176K | -- | 61.5 |
| H3180 | 400 | 380 | 272 | 520 | 23180K | -- | 73 |
| H3184 | 420 | 400 | 304 | 540 | 23184K | -- | 80 |
| H3188 | 440 | 410 | 307 | 560 | 23188K | -- | 95 |
| H3192 | 460 | 430 | 326 | 580 | 23192K | -- | 119 |
| H3196 | 480 | 450 | 335 | 620 | 23196K | -- | 135 |
| H31/500 | 500 | 470 | 356 | 630 | 231/500K | -- | 145 |
| H31/530 | 530 | 500 | 364 | 670 | 231/530K | -- | 161 |
| H31/560 | 560 | 530 | 377 | 710 | 231/560K | -- | 185 |
| H31/600 | 600 | 560 | 399 | 750 | 231/600K | -- | 234 |
| H31/630 | 630 | 600 | 424 | 800 | 231/630K | -- | 254 |
| H31/670 | 670 | 630 | 456 | 850 | 231/670K | -- | 340 |
| H31/710 | 710 | 670 | 467 | 900 | 231/710K | -- | 392 |
| H31/750 | 750 | 710 | 493 | 950 | 231/750K | -- | 451 |
| H31/800 | 800 | 750 | 505 | 1000 | 231/800K | -- | 535 |
| H31/850 | 850 | 800 | 536 | 1060 | 231/850K | -- | 616 |
| H31/900 | 900 | 850 | 557 | 1120 | 231/900K | -- | 677 |
| H31/950 | 950 | 900 | 583 | 1170 | 231/950K | -- | 738 |
| H31/1000 | 1000 | 950 | 609 | 1240 | 231/1000K | -- | 842 |
| H31/1060 | 1060 | 1000 | 622 | 1300 | 231/1060K | -- | 984 |
1.FREE SAMPLES:
contact us by email or trade manager, we will send the free sampls according to your request.
2. World Class Bearing:We provide our customers with all type of indigenous bearing with world class quality.
3. OEM or Non Stand Bearings: Any requirement for Non standard bearings is Easily Fulfilled by us due to
its vast knowledge and links in the industry.
4. Genuine products With Excellent Quality: Company has always proved the
100% quality products it provides with genuine intent.
5.After Sales Service and technical Assistance: Company provides after sales service and technical assistance
as per the customers requirement and needs.
6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.
7. Cost Saving: We provide long-life, shock-resistant and high reliability bearings with
excellent quality and better performance. Resulting in increased cost saving.
8.Attending customer queries promptly: We believe that if customer are satisfied then it proves our worth well. Customers are always given quick support.
