| Material | AISI521100 |
| Metric Size | 0.4mm - 100mm |
| Inch Size | 1/64" - 4" |
| Hardness | 60HRC - 66HRC |
| Grade | G5 G10 G16 G20 G24 G28 G40 G60 |
| Hole | Drilling, Threading |
| Surface | Polishing, Satin, Sandblasting |
| Plating | Plating, Painting, Coating |

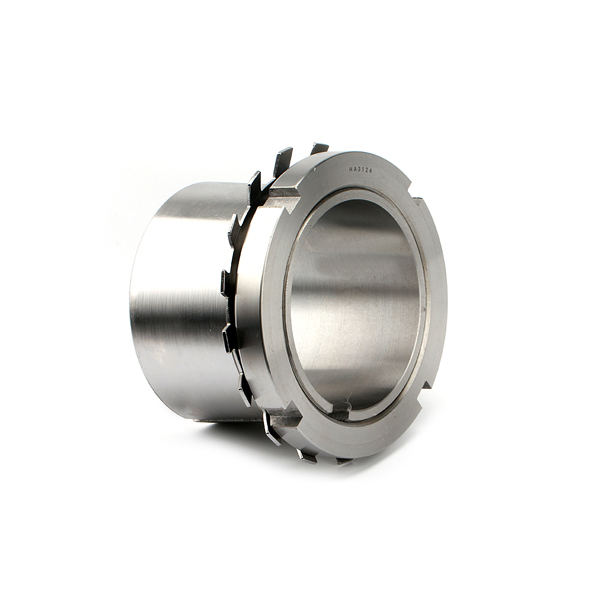

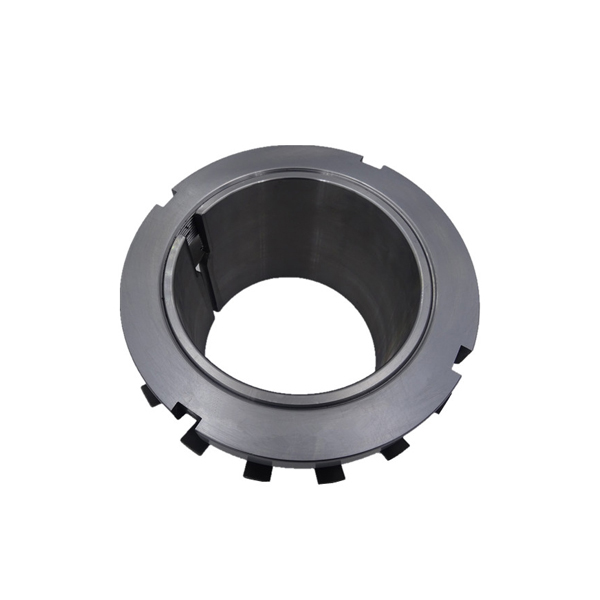

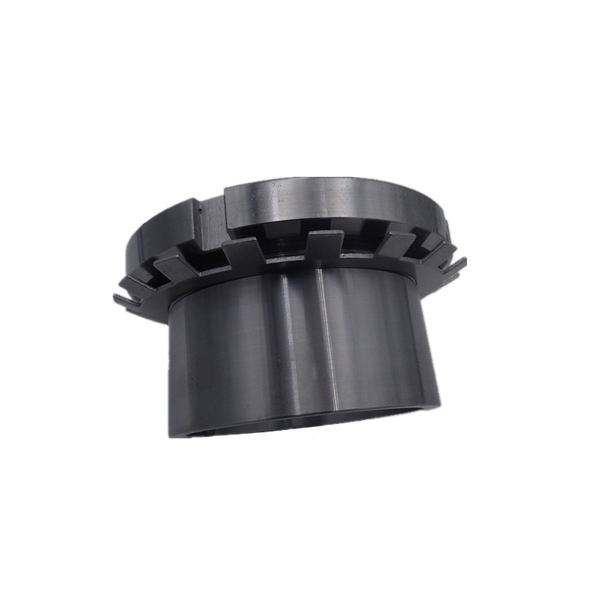

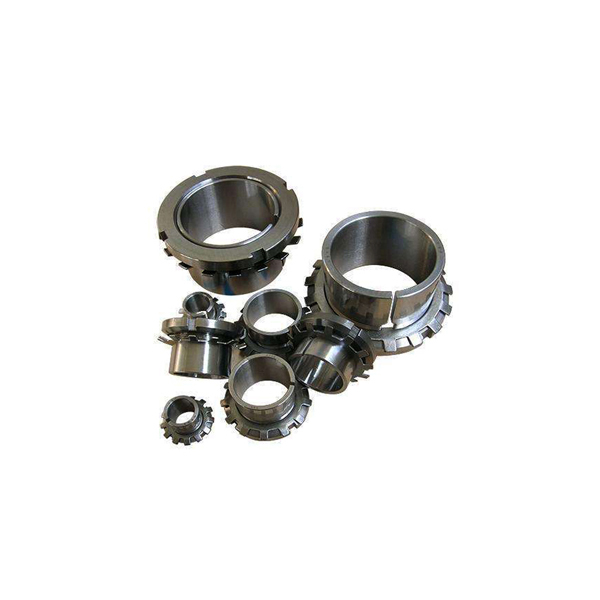

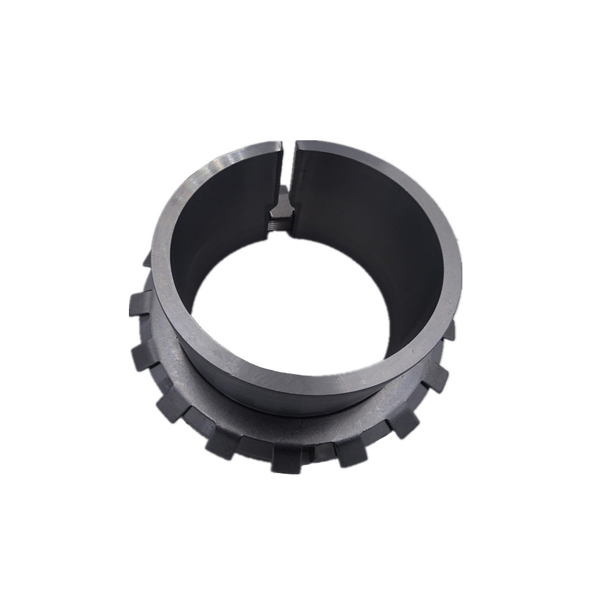

| H2 Series Adapter Sleeve |
| No. | Dimension(mm) | Bearing No. | Weight(kg) |
| d | d1 | B1 | d2 | Spherical Ball Bearing |
| H202 | 15 | 12 | 19 | 25 | 1202K |
|
| H203 | 17 | 14 | 20 | 28 | 1203K |
|
| H204 | 20 | 17 | 24 | 32 | 1204K | 0.036 |
| H205 | 25 | 20 | 26 | 38 | 1205K | 0.064 |
| H206 | 30 | 25 | 27 | 45 | 1206K | 0.086 |
| H207 | 35 | 30 | 29 | 52 | 1207k | 0.12 |
| H208 | 40 | 35 | 31 | 58 | 1208K | 0.16 |
| H209 | 45 | 40 | 33 | 65 | 1209K | 0.21 |
| H210 | 50 | 45 | 35 | 70 | 1210K | 0.24 |
| H211 | 55 | 50 | 37 | 75 | 1211K | 0.28 |
| H212 | 60 | 55 | 38 | 80 | 1212K | 0.31 |
| H213 | 65 | 60 | 40 | 85 | 1213K | 0.36 |
| H214 | 70 | 60 | 41 | 92 | 1214K | 0.55 |
| H215 | 75 | 65 | 43 | 98 | 1215K | 0.66 |
| H216 | 80 | 70 | 46 | 105 | 1216K | 0.81 |
| H217 | 85 | 75 | 50 | 110 | 1217K | 0.94 |
| H218 | 90 | 80 | 52 | 120 | 1218K | 1.1 |
| H219 | 95 | 85 | 55 | 125 | 1219K | 1.25 |
| H220 | 100 | 90 | 58 | 130 | 1220K | 1.4 |
| H222 | 110 | 100 | 63 | 145 | 1222K | 1.8 |
1.FREE SAMPLES:
contact us by email or trade manager, we will send the free sampls according to your request.
2. World Class Bearing:We provide our customers with all type of indigenous bearing with world class quality.
3. OEM or Non Stand Bearings: Any requirement for Non standard bearings is Easily Fulfilled by us due to
its vast knowledge and links in the industry.
4. Genuine products With Excellent Quality: Company has always proved the
100% quality products it provides with genuine intent.
5.After Sales Service and technical Assistance: Company provides after sales service and technical assistance
as per the customers requirement and needs.
6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.
7. Cost Saving: We provide long-life, shock-resistant and high reliability bearings with
excellent quality and better performance. Resulting in increased cost saving.
8.Attending customer queries promptly: We believe that if customer are satisfied then it proves our worth well. Customers are always given quick support.
