Product Description:
SLEEVES:
A roller bearing having a tapered bore is mounted on a straight shaft using either an Adapter Sleeve assembly, or a Withdrawal Sleeve. Mounting a bearing on a sleeve also permits maximum flexibility in the axial positioning of the bearing on the shaft and can accommodate light locational thrust loads.
An Adapter or a Withdrawal Sleeve mounted bearing requires the correct reduction of Radial Internal Clearance of the bearing so as to prevent relative motion amongst the bearing inner ring, the sleeve and the shaft. Non-compliance with proper mounting procedures will invariably lead to hot running of the bearing and subsequently to it's premature failure.

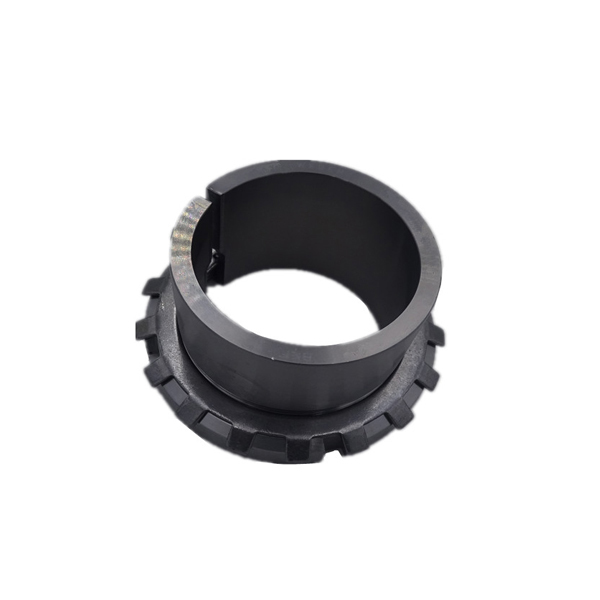

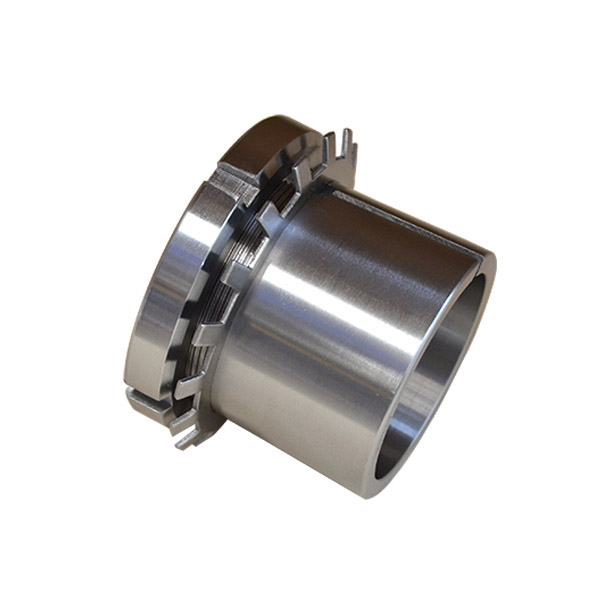

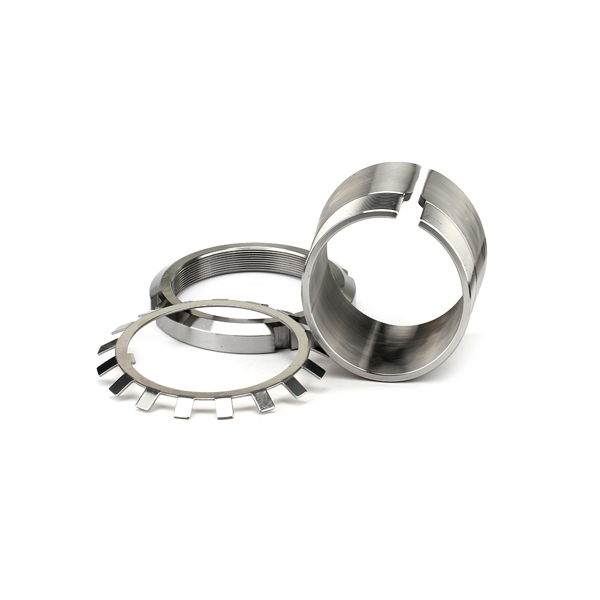

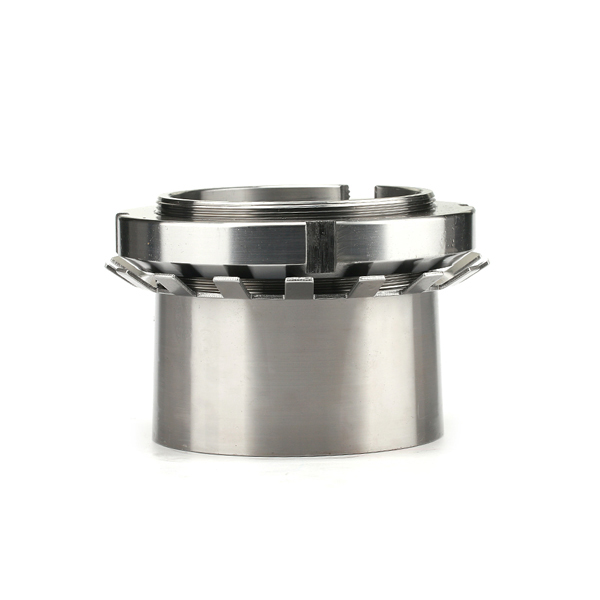

Both the Adapter and the Withdrawal Sleeves have cylindrical bore and tapered outer surface, with threading on one side of the outer surface, and are slit along the length. While the Adapter Sleeve has the threading on the small diameter side of the taper, the Withdrawal Sleeve has the threading on the larger diameter side. Thus, the Adapter Sleeve facilitates easy mounting of the bearing, while the Withdrawal Sleeve is normally used to ensure easy dismounting of the bearing, hence it's name.
MATERIAL :
The Sleeves should be made from Carbon Steel as per established International Standard
Imported Sleeves are manufactured from originally processed raw material (C20/C30) and machined in CNC machines to achieve the required machining accuracy and the surface finish, so that contact area is fully maintained to provide projected service life to the Bearing.
1.FREE SAMPLES:
contact us by email or trade manager, we will send the free sampls according to your request.
2. World Class Bearing:We provide our customers with all type of indigenous bearing with world class quality.
3. OEM or Non Stand Bearings: Any requirement for Non standard bearings is Easily Fulfilled by us due to
its vast knowledge and links in the industry.
4. Genuine products With Excellent Quality: Company has always proved the
100% quality products it provides with genuine intent.
5.After Sales Service and technical Assistance: Company provides after sales service and technical assistance
as per the customers requirement and needs.
6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.
7. Cost Saving: We provide long-life, shock-resistant and high reliability bearings with
excellent quality and better performance. Resulting in increased cost saving.
8.Attending customer queries promptly: We believe that if customer are satisfied then it proves our worth well. Customers are always given quick support.
