DAC Wheel Bearings

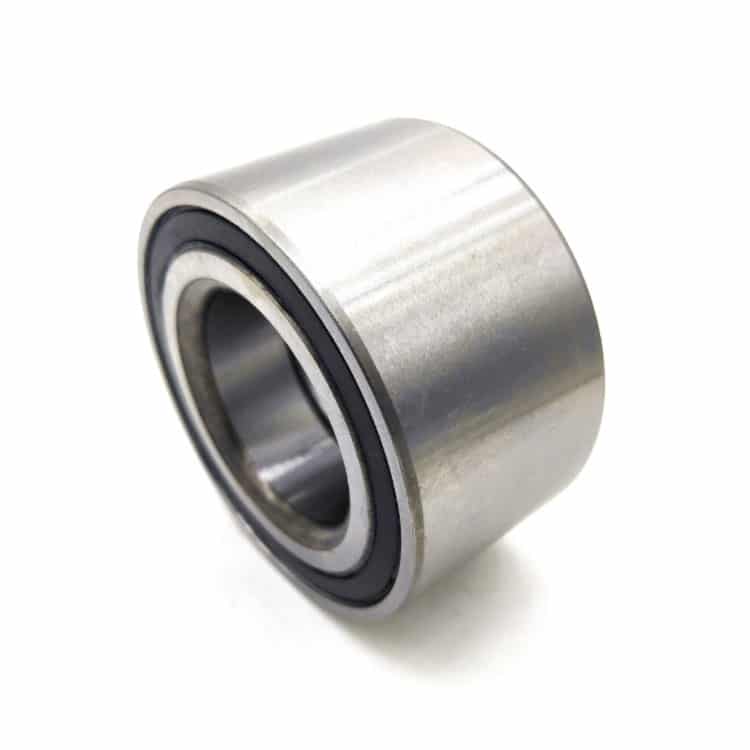

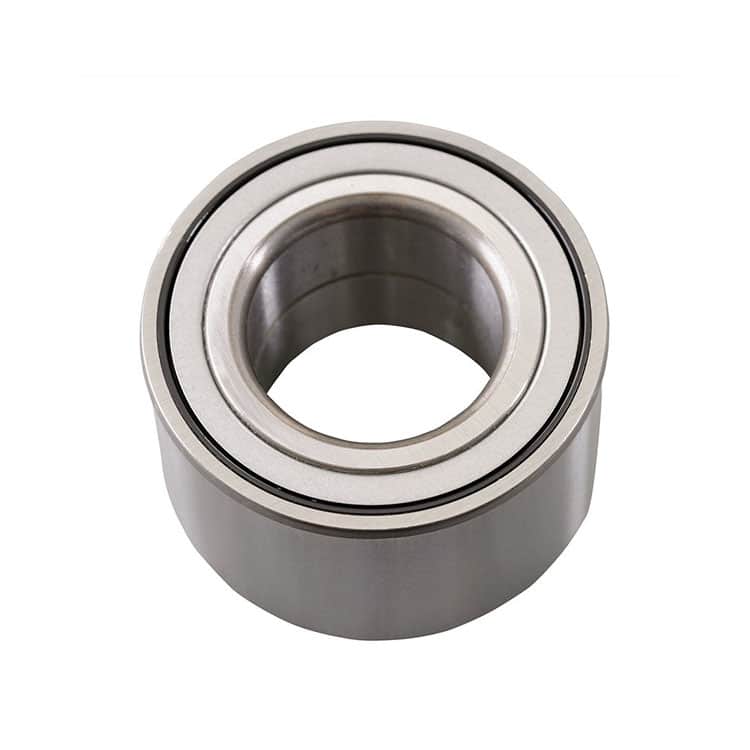

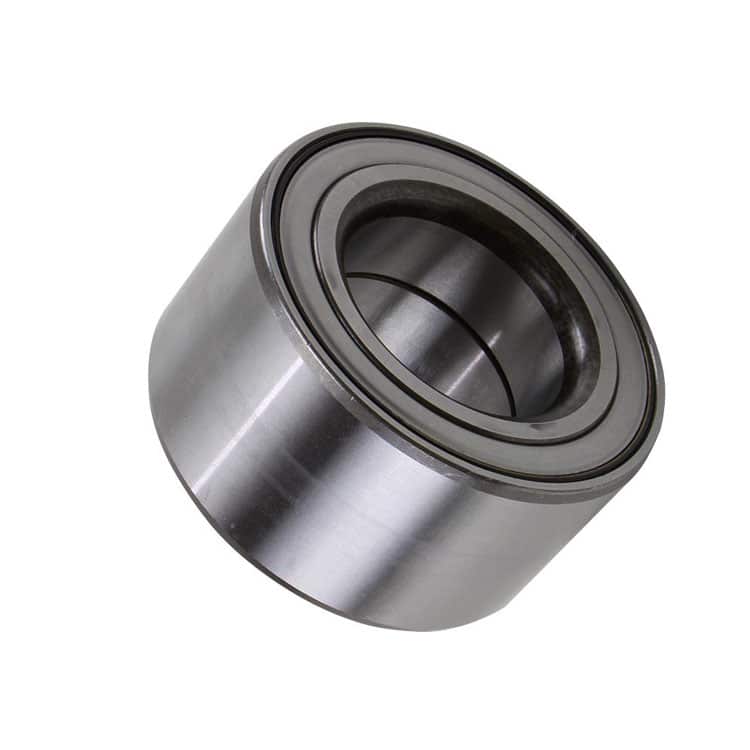

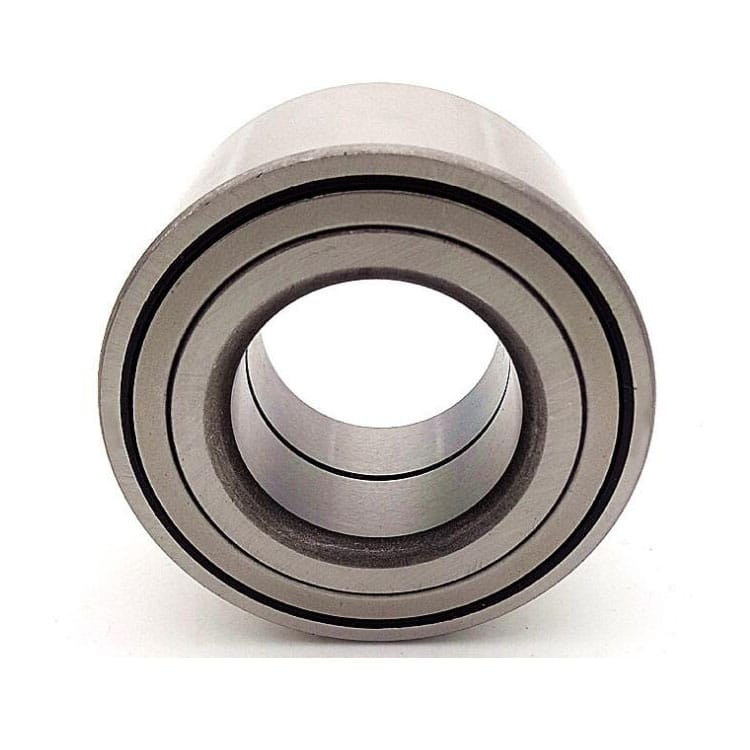

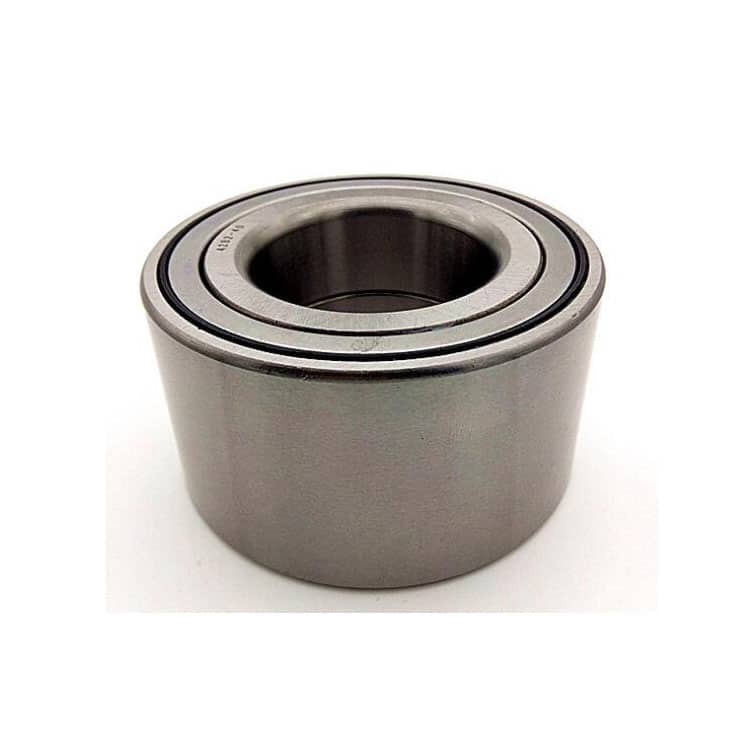

DAC wheel bearings is a double row angular contact ball bearing incorporating an integral outer ring and two separable inner rings, which is available either with seals or without seals. DAC wheel bearings are used in automotive axles at the hub used for load-bearing and rotating parts to provide accurate guidance, both axial load and radial load, a car load and rotational important part. According to the type of rolling elements, it is divided into angular contact ball bearings and angular contact roller bearings. DAC wheel bearings have been designed with axial play in mind, so no clearance adjustment is required for installation.

SEALS/SHIELDS : ZZ, 2RS

MATERIAL : Chrome Steel SAE52100/100Cr6/GCr15

QUALITY: ABEC 1, ABEC3

Applications and industry: AUTOMOTIVE

CATEGORY: AUTOMOTIVE BEARINGS

Inquire Now

Product Details

Deep Groove Ball Bearings

I have all the models you need, these are just some of them, please contact us now

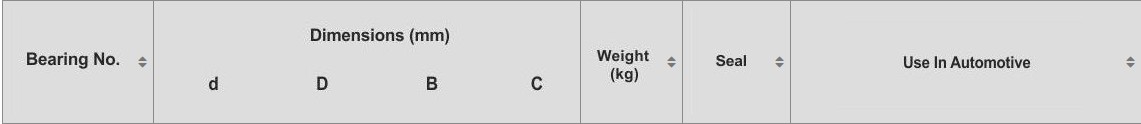

DAC Wheel Bearings


DAC20420030/29	20	42	30	29	0.18	C	Mercedes Benz
DAC205000206	20	50	20.6	20.6	0.17	D	Fiat ，Seat
DAC255200206	25	52	20.6	20.6	0.19	A	Fiat,Seat,
							POLEA VENTILADOR 124
DAC25520037	25	52	37	37	0.31	C	NISSAN PLATINA, RENAULT, CLIO, KANGOO (01-06)
DAC25520040	25	52	40	40	0.35	C	POLO
DAC25520042	25	52	42	42	0.36	C	ISUZU
DAC25520043	25	52	43	43	0.36	C	Renault,Peugeot,Citroen
DAC25520045/43	25	52	45	43	0.35	C
DAC25550043	25	55	43	43	0.41	C	Renault
DAC25550045	25	55	45	45	0.46	C	RENAULT CLIO (05-10), MEGANE (02-09), MODUS (04-09)
DAC255600206/29	25	56	20.6	29	0.28	A	Fiat
DAC25560032	25	56	32	32	0.34	E	Citroen
DAC25600029/206	25	60	29	20.6	0.33	A	Fiat
DAC25600045	25	60	45	45	0.33
DAC25620028/17	25	62	28	17	0.19	D
DAC25620048	25	62	48	48	0.33
DAC25720043	25	72	43	43	0.88	C
DAC27520045/43	27	52	45	43	0.35	C	NISSAN TSURU II (88-91), RUEDA TRASERA
DAC27520050	27	52	50	50	0.38	C
DAC27530043	27	53	43	43	0.5		Citroen,CHEVROLET CORSA (02-08)
DAC27600050	27	60	50	50	0.56	C	Nissan
DAC28580042	28	58	42	42	0.47	C
DAC28580044	28	58	44	44	0.47
DAC28610042	28	61	42	42	0.56	D	Toyota， COROLLAGTIAE921.6*16V87
DAC29530037	29	53	37	37	0.35	C	FORD FIESTA (01-10), FOCUS (00-08), ECOSPORT (04-12)
DAC30550026	30	55	26	26	0.32	A
DAC30550032	30	55	32	32	0.29
DAC30580042	30	58	42	42	0.4	C
DAC30600037	30	60	37	37	0.42	C	Fiat,Lada,lancia,seat,Volvo
DAC30600337	30	60.03	37	37	0.42	C	Fiat131-147,Lada,lancia,seat,
							Volvo
DAC30600043/37	30	60	43	37	0.12	E
DAC30620038	30	62	38	38	0.52		TOYOTA AVANZA 1.5L (09)
DAC30630042	30	63	42	42	0.57	A	TOYOTA， CAMRY-91,CARINALL 83-92,CEL
DAC30630342	30	63.03	42	42	0.56	A	TOYOTA CAMRY-91,CARINALL 83-92,CEL
DAC30640042	30	64	42	42	0.49	C	TOYOTA,SUZUKI
DAC30670024	30	67	24	24	0.34	C	Ford Taunus
DAC30680045	30	68	45	45	0.73	E
DAC32700038	32	70	38	38	0.62	E
DAC32720034	32	72	34	34	0.6	B
DAC32720045	32	72	45	45	0.6	D	TOYOTA
DAC32720345	32	72.03	45	45	0.6	D
DAC32730054	32	73	54	54	0.98	B
DAC34620037	34	62	37	37	0.41	C	Audi,Volkswagen
							Chrysler ，POLO/90
DAC34640034	34	64	34	34	0.43	D	Honda JAZZAA1.2 B4-86
DAC34640037	34	64	37	37	0.47	B	Lada,GM.SPARK (11>), AVEO (08>), SUZI., SWIFT, OPTIMA
DAC34660037	34	66	37	37	0.5	C	GM CHEVY (TODOS), (94-12), MONZA (93-01), PICK-UP (99-03), Accord，Corsa
DAC34670037	34	67	37	37	0.44	C
DAC34680037	34	68	38	37	0.55
DAC356180040	35	61.8	40	40	0.43	E
DAC35620031	35	62	31	31	0.35	A
DAC35620040	35	62	40	40	0.45	E
DAC35640037	35	64	37	37	0.41	B	Daihastu
DAC35650035	35	65	35	35	0.4	C	Kia Pride,Renault
DAC35650037	35	65	37	37	0.51	C	Subaru
DAC35660032	35	66	32	32	0.42	C	Citroen
DAC35660033	35	66	33	33	0.43	C	Fiat,TIPO1.4
DAC35660037	35	66	37	37	0.48	C	VW. GOLF (88-85), JETTA (88-85)
DAC35670042	35	67	42	42	0.45	D
DAC35680037	35	68	37	37	0.52	C	Fiat,Lancia，Seat,VOLVO,Zastava
							Chrysler,PREMIO
DAC35680045	35	68	45	45	0.52	E	SKODA
DAC35680233/30	35	68.02	33	30	0.47	D	Nissan Micra K10 Micra
DAC35720027	35	72	27	27	0.43	0.43	CHERY QQ
DAC35720228	35	72.02	28	28	0.49	D	Citroen,Peugeot,Renault
DAC35720033	34.99	72	33	33	0.58	C	Citroen,Peugeot
DAC35720233/31	34.99	72.02	33	31	0.54	D	Toyota TERCELAL20 1.3 82-,
							4WDAL25 1
DAC35720433	34.99	72.04	33	33	0.58	C	Fiat,Lancia,TIPO1.6
DAC35720034	34.99	72	34	34	0.58	A\D	LZW7100;Honda civic1.2SF
							1.5 SG77.01
DAC35720434	34.99	72.04	34	34	0.58	A\D	HONDA,TIPO1.6
DAC35720045	34.99	72	45	45	0.63	C	Toyota CORULLA GTAEB6
							1.6×16V83-
DAC35740030	34.99	74	30	30	0.49	C
DAC35760054	34.99	76	54	54	0.95	E
DAC35770042	34.99	77	42	42	0.86	D	Toyota SUPRA3.0T24V B6-93
DAC35800026/21	34.99	80	26	21	0.86
DAC36640042	36	64	42	42	0.46
DAC36680033	36	68	33	33	0.47	D	SUZUKI SWIFT（89-94）
DAC36720033/28	36	72	33	28	0.46	D
DAC36720034	36	72	34	34	0.57	D	Chrysler
DAC36720042	36	72	42	42	0.72
DAC36760029/27	36	76	29.2	27	0.55	D
DAC37680045	37	68	45	45	0.72	B
DAC37720033	37	72	33	33	0.5	E
DAC37720233	37	72.02	33	33	0.5	C
DAC37720037	37	72	37	37	0.59	C	Fiat,Ford,Lancia,Renault19-21，
							Chrysler
DAC37720237	37	72.02	37	37	0.59	C	Chrysler
DAC37720437	37	72.04	37	37	0.59	C	Chrysler
DAC37720052/45	37	72	52	45	0.7	D
DAC37740045	37	74	45	45	0.79	C	BMW,OPEL,FORD
DAC38640036/33	38	64	36	33	0.43
DAC38650050	38	65	50	50	0.56
DAC38650052/48	38	65	52	48	0.49
DAC38680037	38	68	37	37	0.54		Chrysler
DAC38700037	38	70	37	37	0.56	E	Daihastu
DAC38700038	38	70	38	38	0.57	B	HYUNDAI ATOS (02>), DAIHATSU CHARADE (89-92)
DAC38700040	38	70	40	40	0.58	C
DAC38710033/30	38	71	33	30	0.5	D	TOYOTA TERCEL(87-99),TOYOTA PASEO(87-99）
DAC38710039	38	71	39	39	0.62	C	TOYOTA YARIS 99-
DAC38720034	38	72	34	34	0.54	D	HONDA
DAC38720036/33	38	72	36	33	0.62		HONDA,TOYOTA COROLLA (88-02), PRIZM (98-02)
DAC38720236/33	38	72.02	36	33	0.56	D	HONDA,ROVER,
							TOYOTA90369-38010/11
DAC38720040	38	72	40	40	0.63	B	HONDA44300-SB3-961/2
