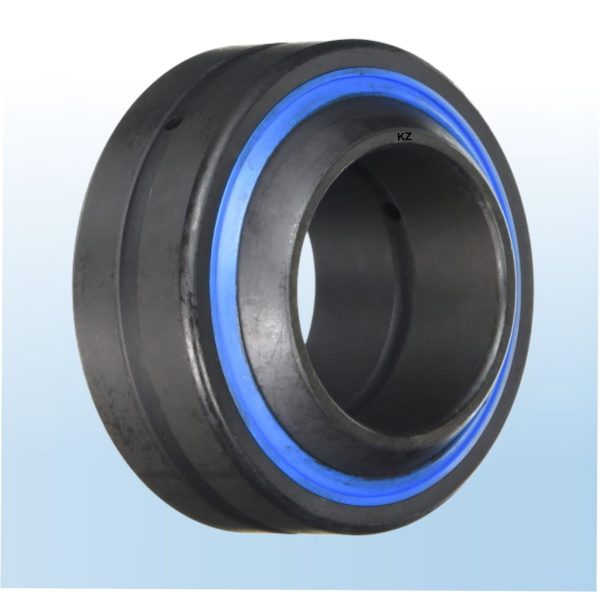

GEH ES 2RS

Radial spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be possible at relatively slow sliding speeds, often accompanied by heavy loads.

Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

Inquire Now

Product Details

Deep Groove Ball Bearings

I have all the models you need, these are just some of them, please contact us now

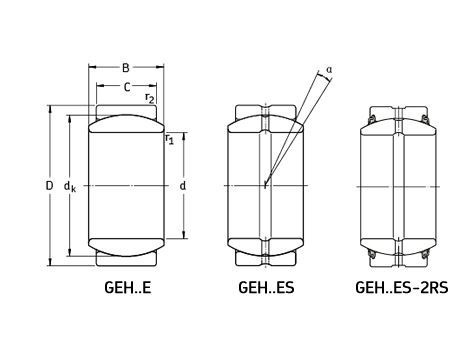

Bearing No.	2RS	d	D	B	C	dK	r1 min	r2 min	a ≈	Dynamic Load Rating (KN)	Static Load Rating (KN)	Weight (KGS)
GEH4E		4	14	7	4	10	0.3	0.3	20	3.4	17	0.005
GEH5E		5	16	9	5	13	0.3	0.3	21	5.5	27	0.008
GEH6E		6	16	9	5	13	0.3	0.3	21	5.5	27	0.006
GEH8E		8	19	11	6	16	0.3	0.3	21	8 . 1	40	0.014
GEH10E		10	22	12	7	18	0.3	0.3	18	10	53	0.021
GEH12E		12	26	15	9	22	0.3	0.3	18	16	84	0.03
GEH15ES	GEH15ES - 2RS	15	30	16	10	25	0.3	0.3	16	21	106	0.05
GEH17ES	GEH17ES - 2RS	17	35	20	12	29	0.3	0.3	19	30	146	0.08
GEH20ES	GEH20ES - 2RS	20	42	25	16	35.5	0.3	0.6	17	48	240	0.16
GEH25ES	GEH25ES - 2RS	25	47	28	18	40.7	0.6	0.6	17	62	310	0.2
GEH30ES	GEH30ES - 2RS	30	55	32	20	47	0.6	1	17	80	400	0.304
GEH35ES	GEH35ES - 2RS	35	62	36	22	53	0.6	1	15	100	500	0.408
GEH40ES	GEH40ES - 2RS	40	68	40	25	60	0.6	1	17	127	640	0.542
GEH45ES	GEH45ES - 2RS	45	75	43	28	66	0.6	1	14	156	780	0.713
GEH50ES	GEH50ES - 2RS	50	90	56	36	80	0.6	1	17	245	1220	1.44
GEH60ES	GEH60ES - 2RS	60	105	63	40	92	1	1	17	315	1560	1.6
GEH70ES	GEH70ES - 2RS	70	120	70	45	105	1	1	16	400	2000	3
GEH80ES	GEH80ES - 2RS	80	130	75	50	115	1	1	14	490	2450	3.64
GEH90ES	GEH90ES - 2RS	90	150	85	55	130	1	1	15	610	3050	5.22
GEH100ES	GEH100ES - 2RS	100	160	85	55	140	1	1	13	655	3250	6.1
GEH110ES	GEH110ES - 2RS	110	180	100	70	160	1	1	12	950	4750	9.68
GEH120ES	GEH120ES - 2RS	120	210	115	70	180	1	1	16	1080	5400	14.8
GEH140ES	GEH140ES - 2RS	140	230	130	80	200	1	1	16	1360	6800	19
GEH160ES	GEH160ES - 2RS	160	260	135	80	225	1.1	1.1	16	1530	7650	20
GEH180ES	GEH180ES - 2RS	180	290	155	100	250	1.1	1.1	14	2120	10600	32.2
GEH200ES	GEH200ES - 2RS	200	320	165	100	275	1.1	1.1	15	2320	11600	45.28
GEH220ES	GEH220ES - 2RS	220	340	175	100	300	1.1	1.1	16	2550	12700	51
GEH240ES	GEH240ES - 2RS	240	370	190	110	325	1.1	1.1	15	3030	15190	65.12
GEH260ES	GEH260ES - 2RS	260	400	205	120	350	1.1	1.1	15	3570	17850	82.5
GEH280ES	GEH280ES - 2RS	280	430	210	120	375	1.1	1.1	15	3800	19100	97.21
