I have all the models you need, these are just some of them, please contact us now

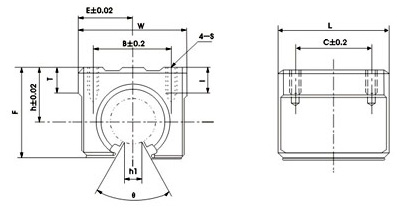

| MODEL NO. | SHAFT DIAMETER | MAIN DIMENSIONS | MOUNTING DIMENSIONS | BASIC LOAD RATING | WEIGHT(kg) |
| B | C | S | l | c(kgf) | Co(kgf) |
| h | E | W | L | F | T | h1 | θ |
| SME10 | 10 | 15 | 18 | 36 | 32 | 24 | 7 | 6 | 80° | 25 | 20 | M5 | 10 | 38 | 56 | 0.065 |
| SME12 | 12 | 17 | 20 | 40 | 39 | 27.6 | 8 | 8.5 | 80° | 28 | 26 | M5 | 10 | 42 | 61 | 0.100 |
| SME13 | 13 | 17 | 20 | 40 | 39 | 27.6 | 8 | 8.5 | 80° | 28 | 26 | M5 | 10 | 52 | 80 | 0.100 |
| SME16 | 16 | 20 | 22.5 | 45 | 45 | 33 | 9 | 10 | 80° | 32 | 30 | M5 | 12 | 59 | 91 | 0.150 |
| SME20 | 20 | 23 | 24 | 48 | 50 | 39 | 11 | 10 | 60° | 35 | 35 | M6 | 12 | 88 | 140 | 0.200 |
| SME25 | 25 | 27 | 30 | 60 | 65 | 47 | 14 | 11.5 | 50° | 40 | 40 | M6 | 12 | 100 | 160 | 0.45 |
| SME30 | 30 | 33 | 35 | 70 | 70 | 56 | 15 | 14 | 50° | 50 | 50 | M8 | 18 | 160 | 280 | 0.63 |
| SME35 | 35 | 37 | 40 | 80 | 80 | 63 | 18 | 16 | 50° | 55 | 55 | M8 | 18 | 170 | 320 | 0.92 |
| SME40 | 40 | 42 | 45 | 90 | 90 | 72 | 20 | 19 | 50° | 65 | 65 | M10 | 20 | 220 | 410 | 1.33 |
| SME50 | 50 | 53 | 60 | 120 | 110 | 92 | 25 | 23 | 50° | 94 | 80 | M10 | 20 | 390 | 810 | 3.00 |
Bearings Widely used in various industries, our bearings meet the requirements of your project！
1.FREE SAMPLES:
contact us by email or trade manager, we will send the free sampls according to your request.
2. World Class Bearing:We provide our customers with all type of indigenous bearing with world class quality.
3. OEM or Non Stand Bearings: Any requirement for Non standard bearings is Easily Fulfilled by us due to
its vast knowledge and links in the industry.
4. Genuine products With Excellent Quality: Company has always proved the
100% quality products it provides with genuine intent.
5.After Sales Service and technical Assistance: Company provides after sales service and technical assistance
as per the customers requirement and needs.
6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.
7. Cost Saving: We provide long-life, shock-resistant and high reliability bearings with
excellent quality and better performance. Resulting in increased cost saving.
8.Attending customer queries promptly: We believe that if customer are satisfied then it proves our worth well. Customers are always given quick support.
