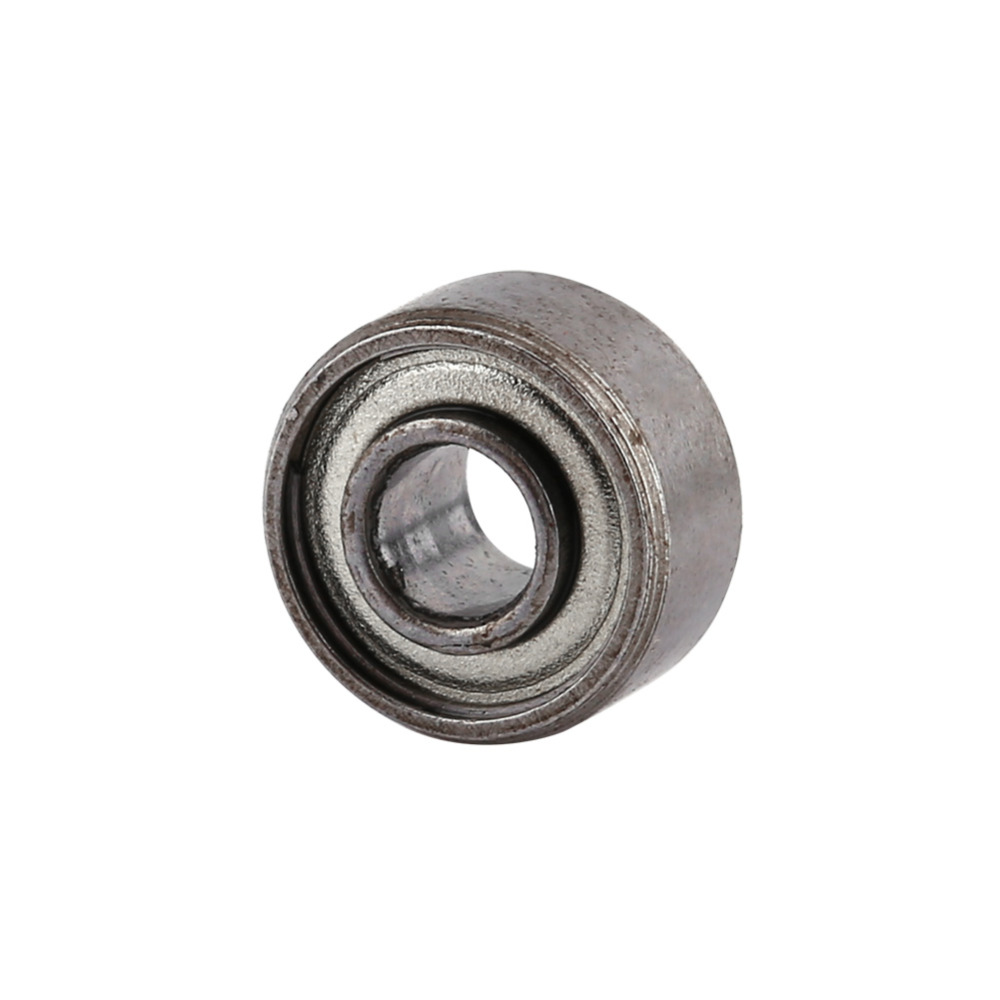

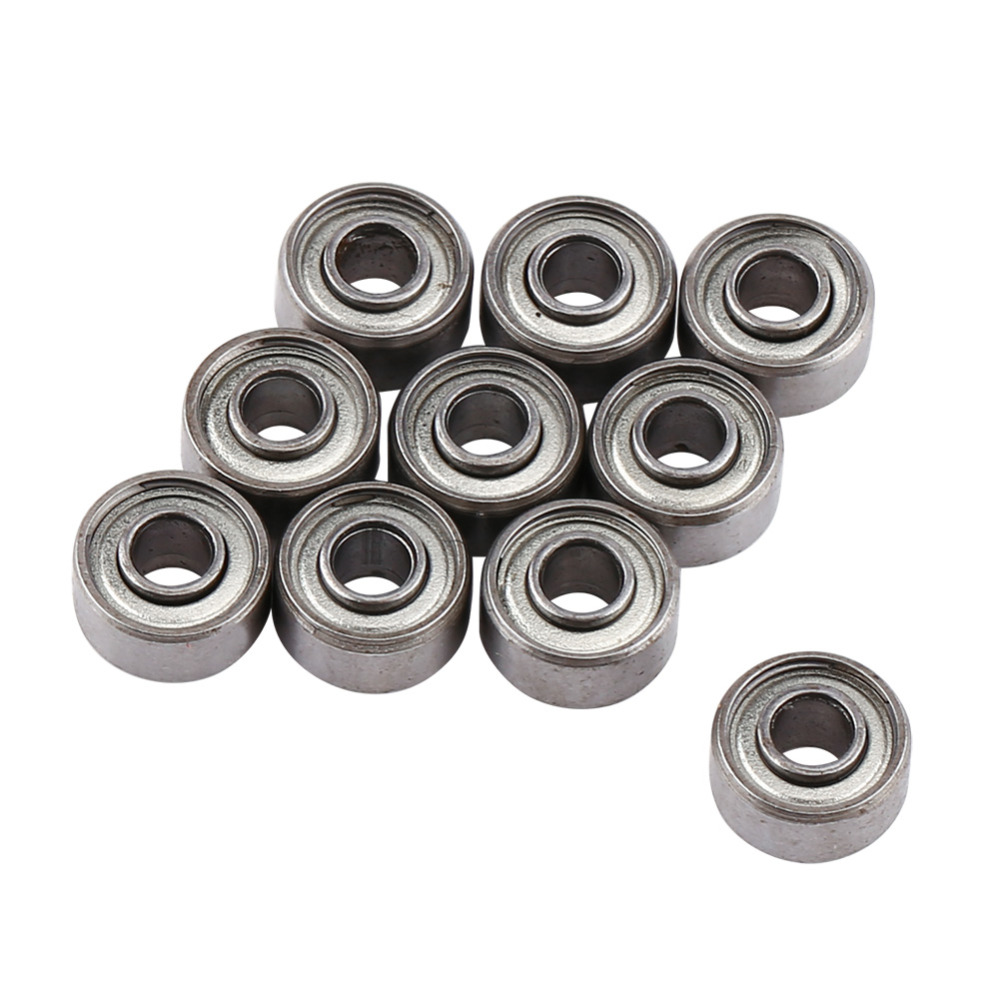

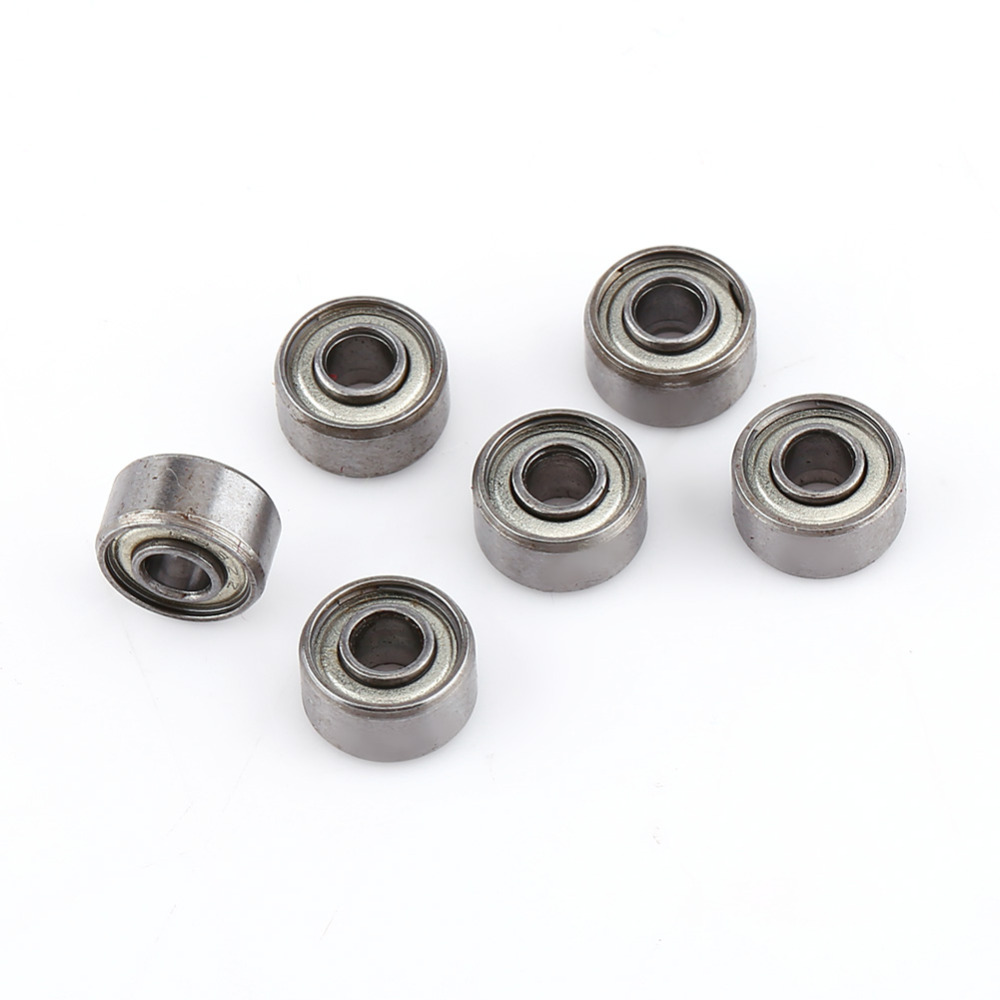

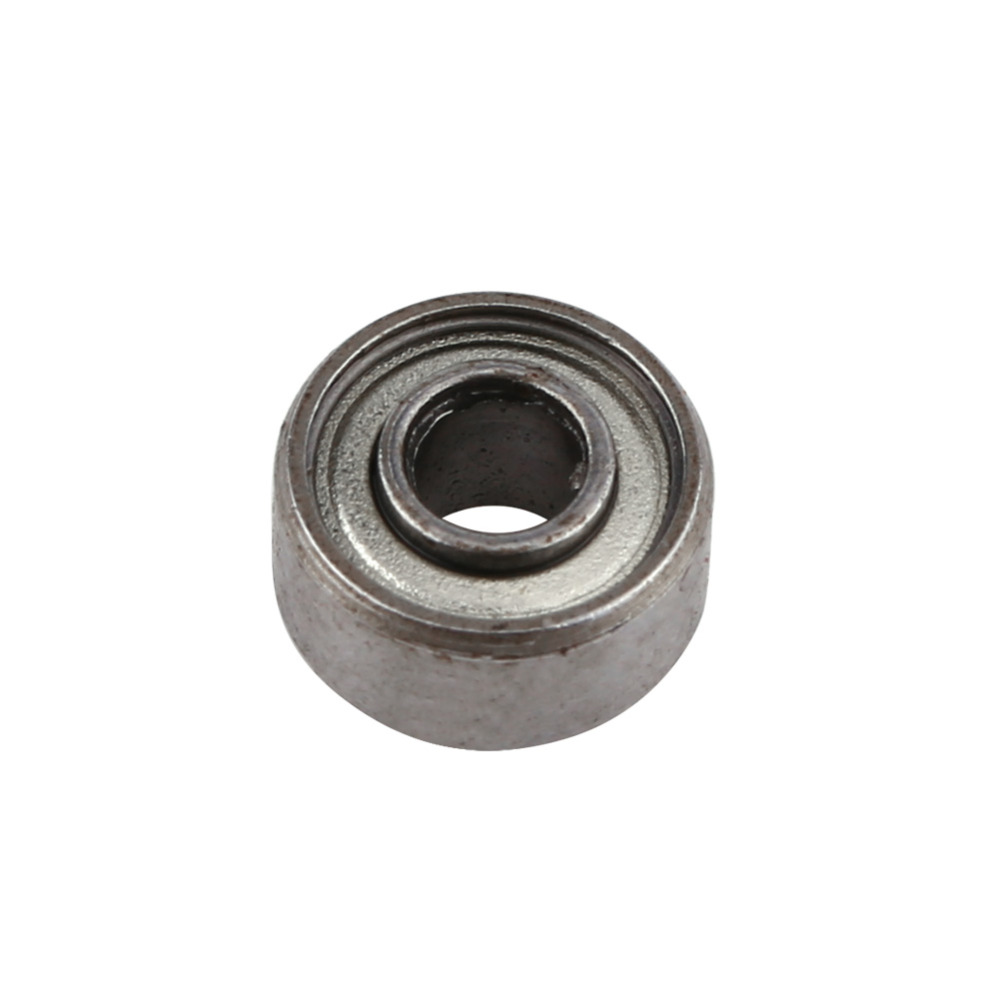

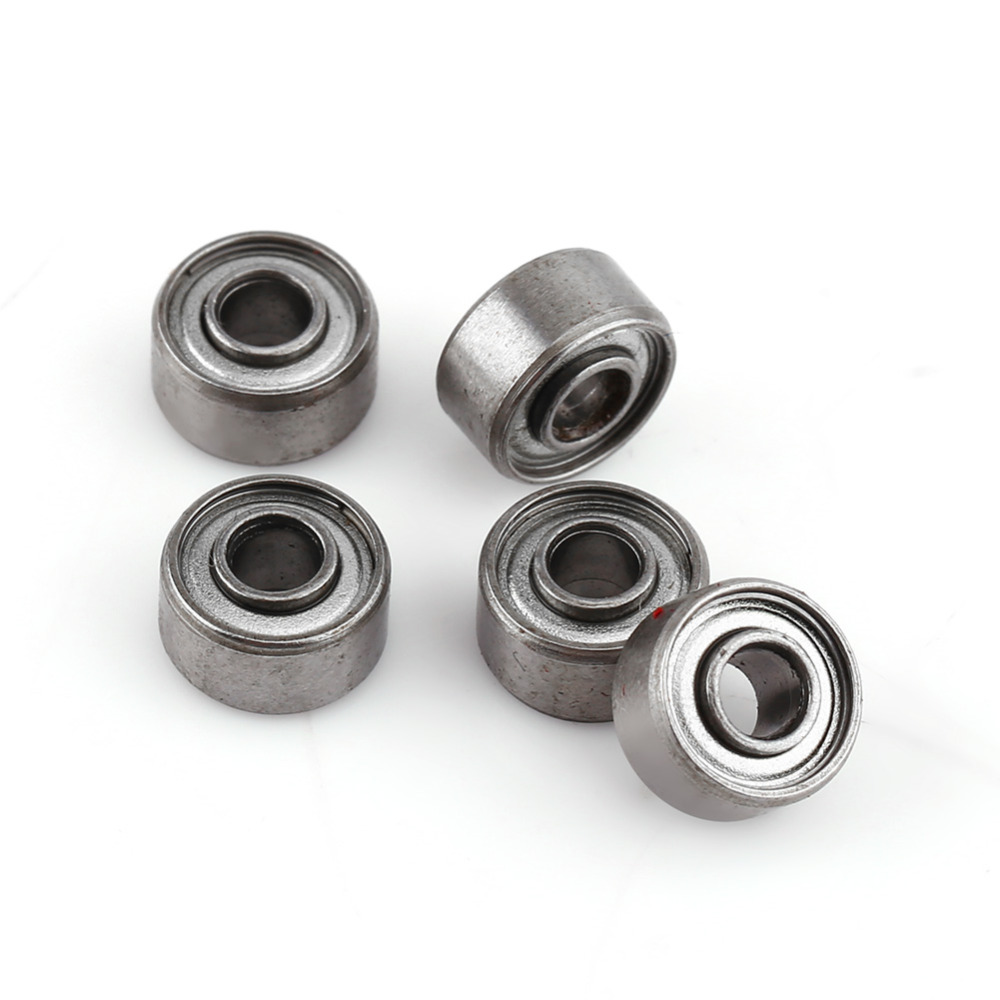

Miniature Ball Bearings

Product Description

Miniature bearings is one kind of deep groove ball bearing, usually we call deep groove ball bearings as small ball bearings when the inner diameter range from 1mm to 10mm, Metric and imperial sizes miniature bearings are included. These miniature bearings have greatly wide range of applied fields including Skateboard, RC Car, Dental, Fishing Reel,Yoyo, Instrument, Electric Motor, Medical and so on.

Inquire Now

Product Details

60 Series Deep Groove Ball Bearings

Deep Groove Ball Bearings

Miniature Metric Bearings

I have all the models you need, these are just some of them, please contact us now

Bearing Designation				Boundary Dimensions						Basic Load Rating		Limiting Speed			Shoulder Dimensions				Mass
				(mm)						(kN)		(rpm)			(mm)				(g)
												Grease		Oil
Open type	With steel shields	Without	With contacting	d	D	B	B1	r	r1	Cr	Cor	Open Type	(2RS)	Open Type	da	Da	ra	rb	Approx
		contacting	rubber seals					(min.)	(min.)			(ZZ,2RU)		(Z)	(min.)	(max.)	(max.)	(max.)
		rubber seals
604	604 ZZ	604 2RU	604 2RS	4	12	4	4	0.2	0.2	0.97	0.36	53000	0	63000	5.6	10.4	0.2	0.2	2.1
605	605 ZZ	605 2RU	605 2RS	5	14	5	5	0.2	0.2	1.3	0.49	50000	0	60000	6.6	12.4	0.2	0.2	3.5
606	606 ZZ	606 2RU	606 2RS	6	17	6	6	0.3	0.3	1.95	0.74	43000	0	51000	8	15	0.3	0.3	5.8
607	607 ZZ	607 2RU	607 2RS	7	19	6	6	0.3	0.3	2.6	1.05	40000	27000	47000	9	17	0.3	0.3	7.6
608	608 ZZ	608 2RU	608 2RS	8	22	7	7	0.3	0.3	3.3	1.35	34000	23000	41000	10	20	0.3	0.3	12
609	609 ZZ	609 2RU	609 2RS	9	24	7	7	0.3	0.3	3.35	1.4	33000	22000	40000	11	22	0.3	0.3	15
623	623 ZZ	623 2RU	623 2RS	3	10	4	4	0.15	0.15	0.64	0.23	52000	44000	63000	4.2	8.8	0.15	0.15	1.6
624	624 ZZ	624 2RU	624 2RS	4	13	5	5	0.2	0.2	1.3	0.49	44000	39000	54000	5.6	11.4	0.2	0.2	2.9
625	625 ZZ	625 2RU	625 2RS	5	16	5	5	0.3	0.3	1.75	0.67	40000	33000	49000	7	14	0.3	0.3	5
626	626 ZZ	626 2RU	626 2RS	6	19	6	6	0.3	0.3	2.6	1.05	35000	27000	43000	8	17	0.3	0.3	8.1
627	627 ZZ	627 2RU	627 2RS	7	22	7	7	0.3	0.3	3.3	1.35	31000	23000	37000	9	20	0.3	0.3	13
628	628 ZZ	628 2RU	628 2RS	8	24	8	8	0.3	0.3	3.35	1.4	28000	22000	35000	10	22	0.3	0.3	18
629	629 ZZ	629 2RU	629 2RS	9	26	8	8	0.6	0.6	4.55	2	27000	19000	33000	13	22	0.3	0.3	20
633	633 ZZ	633 2RU	633 2RS	3	13	5	5	0.2	0.2	1.3	0.49	44000	0	54000	4.6	11.4	0.2	0.2	3
634	634 ZZ	634 2RU	634 2RS	4	16	5	5	0.3	0.3	1.75	0.67	40000	0	49000	6	14	0.3	0.3	5.3
635	635 ZZ	635 2RU	635 2RS	5	19	6	6	0.3	0.3	2.6	1.05	35000	27000	43000	7	17	0.3	0.3	8.5
636	636 ZZ	636 2RU	636 2RS	6	22	7	7	0.3	0.3	3.3	1.35	31000	23000	37000	8	20	0.3	0.3	13
637	637 ZZ	637 2RU	637 2RS	7	26	9	9	0.3	0.3	4.55	1.95	26000	0	32000	9	24	0.3	0.3	24
638	638 ZZ	638 2RU	638 2RS	8	28	9	9	0.3	0.3	4.55	1.95	26000	0	32000	10	26	0.3	0.3	29
639	639 ZZ	639 2RU	639 2RS	9	30	10	10	0.6	0.6	6	2.65	24000	0	29000	13	26	0.6	0.6	35
694	694 ZZ	694 2RU	694 2RS	4	11	4	4	0.15	0.15	0.96	0.35	54000	44000	65000	5.2	9.8	0.15	0.15	1.8
695	695 ZZ	695 2RU	695 2RS	5	13	4	4	0.2	0.2	1.3	0.49	50000	42000	60000	6.6	11.4	0.2	0.2	2.2
696	696 ZZ	696 2RU	696 2RS	6	15	5	5	0.2	0.2	1.75	0.67	45000	32000	54000	7.6	13.4	0.2	0.2	3.9
697	697 ZZ	697 2RU	697 2RS	7	17	5	5	0.3	0.3	1.6	0.71	42000	28000	50000	9	15	0.3	0.3	5.3
698	698 ZZ	698 2RU	698 2RS	8	19	6	6	0.3	0.3	2.25	0.91	39000	27000	46000	10	17	0.3	0.3	7.2
699	699 ZZ	699 2RU	699 2RS	9	20	6	6	0.3	0.3	2.45	1.05	35000	25000	42000	11	18	0.3	0.3	7.5
602	602 ZZ	602 2RU	602 2RS	2	7	2.8	3.5	0.15	0.15	0.39	0.13	76000	0	79000	3.2	5.8	0.15	0.15	0.5
603	603 ZZ	603 2RU	603 2RS	3	9	3	5	0.15	0.15	0.43	0.16	60000	0	72000	4.2	7.8	0.15	0.15	0.9
68/2.5	68/2.5 ZZ	68/2.5 2RU	68/2.5 2RS	2.5	6	1.8	2.6	0.1	0.1	0.19	0.06	75000	0	89000	3.3	5.2	0.1	0.1	0.2
682	682 ZZ	682 2RU	682 2RS	2	5	1.5	2.3	0.1	0.1	0.19	0.06	98000	0	110000	2.8	4.4	0.1	0.1	0.1
683	683 ZZ	683 2RU	683 2RS	3	7	2	3	0.15	0.15	0.31	0.11	66000	0	79000	4.2	5.8	0.1	0.1	0.3
684	684 ZZ	684 2RU	684 2RS	4	9	2.5	4	0.15	0.15	0.64	0.23	59000	0	70000	5.2	7.8	0.1	0.1	0.6
685	685 ZZ	685 2RU	685 2RS	5	11	3	5	0.15	0.15	0.97	0.36	53000	0	63000	6.2	9.8	0.15	0.15	0.1
686	686 ZZ	686 2RU	686 2RS	6	13	3.5	5	0.15	0.15	1.1	0.44	48000	36000	57000	7.2	11.8	0.15	0.15	1.8
687	687 ZZ	687 2RU	687 2RS	7	14	3.5	5	0.15	0.15	1.15	0.51	45000	0	54000	8.2	12.8	0.15	0.15	2
688	688 ZZ	688 2RU	688 2RS	8	16	4	5	0.2	0.2	1.6	0.71	42000	28000	50000	9.6	14.4	0.2	0.2	3.2
689	689 ZZ	689 2RU	689 2RS	9	17	4	5	0.2	0.2	1.35	0.66	39000	0	46000	10.6	15.4	0.2	0.2	3.5
69/2.5	69/2.5 ZZ	69/2.5 2RU	69/2.5 2RS	2.5	7	2.5	3.5	0.15	0.15	0.31	0.11	66000	0	79000	3.7	5.8	0.15	0.15	0.4
692	692 ZZ	692 2RU	692 2RS	2	6	2.3	3	0.15	0.1	0.33	0.1	86000	0	100000	3.2	4.8	0.15	0.1	0.2
693	693 ZZ	693 2RU	693 2RS	3	8	3	4	0.15	0.15	0.55	0.17	64000	0	76000	4.2	6.8	0.15	0.15	0.6

Deep Groove Ball Bearings

Deep Groove Ball Bearings Widely used in various industries, our bearings meet the requirements of your project！

60 Series Deep Groove Ball Bearings

Deep Groove Ball Bearings

1.FREE SAMPLES:
contact us by email or trade manager, we will send the free sampls according to your request.

2. World Class Bearing:We provide our customers with all type of indigenous bearing with world class quality.

3. OEM or Non Stand Bearings: Any requirement for Non standard bearings is Easily Fulfilled by us due to
 its vast knowledge and links in the industry.

4. Genuine products With Excellent Quality: Company has always proved the
 100% quality products it provides with genuine intent.

5.After Sales Service and technical Assistance: Company provides after sales service and technical assistance
 as per the customers requirement and needs.

6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.

7. Cost Saving: We provide long-life, shock-resistant and high reliability bearings with
 excellent quality and better performance. Resulting in increased cost saving.

8.Attending customer queries promptly: We believe that if customer are satisfied then it proves our worth well.
Customers are always given quick support.

Deep Groove Ball Bearings

Products Pdf
