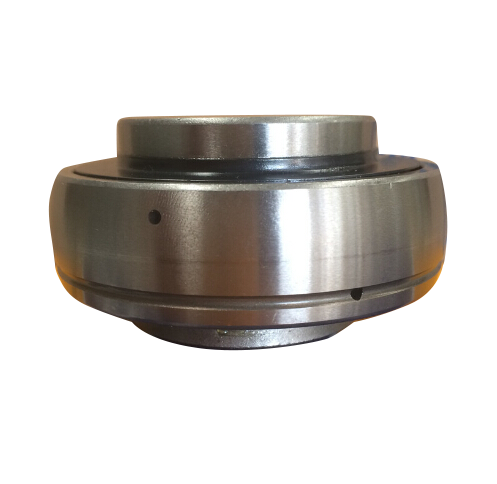

Na Series Insert Bearing

Insert Bearings are used inside pillow block and flange housings or in custom housed applications.

They are most commonly produced with a spherical OD to allow for misalignment, but are also available with a cylindrical OD.

Standard configurations are lubricated with a multipurpose lithium based grease, and allow for re-lubrication.

Special configurations are also available such as free spinning design and a black oxide finish.

In addition to our standard items and configurations listed below, Bls excels at manufacturing customized bearings to meet specific application requirements.

Inquire Now

Product Details

Insert Bearings

Deep Groove Ball Bearings

I have all the models you need, these are just some of them, please contact us now

Bearing No.	d		Dimensions（mm）									Basic Load Rating (kN)
	(mm)	(in.)	D	Be	Bi	B1	n	K	H	G	ds	Dynamic	Static
NA213-40	63.5	2 1/2	120	28	85.7	68.6	34.1	86	23.5	8.5	3/8-24UNF	5700	4000
NA212	60		110	27	77.8	62	31	84.2	22.3	8	M10x1.25	4750	3250
NA212-36	57.15	2 1/4	110	27	77.8	62	31	84.2	22.3	8	3/8-24UNF	4750	3250
NA211-35	55.563	2 3/16	100	25	71.4	55.6	27.8	76.2	20.7	8	3/8-24UNF	4350	2900
NA211	55		100	25	71.4	55.6	27.8	76.2	20.7	8	M10x1.25	4350	2900
NA210-32	50.8	2	90	24	62.7	49.2	24.6	69.9	18.3	6.5	5/16-24UNF	3500	2300
NA211-32	50.8	2	100	25	71.4	55.6	27.8	76.2	20.7	8	3/8-24UNF	4350	2900
NA210	50		90	24	62.7	49.2	24.6	69.9	18.3	6.5	M8x1	3500	2300
NA209-26	41.275	1 5/8	85	22	56.3	42.8	21.4	63.5	18.3	6.5	5/16-24UNF	3180	2050
NA209-27	42.863	1 11/16	85	22	56.3	42.8	21.4	63.5	18.3	6.5	5/16-24UNF	3180	2050
NA210-31	49.213	1 15/16	90	24	62.7	49.2	24.6	69.9	18.3	6.5	5/16-24UNF	3500	2300
NA209	45		85	22	56.3	42.8	21.4	63.5	18.3	6.5	M8x1	3180	2050
NA209-28	44.45	1 3/4	85	22	56.3	42.8	21.4	63.5	18.3	6.5	5/16-24UNF	3180	2050
NA208	40		80	21	56.3	42.8	21.4	60.3	18.3	6.5	M8x1	2950	1800
NA207	35		72	20	51.1	37.6	18.8	55.6	17.5	6.5	M8x1	2550	1500
NA207-23	36.513	1 7/16	72	20	51.1	37.6	18.8	55.6	17.5	6.5	5/16-24UNF	2550	1500
NA208-25	39.688	1 9/16	80	21	56.3	42.8	21.4	60.3	18.3	6.5	5/16-24UNF	2950	1800
NA208-24	38.1	1 1/2	80	21	56.3	42.8	21.4	60.3	18.3	6.5	5/16-24UNF	2950	1800
NA206-20	31.75	1 1/4	62	19	48.4	36.6	18.3	44.5	15.9	6	5/16-24UNF	1900	1100
NA207-20	31.75	1 1/4	72	20	51.1	37.6	18.8	55.6	17.5	6.5	5/16-24UNF	2550	1500
NA207-22	34.925	1 3/8	72	20	51.1	37.6	18.8	55.6	17.5	6.5	5/16-24UNF	2550	1500
NA206-19	30.163	1 3/16	62	19	48.4	36.6	18.3	44.5	15.9	6	5/16-24UNF	1900	1100
NA206	30		62	19	48.4	36.6	18.3	44.5	15.9	6	M8x1	1900	1100
NA205-15	23.813	15/16	52	17	44.4	35	17.5	38.1	13.5	5	1/4-28UNF	1400	750
NA205	25		52	17	44.4	35	17.5	38.1	13.5	5	M6x1	1400	750
NA205-16	25.4	1	52	17	44.4	35	17.5	38.1	13.5	5	1/4-28UNF	1400	750
NA206-18	28.575	1 1/8	62	19	48.4	36.6	18.3	44.5	15.9	6	5/16-24UNF	1900	1100
NA205-14	22.225	7/8	52	17	44.4	35	17.5	38.1	13.5	5	1/4-28UNF	1400	750
NA204	20		47	17	43.7	34.2	17.1	33.3	13.5	5	M6x1	1250	650
NA204-12	19.05	3/4	47	17	43.7	34.2	17.1	33.3	13.5	5	1/4-28UNF	1250	650

Insert Bearings

Deep Groove Ball Bearings

Pillow Block Bearings Widely used in various industries, our bearings meet the requirements of your project！

Pillow Block Bearings

Deep Groove Ball Bearings

1.FREE SAMPLES:
contact us by email or trade manager, we will send the free sampls according to your request.

2. World Class Bearing:We provide our customers with all type of indigenous bearing with world class quality.

3. OEM or Non Stand Bearings: Any requirement for Non standard bearings is Easily Fulfilled by us due to
 its vast knowledge and links in the industry.

4. Genuine products With Excellent Quality: Company has always proved the
 100% quality products it provides with genuine intent.

5.After Sales Service and technical Assistance: Company provides after sales service and technical assistance
 as per the customers requirement and needs.

6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.

7. Cost Saving: We provide long-life, shock-resistant and high reliability bearings with
 excellent quality and better performance. Resulting in increased cost saving.

8.Attending customer queries promptly: We believe that if customer are satisfied then it proves our worth well. Customers are always given quick support.
