NAFLU 200 Series

Pillow Block Bearings/ Mounted Bearings/ Plummer Block- 1)UCFL series; 2)UCP series; 3)UCF series; 4)UCT series ; 5)UCFC series

Plummer Block / Pillow Block Bearing At Factory Price For Sale

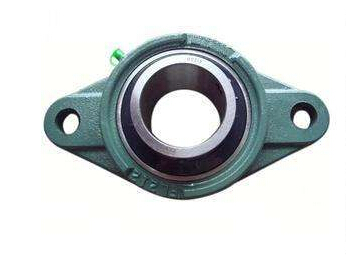

Pillow Block Bearing is also called Plummer Block or Mounted Bearings, which consist of double sealed spherical ball bearings and cast (or steel punched) housings.

The internal structure of the pillow block bearings is the same as deep groove ball bearings, but its inner ring wider than the outer ring. Outer ring has a spherical outer surface, matching with the concave spherical surface can be self-aligning.

Inquire Now

Product Details

Pillow Block Bearings

Deep Groove Ball Bearings

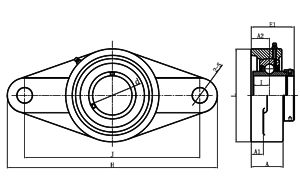

Unit No.	Dimensions(mm)										Bolt Used(mm)	Bearing No.	Housing No.	Mass(kg)
Unit No.	d	H	J	L	A2	A1	A	E1	S	I	Bolt Used(mm)	Bearing No.	Housing No.	Mass(kg)
NAFLU202	15	99	76.5	57	15	11	25.5	38.4	11.5	13.9	M10	NA202	FLU202	0.45
NAFLU203	17	99	76.5	57	15	11	25.5	38.4	11.5	13.9	M10	NA203	FLU203	0.43
NAFLU204	20	112.5	90	61	19	15	29.5	45.5	11.5	17	M10	NA204	FLU204	0.53
NAFLU205	25	123	99	70	19	15	30	45.9	16	17.4	M10	NA205	FLU205	0.64
NAFLU206	30	142	116.5	82	20	16	32.5	50.1	16	18.2	M10	NA206	FLU206	0.99
NAFLU207	35	158	130	94	21	17	36	53.3	16	18.8	M12	NA207	FLU207	1.4
NAFLU208	40	172	143.5	103	24	17	39	58.9	16	21.4	M12	NA208	FLU208	1.6
NAFLU209	45	180	148.5	108	24	18	40	58.9	19	21.4	M14	NA209	FLU209	2
NAFLU210	50	190	157	114	28	20	45	66.1	19	24.6	M16	NA210	FLU210	2.27
NAFLU211	55	217	184	128	31	21	48	74.6	19	27.7	M16	NA211	FLU211	3.1
NAFLU212	60	237	202	138	34	21	53	80.8	23	30.9	M16	NA212	FLU212	4.1
NAFLU213	65	256	210	152	38	22	56	89.6	21	34.1	M18	NA213	FLU213	5.6
NAFLU214	70	264	216	157	38	23	58	89.6	21	34.1	M18	NA214	FLU214	6
NAFLU215	75	275	225	164	41	24	62	95.8	21	37.3	M18	NA215	FLU215	7.3
NAFLU216	80	290	233	180	42	25	63	99.9	23	37.3	M20	NA216	FLU216	9

I have all the models you need, these are just some of them, please contact us now
