NAFU 200 Series

Pillow Block Bearings/ Mounted Bearings/ Plummer Block- 1)UCFL series; 2)UCP series; 3)UCF series; 4)UCT series ; 5)UCFC series

Plummer Block / Pillow Block Bearing At Factory Price For Sale

Pillow Block Bearing is also called Plummer Block or Mounted Bearings, which consist of double sealed spherical ball bearings and cast (or steel punched) housings.

The internal structure of the pillow block bearings is the same as deep groove ball bearings, but its inner ring wider than the outer ring. Outer ring has a spherical outer surface, matching with the concave spherical surface can be self-aligning.

Inquire Now

Product Details

Pillow Block Bearings

Deep Groove Ball Bearings

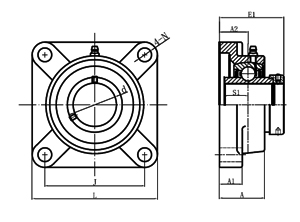

Unit No.	Dimensions(mm)									Bolt Used(mm)	Bearing No.	Housing No.	Mass(kg)
Unit No.	d	L	J	A 2	A 1	A	E 1	N	S 1	Bolt Used(mm)	Bearing No.	Housing No.	Mass(kg)
NAFU202	15	76	54	15	11	25.5	38.4	11.5	13.9	M10	NA202	NF202	0.68
NAFU203	17	76	54	15	11	25.5	38.4	11.5	13.9	M10	NA203	NF203	0.66
NAFU204	20	86	63.5	19	15	29.5	45.5	11.5	17	M10	NA204	NF204	0.77
NAFU205	25	93	70	19	15	30	45.9	11.5	17.4	M10	NA205	NF205	0.95
NAFU206	30	106	82.5	20	16	32.5	50.1	11.5	18.2	M10	NA206	NF206	1.32
NAFU207	35	116	92	21	17	35	53.3	14	18.8	M12	NA207	NF207	1.77
NAFU208	40	129	101.5	24	17	39	58.6	14	21.4	M12	NA208	NF208	2.22
NAFU209	45	135	105	24	18	40	58.9	16	21.4	M14	NA209	NF209	2.63
NAFU210	50	143	111	28	20	45	66.1	18	24.6	M16	NA210	NF210	2.95
NAFU211	55	162	130	31	21	49	74.6	18	27.7	M16	NA211	NF211	4.1
NAFU212	60	175	143	34	22	53.5	80.8	18	30.9	M16	NA212	NF212	4.86
NAFU213	65	184	149	38	22	58	89.6	18	34.1	M16	NA213	NF213	5.9
NAFU214	70	188	152	38	23	60	89.6	18	34.1	M16	NA214	NF214	6.45
NAFU215	75	200	159	41	24	62	95.8	18	37.3	M16	NA215	NF215	7.55
NAFU216	80	207	165	42	25	63	99.9	22	37.3	M20	NA216	NF216	8.65

I have all the models you need, these are just some of them, please contact us now

Pillow Block Bearings

Deep Groove Ball Bearings

Pillow Block Bearings Widely used in various industries, our bearings meet the requirements of your project！

Pillow Block Bearings

Deep Groove Ball Bearings

1.FREE SAMPLES:
contact us by email or trade manager, we will send the free sampls according to your request.

2. World Class Bearing:We provide our customers with all type of indigenous bearing with world class quality.

3. OEM or Non Stand Bearings: Any requirement for Non standard bearings is Easily Fulfilled by us due to
 its vast knowledge and links in the industry.

4. Genuine products With Excellent Quality: Company has always proved the
 100% quality products it provides with genuine intent.

5.After Sales Service and technical Assistance: Company provides after sales service and technical assistance
 as per the customers requirement and needs.

6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.

7. Cost Saving: We provide long-life, shock-resistant and high reliability bearings with
 excellent quality and better performance. Resulting in increased cost saving.

8.Attending customer queries promptly: We believe that if customer are satisfied then it proves our worth well. Customers are always given quick support.
