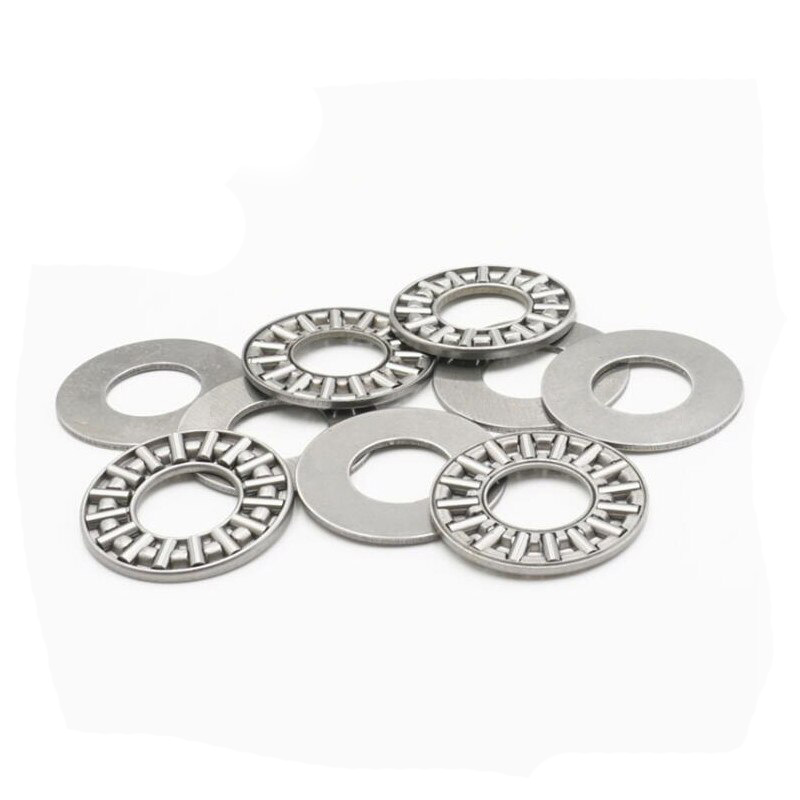

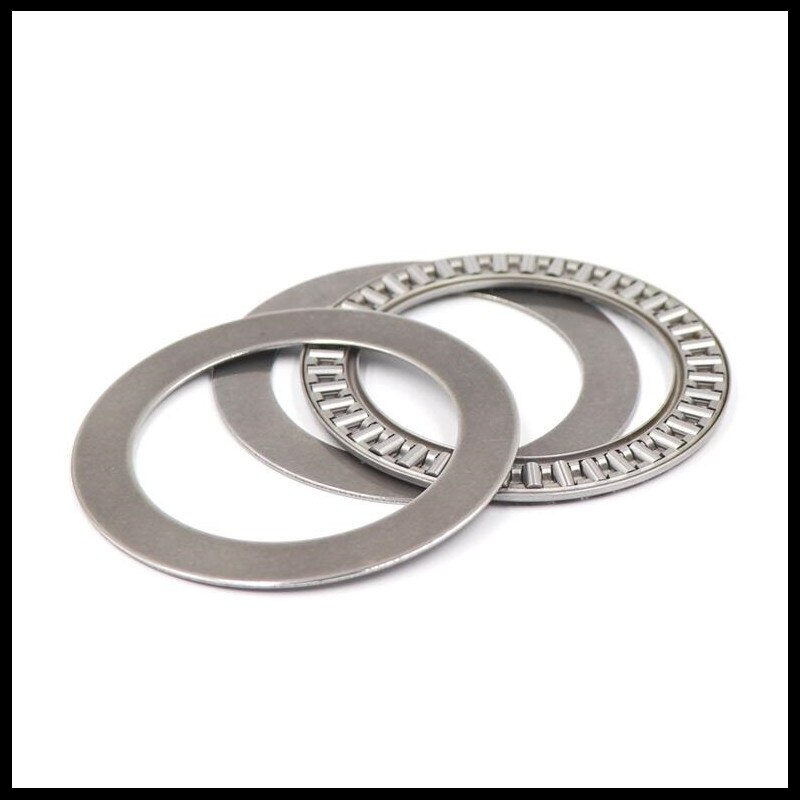

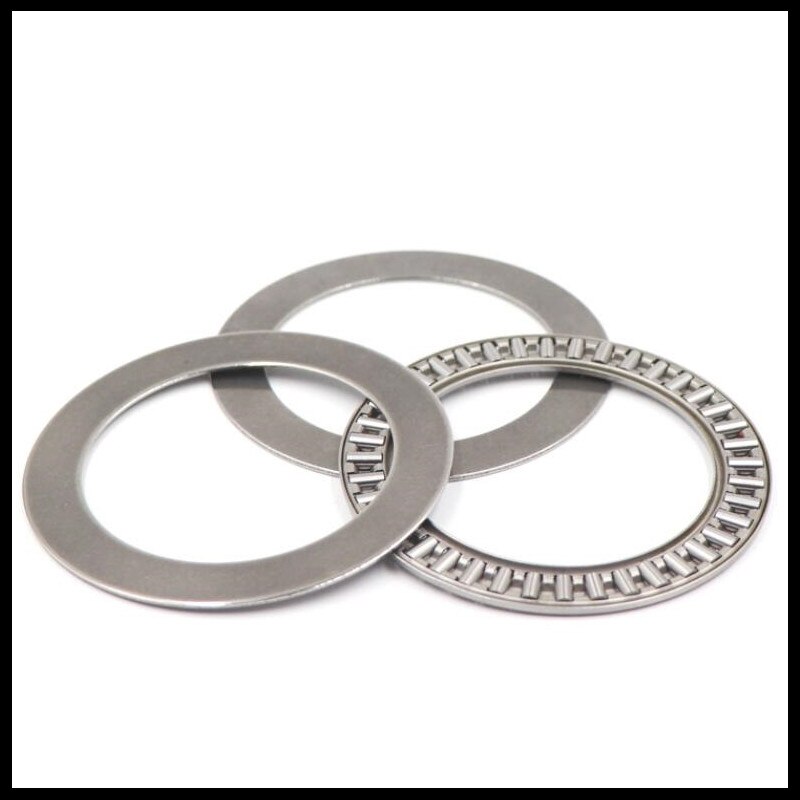

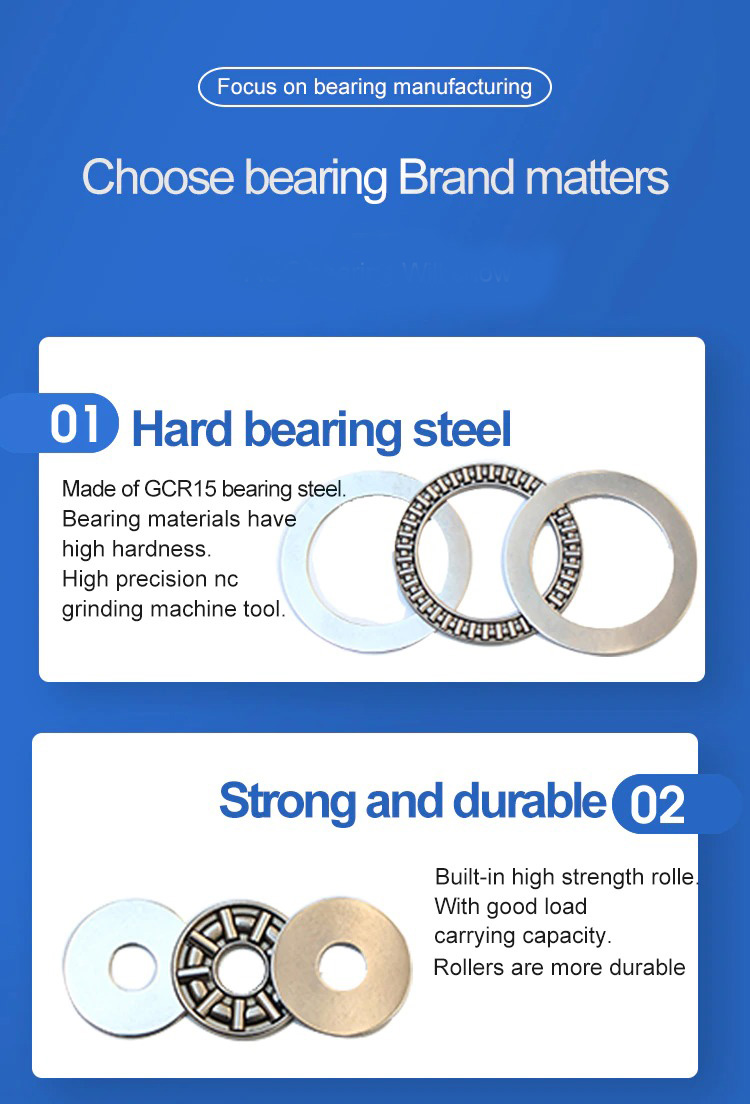

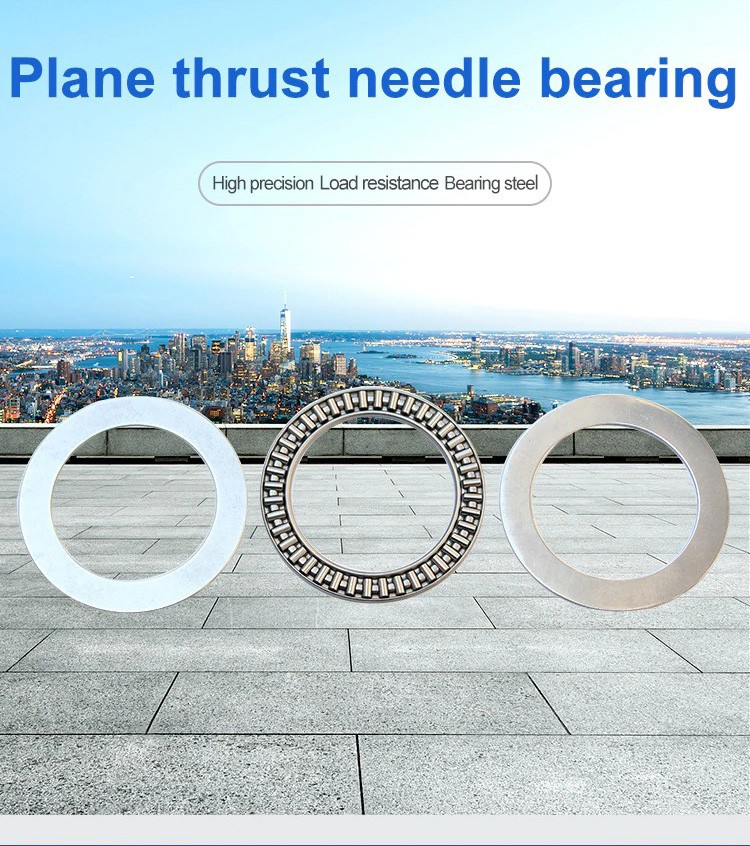

Axk Series Thrust Needle Roller Bearing

Short Description:

Needle roller bearings are roller bearings with cylindrical rollers that are small in diameter but long in length (L/D≥2.5). MBY® Needle roller bearings have a high radial load carrying capacity. And since they have a low cross section, needle roller bearings are extremely suitable for bearing applications where the radial space is limited.

Inquire Now

Product Details

Needle Roller Bearings

Deep Groove Ball Bearings

I have all the models you need, these are just some of them, please contact us now

Catalogue of AXK Thrust Needle Roller Bearing

shaft dia.	bearing type		dimension(mm)			Basic Load Rating(N)		limited speed(rpm)		width (g)
(mm)		original type	Inner	Outer	Width	dynamic	static	grease	oil
(mm)		original type	Dc1	Dc	Dw.	dynamic	static	grease	oil
4	AXK 0414 TN		4	14	2	4100	7900	14000	5500	0.7
5	AXK 0515 TN		5	15	2	4000	8500	13000	4800	0.8
6	AXK 0619 TN		6	19	2	6000	12000	12000	4200	1
8	AXK 0821 TN		8	21	2	7100	13500	11000	4000	2
10	AXK 1024		10	24	2	7800	24000	9500	3600	3
12	AXK 1226		12	26	2	8200	26700	7200	3200	3
15	AXK 1528		15	28	2	9500	33000	6500	3000	4
17	AXK 1730		17	30	2	10200	36500	5500	2800	4
20	AXK 2035		20	35	2	11000	43000	5000	2600	5
25	AXK 2542		25	42	2	12500	538000	4500	2300	7
30	AXK 3047		30	47	2	14000	656000	4100	2100	8
35	AXK 3552		35	52	2	15500	770000	3700	2000	10
40	AXK 4060		40	60	3	25000	1100000	3200	1900	16
45	AXK 4565		45	65	3	25800	1250000	3000	1700	18
50	AXK 5070		50	70	3	27600	1370000	2800	1600	20
55	AXK 5578		55	78	3	35000	1950000	2600	1500	28
60	AXK 6085		60	85	3	38600	2400000	2500	1100	33
65	AXK 6590		65	90	3	41000	2580000	2400	1000	35
70	AXK 7095		70	95	4	50000	2670000	2100	950	60
75	AXK 75100		75	100	4	51000	2750000	1900	900	61
80	AXK 80105		80	105	4	52400	2850000	1800	870	63
85	AXK 85110		85	110	4	54000	3000000	1700	850	67
90	AXK 90120		90	120	4	66000	4100000	1580	800	86
100	AXK 100135		100	135	4	76000	5570000	1400	770	104
110	AXK 110145		110	145	4	82000	6000000	1300	740	122
120	AXK 120155		120	155	4	84800	6620000	1200	700	131
130	AXK 130170		130	170	5	110000	9300000	1100	660	205
140	AXK 140180		140	180	5	115000	9100000	1000	620	219
150	AXK 150190		150	190	5	118000	9600000	950	580	232
160	AXK 160200		160	200	5	125000	10000000	900	500	246
	AX 715		7	15	2.3	3100	3250	6400	18400	0.0016
	AX 816		8	16	2.3	3100	7900	6300	18000	0.0017
	AX 1022		10	22	2.8	6200	15300	4700	13700	0.0044
	AX 1022		10	22	4	6200	15300	4700	13700	0.0068
	AX 1528		15	28	4	8100	26900	3600	10500	0.0098
	AX 2542		25	42	5	13100	58000	2300	6600	0.0257
	AX 2744		27	44	2.8	13700	61900	2200	6200	0.0127
	AX 4060		40	60	2.8	20000	110000	1500	4400	0.0239
	AX 4565		45	65	2.8	21000	123000	1400	4000	0.0247
	AXW 10		10	27	3/3.2	9200	25500	6000	14000	8.3
	AXW 12		12	29	3/3.2	9900	29000	5500	13000	9.1
	AXW 15		15	31	3.5/3.2	11300	36000	5200	11000	10.1
	AXW 17		17	33	3.5/3.2	11900	39500	4500	10000	11
	AXW 20		20	38	3.5/3.2	13100	46500	4000	8500	14
	AXW 25		25	45	4/3.2	14700	58000	3000	7000	19.5
	AXW 30		30	50	4/3.2	16300	7000	2000	6000	22
	AXW 35		35	55	4/3.2	17800	81000	1700	5500	26.6
	AXW 40		40	63	4/4.2	28000	114000	1500	4700	39.2
	AXW 45		45	68	4/4.2	30000	128000	1200	4300	43.4
	AXW 50		50	73	4.5/4.2	32000	143000	1000	3900	49.2
