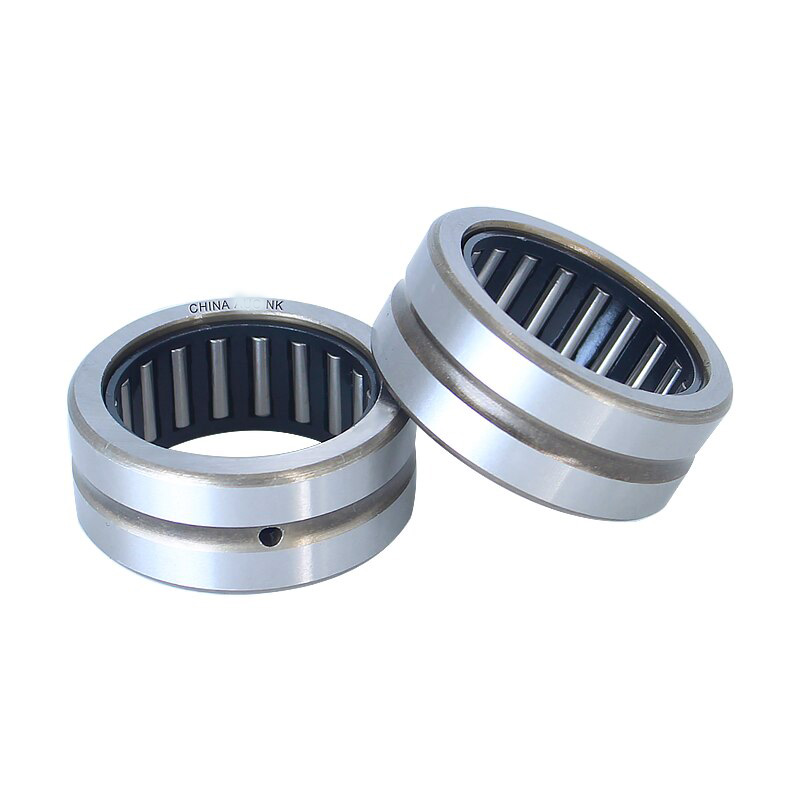

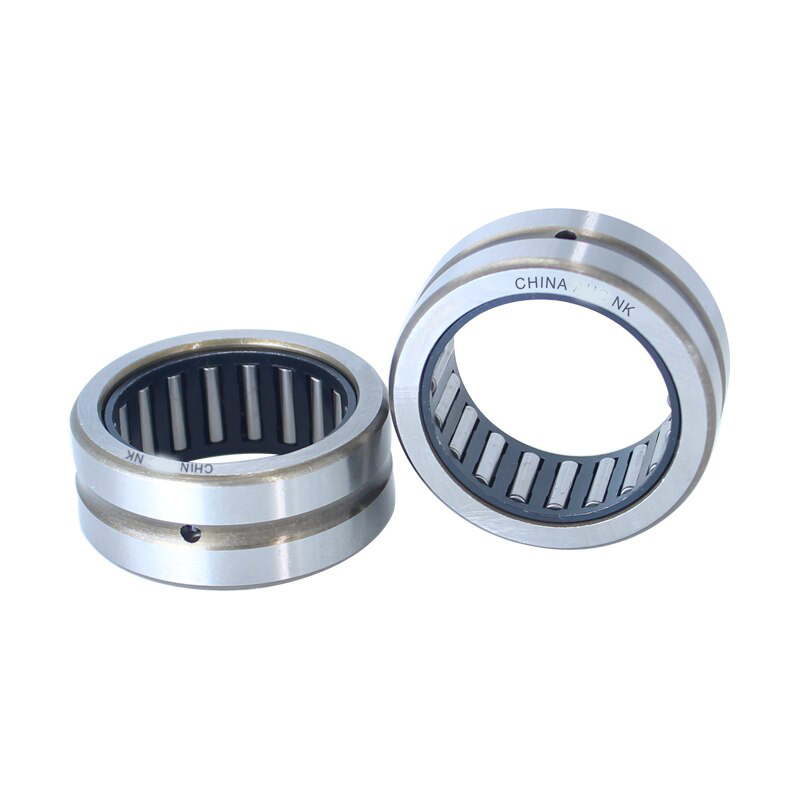

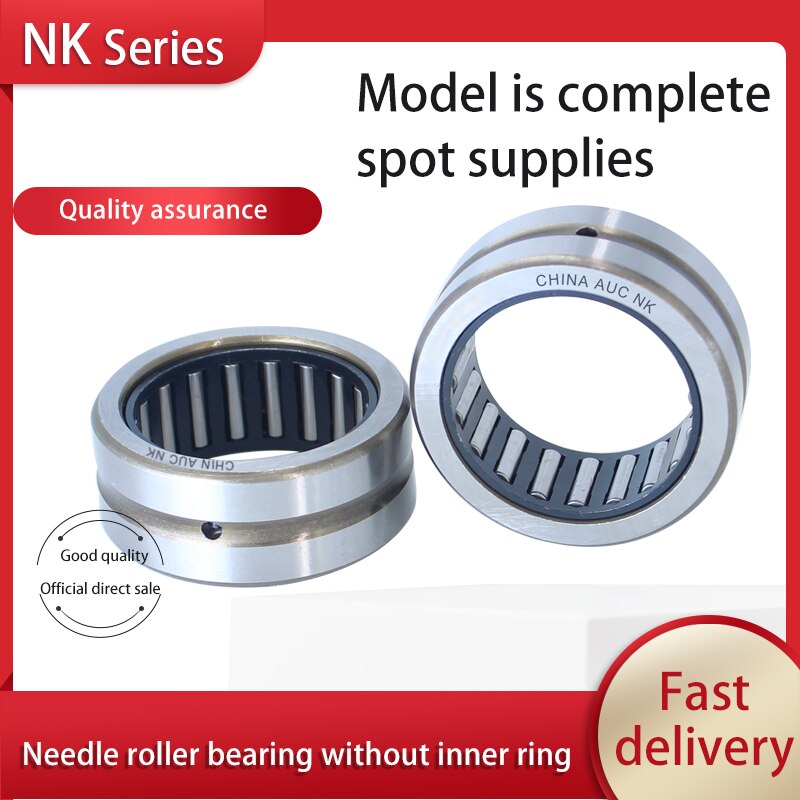

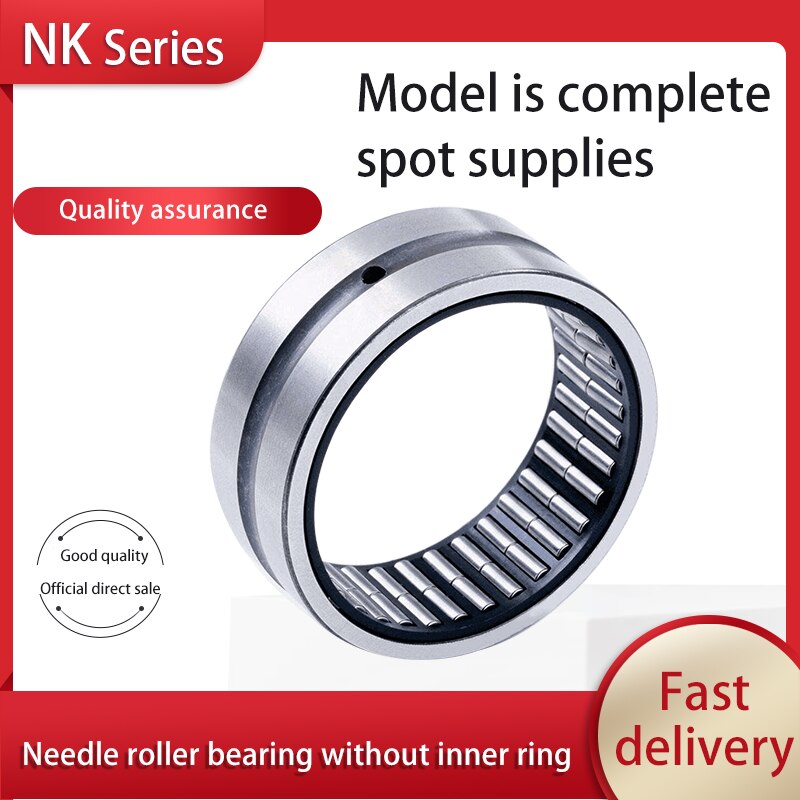

NK Series Needle Roller Bearings

Short Description:

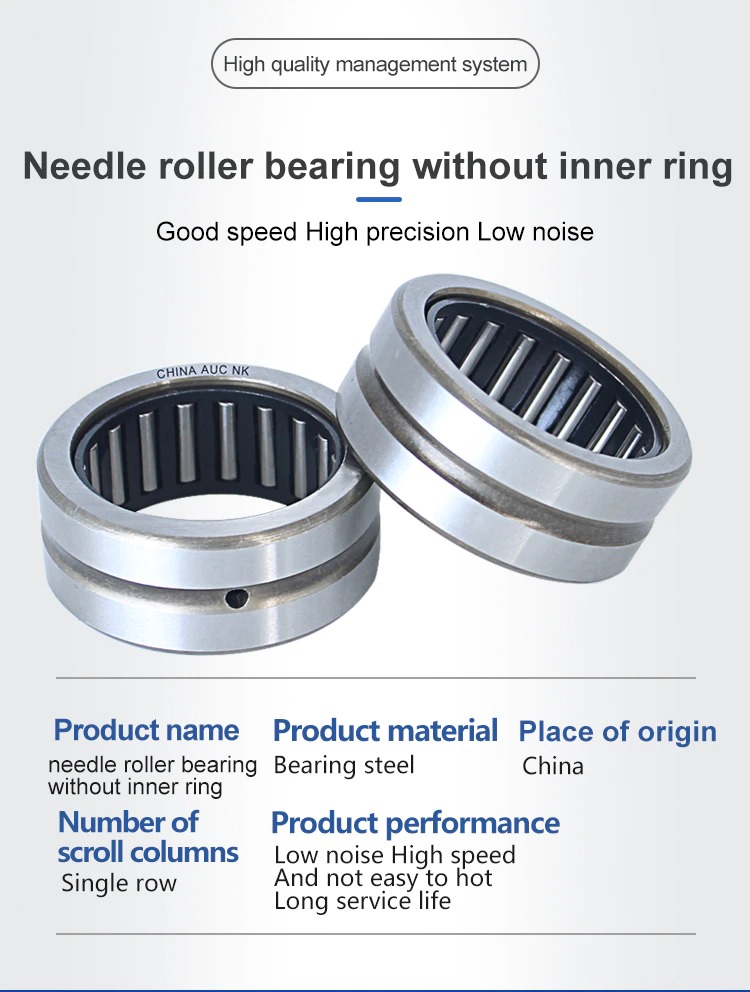

“Needle Roller Bearings have a high load-carrying capacity and can operate at high speeds. They have a slim design and are suited where radial space is limited. They are available with or without an inner ring.

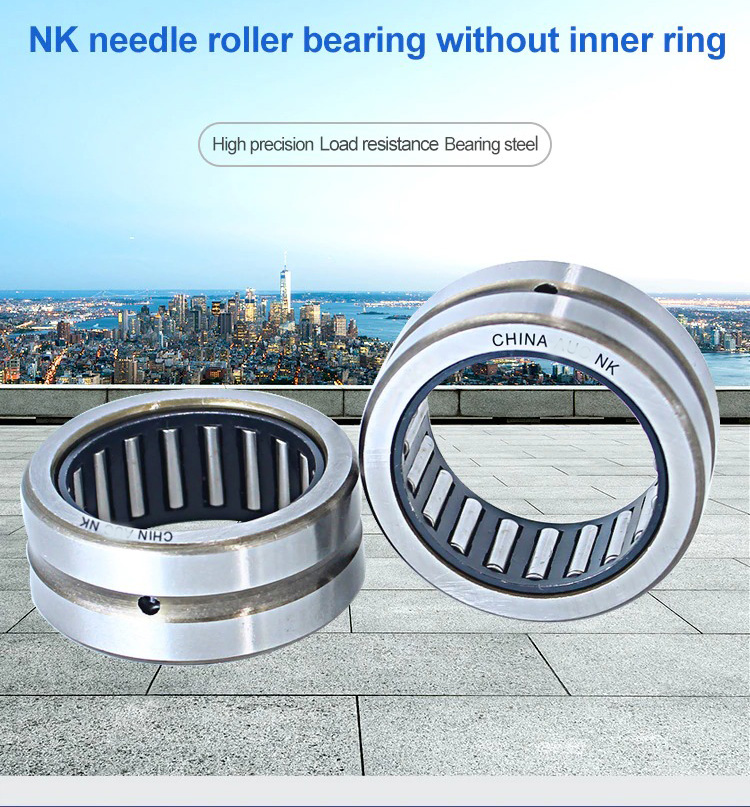

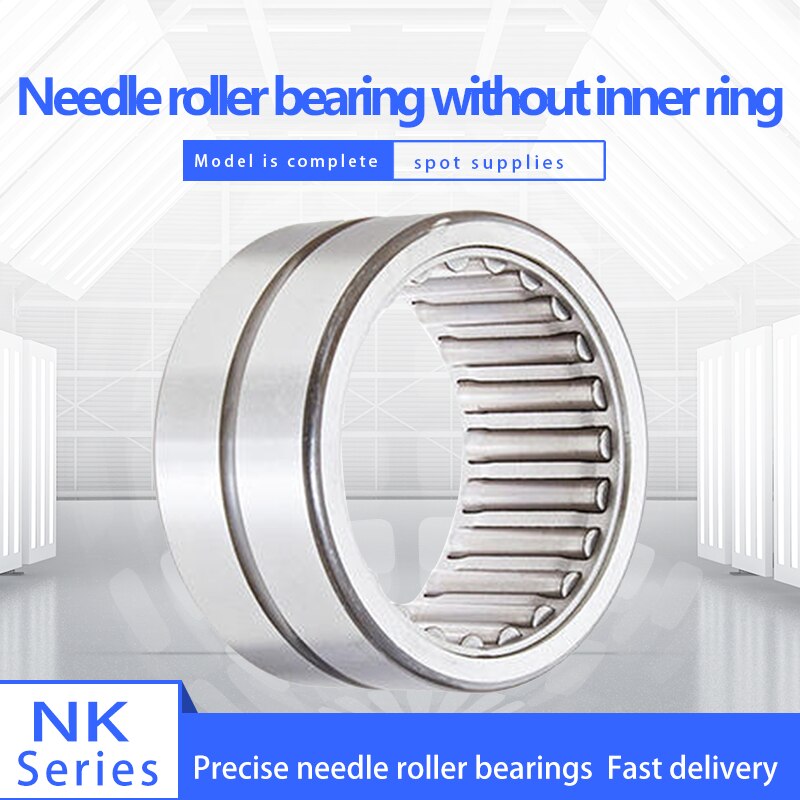

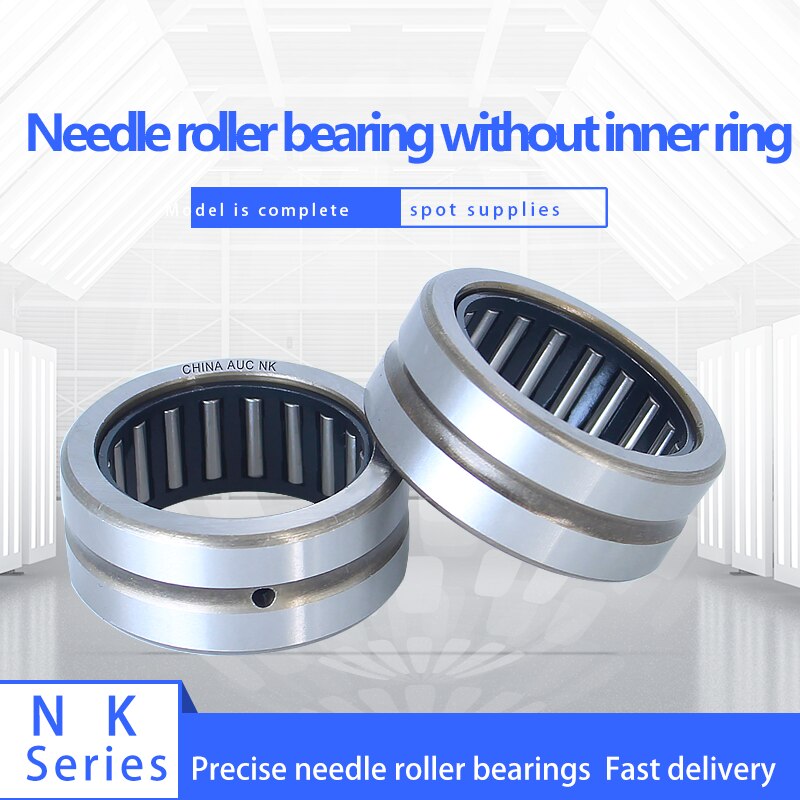

Needle roller bearings without an inner ring offer technically the best bearing arrangement solution if the shaft raceway is hardened and ground. This allows for the use of larger shafts and design alternatives.”

Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY

Inquire Now Next Product

Product Details

Needle Roller Bearings

Deep Groove Ball Bearings

I have all the models you need, these are just some of them, please contact us now

HF Series Drawn Cup Needle Roller

NK 5/12 TN	5	10	10	2920	2700	40000	0.01
NK 6/10 TN	6	12	10	2550	2360	38000	0.01
NK 6/12 TN	6	12	12	3300	3200	38000	0.01
NK 7/10 TN	7	14	10	2810	2750	36000	0.01
NK 7/12 TN	7	14	12	3580	3750	36000	0.01
NK 8/12 TN	8	15	12	3800	4250	36000	0.01
NK 8/16 TN	8	15	16	5010	5850	36000	0.01
NK 9/12 TN	9	16	12	4400	5200	34000	0.01
NK 9/16 TN	9	16	16	5720	7200	34000	0.01
NK 10/12 TN	10	17	12	4400	5400	32000	0.01
NK 10/16 TN	10	17	16	5940	8000	32000	0.01
NK 12/12	12	19	12	6710	8150	30000	0.01
NK 12/16	12	19	16	9130	12000	30000	0.02
NK 14/16	14	22	16	10200	12500	28000	0.02
NK 14/20	14	22	20	12800	16600	28000	0.03
NK 15/16	15	23	16	11000	14000	26000	0.02
NK 15/20	15	23	20	13800	18300	26000	0.03
NK 16/16	16	24	16	11700	15300	26000	0.02
NK 16/20	16	24	20	14500	20000	26000	0.03
NK 17/16	17	25	16	12100	16600	26000	0.02
NK 17/20	17	25	20	15100	22000	26000	0.03
NK 18/16	18	26	16	12800	17600	24000	0.03
NK 18/20	18	26	20	16100	23600	24000	0.03
NK 19/16	19	27	16	13400	19000	24000	0.03
NK 19/20	19	27	20	16500	25500	24000	0.03
NK 20/16	20	28	16	13200	19300	22000	0.03
NK 20/20	20	28	20	16500	25500	22000	0.03
NK 21/16	21	29	16	13800	20400	22000	0.03
NK 21/20	21	29	20	17200	27000	22000	0.04
NK 22/16	22	30	16	14200	21600	20000	0.03
NK 22/20	22	30	20	17900	29000	20000	0.04
NK 24/16	24	32	16	15400	24500	19000	0.03
NK 24/20	24	32	20	19000	32500	19000	0.04
NK 25/16	25	33	16	15100	24500	18000	0.03
NK 25/20	25	33	20	19000	32500	18000	0.04
NK 26/16	26	34	16	15700	26000	17000	0.03
NK 26/20	26	34	20	19400	34500	17000	0.04
NK 28/20	28	37	20	22000	36500	16000	0.05
NK 28/30	28	37	30	31900	60000	16000	0.08
NK 29/20	29	38	20	22000	36500	15000	0.05
NK 29/30	29	38	30	31900	60000	15000	0.08
NK 30/20	30	40	20	22900	38000	15000	0.07
NK 30/30	30	40	30	33000	63000	15000	0.1
NK 32/20	32	42	20	23300	40500	14000	0.07
NK 32/30	32	42	30	34100	65500	14000	0.1
NK 35/20	35	45	20	24600	45000	13000	0.07
NK 35/30	35	45	30	35800	72000	13000	0.11
NK 37/20	37	47	20	25100	46500	12000	0.08
NK 37/30	37	47	30	36900	76500	12000	0.11
NK 38/20	38	48	20	25500	49000	12000	0.08
NK 38/30	38	48	30	37400	80000	12000	0.12
NK 40/20	40	50	20	26400	51000	11000	0.08
NK 40/30	40	50	30	38000	83000	11000	0.13
NK 42/20	42	52	20	27000	53000	11000	0.09
NK 42/30	42	52	30	39100	86500	11000	0.13
NK 43/20	43	53	20	27500	55000	11000	0.09
NK 43/30	43	53	30	40200	90000	11000	0.13
NK 45/20	43	55	20	27500	57000	10000	0.09
NK 45/30	43	55	30	40200	93000	10000	0.14
NK 47/20	47	57	20	29200	61000	10000	0.1
NK 47/ 3 0	47	57	30	41800	98000	10000	0.14
NK 50/25	50	62	25	38000	78000	9000	0.16
NK 50/35	50	62	35	49500	110000	9000	0.22
NK 55/25	55	68	25	40200	88000	8500	0.18
NK 55/35	55	68	35	52300	122000	8500	0.25
NK 60/25	60	72	25	41800	96500	7500	0.19
NK 60/35	60	72	35	55000	134000	7500	0.26
NK 65/25	65	78	25	44000	104000	7000	0.22
NK 65/35	65	78	35	58300	146000	7000	0.31
NK 68/25	68	82	25	44000	95000	6700	0.24
NK 68/35	68	82	35	60500	146000	6700	0.34
NK 70/25	70	85	25	44600	98000	6700	0.26
NK 70/35	70	85	35	61600	150000	6700	0.37
NK 73/25	73	90	25	52800	106000	6300	0.3
NK 73/35	73	90	35	73700	163000	6300	0.43
NK 75/25	75	92	25	53900	110000	6000	0.32
NK 75/35	75	92	35	74800	170000	6000	0.45
NK 80/25	80	95	25	56100	127000	5600	0.3
NK 80/35	80	95	35	76500	190000	5600	0.43
NK 85/25	85	105	25	69300	132000	5300	0.43
NK 85/35	85	105	35	96800	200000	5300	0.6
NK 90/25	90	110	25	72100	140000	5000	0.45
NK 90/35	90	110	35	101000	216000	5000	0.63
NK 95/26	95	115	26	73700	146000	4800	0.49
NK 95/36	95	115	36	105000	232000	4800	0.68
NK 100/26	100	120	26	76500	156000	4500	0.52
NK 100/36	100	120	36	108000	250000	4500	0.72
NK 105/26	105	125	26	78100	166000	4300	0.54
NK 105/36	105	125	36	112000	265000	4300	0.71
NK 1 1 0/30	110	130	30	96800	220000	4000	0.65
NK 110/40	110	130	40	123000	305000	4000	0.83
