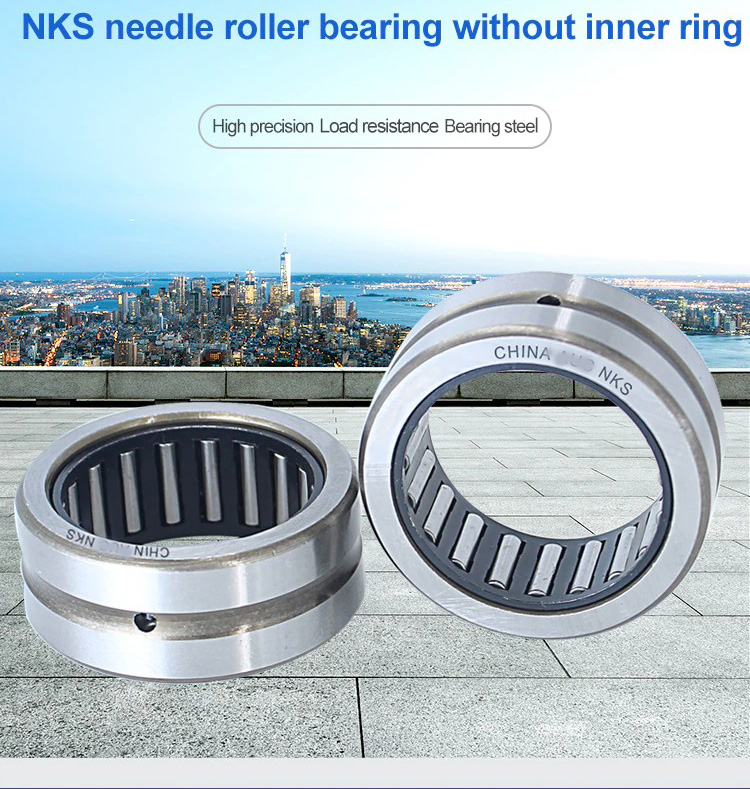

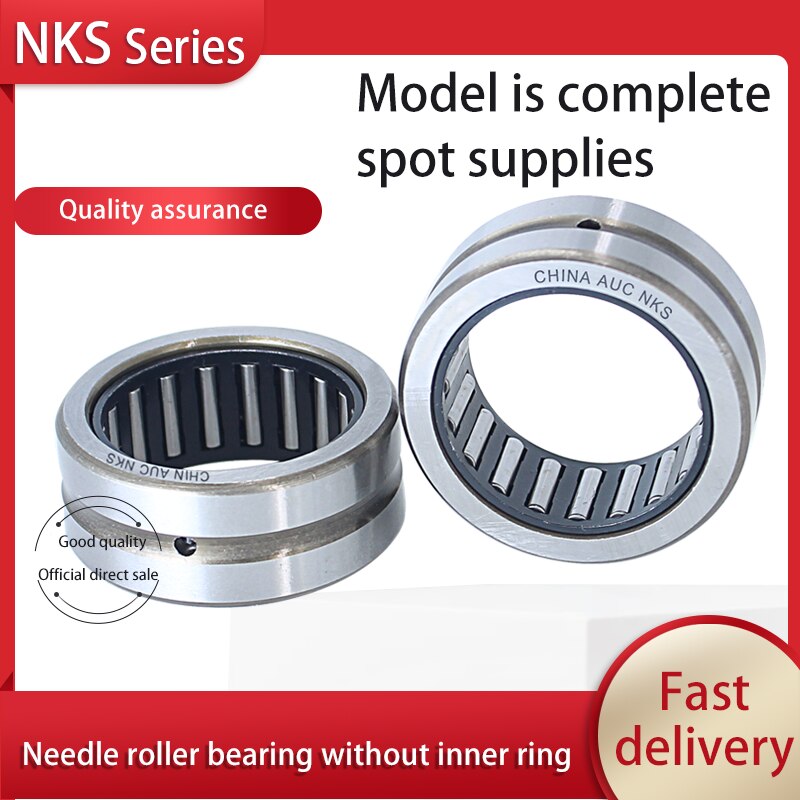

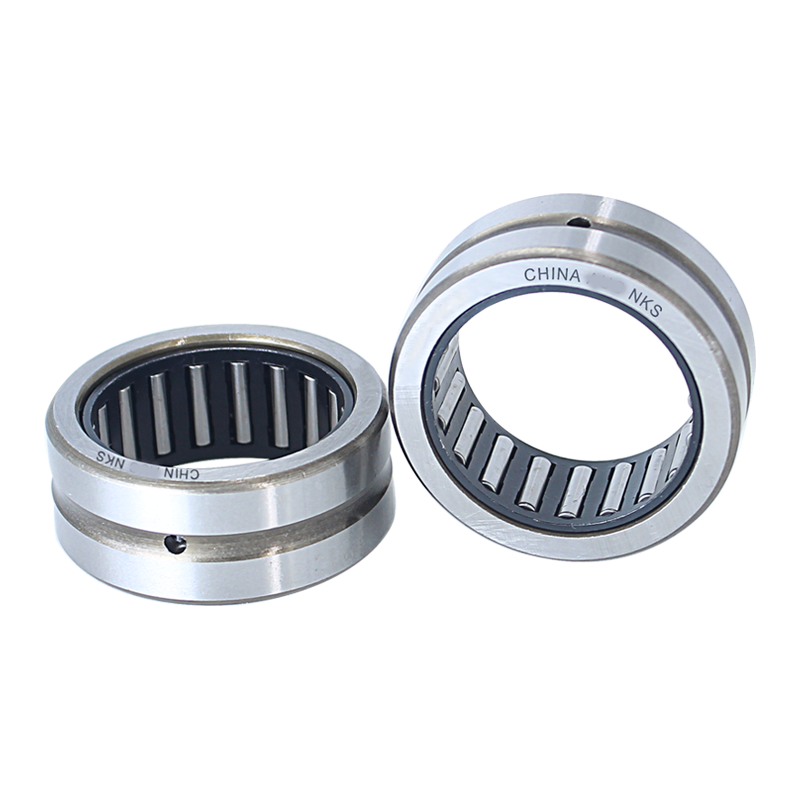

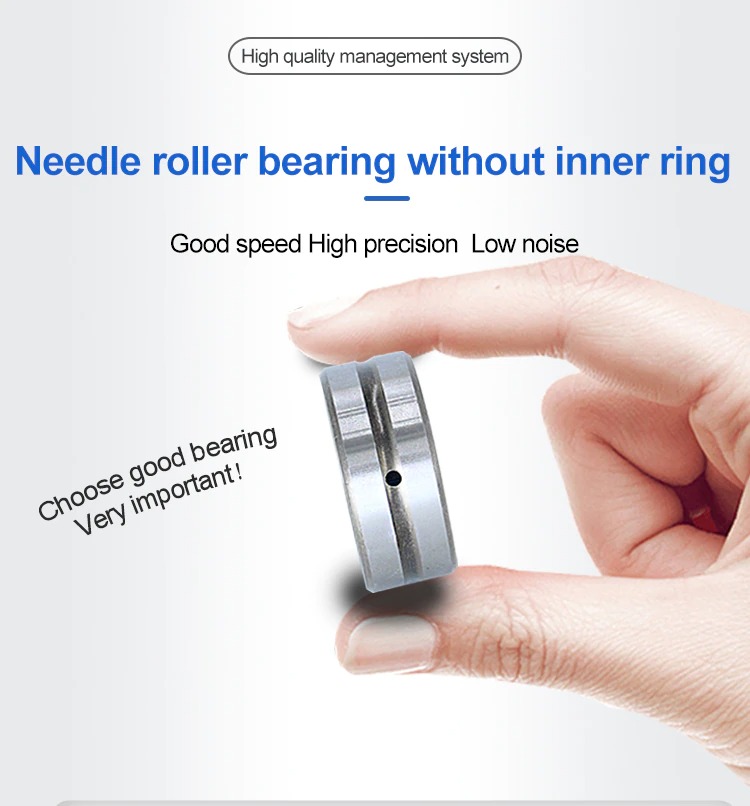

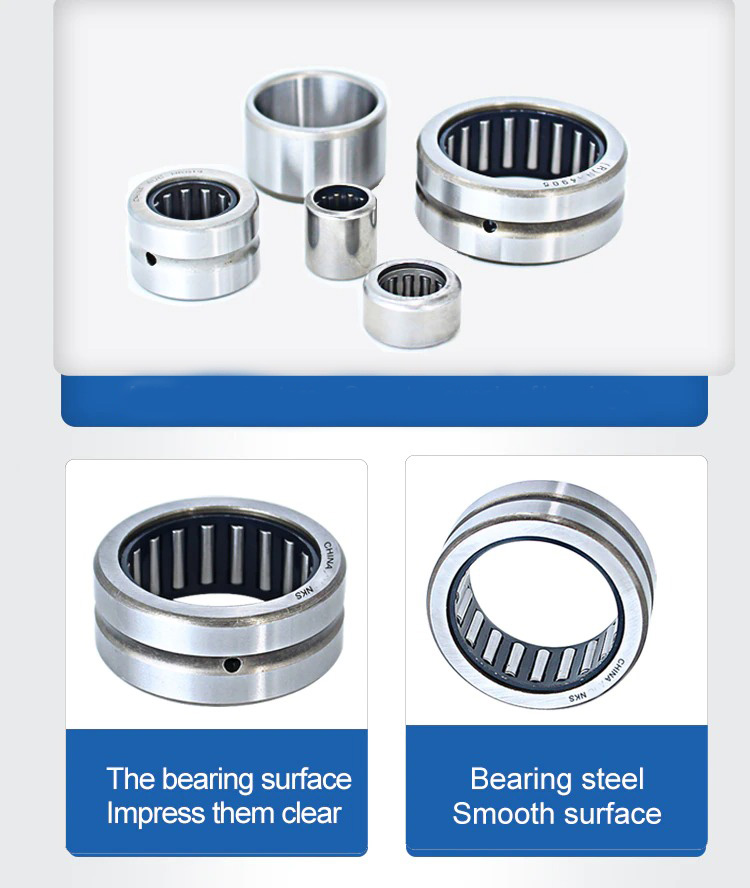

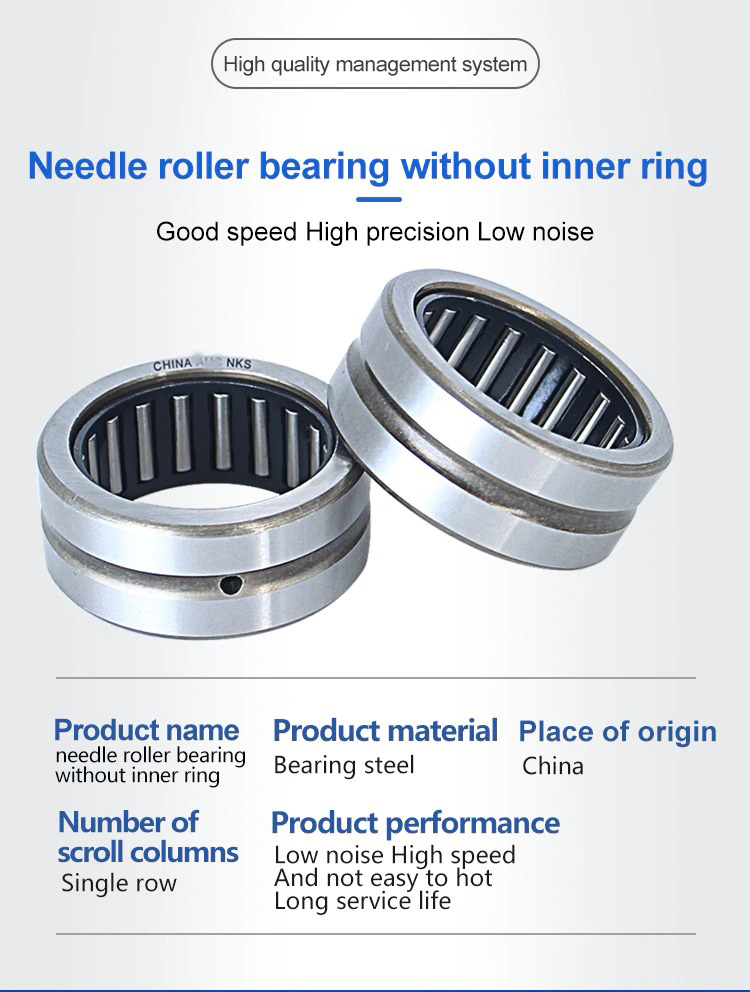

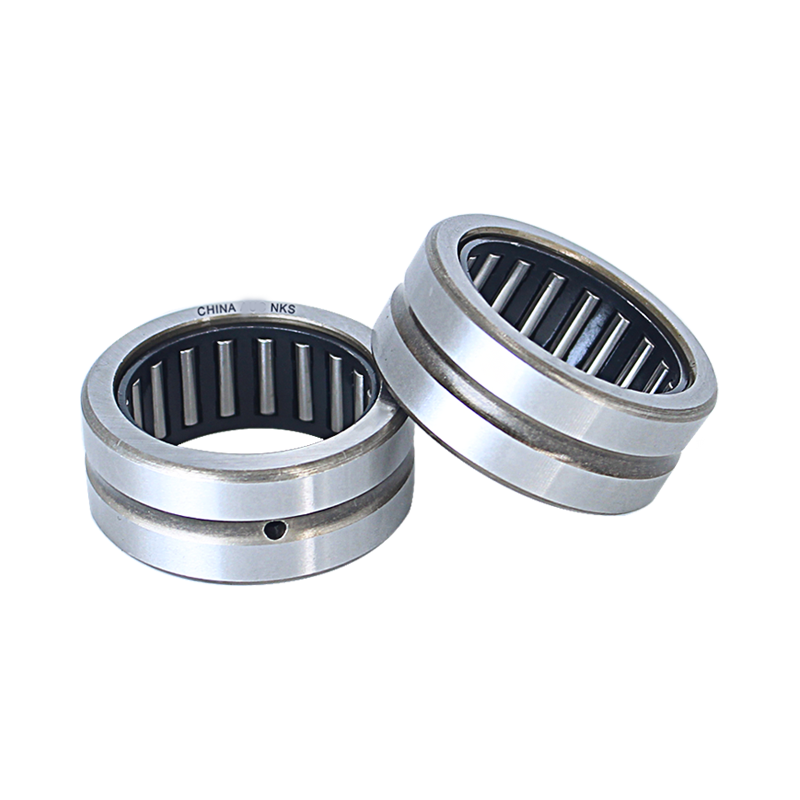

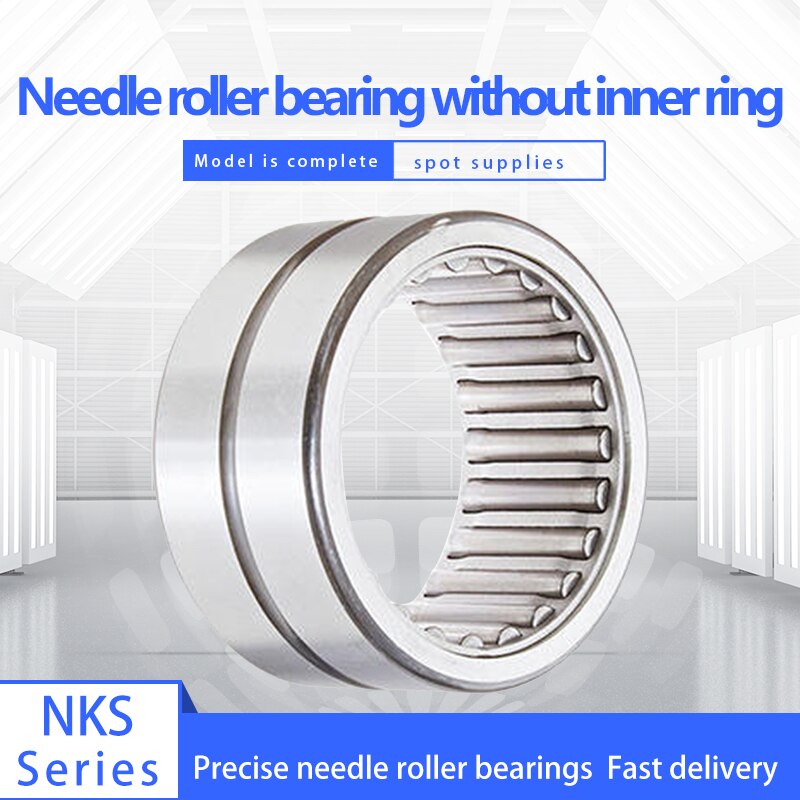

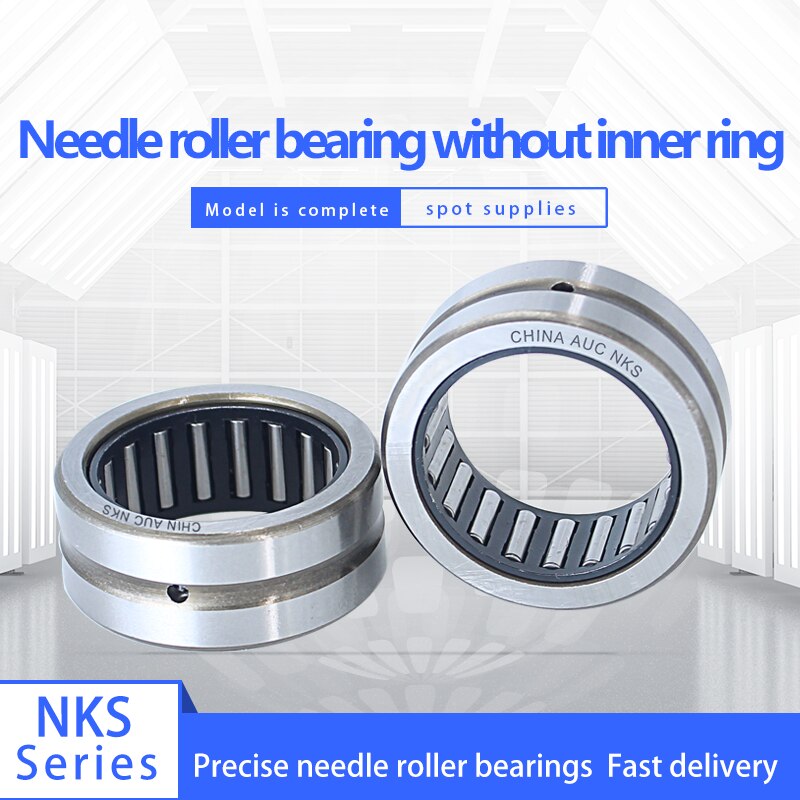

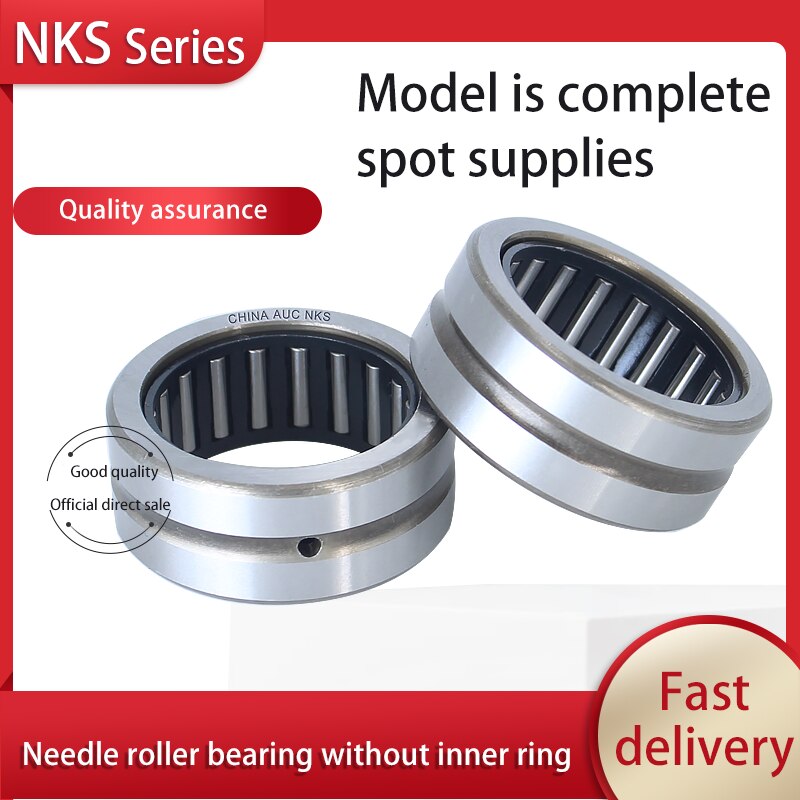

Needle roller bearings are rolling bearings with a low radial section height and high load carrying capacity, which are used as non-locating bearings and are part of the group of radial needle roller bearings. These bearings comprise machined outer rings, needle roller and cage assemblies, and removable inner rings, i.e. they can be supplied with or without an inner ring in accordance with the application. In contrast to the outer cups of drawn cup needle roller bearings, which are produced by forming methods, the bearing rings are machined. Due to their non-locating bearing function, the bearings cannot guide the shaft axially in any direction.
Product Details
I have all the models you need, these are just some of them, please contact us now
NKS 20 | 20 | 32 | 20 | 23300 | 27000 | 20000 | 0.05 |
NKS 24 | 24 | 37 | 20 | 26000 | 33500 | 17000 | 0.07 |
NKS 25 | 25 | 38 | 20 | 27500 | 36000 | 17000 | 0.07 |
NKS 28 | 28 | 42 | 20 | 28600 | 39000 | 15000 | 0.08 |
NKS 30 | 30 | 45 | 22 | 31900 | 43000 | 14000 | 0.1 |
NKS 32 | 32 | 47 | 22 | 34100 | 46500 | 14000 | 0.11 |
NKS 35 | 35 | 50 | 22 | 35200 | 50000 | 12000 | 0.12 |
NKS 37 | 37 | 52 | 22 | 36900 | 54000 | 12000 | 0.12 |
NKS 40 | 40 | 55 | 22 | 38000 | 57000 | 11000 | 0.13 |
NKS 43 | 43 | 58 | 22 | 39100 | 61000 | 10000 | 0.14 |
NKS 45 | 43 | 60 | 22 | 40200 | 64000 | 10000 | 0.15 |
NKS 50 | 50 | 65 | 22 | 42900 | 72000 | 9000 | 0.16 |
NKS 55 | 55 | 72 | 22 | 44600 | 78000 | 8000 | 0.22 |
NKS 60 | 60 | 80 | 28 | 62700 | 104000 | 7500 | 0.34 |
NKS 65 | 65 | 85 | 28 | 66000 | 114000 | 6700 | 0.36 |
NKS 70 | 70 | 90 | 28 | 68200 | 120000 | 6300 | 0.38 |
NKS 75 | 75 | 95 | 28 | 70400 | 132000 | 6000 | 0.4 |
NKS 80 | 80 | 100 | 28 | 74800 | 140000 | 5600 | 0.4 |
Deep Groove Ball Bearings Widely used in various industries, our bearings meet the requirements of your project!
1.FREE SAMPLES:
contact us by email or trade manager, we will send the free sampls according to your request.
