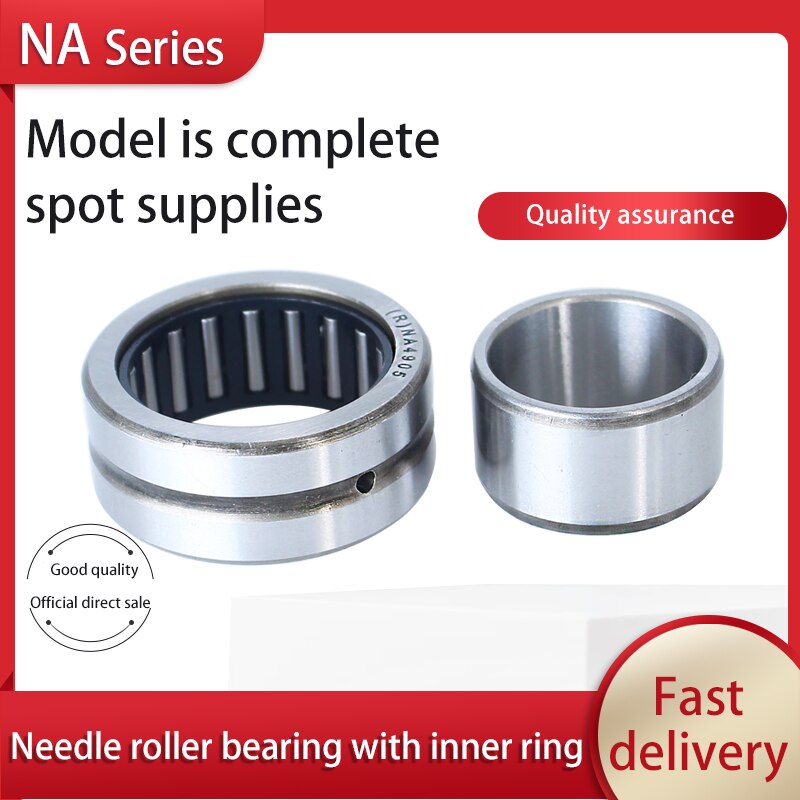

NA 49 Series Needle Roller Bearing

Short Description:

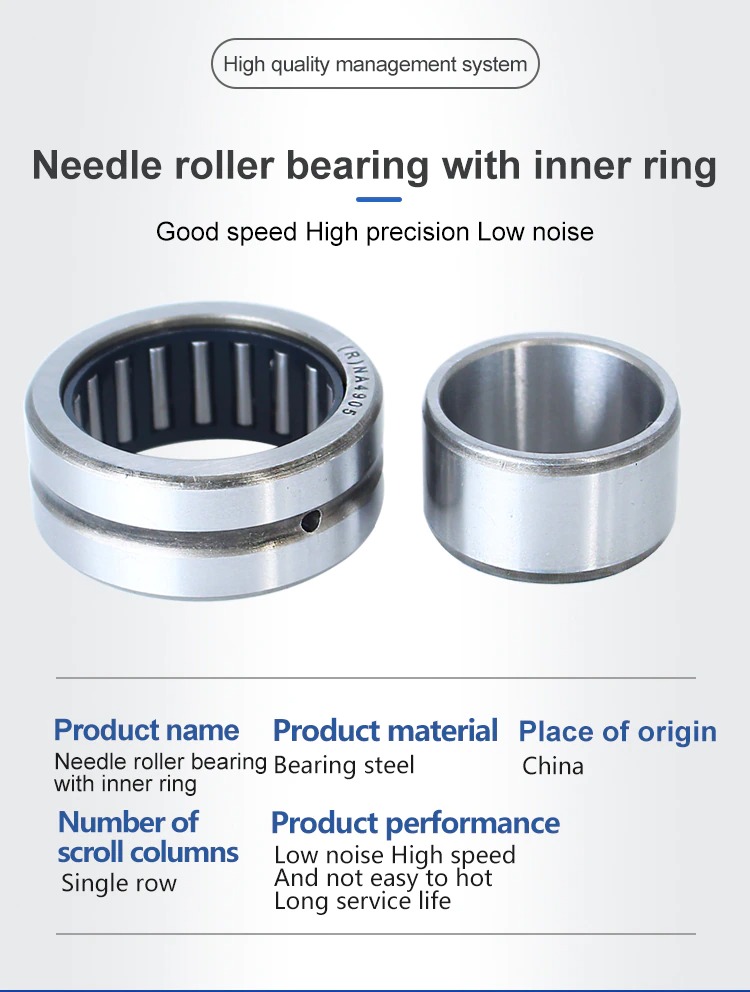

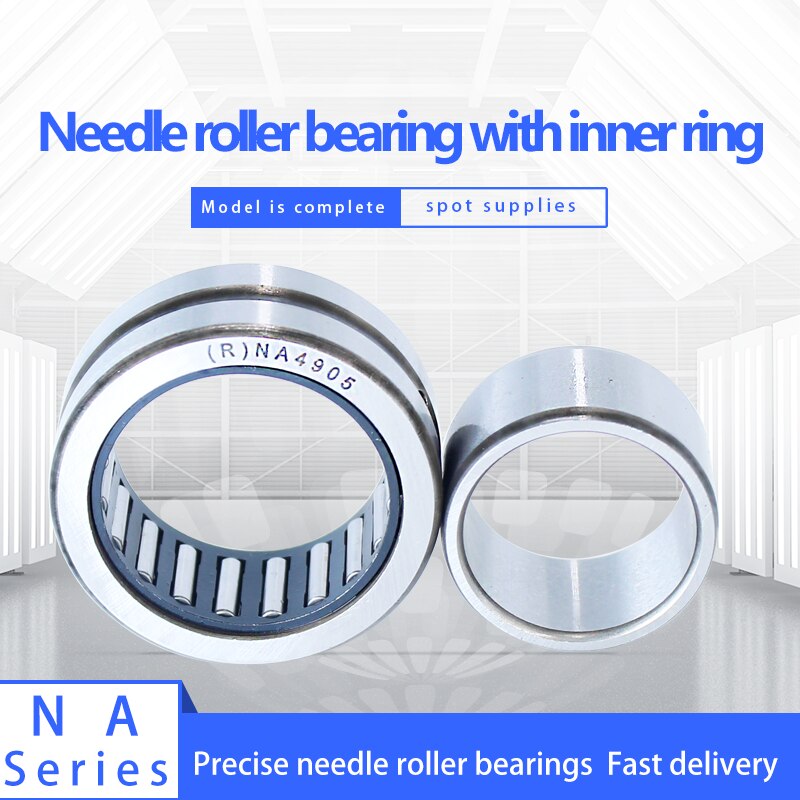

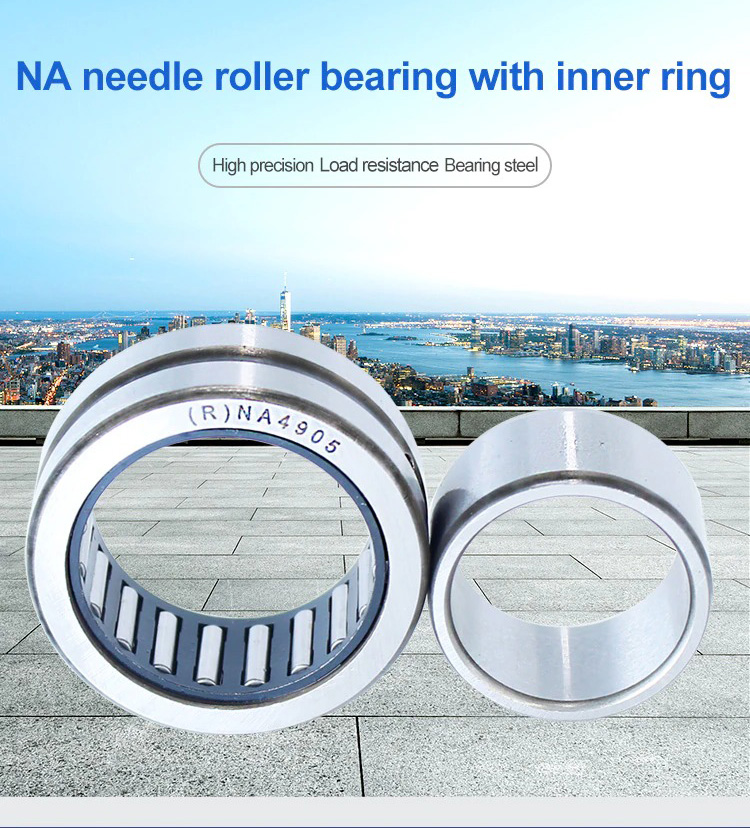

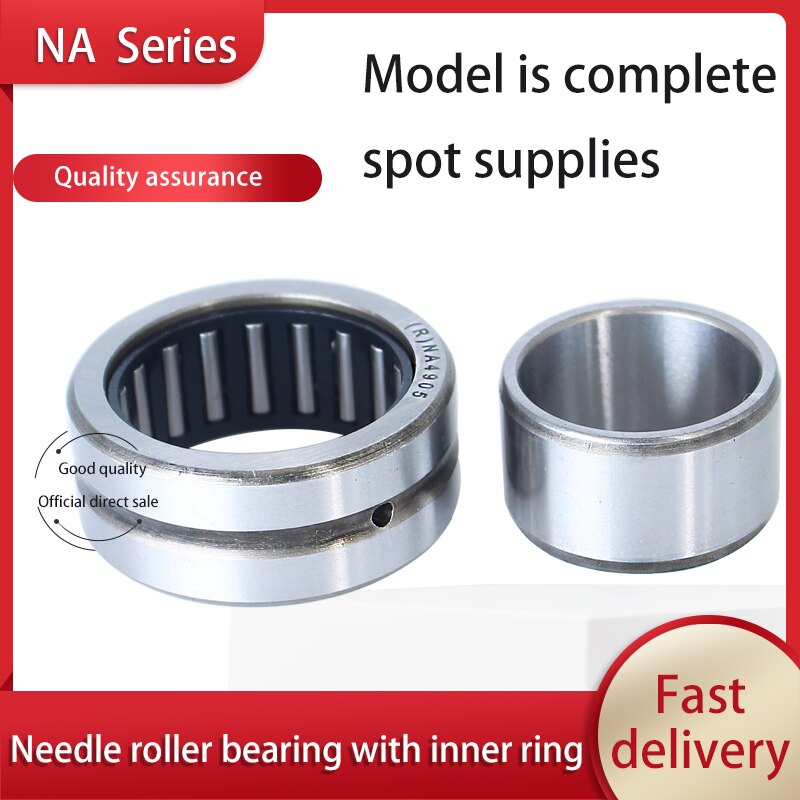

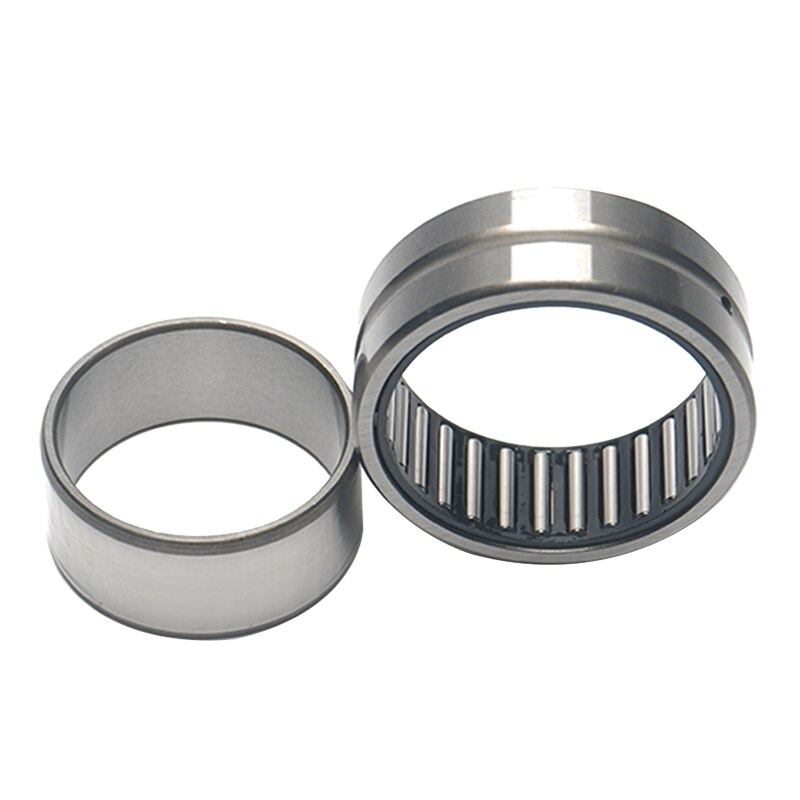

Needle roller bearings have a long record of accomplishment as proven machine elements for the design of radially compact bearing arrangements with very high load-carrying capacity. Needle roller bearings with an inner ring are used for applications where the shaft cannot be hardened and ground. The permissible axial displacement of the shaft relative to the housing is limited for bearings with an inner ring. If the permissible axial displacement provided by a standard inner ring is insufficient, it is possible to use an extended inner ring.

Inquire Now Next Product

Product Details

Needle Roller Bearings

Deep Groove Ball Bearings

I have all the models you need, these are just some of them, please contact us now

NKIS Series Needle Roller Bearing

Needle Roller Bearings

NA 49 Series Needle Roller Bearing

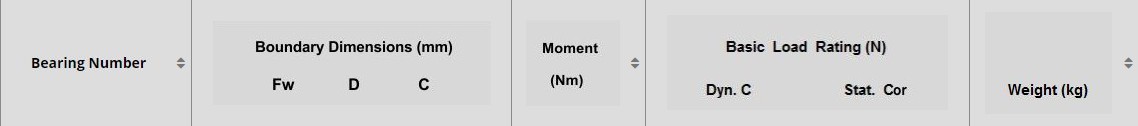

NA 4822	110	120	140	30	93000	239000	3500	1.2
NA 4824	120	130	150	30	97000	259000	3000	1.3
NA 4826	130	145	165	35	117000	340000	3000	1.96
NA 4828	140	155	175	35	121000	363000	2500	2.1
NA 4830	150	165	190	40	168000	446000	2500	2.88
NA 4832	160	175	200	40	173000	474000	2500	3.05
NA4900	10	14	22	13	6880	7360	19200	0.024
NA4900 2RS	10	14	14	22	6560	6960	11200	0.0245
NA4901	12	16	24	13	7640	8720	18400	0.0265
NA4901 2RS	12	16	14	24	6880	7600	9600	0.0275
NA4902	15	20	28	13	8240	10240	16000	0.036
NA4902 2RS	15	20	14	28	7840	9520	7600	0.036
NA4903	17	22	30	13	8960	11680	14400	0.037
NA4903 2RS	17	22	14	30	8400	10720	6800	0.0395
NA4904	20	25	37	17	17040	20400	12800	0.074
NA4904 2RS	20	25	18	37	14640	16720	6000	0.0785
NA49/22	22	28	39	17	18560	23440	11200	0.08
NA49/22 2RS	22	28	18	39	14960	19280	5600	0.0875
NA4905	25	30	42	17	19200	25200	10400	0.088
NA4905 2RS	25	30	18	42	16560	20480	5200	0.0925
NA49/28	28	32	45	17	19840	26800	10400	0.098
NA49/28 2RS	28	32	18	45	17120	21840	4800	0.101
NA4906	30	35	47	17	20400	28400	8800	0.101
NA4906 2RS	30	35	18	47	17600	23200	4400	0.106
NA49/32	32	40	52	20	25200	38000	8000	0.157
NA49/32 2RS	32	40	21	52	23920	36000	4000	0.167
NA4907	35	42	55	20	25600	40000	7600	0.171
NA4907 2RS	35	42	21	55	24560	37760	3600	0.179
NA4908	40	48	62	22	34800	53200	6800	0.232
NA4908 2RS	40	48	23	62	30320	47600	3200	0.245
NA4909	45	52	68	22	36800	58400	6000	0.232
NA4909 2RS	45	52	23	68	31680	51760	2800	0.29
NA4910	50	58	72	22	38400	64000	5600	0.276
NA4910 2RS	50	58	23	72	33680	58000	2800	0.295
NA4911	55	63	80	25	46800	79600	5200	0.396
NA4911 2RS	55	63	26	80	42560	69920	2400	0.415
NA4912	60	68	85	25	49200	86400	4800	0.427
NA4912 2RS	60	68	26	85	44480	75680	2400	0.445
NA4913	65	72	90	25	50000	89600	4400	0.454
NA4913 2RS	65	72	26	90	46400	81600	2000	0.475
NA4914	70	80	100	30	68400	124800	4000	0.727
NA4914 2RS	70	80	31	100	62720	116800	2000	0.77
NA4915	75	85	105	30	69600	129600	3760	0.776
NA4915 2RS	75	85	31	105	64960	124800	1600	0.815
NA4916	80	90	110	30	72400	139200	3520	0.82
NA4916 2RS	80	90	31	110	65840	128800	1600	0.86
NA4917	85	100	120	35	89600	189600	3200	1.24
NA4917 2RS	85	100	36	120	84000	184000	1520	1.3
NA4918	90	105	125	35	92800	201600	3040	1.31
NA4918 2RS	90	105	36	125	86400	193600	1440	1.36
NA4919	95	110	130	35	94400	208000	2880	1.36
NA4919 2RS	95	110	36	130	89600	204000	1360	1.42
NA4920	100	115	140	40	101600	208000	2800	1.93
NA4920 2RS	100	115	41	140	109600	242400	1360	1.98
NA4922	110	125	150	40	104800	223200	2560	2.08
NA4922 2RS	110	125	41	150	114400	263200	1200	2.15
NA4924	120	135	165	45	144000	304000	2400	2.84
NA4924 2RS	120	135	46	165	145600	333600	1120	2.99
NA4926	130	150	180	50	161600	364000	2160	3.9
NA4926 2RS	130	150	51	180	168800	417600	1040	4.08
NA4928	140	160	190	50	167200	388000	2000	4.05
NA4928 2RS	140	160	51	190	174400	448000	960	4.34
NA4930	150	170	210	60	208800	488000	1920	6.38
NA4932	160	180	220	60	216000	520000	1760	6.75
NA4934	170	190	230	60	223200	552000	1680	7.11
NA4936	180	205	250	69	300000	712000	1600	10.2
NA4938	190	215	260	69	312000	756000	1520	10.7
NA4940	200	225	280	80	404000	944000	1440	15.4
NA4944	220	245	300	80	420000	1016000	1280	16.7
NA4948	240	265	320	80	432000	1080000	1200	18
NA4952	260	290	360	100	644000	1520000	1120	31.1
NA4956	280	310	380	100	668000	1624000	1040	33.1
NA4960	300	340	420	118	864000	2112000	960	51.4
NA4964	320	360	440	118	896000	2256000	880	54.4
NA4968	340	380	460	118	928000	2400000	880	57.3
NA4972	360	400	480	118	960000	2560000	800	60.2
NA4976	380	430	520	140	1120000	3000000	760	90.3
NA4980	400	450	540	140	1160000	3200000	720	94.4
NA4984	420	470	560	140	1200000	3400000	680	98.5
NA4988	440	490	600	160	1400000	3680000	640	131
NA 5902	15	20	28	18	15700	22100	20000	0.052
NA 5903	17	22	30	18	16900	24900	18000	0.056
NA 5904	20	25	37	23	29400	38600	16000	0.115
NA 59/22	22	28	39	23	29800	44400	14000	0.134
NA 5905	25	30	42	23	33200	47500	13000	0.139
NA 59/28	28	32	45	23	34300	50500	13000	0.142
NA 5906	30	35	47	23	35200	53700	11000	0.152
NA 59/32	32	40	52	27	41900	69900	10000	0.241
NA 5907	35	42	55	27	42900	73200	9500	0.256
NA 5908	40	48	62	30	58000	103000	8500	0.348
NA 5909	45	52	68	30	60700	112000	7500	0.396
NA 5910	50	58	72	30	64400	126000	7000	0.498
NA 5911	55	63	80	34	82600	154000	6500	0.559
NA 5912	60	68	85	34	86100	167000	6000	0.614
NA 5913	65	72	90	34	89900	180000	5500	0.655
NA 5914	70	80	100	40	112000	232000	5000	1.06
NA 5915	75	85	105	40	116000	249000	4500	1.13
NA 5916	80	90	110	40	117000	257000	4500	1.15
NA 5917	85	100	120	46	144000	346000	4000	1.76
NA 5918	90	105	125	46	148000	365000	3800	1.84
NA 5919	95	110	130	46	152000	384000	3600	1.98
