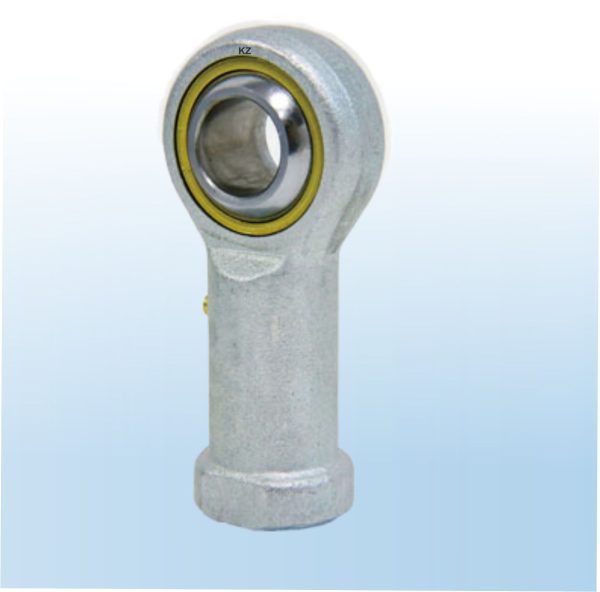

PHS EC is compact self-aligning spherical plain bushings that can support a large radial load and a bi-directional axial load at the same time. PHS EC ROD ENDS have either a female thread in the body or a male thread on the body, so they can be easily assembled onto the machine. Pilloballs are used in control and link mechanisms in machine tools, textile machines, packaging machines, etc.
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY
Product Details
I have all the models you need, these are just some of them, please contact us now

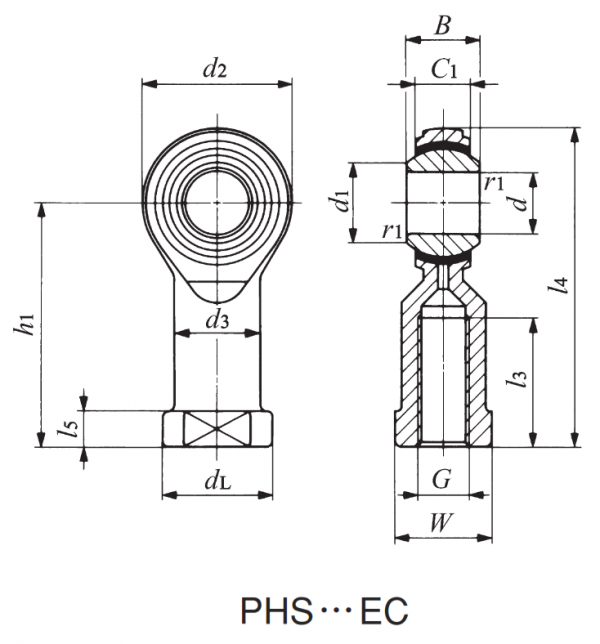

Bearings No. | d | Thread (G) | d2 | C1 | B | d1 | l4 | h1 | l3 | l5 | W | d3 | dL | Ball dia. (Inch) | Ball dia. (mm) | Weight (KGS) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PHS 3EC | 3 | M 3 × 0.5 | 12 | 4.5 | 6 | 5.2 | 27 | 21 | 10 | 3 | 5.5 | 5 | 6.5 | 5/16 | 7.938 | 0.0057 |
PHS 4EC | 4 | M 4 × 0.7 | 14 | 5.3 | 7 | 6.5 | 31 | 24 | 12 | 4 | 8 | 8 | 9.5 | 3/8 | 9.525 | 0.0119 |
PHS 5EC | 5 | M 5 × 0.8 | 16 | 6 | 8 | 7.7 | 35 | 27 | 12.5 | 4 | 9 | 9 | 11 | 7/16 | 11.112 | 0.0165 |
PHS 6EC | 6 | M 6 × 1 | 18 | 6.75 | 9 | 9 | 39 | 30 | 13.5 | 5 | 11 | 10 | 13 | 1/2 | 12.7 | 0.025 |
PHS 8EC | 8 | M 8 × 1.25 | 22 | 9 | 12 | 10.4 | 47 | 36 | 16 | 5 | 14 | 12.5 | 16 | 5/8 | 15.875 | 0.043 |
PHS 10EC | 10 | M10 × 1.5 | 26 | 10.5 | 14 | 12.9 | 56 | 43 | 19.5 | 6.5 | 17 | 15 | 19 | 3/4 | 19.05 | 0.072 |
PHS 12EC | 12 | M12 × 1.75 | 30 | 12 | 16 | 15.4 | 65 | 50 | 24 | 6.5 | 19 | 17.5 | 22 | 7/8 | 22.225 | 0.107 |
PHS 14EC | 14 | M14 × 2 | 34 | 13.5 | 19 | 16.9 | 74 | 57 | 27 | 8 | 22 | 20 | 25 | 1 | 25.4 | 0.16 |
PHS 16EC | 16 | M16 × 2 | 38 | 15 | 21 | 19.4 | 83 | 64 | 33 | 8 | 22 | 22 | 27 | 1 1/8 | 28.575 | 0.21 |
PHS 18EC | 18 | M18 × 1.5 | 42 | 16.5 | 23 | 21.9 | 92 | 71 | 36 | 10 | 27 | 25 | 31 | 1 1/4 | 31.75 | 0.295 |
PHS 20EC | 20 | M20 × 1.5 | 46 | 18 | 25 | 24.4 | 100 | 77 | 40 | 10 | 30 | 27.5 | 34 | 1 3/8 | 34.925 | 0.38 |
PHS 22EC | 22 | M22 × 1.5 | 50 | 20 | 28 | 25.8 | 109 | 84 | 41 | 12 | 32 | 30 | 37 | 1 1/2 | 38.1 | 0.49 |
