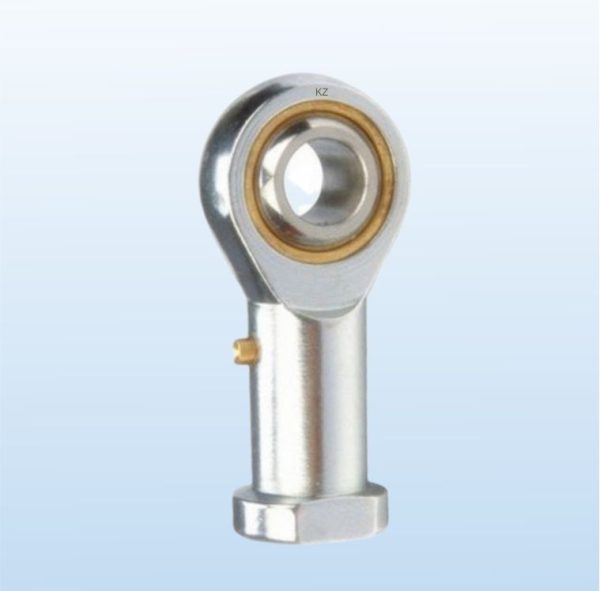

Rod ends consist of an eye-shaped head with an integral shank that forms a housing for a spherical plain bearing. As a rule, rod ends are available with left- or right-hand female (internal) or male (external) threads. By inserting a special steel alloy into a structural carbon steel holder or outer ring with a high-accuracy bearing steel ball as the inner ring, you can obtain smooth and abrasion-resistant, self-centering, rotation, and oscillating motion.
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY
Product Details

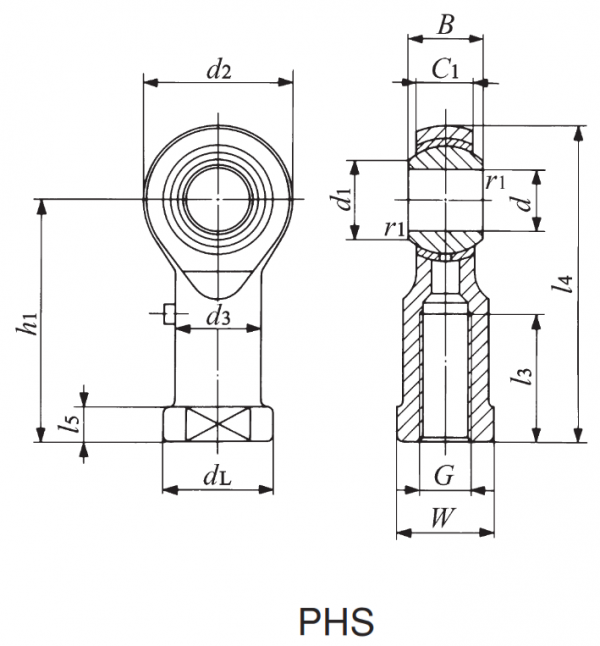

Bearings No. | d | Thread (G) | d2 | C1 | B | d1 | l4 | h1 | l3 | l5 | W | d3 | dL | Ball dia. (Inch) | Ball dia. (mm) | Weight (KGS) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PHS 3 | 3 | M 3 × 0.5 | 12 | 4.5 | 6 | 5.2 | 27 | 21 | 10 | 3 | 5.5 | 5 | 6.5 | 5/16 | 7.938 | 0.0057 |
PHS 4 | 4 | M 4 × 0.7 | 14 | 5.3 | 7 | 6.5 | 31 | 24 | 12 | 4 | 8 | 8 | 9.5 | 3/8 | 9.525 | 0.0119 |
PHS 5 | 5 | M 5 × 0.8 | 16 | 6 | 8 | 7.7 | 35 | 27 | 14 | 4 | 9 | 9 | 11 | 7/16 | 11.112 | 0.0165 |
PHS 6 | 6 | M 6 × 1 | 18 | 6.75 | 9 | 9 | 39 | 30 | 14 | 5 | 11 | 10 | 13 | 1/2 | 12.7 | 0.025 |
PHS 8 | 8 | M 8 × 1.25 | 22 | 9 | 12 | 10.4 | 47 | 36 | 17 | 5 | 14 | 12.5 | 16 | 5/8 | 15.875 | 0.043 |
PHS 10 | 10 | M10 × 1.5 | 26 | 10.5 | 14 | 12.9 | 56 | 43 | 21 | 6.5 | 17 | 15 | 19 | 3/4 | 19.05 | 0.072 |
PHS 12 | 12 | M12 × 1.75 | 30 | 12 | 16 | 15.4 | 65 | 50 | 24 | 6.5 | 19 | 17.5 | 22 | 7/8 | 22.225 | 0.107 |
PHS 14 | 14 | M14 × 2 | 34 | 13.5 | 19 | 16.9 | 74 | 57 | 27 | 8 | 22 | 20 | 25 | 1 | 25.4 | 0.16 |
PHS 16 | 16 | M16 × 2 | 38 | 15 | 21 | 19.4 | 83 | 64 | 33 | 8 | 22 | 22 | 27 | 1 1/8 | 28.575 | 0.21 |
PHS 18 | 18 | M18 × 1.5 | 42 | 16.5 | 23 | 21.9 | 92 | 71 | 36 | 10 | 27 | 25 | 31 | 1 1/4 | 31.75 | 0.295 |
PHS 20 | 20 | M20 × 1.5 | 46 | 18 | 25 | 24.4 | 100 | 77 | 40 | 10 | 30 | 27.5 | 34 | 1 3/8 | 34.925 | 0.38 |
PHS 22 | 22 | M22 × 1.5 | 50 | 20 | 28 | 25.8 | 109 | 84 | 43 | 12 | 32 | 30 | 37 | 1 1/2 | 38.1 | 0.49 |
PHS 25 | 25 | M24 × 2 | 60 | 22 | 31 | 29.6 | 124 | 94 | 48 | 12 | 36 | 33.5 | 42 | 1 11/16 | 42.862 | 0.75 |
PHS 28 | 28 | M27 × 2 | 66 | 25 | 35 | 32.3 | 136 | 103 | 53 | 12 | 41 | 37 | 46 | 1 7/8 | 47.625 | 0.95 |
PHS 30 | 30 | M30 × 2 | 70 | 25 | 37 | 34.8 | 145 | 110 | 56 | 15 | 41 | 40 | 50 | 2 | 50.8 | 1.13 |
