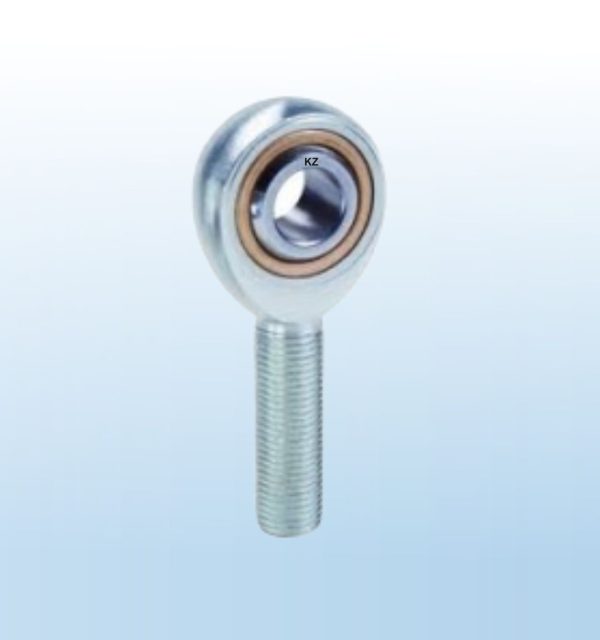

POS EC is compact self-aligning spherical bushings that can support a large radial load and a bi-directional axial load at the same time. The male thread on the body can be easily assembled onto machines. In the maintenance-free type, a spherical inner ring makes contact with the special PTFE liner of the maintenance-free type. Thus, a smooth rotational and oscillatory motion can be achieved with superior anti-wear and loading properties in each type.
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY
Product Details
I have all the models you need, these are just some of them, please contact us now

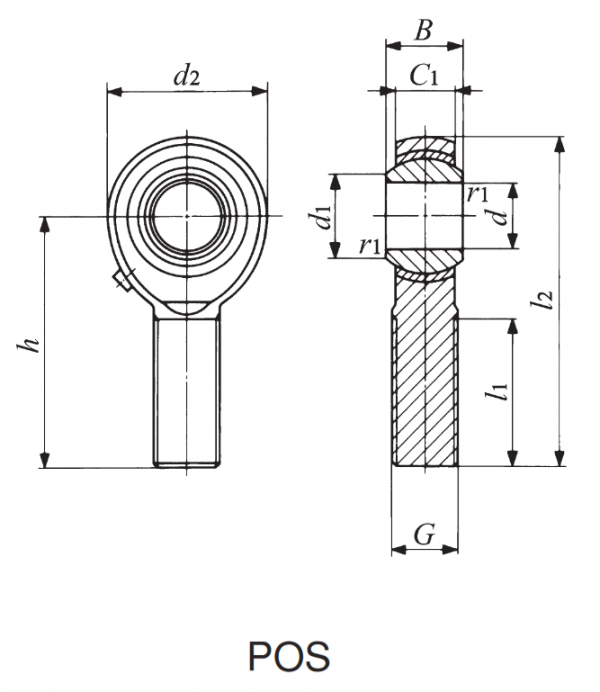

Bearings No. | d | Thread (G) | d2 | C1 | B | d1 | l2 | h | l1 | Ball dia. (Inch) | Ball dia. (mm) | Weight (KGS) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
POS 3EC | 3 | M 3 × 0.5 | 12 | 4.5 | 6 | 5.2 | 33 | 27 | 15 | 5/16 | 7.938 | 0.005 |
POS 4EC | 4 | M 4 × 0.7 | 14 | 5.3 | 7 | 6.5 | 37 | 30 | 17 | 3/8 | 9.525 | 0.0081 |
POS 5EC | 5 | M 5 × 0.8 | 16 | 6 | 8 | 7.7 | 41 | 33 | 20 | 7/16 | 11.112 | 0.0125 |
POS 6EC | 6 | M 6 × 1 | 18 | 6.75 | 9 | 9 | 45 | 36 | 22 | 1/2 | 12.7 | 0.019 |
POS 8EC | 8 | M 8 × 1.25 | 22 | 9 | 12 | 10.4 | 53 | 42 | 25 | 5/8 | 15.875 | 0.032 |
POS 10EC | 10 | M10 × 1.5 | 26 | 10.5 | 14 | 12.9 | 61 | 48 | 29 | 3/4 | 19.05 | 0.054 |
POS 12EC | 12 | M12 × 1.75 | 30 | 12 | 16 | 15.4 | 69 | 54 | 33 | 7/8 | 22.225 | 0.085 |
POS 14EC | 14 | M14 × 2 | 34 | 13.5 | 19 | 16.9 | 77 | 60 | 36 | 1 | 25.4 | 0.126 |
POS 16EC | 16 | M16 × 2 | 38 | 15 | 21 | 19.4 | 85 | 66 | 40 | 1 1/8 | 28.575 | 0.185 |
POS 18EC | 18 | M18 × 1.5 | 42 | 16.5 | 23 | 21.9 | 93 | 72 | 44 | 1 1/4 | 31.75 | 0.26 |
POS 20EC | 20 | M20 × 1.5 | 46 | 18 | 25 | 24.4 | 101 | 78 | 47 | 1 3/8 | 34.925 | 0.34 |
POS 22EC | 22 | M22 × 1.5 | 50 | 20 | 28 | 25.8 | 109 | 84 | 51 | 1 1/2 | 38.1 | 0.435 |
