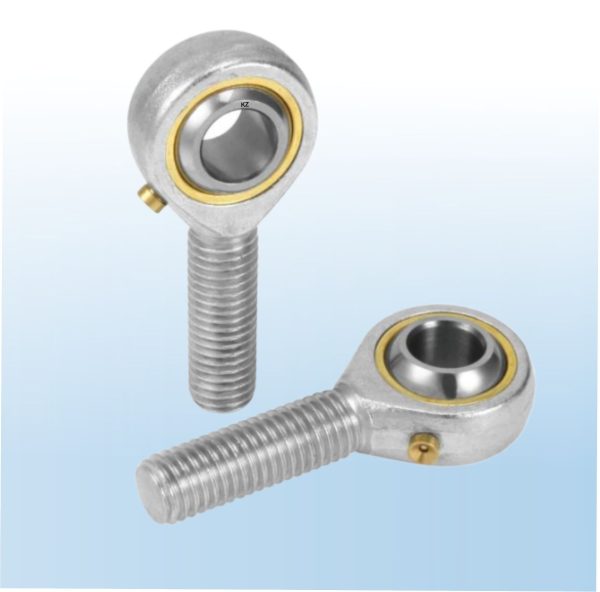

POSB rod ends are compact self-aligning spherical bushings that can support a large radial load and a bi-directional axial load at the same time. This type has superior anti-wear and anti-corrosion properties as well as high rigidity.
It consists of a spherical inner ring of which the spherical surface is chromium-plated after heat treatment and grinding, a body with zinc chromate treated outer surface, and an inserted bushing of a special copper alloy having superior run-in properties.
Applications and industry: AGRICULTURE, AUTOMOTIVE, CEMENT INDUSTRY, CRUSHER INDUSTRY, HEAVY MACHINERY EQUIPMENTS, HOME APPLIANCES, MINING SECTOR, METAL INDUSTRY, FLUID MACHINERY, TEXTILE INDUSTRY
Product Details
I have all the models you need, these are just some of them, please contact us now

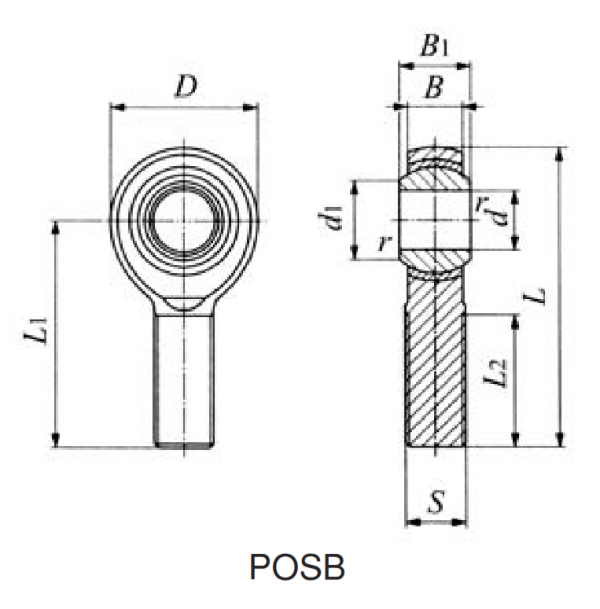

Bearings No. | d | Thread S class 3A | D | B | B 1 | d 1 | L | L 1 | L 2 | Ball dia. (Inch) | Ball dia. (mm) | Weight (KGS) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
POSB 2 | 3.175 | -32UNC | 11.91 | 4.75 | 6.35 | 4.75 | 29.77 | 23.8 | 12.7 | 5/16 | 7.938 | 0.0054 |
POSB 2.5 | 3.967 | -32UNC | 14.27 | 5.56 | 7.14 | 6.32 | 35.71 | 28.58 | 15.88 | 3/8 | 9.525 | 0.0091 |
POSB 3 | 4.826 | -32UNF | 15.88 | 6.35 | 7.92 | 7.77 | 39.7 | 31.75 | 19.05 | 7/16 | 11.112 | 0.014 |
POSB 4 | 6.35 | -28UNF | 19.05 | 7.14 | 9.53 | 9.02 | 49.2 | 39.67 | 25.4 | 33/64 | 13.097 | 0.023 |
POSB 5 | 7.938 | -24UNF | 22.23 | 8.74 | 11.1 | 11.35 | 58.72 | 47.63 | 31.75 | 5/8 | 15.875 | 0.036 |
POSB 6 | 9.525 | -24UNF | 25.4 | 10.31 | 12.7 | 13.13 | 61.93 | 49.23 | 31.75 | 23/32 | 18.256 | 0.054 |
POSB 7 | 11.112 | -20UNF | 28.58 | 11.1 | 14.27 | 14.88 | 68.28 | 53.98 | 34.93 | 13/16 | 20.638 | 0.077 |
POSB 8 | 12.7 | -20UNF | 33.32 | 12.7 | 15.88 | 17.73 | 78.59 | 61.93 | 38.1 | 15/16 | 23.812 | 0.122 |
POSB 10 | 15.875 | -18UNF | 38.1 | 14.27 | 19.05 | 21.31 | 85.73 | 66.68 | 41.28 | 1 1/8 | 28.575 | 0.186 |
POSB 12 | 19.05 | -16UNF | 44.45 | 17.45 | 22.23 | 24.84 | 95.25 | 73.03 | 44.45 | 1 5/16 | 33.338 | 0.295 |
POSB 16 | 25.4 | -12UNF | 69.85 | 25.4 | 34.93 | 32.23 | 139.7 | 104.78 | 53.98 | 1 7/8 | 47.625 | 1.129 |
