Sa208 Bearing High Performance Mind-Blowing Price

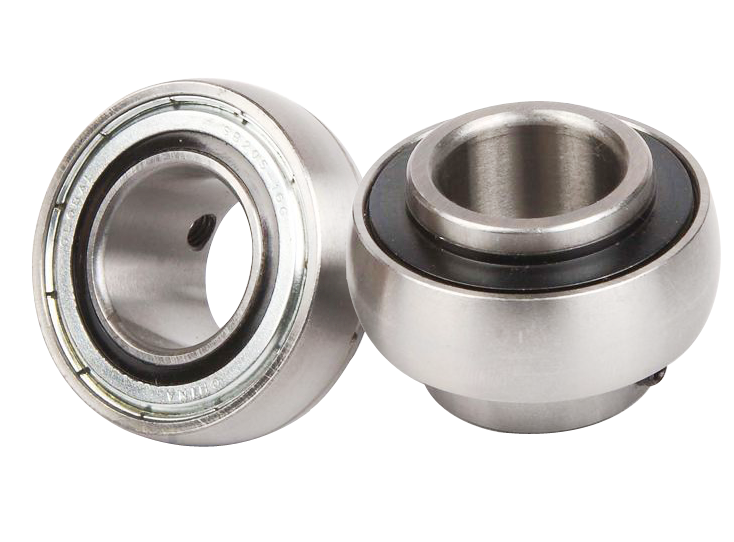

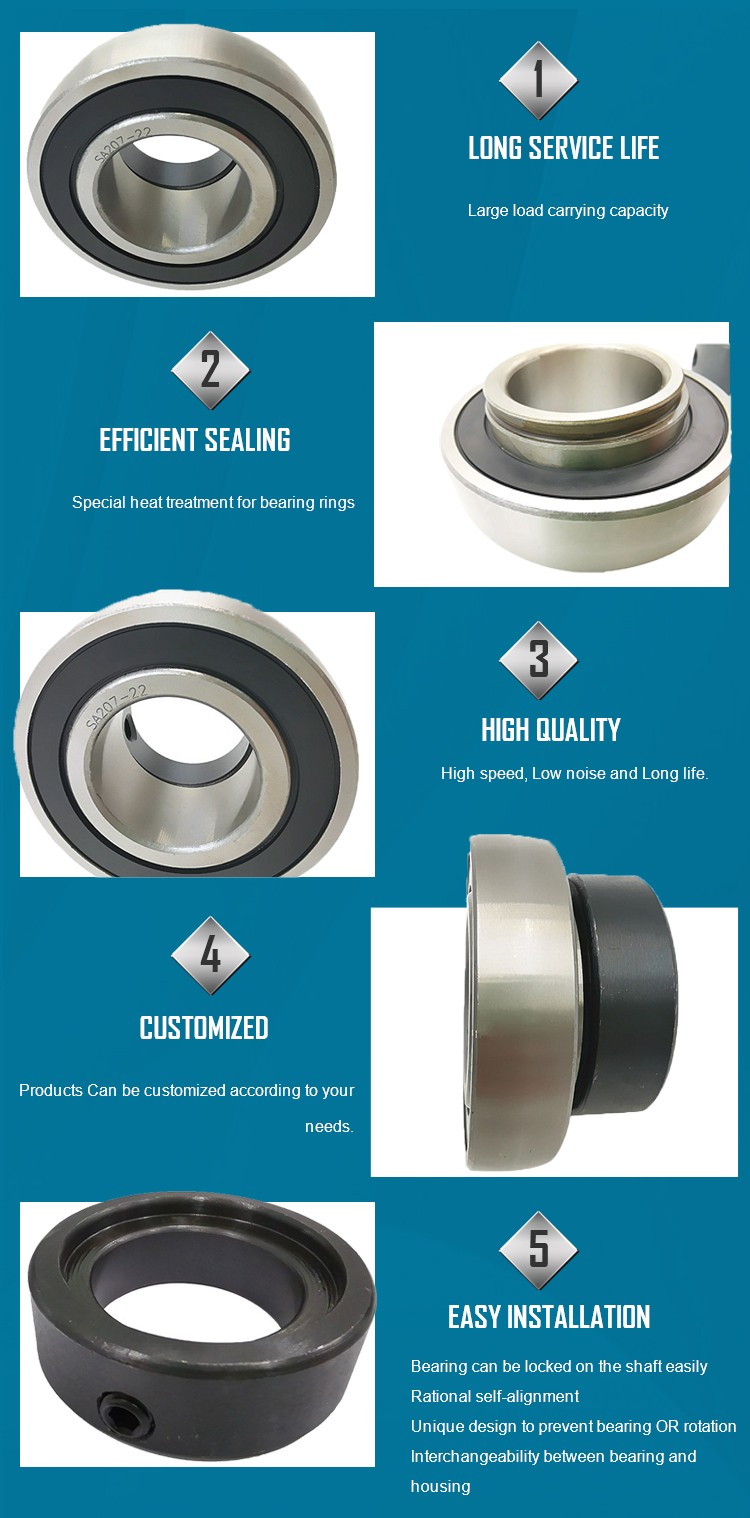

Insert Bearings are used inside pillow block and flange housings or in custom housed applications.

They are most commonly produced with a spherical OD to allow for misalignment, but are also available with a cylindrical OD.

Standard configurations are lubricated with a multipurpose lithium based grease, and allow for re-lubrication.

Special configurations are also available such as free spinning design and a black oxide finish.

In addition to our standard items and configurations listed below, Bls excels at manufacturing customized bearings to meet specific application requirements.

Inquire Now Next Product

Product Details

Sa Series Insert Bearing

Deep Groove Ball Bearings

I have all the models you need, these are just some of them, please contact us now

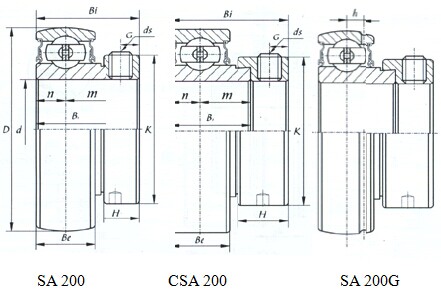

Bearing No.	d		Dimensions（mm）
	(mm)	(in.)	D	Bi	Be	B1	n	K	H	G	ds
Sa207 Bearing High Speed Hot Selling SA201	12		40	28.6	12	19.1	6.5	28.6	13.5	5	M6x1
SA201-8	12.7	1/2	40	28.6	12	19.1	6.5	28.6	13.5	5	1/4-28UNF
SA202	15		40	28.6	12	19.1	6.5	28.6	13.5	5	M6x1
SA202-10	15.875	5/8	40	28.6	12	19.1	6.5	28.6	13.5	5	1/4-28UNF
SA203	17		40	28.6	12	19.1	6.5	28.6	13.5	5	M6x1
SA203-11	17.462	11/16	40	28.6	12	19.1	6.5	28.6	13.5	5	1/4-28UNF
SA204-12	19.05	3/4	47	31	14	21.5	7.5	33.3	13.5	5	1/4-28UNF
SA204	20		47	31	14	21.5	7.5	33.3	13.5	5	M6x1
SA205-14	22.225	7/8	52	31	15	21.5	7.5	38.1	13.5	5	1/4-28UNF
SA205	25		52	31	15	21.5	7.5	38.1	13.5	5	M6x1
SA205-16	25.4	1	52	31	15	21.5	7.5	38.1	13.5	5	1/4-28UNF
SA206-18	28.575	1 1/8	62	35.7	16	23.8	9	44.5	15.9	6	5/16-24UNF
SA206	30		62	35.7	16	23.8	9	44.5	15.9	6	M8x1.0
SA206-19	30.162	1 3/16	62	35.7	16	23.8	9	44.5	15.9	6	5/16-24UNF
SA206-20	31.75	1 1/4	62	35.7	16	23.8	9	44.5	15.9	6	5/16-24UNF
SA207-20	31.75	1 1/4	72	38.9	17	25.4	9.5	55.6	17.5	6.5	5/16-24UNF
SA207-22	34.925	1 3/8	72	38.9	17	25.4	9.5	55.6	17.5	6.5	5/16-24UNF
SA207	35		72	38.9	17	25.4	9.5	55.6	17.5	6.5	M8x1.0
SA207-23	36.513	1 7/16	72	38.9	17	25.4	9.5	55.6	17.5	6.5	5/16-24UNF
SA208-24	38.1	1 1/2	80	43.7	18	30.2	11	60.3	18.3	6.5	5/16-24UNF
SA208-25	39.688	1 9/16	80	43.7	18	30.2	11	60.3	18.3	6.5	5/16-24UNF
SA208	40		80	43.7	18	30.2	11	60.3	18.3	6.5	M8x1.0
SA209-26	41.275	1 5/8	85	43.7	19	30.2	11	63.5	18.3	6.5	5/16-24UNF
SA209-27	42.863	1 11/16	85	43.7	19	30.2	11	63.5	18.3	6.5	5/16-24UNF
SA209	45		85	43.7	19	30.2	11	63.5	18.3	6.5	M8x1.0
SA209-28	44.45	1 3/4	85	43.7	19	30.2	11	63.5	18.3	6.5	5/16-24UNF
SA210-30	47.625	1 7/8	90	43.7	20	30.2	11	69.9	18.3	6.5	5/16-24UNF
SA210-31	49.213	1 15/16	90	43.7	20	30.2	11	69.9	18.3	6.5	5/16-24UNF
SA210	50		90	43.7	20	30.2	11	69.9	18.3	6.5	M8x1.0
SA211-32	50.8	2	100	48.4	24	32.4	12	76.2	20.7	8	3/8-24UNF

Sa Series Insert Bearing

Deep Groove Ball Bearings

Pillow Block Bearings Widely used in various industries, our bearings meet the requirements of your project！

Pillow Block Bearings

Deep Groove Ball Bearings

1.FREE SAMPLES:
contact us by email or trade manager, we will send the free sampls according to your request.

2. World Class Bearing:We provide our customers with all type of indigenous bearing with world class quality.

3. OEM or Non Stand Bearings: Any requirement for Non standard bearings is Easily Fulfilled by us due to
 its vast knowledge and links in the industry.

4. Genuine products With Excellent Quality: Company has always proved the
 100% quality products it provides with genuine intent.

5.After Sales Service and technical Assistance: Company provides after sales service and technical assistance
 as per the customers requirement and needs.

6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.

7. Cost Saving: We provide long-life, shock-resistant and high reliability bearings with
 excellent quality and better performance. Resulting in increased cost saving.

8.Attending customer queries promptly: We believe that if customer are satisfied then it proves our worth well. Customers are always given quick support.
