I have all the models you need, these are just some of them, please contact us now

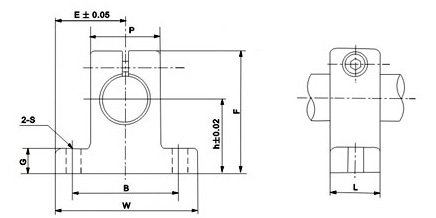

MODEL NO. | SHAFT DIAMETER | MAIN DIMENSIONS | DESIGNATION OF CLAMPING BOLT | DESIGNATION OF MOUNTING BOLT | WEIGHT(kg) |
h | E | W | L | F | G | P | B | S |
SK3 | 3 | 20 | 21 | 42 | 14 | 37.5 | 6 | 18 | 32 | 5.5 | M4 | M5 | 0.024 |
SK4 | 4 | 20 | 21 | 42 | 14 | 37.5 | 6 | 18 | 32 | 5.5 | M4 | M5 | 0.024 |
SK5 | 5 | 20 | 21 | 42 | 14 | 37.5 | 6 | 18 | 32 | 5.5 | M4 | M5 | 0.024 |
SK6 | 6 | 20 | 21 | 42 | 14 | 37.5 | 6 | 18 | 32 | 5.5 | M4 | M5 | 0.024 |
SK8 | 8 | 20 | 21 | 42 | 14 | 37.5 | 6 | 18 | 32 | 5.5 | M4 | M5 | 0.024 |
SK10 | 10 | 20 | 21 | 42 | 14 | 37.5 | 6 | 18 | 32 | 5.5 | M4 | M5 | 0.024 |
SK12 | 12 | 23 | 21 | 42 | 14 | 37.5 | 6 | 20 | 32 | 5.5 | M4 | M5 | 0.030 |
SK13 | 13 | 23 | 21 | 42 | 14 | 37.5 | 6 | 20 | 32 | 5.5 | M4 | M5 | 0.030 |
SK16 | 16 | 27 | 24 | 48 | 16 | 44 | 8 | 25 | 38 | 5.5 | M5 | M6 | 0.040 |
SK20 | 20 | 31 | 30 | 60 | 20 | 51 | 10 | 30 | 45 | 6.6 | M6 | M6 | 0.070 |
SK25 | 25 | 35 | 35 | 70 | 24 | 60 | 12 | 38 | 56 | 6.6 | M6 | M8 | 0.130 |
SK30 | 30 | 42 | 42 | 84 | 28 | 70 | 12 | 44 | 64 | 9 | M8 | M10 | 0.180 |
SK35 | 35 | 50 | 49 | 98 | 32 | 82 | 15 | 50 | 74 | 11 | M8 | M10 | 0.270 |
SK40 | 40 | 60 | 57 | 114 | 36 | 96 | 15 | 60 | 90 | 11 | M10 | M10 | 0.420 |
SK50 | 50 | 70 | 63 | 126 | 40 | 120 | 18 | 74 | 100 | 14 | M12 | M12 | 0.750 |
SK60 | 60 | 80 | 74 | 148 | 45 | 136 | 18 | 90 | 120 | 14 | M12 | M12 | 1.100 |
Bearings Widely used in various industries, our bearings meet the requirements of your project！
1.FREE SAMPLES:
contact us by email or trade manager, we will send the free sampls according to your request.
2. World Class Bearing:We provide our customers with all type of indigenous bearing with world class quality.
3. OEM or Non Stand Bearings: Any requirement for Non standard bearings is Easily Fulfilled by us due to
its vast knowledge and links in the industry.
4. Genuine products With Excellent Quality: Company has always proved the
100% quality products it provides with genuine intent.
5.After Sales Service and technical Assistance: Company provides after sales service and technical assistance
as per the customers requirement and needs.
6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.
7. Cost Saving: We provide long-life, shock-resistant and high reliability bearings with
excellent quality and better performance. Resulting in increased cost saving.
8.Attending customer queries promptly: We believe that if customer are satisfied then it proves our worth well. Customers are always given quick support.
