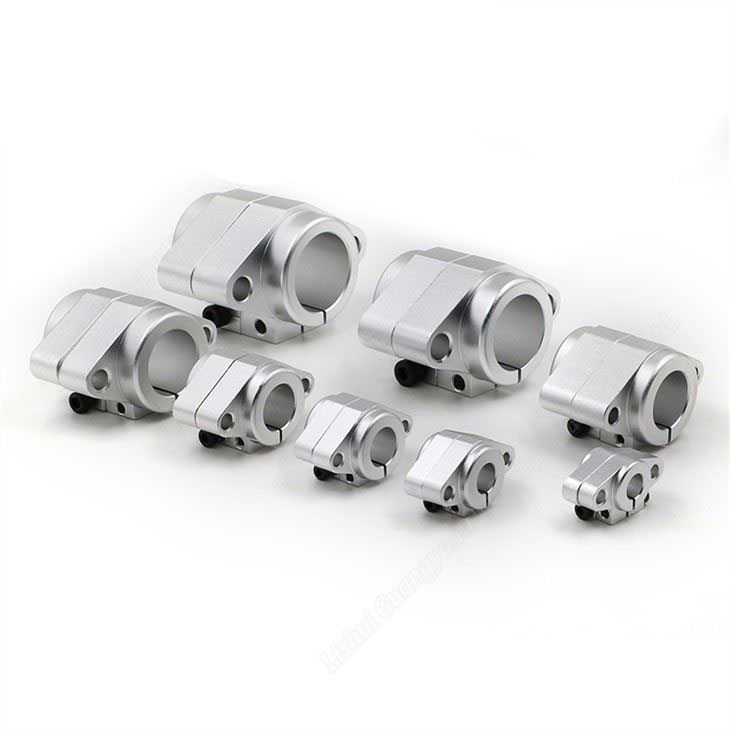

I have all the models you need, these are just some of them, please contact us now
| MODEL NO. | SHAFT DIAMETER | MAIN DIMENSIONS | DESIGNATION OF CLAMPING BOLT | DESIGNATION OF MOUNTING BOLT | WEIGHT(kg) |
| W | L | T | F | G | B | S |
| SHF10 | 10 | 43 | 10 | 5 | 24 | 20 | 32 | 5.5 | M4 | M5 | 0.013 |
| SHF12 | 12 | 47 | 13 | 7 | 28 | 25 | 36 | 5.5 | M4 | M5 | 0.020 |
| SHF13 | 13 | 47 | 13 | 7 | 28 | 25 | 36 | 5.5 | M4 | M5 | 0.020 |
| SHF16 | 16 | 50 | 16 | 8 | 31 | 28 | 40 | 5.5 | M4 | M5 | 0.027 |
| SHF20 | 20 | 60 | 20 | 8 | 37 | 34 | 48 | 7 | M5 | M6 | 0.040 |
| SHF25 | 25 | 70 | 25 | 10 | 42 | 40 | 56 | 7 | M5 | M6 | 0.060 |
| SHF30 | 30 | 80 | 30 | 12 | 50 | 46 | 64 | 9 | M6 | M8 | 0.110 |
| SHF35 | 35 | 92 | 35 | 14 | 58 | 50 | 72 | 12 | M8 | M10 | 0.380 |
| SHF40 | 40 | 102 | 40 | 16 | 67 | 56 | 80 | 12 | M10 | M10 | 0.510 |
| SHF50 | 50 | 122 | 50 | 19 | 83 | 70 | 96 | 14 | M12 | M12 | 0.890 |
| SHF60 | 60 | 140 | 60 | 23 | 95 | 82 | 112 | 14 | M12 | M12 | 1.500 |
Bearings Widely used in various industries, our bearings meet the requirements of your project！
1.FREE SAMPLES:
contact us by email or trade manager, we will send the free sampls according to your request.
2. World Class Bearing:We provide our customers with all type of indigenous bearing with world class quality.
3. OEM or Non Stand Bearings: Any requirement for Non standard bearings is Easily Fulfilled by us due to
its vast knowledge and links in the industry.
4. Genuine products With Excellent Quality: Company has always proved the
100% quality products it provides with genuine intent.
5.After Sales Service and technical Assistance: Company provides after sales service and technical assistance
as per the customers requirement and needs.
6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.
7. Cost Saving: We provide long-life, shock-resistant and high reliability bearings with
excellent quality and better performance. Resulting in increased cost saving.
8.Attending customer queries promptly: We believe that if customer are satisfied then it proves our worth well. Customers are always given quick support.
