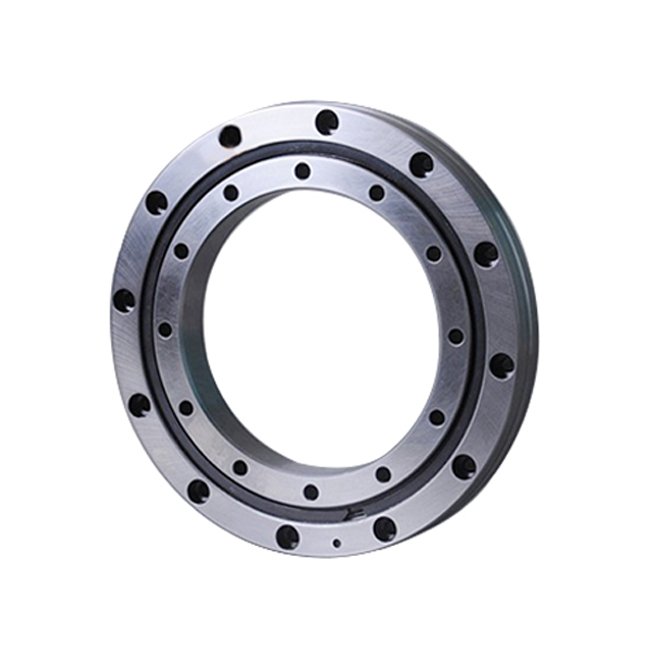

XRSU Cross Roller Bearing
Short Description:
BLS slewing ring bearings can support radial, axial and tilting moment loads acting either singly or in combination and in any direction.Therefore, it is possible to replace the combination arrangement of radial and axial bearings by a single bearing, which will measurably reduce the overall cost and simplify the design. Slewing rings are sealed on both sides,lubricated with high quality grease, can be relubricated via lubrication nipples and are particularly easy to install.BLS slewing ring bearings are available in many designs with internal, external or without gear. The low cross section, heavy load capacity and integrated gear make these bearings ideal structure components.Slewing ring bearings are widely used in construction machinery, mining equipment and many other industrial products.
I have all the models you need, these are just some of them, please contact us now

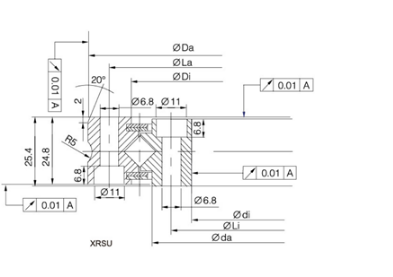

| Type | Boundary Dimension（mm） |
| Installation hole size（mm） | Rated loading(KN) |
|
| Weight | Equivalent |
|
|
|
|
|
|
|
| Axial |
| Radial |
|
|
|
| Da | di | Di | da | La | Li | nB1 | Ca | Coa | Cr | Cor | KG | INA |
| XRSU168 | 205 | 130 | 174 | 159 | 190 | 145 | 12 | 65 | 243 | 41.4 | 119 | 3.3 | XSU080168 |
| XRSU188 | 225 | 150 | 194 | 179 | 210 | 165 | 16 | 70 | 270 | 44.5 | 133 | 3.7 | XSU080188 |
| XRSU218 | 255 | 180 | 224 | 209 | 240 | 195 | 20 | 76 | 315 | 48 | 154 | 4.3 | XSU080218 |
| XRSU258 | 295 | 220 | 264 | 249 | 280 | 235 | 24 | 83 | 370 | 53 | 182 | 5.1 | XSU080258 |
| XRSU318 | 355 | 280 | 324 | 309 | 340 | 295 | 28 | 94 | 465 | 60 | 228 | 6.3 | XSU080318 |
| XRSU398 | 435 | 360 | 404 | 389 | 420 | 375 | 36 | 106 | 580 | 67 | 285 | 7.8 | XSU08039 |
Deep Groove Ball Bearings Widely used in various industries, our bearings meet the requirements of your project！
1.FREE SAMPLES:
contact us by email or trade manager, we will send the free sampls according to your request.
2. World Class Bearing:We provide our customers with all type of indigenous bearing with world class quality.
3. OEM or Non Stand Bearings: Any requirement for Non standard bearings is Easily Fulfilled by us due to
its vast knowledge and links in the industry.
4. Genuine products With Excellent Quality: Company has always proved the
100% quality products it provides with genuine intent.
5.After Sales Service and technical Assistance: Company provides after sales service and technical assistance
as per the customers requirement and needs.
6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.
7. Cost Saving: We provide long-life, shock-resistant and high reliability bearings with
excellent quality and better performance. Resulting in increased cost saving.
8.Attending customer queries promptly: We believe that if customer are satisfied then it proves our worth well. Customers are always given quick support.
