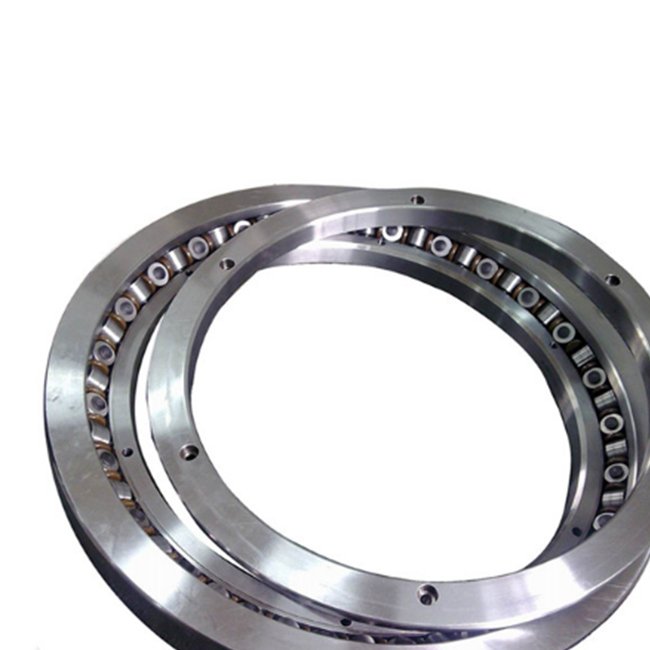

XRBC Cross Roller Bearing
Short Description:
BLS slewing ring bearings can support radial, axial and tilting moment loads acting either singly or in combination and in any direction.Therefore, it is possible to replace the combination arrangement of radial and axial bearings by a single bearing, which will measurably reduce the overall cost and simplify the design. Slewing rings are sealed on both sides,lubricated with high quality grease, can be relubricated via lubrication nipples and are particularly easy to install.BLS slewing ring bearings are available in many designs with internal, external or without gear. The low cross section, heavy load capacity and integrated gear make these bearings ideal structure components.Slewing ring bearings are widely used in construction machinery, mining equipment and many other industrial products.
I have all the models you need, these are just some of them, please contact us now

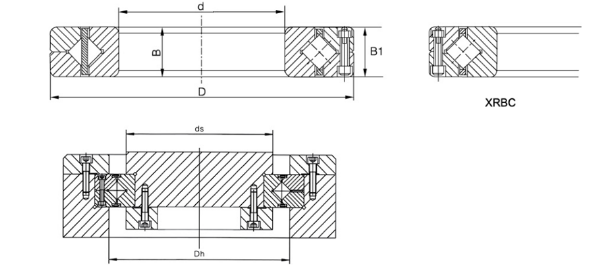

| Type | Dimension(mm) |
| Rated Load | Weight | Releated type |
| ID | OD | B | Radial(KN)(KN) |
|
|
| d | D | B | C | Co | Kg | IKO |
| XRBC 3010 | 30 | 55 | 10 | 7.35 | 8.36 | 0.12 | CRBC3010 |
| XRBC 4010 | 40 | 65 | 10 | 8.33 | 10.6 | 0.16 | CRBC4010 |
| XRBC 5013 | 50 | 80 | 13 | 16.7 | 20.9 | 0.27 | CRBC5013 |
| XRBC 6013 | 60 | 90 | 13 | 18 | 24.3 | 0.3 | CRBC6013 |
| XRBC 7013 | 70 | 100 | 13 | 19.4 | 27.7 | 0.35 | CRBC7013 |
| XRBC 8016 | 80 | 120 | 16 | 30.1 | 42.1 | 0.7 | CRBC8016 |
| XRBC 9016 | 90 | 130 | 16 | 31.4 | 45.3 | 0.75 | CRBC9016 |
| XRBC 10020 | 100 | 150 | 20 | 33.1 | 50.9 | 1.45 | CRBC10020 |
| XRBC 11020 | 110 | 160 | 20 | 34 | 54 | 1.56 | CRBC11020 |
| XRBC 12025 | 120 | 180 | 25 | 66.9 | 100 | 2.62 | CRBC12025 |
| XRBC 13025 | 130 | 190 | 25 | 69.5 | 107 | 2.82 | CRBC13025 |
| XRBC 14025 | 140 | 200 | 25 | 74.8 | 121 | 2.96 | CRBC14025 |
| XRBC 15025 | 150 | 210 | 25 | 76.8 | 128 | 3.16 | CRBC15025 |
| XRBC 15030 | 230 | 30 | 100 | 156 | 5.3 | CRBC15030 |
| XRBC 20025 | 200 | 260 | 25 | 84.2 | 157 | 4 | CRBC20025 |
| XRBC 20030 | 280 | 30 | 114 | 200 | 6.7 | CRBC20030 |
| XRBC 20035 | 295 | 35 | 151 | 252 | 9.6 | CRBC20035 |
| XRBC 25025 | 250 | 310 | 25 | 69.3 | 150 | 5 | CRBC25025 |
| XRBC 25030 | 330 | 30 | 126 | 244 | 8.1 | CRBC25030 |
| XRBC 25040 | 355 | 40 | 195 | 348 | 14.8 | CRBC25040 |
| XRBC 30025 | 300 | 360 | 25 | 76.3 | 178 | 5.9 | CRBC30025 |
| XRBC 30035 | 395 | 35 | 183 | 367 | 13.4 | CRBC30035 |
| XRBC 30040 | 405 | 40 | 212 | 409 | 17.2 | CRBC30040 |
| XRBC 40035 | 400 | 480 | 35 | 156 | 370 | 14.5 | CRBC40035 |
| XRBC 40040 | 510 | 40 | 241 | 531 | 23.5 | CRBC40040 |
| XRBC 40070 | 580 | 70 | 470 | 811 | 72.4 | CRBC40070 |
| XRBC 50040 | 500 | 600 | 40 | 239 | 607 | 26 | CRBC50040 |
| XRBC 50050 | 625 | 50 | 267 | 653 | 41.7 | CRBC50050 |
| XRBC 50070 | 680 | 70 | 653 | 1330 | 86.1 | CRBC50070 |
| XRBC 60040 | 600 | 700 | 40 | 264 | 721 | 29 | CRBC60040 |
| XRBC 60070 | 780 | 70 | 700 | 1540 | 102 | CRBC60070 |
| XRBC 600120 | 870 | 120 | 1490 | 2800 | 274 | CRBC600120 |
| XRBC 70045 | 700 | 815 | 45 | 281 | 836 | 46 | CRBC70045 |
| XRBC 70070 | 880 | 70 | 766 | 1810 | 115 | CRBC70070 |
| XRBC 700150 | 1020 | 150 | 1980 | 3820 | 478 | CRBC700150 |
| XRBC 80070 | 800 | 950 | 70 | 468 | 1330 | 105 | CRBC80070 |
| XRBC 800100 | 1030 | 100 | 1140 | 2640 | 247 | CRBC800100 |
