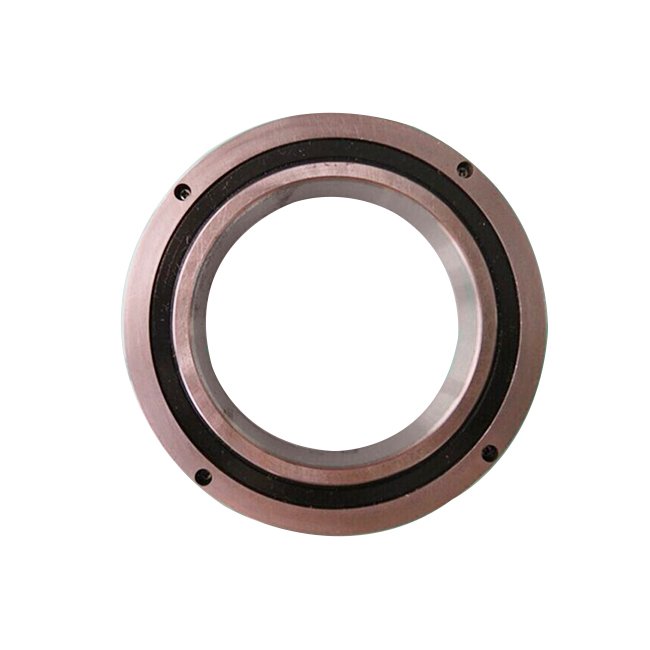

XRB Cross Roller Bearing
Short Description:
BLS slewing ring bearings can support radial, axial and tilting moment loads acting either singly or in combination and in any direction.Therefore, it is possible to replace the combination arrangement of radial and axial bearings by a single bearing, which will measurably reduce the overall cost and simplify the design. Slewing rings are sealed on both sides,lubricated with high quality grease, can be relubricated via lubrication nipples and are particularly easy to install.BLS slewing ring bearings are available in many designs with internal, external or without gear. The low cross section, heavy load capacity and integrated gear make these bearings ideal structure components.Slewing ring bearings are widely used in construction machinery, mining equipment and many other industrial products.
I have all the models you need, these are just some of them, please contact us now

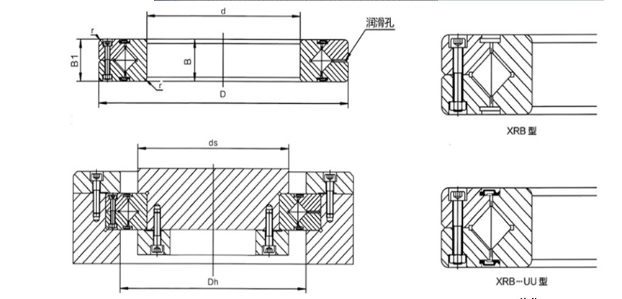

| Type | Dimension(mm) |
| Rated Load | Weight | Releated type |
|
| ID | OD | B | Radial(KN) |
|
|
|
|
|
| d | D | B | C | Co | Kg | THK | IKO | NSK |
| XRB 2008 | 20 | 36 | 8 | 3.23 | 3.1 | 0.04 | RB2008 | - | - |
| XRB 2508 | 25 | 41 | 8 | 3.63 | 3.83 | 0.05 | RB2508 | - | NRXT2508 |
| XRB 3010 | 30 | 55 | 10 | 7.35 | 8.36 | 0.12 | RB3010 | CRB3010 | - |
| XRB 3510 | 35 | 60 | 10 | 7.64 | 9.12 | 0.13 | RB3510 | - | - |
| XRB 4010 | 40 | 65 | 10 | 8.33 | 10.6 | 0.16 | RB4010 | CRB4010 | NRXT4010 |
| XRB 4510 | 45 | 70 | 10 | 8.62 | 11.3 | 0.17 | RB4510 | - | - |
| XRB 5013 | 50 | 80 | 13 | 16.7 | 20.9 | 0.27 | RB5013 | CRB5013 | NRXT5013 |
| XRB 6013 | 60 | 90 | 13 | 18 | 24.3 | 0.3 | RB6013 | CRB6013 | NRXT6013 |
| XRB 7013 | 70 | 100 | 13 | 19.4 | 27.7 | 0.35 | RB7013 | CRB7013 | NRXT7013 |
| XRB 8013 | 80 | 110 | 13 | 20.5 | 32 | 0.38 | - | - | NRXT8013 |
| XRB 8016 |
| 120 | 16 | 30.1 | 42.1 | 0.7 | RB8016 | CRB8016 | NRXT8016 |
| XRB 9016 | 90 | 130 | 16 | 31.4 | 45.3 | 0.75 | RB9016 | CRB9016 | NRXT9016 |
| XRB 9020 |
| 140 | 20 | 32 | 49 | 1.27 | - | - | NRXT9020 |
| XRB 10016 | 100 | 140 | 16 | 31.7 | 48.6 | 0.83 | RB10016 | - | - |
| XRB 10020 | 150 | 20 | 33.1 | 50.9 | 1.45 | RB10020 | CRB10020 | NRXT10020 |
| XRB 11012 | 110 | 135 | 12 | 12.5 | 24.1 | 0.4 | RB11012 | - | - |
| XRB 11015 | 145 | 15 | 23.7 | 41.5 | 0.75 | RB11015 | - | - |
| XRB 11020 | 120 | 160 | 20 | 34 | 54 | 1.56 | RB11020 | CRB11020 | NRXT11020 |
| XRB 12016 | 150 | 16 | 24.2 | 43.2 | 0.72 | RB12016 | - | - |
| XRB 12020 | 170 | 20 | 36 | 62 | 1.6 | - | - | NRXT12020 |
| XRB 12025 | 180 | 25 | 66.9 | 100 | 2.62 | RB12025 | CRB12025 | NRXT12025 |
| XRB 13015 | 130 | 160 | 15 | 25 | 46.7 | 0.72 | RB13015 | - | - |
| XRB 13025 | 190 | 25 | 69.5 | 107 | 2.82 | RB13025 | CRB13025 | NRXT13025 |
| XRB 14016 | 140 | 175 | 16 | 25.9 | 50.1 | 1 | RB14016 | - | - |
| XRB 14025 | 200 | 25 | 74.8 | 121 | 2.96 | RB14025 | CRB14025 | NRXT14025 |
| XRB 15013 | 150 | 180 | 13 | 27 | 53.5 | 0.68 | RB15013 | - | - |
| XRB 15025 | 210 | 25 | 76.8 | 128 | 3.16 | RB15025 | CRB15025 | NRXT15025 |
| XRB 15030 | 230 | 30 | 100 | 156 | 5.3 | RB15030 | CRB15030 | NRXT15030 |
| XRB 16025 | 160 | 220 | 25 | 81.7 | 135 | 3.14 | RB16025 | - | - |
| XRB 17020 | 170 | 220 | 20 | 29 | 62.1 | 2.21 | RB17020 | - | - |
| XRB 18025 | 180 | 240 | 25 | 84 | 143 | 3.44 | RB18025 | - | - |
| XRB 19025 | 190 | 240 | 25 | 41.7 | 82.9 | 2.99 | RB19025 | - | - |
| XRB 20025 | 200 | 260 | 25 | 84.2 | 157 | 4 | RB20025 | CRB20025 | - |
| XRB 20030 | 280 | 30 | 114 | 200 | 6.7 | RB20030 | CRB20030 | NRXT20030 |
| XRB 20035 | 295 | 35 | 151 | 252 | 9.6 | RB20035 | CRB20035 | - |
| XRB 22025 | 220 | 280 | 25 | 92.3 | 171 | 4.1 | RB22025 | - | - |
| XRB 24025 | 240 | 300 | 25 | 68.3 | 145 | 4.5 | RB24025 | - | - |
| XRB 25025 | 250 | 310 | 25 | 69.3 | 150 | 5 | RB25025 | CRB25025 | NRXT25025 |
| XRB 25030 | 330 | 30 | 126 | 244 | 8.1 | RB25030 | CRB25030 | NRXT25030 |
| XRB 25040 | 355 | 40 | 195 | 348 | 14.8 | RB25040 | CRB25040 | - |
| XRB 30025 | 300 | 360 | 25 | 76.3 | 178 | 5.9 | RB30025 | CRB30025 | NRXT30025 |
| XRB 30035 | 395 | 35 | 183 | 367 | 13.4 | RB30035 | CRB30035 | NRXT30035 |
| XRB 30040 | 405 | 40 | 212 | 409 | 17.2 | RB30040 | CRB30040 | NRXT30040 |
| XRB 35020 | 350 | 400 | 20 | 54.1 | 143 | 3.9 | RB35020 | - | - |
| XRB 40035 | 400 | 480 | 35 | 156 | 370 | 14.5 | RB40035 | CRB40035 | NRXT40035 |
| XRB 40040 | 510 | 40 | 241 | 531 | 23.5 | RB40040 | CRB40040 | NRXT40040 |
| XRB 40070 | 580 | 70 | 470 | 811 | 72.4 | - | CRB40070 | - |
| XRB 45025 | 450 | 500 | 25 | 61.7 | 182 | 6.6 | RB45025 | - | - |
| XRB 50025 | 500 | 550 | 25 | 65.5 | 201 | 7.3 | RB50025 | - | - |
| XRB 50040 | 600 | 40 | 239 | 607 | 26 | RB50040 | CRB50040 | NRXT50040 |
| XRB 50050 | 625 | 50 | 267 | 653 | 41.7 | RB50050 | CRB50050 | NRXT50050 |
| XRB 50070 | 680 | 70 | 653 | 1330 | 86.1 | - | CRB50070 | - |
| XRB 60040 | 600 | 700 | 40 | 264 | 721 | 29 | RB60040 | CRB60040 | NRXT60040 |
| XRB 60070 | 780 | 70 | 700 | 1540 | 102 | - | CRB60070 | - |
| XRB 600120 | 870 | 120 | 1490 | 2800 | 274 | - | CRB600120 | - |
| XRB 70045 | 700 | 815 | 45 | 281 | 836 | 46 | RB70045 | CRB70045 | - |
| XRB 70070 | 880 | 70 | 766 | 1810 | 115 | - | CRB70070 | - |
| XRB 700150 | 1020 | 150 | 1980 | 3820 | 478 | - | CRB700150 | - |
| XRB 80070 | 800 | 950 | 70 | 468 | 1330 | 105 | RB80070 | CRB80070 | - |
| XRB 800100 | 1030 | 100 | 1140 | 2640 | 247 | - | CRB800100 | - |
| XRB 90070 | 900 | 1050 | 70 | 494 | 1490 | 120 | RB90070 | - | - |
| XRB1000110 | 1000 | 1250 | 110 | 1220 | 3220 | 360 | RB1000110 | - | - |
| XRB1250110 | 1250 | 1500 | 110 | 1350 | 3970 | 440 | RB1250110 | - | - |
Deep Groove Ball Bearings Widely used in various industries, our bearings meet the requirements of your project！
1.FREE SAMPLES:
contact us by email or trade manager, we will send the free sampls according to your request.
2. World Class Bearing:We provide our customers with all type of indigenous bearing with world class quality.
3. OEM or Non Stand Bearings: Any requirement for Non standard bearings is Easily Fulfilled by us due to
its vast knowledge and links in the industry.
4. Genuine products With Excellent Quality: Company has always proved the
100% quality products it provides with genuine intent.
5.After Sales Service and technical Assistance: Company provides after sales service and technical assistance
as per the customers requirement and needs.
6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.
7. Cost Saving: We provide long-life, shock-resistant and high reliability bearings with
excellent quality and better performance. Resulting in increased cost saving.
8.Attending customer queries promptly: We believe that if customer are satisfied then it proves our worth well. Customers are always given quick support.
