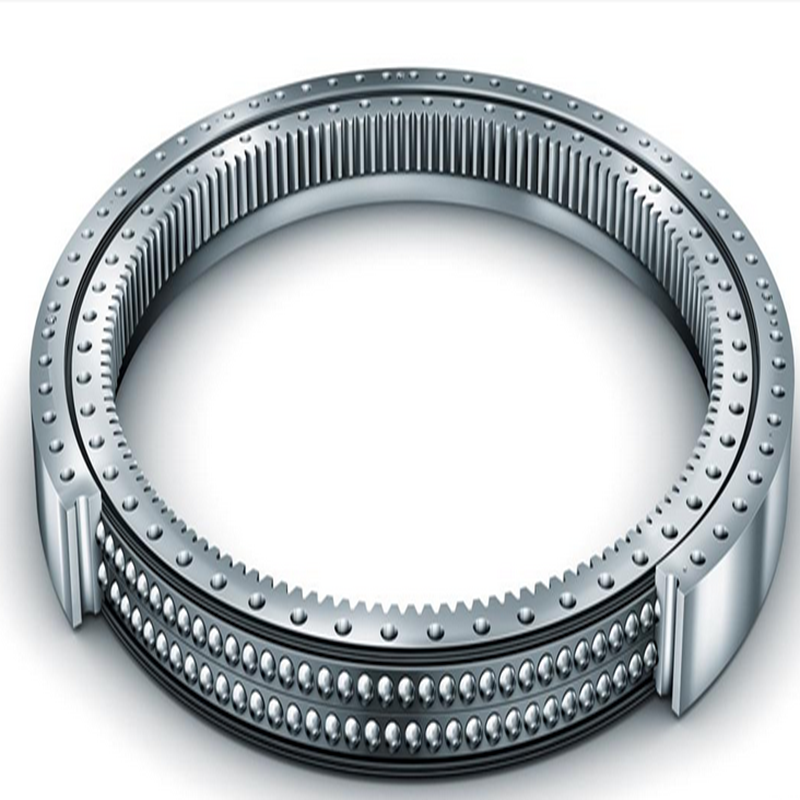

Three-row cylindrical rollers slewing ring bearings - 13 Series

Short Description:

BLS slewing ring bearings can support radial, axial and tilting moment loads acting either singly or in combination and in any direction.Therefore, it is possible to replace the combination arrangement of radial and axial bearings by a single bearing, which will measurably reduce the overall cost and simplify the design. Slewing rings are sealed on both sides,lubricated with high quality grease, can be relubricated via lubrication nipples and are particularly easy to install.BLS slewing ring bearings are available in many designs with internal, external or without gear. The low cross section, heavy load capacity and integrated gear make these bearings ideal structure components.Slewing ring bearings are widely used in construction machinery, mining equipment and many other industrial products.

Inquire Now Next Product

Product Details

Deep Groove Ball Bearings

I have all the models you need, these are just some of them, please contact us now

Bearing Code			Configuration Size			Mouting Size						Structure Size			Gear Data			Outer Gear Data		Inner Gear Data
			D	d	H	D1	D2	n	dn1	dm1	L	n1	H2	h1	b	x	m	de	Z	de	Z	Weight
			D	d	H	D1	D2	n	dn2	dm2	L	n1	H2	h1	b	x	m	de	Z	de	Z	Weight
no teeth	outer teeth	inner teeth	mm			mm			mm				mm			mm		mm		mm		kg
130.25.500	131.25.500	133.25.500	634	366	148	598	402	24	18	M16	32	4	10	32	80	0.5	5	664	130	337	68	224
130.25.560	131.25.560	133.25.560	694	426	148	658	462	24	18	M16	32	4	10	32	80	0.5	5	724	142	397	80	240
130.25.630	131.25.630	133.25.630	764	496	148	728	532	28	18	M16	32	4	10	32	80	0.5	6	808.7	132	458.4	77	270
130.25.710	131.25.710	133.25.710	844	576	148	808	612	28	18	M16	32	4	10	32	80	0.5	6	886.8	145	536.4	90	300
130.32.1000	131.32.1000	133.32.1000	1164	836	182	1120	880	40	22	M20	40	5	10	40	120	0.5	10	1218	119	784	79	680
130.32.1120	131.32.1120	133.32.1120	1284	956	182	1240	1000	40	22	M20	40	5	10	40	120	0.5	10	1338	131	904	91	820
130.32.800	131.32.800	133.32.800	964	636	182	920	680	36	22	M20	40	4	10	40	120	0.5	8	1006.4	123	595.2	75	500
130.32.900	131.32.900	133.32.900	1064	736	182	1020	780	36	22	M20	40	4	10	40	120	0.5	8	1102.4	135	691.2	87	600
130.40.1250	131.40.1250	133.40.1250	1445	1055	220	1393	1107	45	26	M24	48	5	10	50	150	0.5	12	1509.6	123	988.8	83	1200
130.40.1400	131.40.1400	133.40.1400	1595	1205	220	1543	1257	45	26	M24	48	5	10	50	150	0.5	12	1665.6	136	1144.8	96	1300
130.40.1600	131.40.1600	133.40.1600	1795	1405	220	1743	1457	48	26	M24	48	6	10	50	150	0.5	14	1873.2	131	1335.6	96	1520
130.40.1800	131.40.1800	133.40.1800	1995	1605	220	1943	1657	48	26	M24	48	6	10	50	150	0.5	14	2069.2	145	1531.6	110	1750
130.45.2000	131.45.2000	133.45.2000	2221	1779	231	2155	1845	60	33	M30	60	6	10	54	160	0.5	16	2300.8	141	1702.4	107	2400
130.45.2240	131.45.2240	133.45.2240	2461	2019	231	2395	2085	60	33	M30	60	6	12	54	160	0.5	16	2556.8	157	1926.4	121	2700
130.45.2500	131.45.2500	133.45.2500	2721	2279	231	2655	2345	72	33	M30	60	8	12	54	160	0.5	18	2822.4	154	2185.2	122	3000
130.45.2800	131.45.2800	133.45.2800	3021	2579	231	2955	2645	72	33	M30	60	8	12	54	160	0.5	18	3110.4	170	2491.2	139	3400
130.50.3150	131.50.3150	133.50.3150	3432	2868	270	3342	2958	72	45	M42	84	8	12	60	180	0.5	20	3536	174	2768	139	5000
130.25.500	132.25.500	134.25.500	634	366	148	598	402	24	18	M16	32	4	10	32	80	0.5	6	664.8	108	338.4	57	224
130.25.560	132.25.560	134.25.560	694	426	148	658	462	24	18	M16	32	4	10	32	80	0.5	6	724.8	118	398.4	67	240
130.25.630	132.25.630	134.25.630	764	496	148	728	532	28	18	M16	32	4	10	32	80	0.5	8	806.4	98	459.2	58	270
130.25.710	132.25.710	134.25.710	844	576	148	808	612	28	18	M16	32	4	10	32	80	0.5	8	886.4	108	539.2	68	300
130.32.1000	132.32.1000	134.32.1000	1164	836	182	1120	880	40	22	M20	40	5	10	40	120	0.5	12	1221.6	99	784.8	66	680
130.32.1120	132.32.1120	134.32.1120	1284	956	182	1240	1000	40	22	M20	40	5	10	40	120	0.5	12	1341.6	109	904.8	76	820
130.32.800	132.32.800	134.32.800	964	636	182	920	680	36	22	M20	40	4	10	40	120	0.5	10	1008	98	594	60	500
130.32.900	132.32.900	134.32.900	1064	736	182	1020	780	36	22	M20	40	4	10	40	120	0.5	10	1108	108	694	70	600
130.40.1250	132.40.1250	134.40.1250	1445	1055	220	1393	1107	45	26	M24	48	5	10	50	150	0.5	14	1509.2	105	985.6	71	1200
130.40.1400	132.40.1400	134.40.1400	1595	1205	220	1543	1257	45	26	M24	48	5	10	50	150	0.5	14	1663.2	116	1139.6	82	1300
130.40.1600	132.40.1600	134.40.1600	1795	1405	220	1743	1457	48	26	M24	48	6	10	50	150	0.5	16	1868.8	114	1334.4	84	1520
130.40.1800	132.40.1800	134.40.1800	1995	1605	220	1943	1657	48	26	M24	48	6	10	50	150	0.5	16	2076.8	127	1526.4	96	1750
130.45.2000	132.45.2000	134.45.2000	2221	1779	231	2155	1845	60	33	M30	60	6	10	54	160	0.5	18	2300.4	125	1699.2	95	2400
130.45.2240	132.45.2240	134.45.2240	2461	2019	231	2395	2085	60	33	M30	60	6	12	54	160	0.5	18	2552.4	139	1933.2	108	2700
130.45.2500	132.45.2500	134.45.2500	2721	2279	231	2655	2345	72	33	M30	60	8	12	54	160	0.5	20	2816	138	2188	110	3000
130.45.2800	132.45.2800	134.45.2800	3021	2579	231	2955	2645	72	33	M30	60	8	12	54	160	0.5	20	3116	153	2488	125	3400
130.50.3150	132.50.3150	134.50.3150	3432	2868	270	3342	2958	72	45	M42	84	8	12	60	180	0.5	22	3537.6	158	2758.8	126	5000
