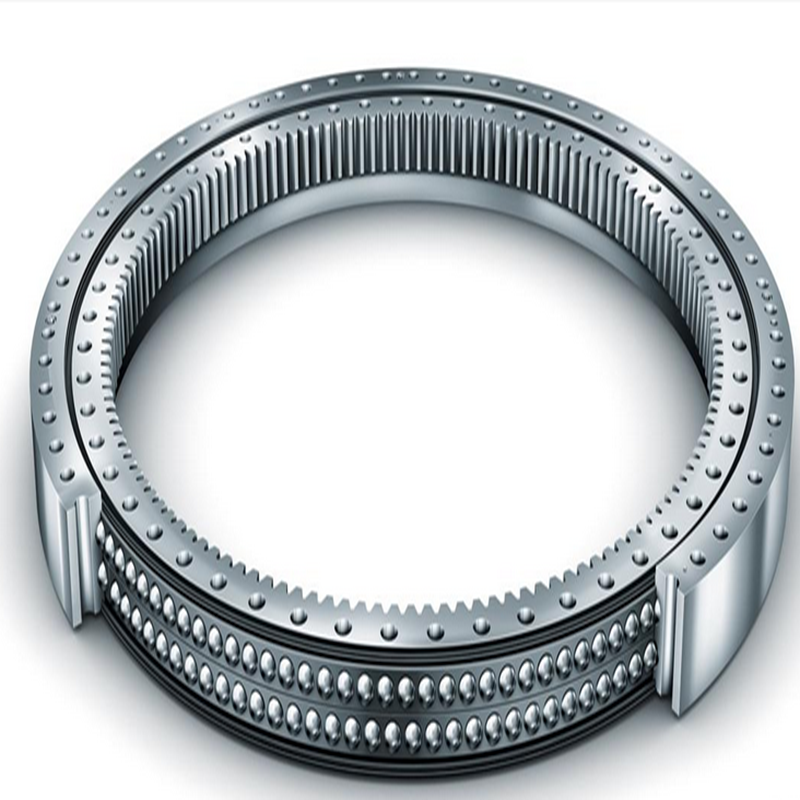

Single Row Crossed Roller Slewing Bearings - HJ Series

Short Description:

BLS slewing ring bearings can support radial, axial and tilting moment loads acting either singly or in combination and in any direction.Therefore, it is possible to replace the combination arrangement of radial and axial bearings by a single bearing, which will measurably reduce the overall cost and simplify the design. Slewing rings are sealed on both sides,lubricated with high quality grease, can be relubricated via lubrication nipples and are particularly easy to install.BLS slewing ring bearings are available in many designs with internal, external or without gear. The low cross section, heavy load capacity and integrated gear make these bearings ideal structure components.Slewing ring bearings are widely used in construction machinery, mining equipment and many other industrial products.

Inquire Now Next Product

Product Details

Deep Groove Ball Bearings

I have all the models you need, these are just some of them, please contact us now

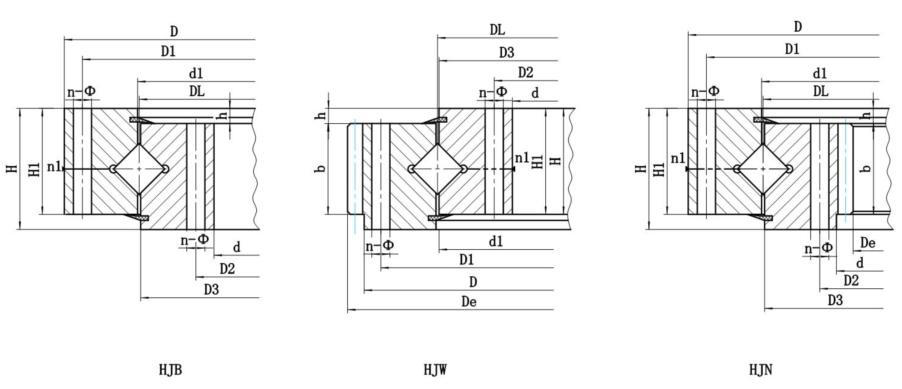

Bearing Code			Configuration Size			Mounting Size				Structure Size					Teeth Data			Outer Teeth		Inner Teeth		M
			Configuration Size			Mounting Size				Structure Size					Teeth Data			Outer Teeth		Inner Teeth		M
no teeth	outer teeth	inner teeth	D	d	H	D1	D2	n	Ø	n1	D3	d1	H1	h	b	x	m	De	z	De	z	kg
D L	D L	DL	mm	mm	mm	mm	mm		mm	mm	mm	mm	mm	mm	mm		mm	mm		mm
mm	mm	mm
HJB.20.625	HJW.20.625	HJN.20.625	725	525	80	685	565	18	18	3	627	623	68	12	60	1.4	5	751.9	146	498.8	101	100
HJB.20.625	HJW.20.625A	HJN.20.625A	725	525	80	685	565	18	18	3	627	623	68	12	60	1.15	6	755.5	122	496.7	84	100
HJB.20.720	HJW.20.720	HJN.20.720	820	620	80	780	660	18	18	3	722	718	68	12	60	1.4	6	860.3	139	586.6	99	120
HJB.20.720	HJW.20.720A	HJN.20.720A	820	620	80	780	660	18	18	3	722	718	68	12	60	1	8	861.1	104	582.3	74	120
HJB.30.1020	HJW.30.1020	HJN.30.1020	1170	875	95	1120	930	24	22	4	1022	1018	80	15	70	1.4	8	1219.3	148	830.1	105	300
HJB.30.1020	HJW.30.1020A	HJN.30.1020A	1170	875	95	1120	930	24	22	4	1022	1018	80	15	70	1.15	10	1219.2	118	827.8	84	300
HJB.30.820	HJW.30.820	HJN.30.820	940	705	95	893	749	24	20	4	822	818	83	12	70	1.4	6	980.6	159	664.5	112	210
HJB.30.820	HJW.30.820A	HJN.30.820A	940	705	95	893	749	24	20	4	822	818	83	12	70	1	10	986.2	95	658	67	210
HJB.30.880	HJW.30.880	HJN.30.880	1000	760	95	956	800	24	20	4	882	878	83	12	70	1.15	8	1047.5	127	718.2	91	230
HJB.30.880	HJW.30.880A	HJN.30.880A	1000	760	95	956	800	24	20	4	882	878	83	12	70	1	10	1046.3	101	707.9	72	230
HJB.36.1220	HJW.36.1220	HJN.36.1220	1365	1075	120	1310	1130	36	24	6	1222	1218	105	15	90	1.4	10	1424.9	138	1027.8	104	450
HJB.36.1220	HJW.36.1220A	HJN.36.1220A	1365	1075	120	1310	1130	36	24	6	1222	1218	105	15	90	1	12	1435.9	116	1017.3	86	450
HJB.36.1250	HJW.36.1250	HJN.36.1250	1400	1090	120	1350	1150	36	26	6	1252	1248	105	15	90	-0.35	10	1443	143	1037	105	520
HJB.36.1250	HJW.36.1250A	HJN.36.1250A	1400	1090	120	1350	1150	36	26	6	1252	1248	105	15	90	1	12	1449.6	117	1036.8	86	520
HJB.36.1435	HJW.36.1435	HJN.36.1435	1595	1278	120	1535	1335	36	26	6	1437	1433	105	15	90	1.15	12	1655.5	134	1221.2	1.3	610
HJB.36.1435	HJW.36.1435A	HJN.36.1435A	1595	1278	120	1535	1335	36	26	6	1437	1433	105	15	90	1	14	1661.2	115	1214.8	88	610
HJB.45.1540	HJW.45.1540	HJN.45.1540	1720	1360	140	1660	1420	42	26	6	1543	4537	122	18	110	1.4	12	1780.8	144	1293.1	109	732
HJB.45.1540	HJW.45.1540A	HJN.45.1540A	1720	1360	140	1660	1420	42	26	6	1543	4537	122	18	110	1.15	14	1791.1	124	1284.8	93	732
HJB.45.1700	HJW.45.1700	HJN.45.1700	1875	1525	140	1815	1585	42	29	6	1703	1679	122	18	110	1.15	14	1945.4	135	1452.7	105	844
HJB.45.1700	HJW.45.1700A	HJN.45.1700A	1875	1525	140	1815	1585	42	29	6	1703	1679	122	18	110	1.15	16	1950.8	118	1452.3	92	844
HJB.45.1880	HJW.45.1880	HJN.45.1880	2100	1665	160	2030	1740	48	32	6	1883	1876	140	20	115	1.4	14	2189.8	152	1592.6	115	1400
HJB.45.1880	HJW.45.1880A	HJN.45.1880A	2100	1665	160	2030	1740	48	32	6	1883	1876	140	20	115	1.15	18	2194.6	118	1579.9	89	1400
HJB.45.2115	HJW.45.2115	HJN.45.2115	2325	1900	160	2245	1980	48	32	6	2118	2112	140	20	115	1.4	16	2406.5	146	1804.1	114	1600
HJB.45.2115	HJW.45.2115A	HJN.45.2115A	2325	1900	160	2245	1980	48	32	6	2118	2112	140	20	115	1.15	20	2418.4	117	1795.4	91	1600
HJB.45.2370	HJW.45.2370	HJN.45.2370	2600	2146	180	2520	2220	48	32	6	2373	2367	158	22	130	1.4	18	2707.3	146	2065.6	116	2100
HJB.45.2370	HJW.45.2370A	HJN.45.2370A	2600	2146	180	2520	2220	48	32	6	2373	2367	158	22	130	1.15	22	2704.4	119	2040.9	94	2100
HJB.45.2600	HJW.45.2600	HJN.45.2600	2835	2365	180	2750	2450	54	36	6	2603	2597	158	22	130	1.4	18	2941.7	159	2263.5	127	2400
HJB.45.2600	HJW.45.2600A	HJN.45.2600A	2835	2365	180	2750	2450	54	36	6	2603	2597	158	22	130	1.15	22	2946.9	130	2260.8	104	2400
HJB.50.2820	HJW.50.2820	HJN.50.2820	3085	2555	200	3000	2640	54	36	6	2823	2817	178	22	150	1.4	20	3188.4	155	2455	124	3400
HJB.50.2820	HJW.50.2820A	HJN.50.2820A	3085	2555	200	3000	2640	54	36	6	2823	2817	178	22	150	1.15	25	3198.4	124	2444.1	99	3400
HJB.50.3120	HJW.50.3120	HJN.50.3120	3400	2840	200	3310	2930	54	36	6	3123	3117	178	22	150	1.4	22	3507.2	155	2722.5	125	4000
HJB.50.3120	HJW.50.3120A	HJN.50.3120A	3400	2840	200	3310	2930	54	36	6	3123	3117	178	22	150	1.4	25	3509.6	136	2719	110	4000
HJB.50.3580	HJW.50.3580	HJN.50.3580	3920	3240	240	3820	3340	60	40	6	3583	3577	218	22	190	1.4	22	4036.1	179	3118.4	143	6700
HJB.50.3580	HJW.50.3580A	HJN.50.3580A	3920	3240	240	3820	3340	60	40	6	3583	3577	218	22	190	1.4	25	4035.6	157	3118.8	126	6700
HJB.50.4030	HJW.50.4030	HJN.50.4030	4370	3690	240	4270	3790	66	40	6	4033	4027	218	22	190	1.4	22	4520.6	201	3558.3	163	7700
HJB.50.4030	HJW.50.4030A	HJN.50.4030A	4370	3690	240	4270	3790	66	40	6	4033	4027	218	22	190	1.4	28	4522.4	157	3549	128	7700
HJB.50.4540	HJW.50.4540	HJN.50.4540	4860	4210	240	4760	4310	72	40	6	4543	4537	218	22	190	1.4	22	4983.1	222	4042.2	185	8760
HJB.50.4540	HJW.50.4540A	HJN.50.4540A	4860	4210	240	4760	4310	72	40	6	4543	4537	218	22	190	1.4	30	4992.9	162	4042.4	136	8760
