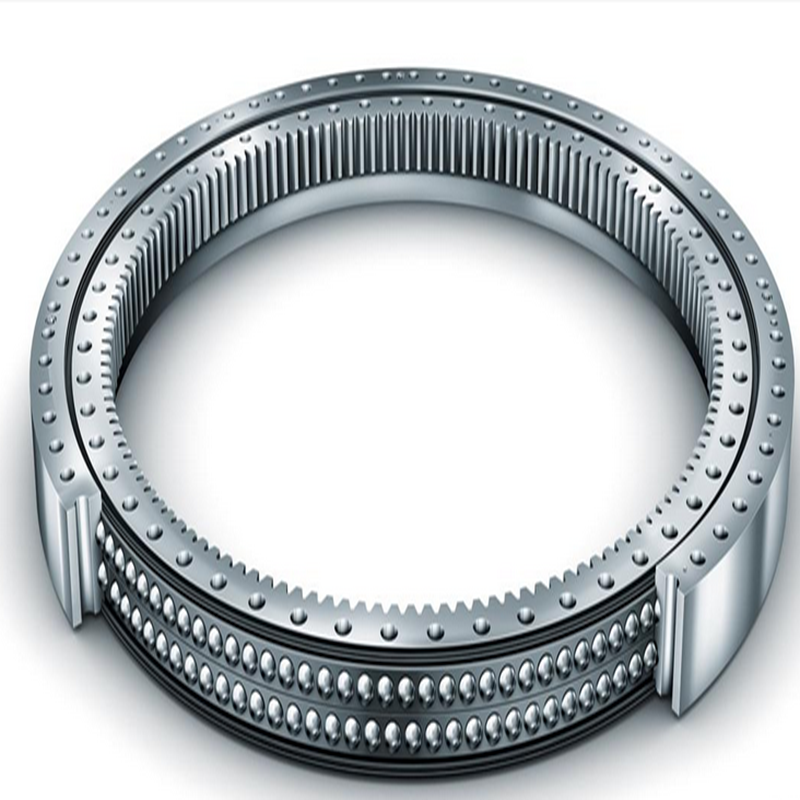

Single Row Crossed Roller Slewing Bearings - 11 Series

Short Description:

BLS slewing ring bearings can support radial, axial and tilting moment loads acting either singly or in combination and in any direction.Therefore, it is possible to replace the combination arrangement of radial and axial bearings by a single bearing, which will measurably reduce the overall cost and simplify the design. Slewing rings are sealed on both sides,lubricated with high quality grease, can be relubricated via lubrication nipples and are particularly easy to install.BLS slewing ring bearings are available in many designs with internal, external or without gear. The low cross section, heavy load capacity and integrated gear make these bearings ideal structure components.Slewing ring bearings are widely used in construction machinery, mining equipment and many other industrial products.

Inquire Now Next Product

Product Details

Deep Groove Ball Bearings

I have all the models you need, these are just some of them, please contact us now

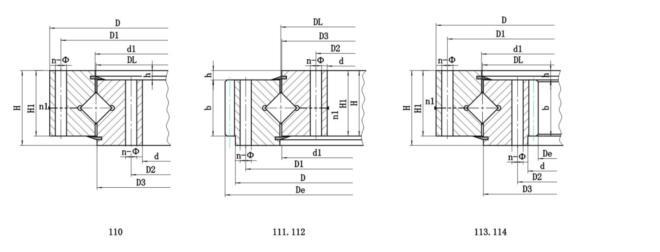

Bearing Code			Configuration Size			Mounting Size						Structure Size					Teeth Data			Outer Teeth		Inner Teeth		M
no teeth	outer teeth	inner teeth	D	d	H	D1	D2	n	Ø	dm	L	n1	D3	d1	H1	h	b	x	m	De	z	De	z	kg
D L	D L	D L	mm	mm	mm	mm	mm		mm	mm	mm	mm	mm	mm	mm	mm	mm		mm	mm		mm
mm	mm	mm
110.25.500	111.25.500	113.25.500	602	398	75	566	434	20	18	M16	32	4	498	502	65	10	60	0.5	5	629	123	367	74	80
110.25.560	111.25.560	113.25.560	662	458	75	626	494	20	18	M16	32	4	558	562	65	10	60	0.5	5	689	135	427	86	90
110.25.630	111.25.630	113.25.630	732	528	75	696	564	24	18	M16	32	4	628	632	65	10	60	0.5	6	772.8	126	494.4	83	100
110.25.710	111.25.710	113.25.710	812	608	75	776	644	24	18	M16	32	4	708	712	65	10	60	0.5	6	850.8	139	572.4	96	110
110.28.1000	111.28.1000	113.28.1000	1122	878	82	1078	922	36	22	M20	40	6	998	1002	72	10	65	0.5	10	1188	116	824	83	210
110.28.1120	111.28.1120	113.28.1120	1242	998	82	1198	1042	36	22	M20	40	6	1118	1122	72	10	65	0.5	10	1298	127	944	95	230
110.28.800	111.28.800	113.28.800	922	678	82	878	722	30	22	M20	11	6	798	802	72	10	65	0.5	8	966.4	118	635.2	80	170
110.28.900	111.28.900	113.28.900	1022	778	82	978	822	30	22	M20	40	6	898	902	72	10	65	0.5	8	1062.4	130	739.2	93	190
110.32.1250	111.32.1250	113.32.1250	1390	1110	91	1337	1163	40	26	M24	48	5	1248	1252	81	10	75	0.5	12	1449.6	118	1048.8	88	350
110.32.1400	111.32.1400	113.32.1400	1540	1260	91	1487	1313	40	26	M24	48	5	1398	1402	81	10	75	0.5	12	1605.6	131	1192.8	100	400
110.32.1600	111.32.1600	113.32.1600	1740	1460	91	1687	1513	45	26	M24	48	5	1598	1602	81	10	75	0.5	14	1817.2	127	1391.6	100	440
110.32.1800	111.32.1800	113.32.1800	1940	1660	91	1887	1713	45	26	M24	48	5	1798	1802	81	10	75	0.5	14	2013.2	141	1573.6	113	500
110.40.2000	111.40.2000	113.40.2000	2178	1825	112	2110	1891	48	33	M30	60	8	1997	2003	100	13	90	0.5	16	2268.8	139	1734.4	109	900
110.40.2240	111.40.2240	113.40.2240	2418	2065	112	2350	2131	48	33	M30	60	8	2237	2243	100	13	90	0.5	16	2492.8	153	1990.4	125	1000
110.40.2500	111.40.2500	113.40.2500	2678	2325	112	2610	2391	56	33	M30	60	8	2497	2503	100	13	90	0.5	18	2768.4	151	2239.2	125	1100
110.40.2800	111.40.2800	113.40.2800	2978	2625	112	2910	2691	56	33	M30	60	8	2797	2803	100	13	90	0.5	18	3074.4	168	2527.2	141	1250
110.50.3150	111.50.3150	113.50.3150	3376	2922	134	3286	3014	56	45	M42	84	8	3147	3153	122	13	110	0.5	20	3476	171	2828	142	2150
110.50.3550	111.50.3550	113.50.3550	3776	3322	134	3686	3414	56	45	M42	84	8	3547	3553	122	13	110	0.5	20	3876	191	3228	162	2470
110.50.4000	111.50.4000	113.50.4000	4226	3772	134	4136	3864	60	45	M42	84	10	3997	4003	122	13	110	0.5	22	4329.6	194	3660.8	167	2800
110.50.4500	111.50.4500	113.50.4500	4726	4272	134	4636	4364	60	45	M42	84	10	4497	4503	122	13	110	0.5	22	4835.6	217	4166.8	190	3100
110.25.500	112.25.500	114.25.500		398	75	566	434	20	18	M16	32	4	498	502	65	10	60	0.5	6	628.8	102	368.4	62	80
110.25.560	112.25.560	114.25.560		458	75	626	494	20	18	M16	32	4	558	562	65	10	60	0.5	6	688.8	112	428.4	72	90
110.25.630	112.25.630	114.25.630		528	75	696	564	24	18	M16	32	4	628	632	65	10	60	0.5	8	774.4	94	491.2	62	100
110.25.710	112.25.710	114.25.710		608	75	776	644	24	18	M16	32	4	708	712	65	10	60	0.5	8	854.4	104	571.2	72	110
110.28.1000	112.28.1000	114.28.1000		878	82	1078	922	36	22	M20	40	6	998	1002	72	10	65	0.5	12	1185.6	96	820.8	69	210
110.28.1120	112.28.1120	114.28.1120		998	82	1198	1042	36	22	M20	40	6	1118	1122	72	10	65	0.5	12	1305.6	106	940.8	79	230
110.28.800	112.28.800	114.28.800		678	82	878	722	30	22	M20	11	6	798	802	72	10	65	0.5	10	968	94	634	64	170
110.28.900	112.28.900	114.28.900		778	82	978	822	30	22	M20	40	6	898	902	72	10	65	0.5	10	1068	104	734	74	190
110.32.1250	112.32.1250	114.32.1250		1110	91	1337	1163	40	26	M24	48	5	1248	1252	81	10	75	0.5	14	1453.2	101	1041.6	75	350
110.32.1400	112.32.1400	114.32.1400		1260	91	1487	1313	40	26	M24	48	5	1398	1402	81	10	75	0.5	14	1607.2	112	1195.6	86	400
110.32.1600	112.32.1600	114.32.1600		1460	91	1687	1513	45	26	M24	48	5	1598	1602	81	10	75	0.5	16	1820.8	111	1382.4	87	440
110.32.1800	112.32.1800	114.32.1800		1660	91	1887	1713	45	26	M24	48	5	1798	1802	81	10	75	0.5	16	2012.8	123	1574.4	99	500
110.40.2000	112.40.2000	114.40.2000		1825	112	2110	1891	48	33	M30	60	8	1997	2003	100	13	90	0.5	18	2264.4	123	1735.2	97	900
110.40.2240	112.40.2240	114.40.2240		2065	112	2350	2131	48	33	M30	60	8	2237	2243	100	13	90	0.5	18	2498.4	136	1987.2	111	1000
110.40.2500	112.40.2500	114.40.2500		2325	112	2610	2391	56	33	M30	60	8	2497	2503	100	13	90	0.5	20	2776	136	2228	112	1100
110.40.2800	112.40.2800	114.40.2800		2625	112	2910	2691	56	33	M30	60	8	2797	2803	100	13	90	0.5	20	3076	151	2528	127	1250
110.50.3150	112.50.3150	114.50.3150		2922	134	3286	3014	56	45	M42	84	8	3147	3153	122	13	110	0.5	22	3471.6	155	2824.8	129	2150
110.50.3550	112.50.3550	114.50.3550		3322	134	3686	3414	56	45	M42	84	8	3547	3553	122	13	110	0.5	22	3889.6	174	3220.8	147	2470
110.50.4000	112.50.4000	114.50.4000		3772	134	4136	3864	60	45	M42	84	10	3997	4003	122	13	110	0.5	25	4345	171	3660	147	2800
110.50.4500	112.50.4500	114.50.4500		4272	134	4636	4364	60	45	M42	84	10	4497	4503	122	13	110	0.5	25	4845	191	4160	167	3100
