Single Row 4 Point Contact Ball Slewing Bearing - Q Series

Short Description:

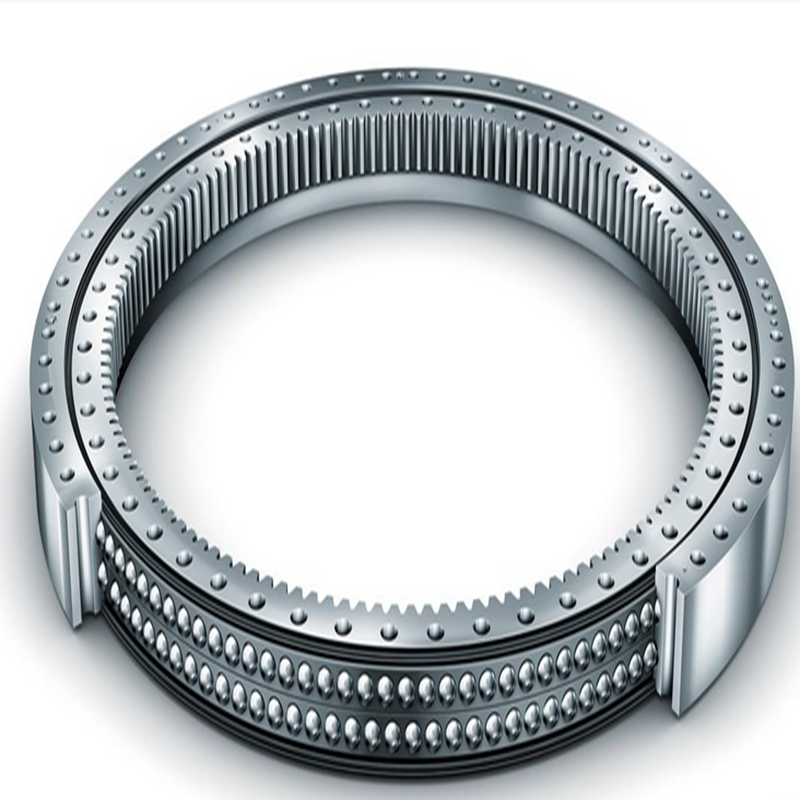

BLS slewing ring bearings can support radial, axial and tilting moment loads acting either singly or in combination and in any direction.Therefore, it is possible to replace the combination arrangement of radial and axial bearings by a single bearing, which will measurably reduce the overall cost and simplify the design. Slewing rings are sealed on both sides,lubricated with high quality grease, can be relubricated via lubrication nipples and are particularly easy to install.BLS slewing ring bearings are available in many designs with internal, external or without gear. The low cross section, heavy load capacity and integrated gear make these bearings ideal structure components.Slewing ring bearings are widely used in construction machinery, mining equipment and many other industrial products.

Inquire Now Next Product

Product Details

Deep Groove Ball Bearings

I have all the models you need, these are just some of them, please contact us now

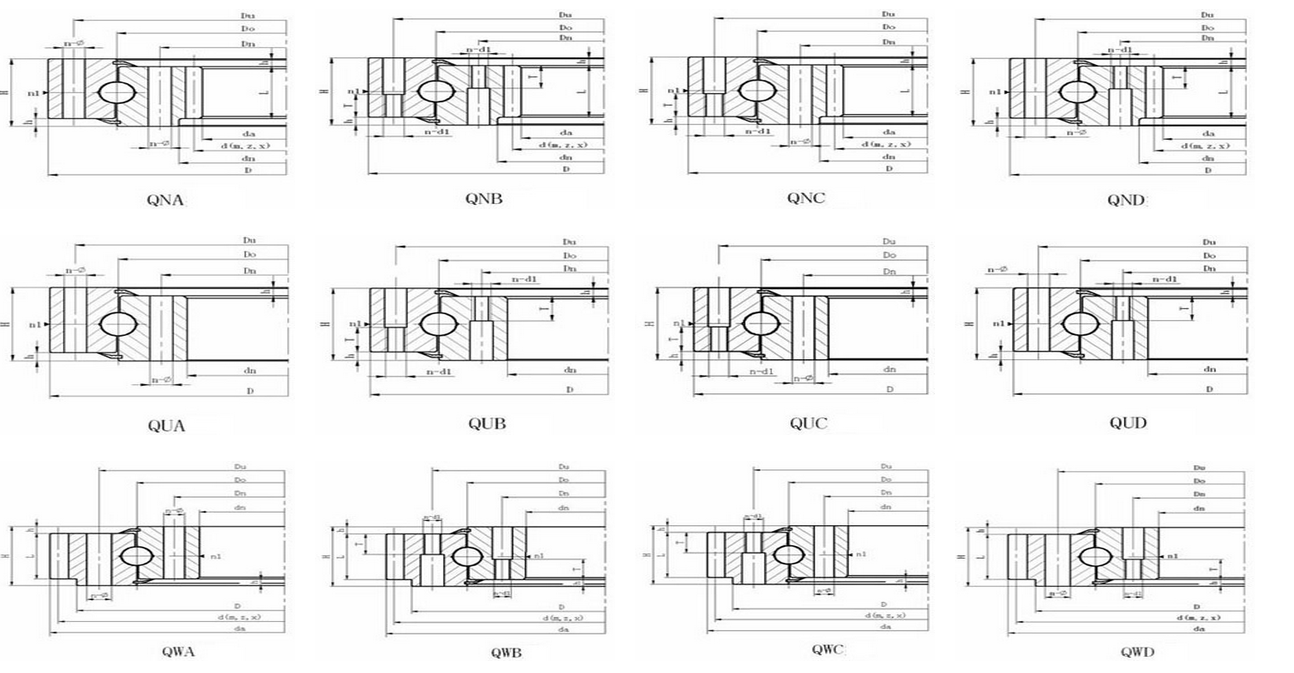

Bearing Code	Configuration Size(mm)					Mouting Size(mm)						Picture size		Gear Data(mm)		outer teeth		inner teeth		weight
	Configuration Size(mm)					Mouting Size(mm)						Picture size		Gear Data(mm)		Parameter		Parameter		outer	inner
	outer teeth		inner teeth		H	Du	Dn	n	bore	Thread bore		n1	h	L	m	X=-0.5				teeth	teeth
	outer teeth		inner teeth						A	B.C.D						X=-0.5				kg	kg
QU.QW.QN Series	D	dn	D	dn					type	type						da	Z	da	Z	聽	聽
QU.QW.QN Series	D	dn	D	dn					φ	d1	T					da	Z	da	Z	聽	聽
1000.25	1104	892	1108	894	78	1064	936	24	22	M20	36	2	10	58	8	1152	143	848	107	182	178
1000.25A	1104	892	1108	894	78	1064	936	24	22	M20	36	2	10	58	10	1160	115	840	85	185	179
1000.32	1120	876	1124	880	90	1074	926	24	24	M22	40	2	10	70	8	1160	144	832	105	227	230
1000.32A	1120	876	1124	880	90	1074	926	24	24	M22	40	2	10	70	10	1170	116	830	84	232	227
1120.32	1240	996	1244	1000	90	1194	1046	28	24	M22	40	4	10	70	10	1300	129	940	95	272	263
1120.32A	1240	996	1244	1000	90	1194	1046	28	24	M22	40	4	10	70	12	1308	108	936	79	275	262
1250.32	1370	1126	1374	1130	90	1324	1176	32	24	M22	40	4	10	70	10	1430	142	1070	108	302	294
1250.32A	1370	1126	1374	1130	90	1324	1176	32	24	M22	40	4	10	70	12	1440	119	1068	90	309	290
1250.4	1390	1108	1394	1110	102	1336	1164	32	26	M24	45	4	12	80	10	1450	144	1050	106	396	388
1250.40A	1390	1108	1394	1110	102	1336	1164	32	26	M24	45	4	12	80	12	1452	120	1044	88	392	388
1400.32	1520	1276	1524	1280	90	1474	1326	36	24	M22	40	4	10	70	12	1584	131	1212	102	337	333
1400.32A	1520	1276	1524	1280	90	1474	1326	36	24	M22	40	4	10	70	14	1596	113	1204	87	347	336
1400.4	1540	1258	1544	1260	102	1486	1314	36	26	M24	45	4	12	80	12	1608	133	1188	100	448	444
1400.40A	1540	1258	1544	1260	102	1486	1314	36	26	M24	45	4	12	80	14	1610	114	1190	86	443	434
1600.4	1740	1458	1744	1460	102	1686	1514	40	26	M24	45	4	12	80	12	1812	150	1392	117	528	509
1600.40A	1740	1458	1744	1460	102	1686	1514	40	26	M24	45	4	12	80	14	1820	129	1386	100	534	511
1600.5	1762	1434	1766	1438	124	1704	1496	40	30	M27	50	4	12	100	12	1824	151	1368	115	714	714
1600.50A	1762	1434	1766	1438	124	1704	1496	40	30	M27	50	4	12	100	14	1834	130	1358	98	727	723
1800.4	1940	1658	1944	1660	102	1886	1714	44	26	M24	45	4	12	80	14	2016	143	1582	114	583	576
1800.40A	1940	1658	1944	1660	102	1886	1714	44	26	M24	45	4	12	80	16	2032	126	1568	99	607	591
1800.5	1964	1634	1966	1638	124	1904	1696	44	30	M27	50	4	12	100	14	2044	145	1568	113	845	794
1800.50A	1964	1634	1966	1638	124	1904	1696	44	30	M27	50	4	12	100	16	2048	127	1552	98	843	818
2000.5	2162	1834	2166	1842	124	2104	1896	48	30	M27	50	6	12	100	16	2240	139	1760	111	912	891
2000.50A	2162	1834	2166	1842	124	2104	1896	48	30	M27	50	6	12	100	18	2250	124	1746	98	927	913
2240.5	2402	2074	2406	2078	124	2344	2136	54	30	M27	50	6	12	100	16	2480	154	1984	125	1020	1044
2240.50A	2402	2074	2406	2078	124	2344	2136	54	30	M27	50	6	12	100	18	2502	138	1980	111	1078	1041
2500.5	2662	2334	2666	2342	124	2604	2396	60	30	M27	50	6	12	100	18	2754	152	2250	126	1171	1132
2500.50A	2662	2334	2666	2342	124	2604	2396	60	30	M27	50	6	12	100	18	2760	137	2240	113	1175	1148
2500.6	2696	2304	2696	2308	150	2626	2374	60	33	M30	56	6	14	122	18	2790	154	2214	124	1677	1621
2500.60A	2696	2304	2696	2308	150	2626	2374	60	33	M30	56	6	14	122	20	2800	139	2200	111	1701	1654
315.2	406	222	408	224	60	370	260	10	17	M16	24	2	10	40	3	423	140	207	70	35	34
315.20A	406	222	408	224	60	370	260	10	17	M16	24	2	10	40	4	428	106	200	51	36	35
355.2	446	262	448	264	60	410	300	10	17	M16	24	2	10	40	3	462	153	246	84	40	39
355.20A	446	262	448	264	60	410	300	10	17	M16	24	2	10	40	4	468	116	240	61	41	40
400.2	490	307	493	310	60	455	345	12	17	M16	24	2	10	40	4	512	127	288	73	45	44
400.20A	490	307	493	310	60	455	345	12	17	M16	24	2	10	40	5	520	103	280	57	47	46
450.2	540	357	543	360	60	505	395	12	17	M16	24	2	10	40	4	564	140	336	85	51	50
450.20A	540	357	543	360	60	505	395	12	17	M16	24	2	10	40	5	570	113	330	67	43	52
500.2	590	407	593	410	60	555	445	14	17	M16	24	2	10	40	5	615	122	385	78	56	55
500.20A	590	407	593	410	60	555	445	14	17	M16	24	2	10	40	6	624	103	378	64	58	57
560.2	654	464	656	468	70	618	502	14	17	M16	30	2	10	50	4	680	169	440	111	78	76
560.20A	654	464	656	468	70	618	502	14	17	M16	30	2	10	50	5	685	136	435	88	79	77
630.2	724	534	726	538	70	688	572	16	17	M16	30	2	10	50	4	748	186	512	129	86	84
630.20A	724	534	726	538	70	688	572	16	17	M16	30	2	10	50	5	755	150	505	102	88	86
710.2	804	614	806	618	70	768	652	18	17	M16	30	2	10	50	5	835	166	585	118	99	97
710.20A	804	614	806	618	70	768	652	18	17	M16	30	2	10	50	6	840	139	582	98	101	97
800.2	894	704	896	708	70	858	742	20	17	M16	30	2	10	50	6	930	154	672	113	114	110
800.20A	894	704	896	708	70	858	742	20	17	M16	30	2	10	50	8	936	116	664	84	114	111
800.25	904	692	908	694	78	864	736	18	22	M20	36	2	10	58	6	942	156	654	110	143	142
800.25A	904	692	908	694	78	864	736	18	22	M20	36	2	10	58	8	952	118	648	82	147	142
900.25	1004	792	1008	794	78	964	836	20	22	M20	36	2	10	58	8	1048	130	744	94	162	163
900.25A	1004	792	1008	794	78	964	836	20	22	M20	36	2	10	58	10	1060	105	740	75	168	162
