Single Row 4 Point Contact Ball Slewing Bearing - 01 Series

Short Description:

BLS slewing ring bearings can support radial, axial and tilting moment loads acting either singly or in combination and in any direction.Therefore, it is possible to replace the combination arrangement of radial and axial bearings by a single bearing, which will measurably reduce the overall cost and simplify the design. Slewing rings are sealed on both sides,lubricated with high quality grease, can be relubricated via lubrication nipples and are particularly easy to install.BLS slewing ring bearings are available in many designs with internal, external or without gear. The low cross section, heavy load capacity and integrated gear make these bearings ideal structure components.Slewing ring bearings are widely used in construction machinery, mining equipment and many other industrial products.

Inquire Now Next Product

Product Details

Deep Groove Ball Bearings

I have all the models you need, these are just some of them, please contact us now

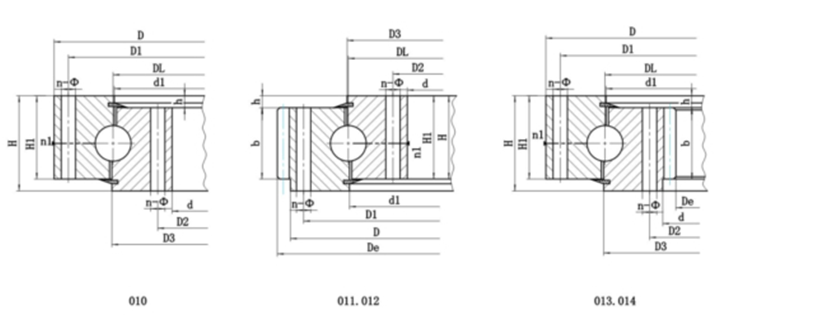

Bearing Code			Configuration Size			Mouting Size						Structure Size			Outer Teeth			Inner Teeth		Gear Data
			D	d	H	D1	D2	n	dn1	dm1	L	n1	H1	h	b	x	m	da	Z	da	Z
			D	d	H	D1	D2	n	dn2	dm2	L	n1	H1	h	b	x	m	da	Z	da	Z
no teeth	outer teeth	inner teeth	mm			mm		mm				mm			mm			mm
	010.30.560	013.30.560	662	458	80	626	494	20	18	M16	32	4	70	10	60	0.5	5	689	135	427	86
010.20.200	011.20.200		280	120	60	248	152	12	16	M14	28	2	50	10	40	0	3	300	98
010.20.224	011.20.224		304	144	60	272	176	12	16	M14	28	2	50	10	40	0	3	321	105
010.20.250	011.20.250		330	144	60	298	202	18	16	M14	28	2	50	10	40	0	4	352	86
010.20.280	011.20.280		360	200	60	328	232	18	16	M14	28	2	50	10	40	0	4	384	94
010.25.315	011.25.315	013.25.315	408	222	70	372	258	20	18	M16	32	2	60	10	50	0	5	435	85	190	40
010.25.355	011.25.355	013.25.355	448	262	70	412	298	20	18	M16	32	2	60	10	50	0	5	475	93	235	49
010.25.400	011.25.400	013.25.400	493	307	70	457	343	24	18	M16	32	2	60	10	50	0	6	528	86	276	48
010.25.450	011.25.450	013.25.450	543	357	70	507	393	24	18	M16	32	2	60	10	50	0	6	576	94	324	56
	011.25.500	013.25.500	602	398	80	566	434	20	16	M16	32	4	70	10	60	0.5	5	629	123	367	74
010.25.560	011.25.560	013.25.560	662	458	80	626	494	20	18	M16	32	4	70	10	60	0.5	5	689	135	427	86
010.25.630	011.25.630	013.25.630	732	528	80	696	564	24	18	M16	32	4	70	10	60	0.5	6	772.8	126	494.4	83
010.25.710	011.25.710	013.25.710	812	608	80	776	644	24	18	M16	32	4	70	10	60	0.5	6	850.8	139	572.4	96
010.30.1000	011.30.1000	013.30.1000	1122	878	100	1078	922	36	22	M20	40	6	90	10	80	0.5	10	1188	116	824	83
010.30.1120	011.30.1120	013.30.1120	1242	998	100	1198	1042	36	22	M20	40	6	90	10	80	0.5	10	1298	127	944	95
010.30.500	011.30.500	013.30.500	602	398	80	566	434	20	18	M16	32	4	70	10	60	0.5	5	629	123	367	74
010.30.630	011.30.630	013.30.630	732	528	80	696	564	24	18	M16	32	4	70	10	60	0.5	6	772.8	126	494.4	83
010.30.710	011.30.710	013.30.710	812	608	80	776	644	24	18	M16	32	4	70	10	60	0.5	6	850.8	139	572.4	96
010.30.800	011.30.800	013.30.800	922	678	100	878	722	30	22	M20	40	6	90	10	80	0.5	8	966.4	118	635.2	80
010.30.900	011.30.900	013.30.900	1022	778	100	978	822	30	22	M20	40	6	90	10	80	0.5	8	1062.4	130	739.2	93
010.35.1250	011.35.1250	013.35.1250	1390	1110	110	1337	1163	40	26	M24	48	5	100	10	90	0.5	12	1449.6	118	1048.8	88
010.35.1400	011.35.1400	013.35.1400	1540	1260	110	1487	1313	40	26	M24	48	5	100	10	90	0.5	12	1605.6	131	1192.8	100
010.35.1600	011.35.1600	013.35.1600	1740	1460	110	1687	1513	45	26	M24	48	5	100	10	90	0.5	14	1817.2	127	1391.6	100
010.35.1800	011.35.1800	013.35.1800	1940	1660	110	1887	1713	45	26	M24	48	5	100	10	90	0.5	14	2013.2	141	1573.6	113
010.40.1000	011.40.1000	013.40.1000	1122	878	100	1078	922	36	22	M20	40	6	90	10	80	0.5	10	1188	116	824	83
010.40.1120	011.40.1000	013.40.1000	1242	998	100	1198	1042	36	22	M20	40	6	90	10	80	0.5	10	1298	127	944	95
010.40.2000	011.40.2000	013.40.2000	2178	1825	144	2110	1891	48	33	M30	60	8	132	12	120	0.5	16	2268.8	139	1734.4	109
010.40.2240	011.40.2240	013.40.2240	2418	2065	144	2350	2131	48	33	M30	60	8	132	12	120	0.5	16	2492.8	153	1900.4	125
010.40.2500	011.40.2500	013.40.2500	2678	2325	144	2610	2391	56	33	M30	60	8	132	12	120	0.5	18	2768.4	151	2339.2	125
010.40.800	011.40.800	013.40.800	922	678	100	878	722	30	22	M20	40	6	90	10	80	0.5	8	966.4	118	635.2	80
010.40.900	011.40.900	013.40.900	1022	778	100	978	822	30	22	M20	40	6	90	10	80	0.5	8	1062.4	130	739.2	93
010.45.1250	011.45.1250	013.45.1250	1390	1110	110	1337	1163	40	26	M20	48	5	100	10	90	0.5	12	1449.6	118	1048.8	88
010.45.1400	011.45.1400	013.45.1400	1540	1260	110	1487	1313	40	26	M24	48	5	100	10	90	0.5	12	1605.6	131	1192.8	100
010.45.1600	011.45.1600	013.45.1600	1740	1460	110	1687	1513	45	26	M24	48	5	100	10	90	0.5	14	1817.2	127	1391.6	100
010.45.1800	011.45.1800	013.45.1800	1940	1660	110	1887	1713	45	26	M24	48	5	100	10	90	0.5	14	2013.2	141	1573.6	113
010.60.2000	011.60.2000	013.60.2000	2178	1825	144	2110	1891	48	33	M30	60	8	132	12	120	0.5	16	2268.8	139	1734.4	109
010.60.2240	011.60.2240	013.60.2240	2418	2065	144	2350	2131	48	33	M30	60	8	132	12	120	0.5	16	2492.8	153	1900.4	125
010.60.2500	011.60.2500	013.60.2500	2678	2325	144	2610	2391	56	33	M30	60	8	132	12	120	0.5	18	2768.4	151	2339.2	125
010.60.2800	011.60.2800	013.60.2800	2978	2625	144	2910	2691	56	33	M30	60	8	132	12	120	0.5	18	3074.4	168	2527.2	141
010.60.2800	011.60.2800	013.60.2800	2978	2625	144	2910	2691	56	33	M30	60	8	132	12	120	0.5	18	3074.4	168	2527.2	141
010.75.3150	011.75.3150	013.75.3150	3376	2922	174	3686	3014	56	45	M42	84	8	162	12	120	0.5	20	3476	171	2828	142
010.75.3150	011.75.3150	013.75.3150	3376	2922	174	3686	3014	56	45	M42	84	8	162	12	120	0.5	20	3476	171	2828	142
	012.25.500	014.25.500	602	398	80	566	434	20	16	M16	32	4	70	10	60	0.5	6	628.8	102	368.4	62
010.25.560	012.25.560	014.25.560	662	458	80	626	494	20	18	M16	32	4	70	10	60	0.5	6	688.8	132	428.4	72
010.25.630	012.25.630	014.25.630	732	528	80	696	564	24	18	M16	32	4	70	10	60	0.5	8	774.4	94	491.2	62
010.25.710	012.25.710	014.25.710	812	608	80	776	644	24	18	M16	32	4	70	10	60	0.5	8	854.4	104	571.2	72
010.30.1000	012.30.1000	014.30.1000	1122	878	100	1078	922	36	22	M20	40	6	90	10	80	0.5	12	1185.6	95	820.8	69
010.30.1120	012.30.1120	014.30.1120	1242	998	100	1198	1042	36	22	M20	40	6	90	10	80	0.5	12	1305.6	106	940.8	79
010.30.500	012.30.500	014.30.500	602	398	80	566	434	20	18	M16	32	4	70	10	60	0.5	6	628.8	102	368.4	62
	012.30.560	014.30.560	662	458	80	626	494	20	18	M16	32	4	70	10	60	0.5	6	688.8	112	428.4	72
010.30.630	012.30.630	014.30.630	732	528	80	696	564	24	18	M16	32	4	70	10	60	0.5	8	774.4	94	491.2	62
010.30.710	012.30.710	014.30.710	812	608	80	776	644	24	18	M16	32	4	70	10	60	0.5	8	854.8	104	571.2	72
010.30.800	012.30.800	014.30.800	922	678	100	878	722	30	22	M20	40	6	90	10	80	0.5	10	968	94	634	64
010.30.900	012.30.900	014.30.900	1022	778	100	978	822	30	22	M20	40	6	90	10	80	0.5	10	1068	104	734	74
010.35.1250	012.35.1250	014.35.1250	1390	1110	110	1337	1163	40	26	M24	48	5	100	10	90	0.5	14	1453.2	101	1041.6	75
010.35.1400	012.35.1400	014.35.1400	1540	1260	110	1487	1313	40	26	M24	48	5	100	10	90	0.5	14	1607.2	112	1195.6	86
010.35.1600	012.35.1600	014.35.1600	1740	1460	110	1687	1513	45	26	M24	48	5	100	10	90	0.5	16	1820.8	111	1382.4	87
010.35.1800	012.35.1800	014.35.1800	1940	1660	110	1887	1713	45	26	M24	48	5	100	10	90	0.5	14	2012.8	123	1574.4	99
010.40.1000	012.40.1000	014.40.1000	1122	878	100	1078	922	36	22	M20	40	6	90	10	80	0.5	12	1185.6	95	820.8	69
010.40.1120	012.40.1000	014.40.1000	1242	998	100	1198	1042	36	22	M20	40	6	90	10	80	0.5	12	1305.6	106	940.8	79
010.40.2000	012.40.2000	014.40.2000	2178	1825	144	2110	1891	48	33	M30	60	8	132	12	120	0.5	18	2264.4	123	1735.2	97
010.40.2240	012.40.2240	014.40.2240	2418	2065	144	2350	2131	48	33	M30	60	8	132	12	120	0.5	18	2498.2	136	1987.2	111
010.40.2500	012.40.2500	014.40.2500	2678	2325	144	2610	2391	56	33	M30	60	8	132	12	120	0.5	20	2776	136	2228	112
010.40.800	012.40.800	014.40.800	922	678	100	878	722	30	22	M20	40	6	90	10	80	0.5	10	968	94	634	64
010.40.900	012.40.900	014.40.900	1022	778	100	978	822	30	22	M20	40	6	90	10	80	0.5	10	1068	104	734	74
010.45.1250	012.45.1250	014.45.1250	1390	1110	110	1337	1163	40	26	M20	48	5	100	10	90	0.5	14	1453.2	101	1041.6	75
010.45.1400	012.45.1400	014.45.1400	1540	1260	110	1487	1313	40	26	M24	48	5	100	10	90	0.5	14	1607.2	112	1195.6	86
010.45.1600	012.45.1600	014.45.1600	1740	1460	110	1687	1513	45	26	M24	48	5	100	10	90	0.5	16	1820.8	111	1382.4	87
010.45.1800	012.45.1800	014.45.1800	1940	1660	110	1887	1713	45	26	M24	48	5	100	10	90	0.5	16	2012.8	123	1574.4	99
010.60.2000	012.60.2000	014.60.2000	2178	1825	144	2110	1891	48	33	M30	60	8	132	12	120	0.5	18	2264.4	123	1735.2	97
010.60.2240	012.60.2240	014.60.2240	2418	2065	144	2350	2131	48	33	M30	60	8	132	12	120	0.5	18	2498.4	136	1987.2	111
010.60.2500	012.60.2500	014.60.2500	2678	2325	144	2610	2391	56	33	M30	60	8	132	12	120	0.5	20	2776	136	2228	112
010.60.2800	012.60.2800	014.60.2800	2978	2625	144	2910	2691	56	33	M30	60	8	132	12	120	0.5	20	3076	151	2528	127
010.60.2800	012.60.2800	014.60.2800	2978	2625	144	2910	2691	56	33	M30	60	8	132	12	120	0.5	20	3076	151	2528	127
010.75.3150	012.75.3150	014.75.3150	3376	2922	174	3686	3014	56	45	M42	84	8	162	12	120	0.5	22	3471.6	155	2824.8	129
010.75.3150	012.75.3150	014.75.3150	3376	2922	174	3686	3014	56	45	M42	84	8	162	12	120	0.5	22	3471.6	155	2824.8	129
