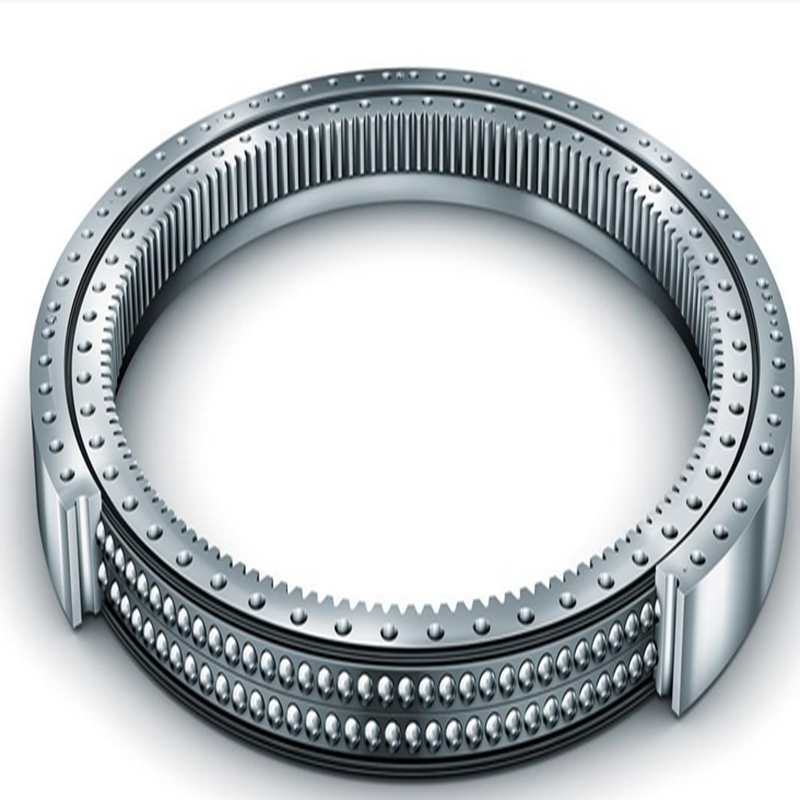

Double Row Different Diameter Ball Slewing Bearings - 02 Seires

Short Description:

BLS slewing ring bearings can support radial, axial and tilting moment loads acting either singly or in combination and in any direction.Therefore, it is possible to replace the combination arrangement of radial and axial bearings by a single bearing, which will measurably reduce the overall cost and simplify the design. Slewing rings are sealed on both sides,lubricated with high quality grease, can be relubricated via lubrication nipples and are particularly easy to install.BLS slewing ring bearings are available in many designs with internal, external or without gear. The low cross section, heavy load capacity and integrated gear make these bearings ideal structure components.Slewing ring bearings are widely used in construction machinery, mining equipment and many other industrial products.

Inquire Now Next Product

Product Details

Deep Groove Ball Bearings

I have all the models you need, these are just some of them, please contact us now

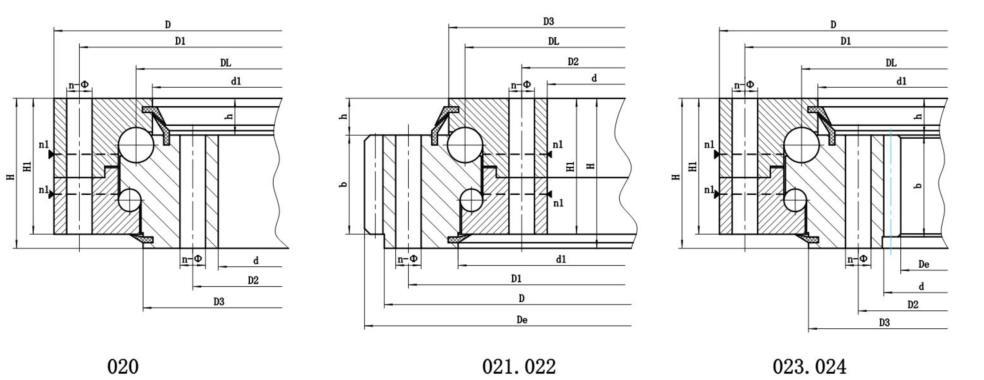

Bearing Code			Configuration Size			Mounting Size				Structure Size			Teeth Data			Outer Teeth		Inner Teeth		M
			Configuration Size			Mounting Size				Structure Size			Teeth Data			Outer Teeth		Inner Teeth		M
no teeth	outer teeth	inner teeth	D	d	H	D1	D2	n	Ø	n1	H1	h	b	x	m	D e	z	D e	z	kg
D L	D L	D L	mm	mm	mm	mm	mm		mm	mm	mm	mm	mm		mm	mm		mm
m m	m m	m m
020.25.500	021.25.500	023.25.500	616	384	106	580	420	20	18	4	96	26	60	0.5	5	644	126	257	72	100
020.25.560	021.25.560	023.25.560	676	444	106	640	480	20	18	4	96	26	60	0.5	5	704	138	417	84	115
020.25.630	021.25.630	023.25.630	746	514	106	710	550	24	18	4	96	26	60	0.5	6	790.8	129	482.4	81	130
020.25.710	021.25.710	023.25.710	826	594	106	790	630	24	18	4	96	26	60	0.5	6	862.8	141	560.4	94	140
020.30.1000	021.30.1000	023.30.1000	1142	858	124	1098	902	36	22	6	114	29	80	0.5	10	1198	117	814	82	300
020.30.1120	021.30.1120	023.30.1120	1262	978	124	1218	1022	36	22	6	114	29	80	0.5	10	1318	129	924	93	340
020.30.800	021.30.800	023.30.800	942	658	124	898	702	30	22	6	114	29	80	0.5	8	982.4	120	619.2	78	200
020.30.900	021.30.900	023.30.900	1042	758	124	998	802	30	22	6	114	29	80	0.5	8	1086.4	133	715.2	90	250
020.40.1250	021.40.1250	023.40.1250	1426	1074	160	1374	1126	40	26	5	150	39	90	0.5	12	1497.6	122	1012.8	85	580
020.40.1400	021.40.1400	023.40.1400	1576	1224	160	1524	1272	40	26	5	150	39	90	0.5	12	1641.6	134	1156.8	97	650
020.40.1600	021.40.1600	023.40.1600	1776	1424	160	1724	1476	45	26	5	150	39	90	0.5	14	1845.2	129	1349.6	97	750
020.40.1800	021.40.1800	023.40.1800	1976	1624	160	1924	1676	45	26	5	150	39	90	0.5	14	2055.2	144	1545.6	111	820
020.50.2000	021.50.2000	023.50.2000	2215	1785	190	2149	1851	48	33	8	178	47	120	0.5	16	2300.8	141	1702.4	107	1150
020.50.2240	021.50.2240	023.50.2240	2455	2025	190	2389	2091	48	33	8	178	47	120	0.5	16	2540.8	156	1942.4	122	1500
020.50.2500	021.50.2500	023.50.2500	2715	2285	190	2649	2351	56	33	8	178	47	120	0.5	18	2804.4	153	2203.2	123	1700
020.50.2800	021.50.2800	023.50.2800	3015	2585	190	2949	2651	56	33	8	178	47	120	0.5	18	3110.4	170	2491.2	139	1900
020.60.3150	021.60.3150	023.60.3150	3428	2872	226	3338	2962	56	45	8	214	56	150	0.5	20	3536	174	2768	139	3300
020.60.3550	021.60.3550	023.60.3550	3828	3272	226	3738	3362	56	45	8	214	56	150	0.5	20	3936	194	3168	159	3700
020.60.4000	021.60.4000	023.60.4000	4278	3722	226	4188	3812	60	45	10	214	56	150	0.5	22	4395.6	197	3616.8	165	4200
020.60.4500	021.60.4500	023.60.4500	4778	4222	226	4688	4312	60	45	10	214	56	150	0.5	22	4879.6	219	4122.8	188	4700
020.25.500	022.25.500	024.25.500	616	384	106	580	420	20	18	4	96	26	60	0.5	6	646.8	105	350.4	59	100
020.25.560	022.25.560	024.25.560	676	444	106	640	480	20	18	4	96	26	60	0.5	6	706.8	115	410.4	69	115
020.25.630	022.25.630	024.25.630	746	514	106	710	550	24	18	4	96	26	60	0.5	8	790.4	96	475.2	60	130
020.25.710	022.25.710	024.25.710	826	594	106	790	630	24	18	4	96	26	60	0.5	8	862.4	105	555.2	70	140
020.30.1000	022.30.1000	024.30.1000	1142	858	124	1098	902	36	22	6	114	29	80	0.5	12	1197.6	97	796.8	67	300
020.30.1120	022.30.1120	024.30.1120	1262	978	124	1218	1022	36	22	6	114	29	80	0.5	12	1317.6	107	916.8	77	340
020.30.800	022.30.800	024.30.800	942	658	124	898	702	30	22	6	114	29	80	0.5	10	988	96	614	62	200
020.30.900	022.30.900	024.30.900	1042	758	124	998	802	30	22	6	114	29	80	0.5	10	1088	106	714	72	250
020.40.1250	022.40.1250	024.40.1250	1426	1074	160	1374	1126	40	26	5	150	39	90	0.5	12	104	1013.6	73	15.8	580
020.40.1400	022.40.1400	024.40.1400	1576	1224	160	1524	1272	40	26	5	150	39	90	0.5	14	1649.2	115	1153.6	83	650
020.40.1600	022.40.1600	024.40.1600	1776	1424	160	1724	1476	45	26	5	150	39	90	0.5	16	1852.8	113	1350.4	85	750
020.40.1800	022.40.1800	024.40.1800	1976	1624	160	1924	1676	45	26	5	150	39	90	0.5	16	2060.8	126	1542.4	97	820
020.50.2000	022.50.2000	024.50.2000	2215	1785	190	2149	1851	48	33	8	178	47	120	0.5	18	2300.4	125	1699.2	95	1150
020.50.2240	022.50.2240	024.50.2240	2455	2025	190	2389	2091	48	33	8	178	47	120	0.5	18	2552.4	139	1933.2	108	1500
020.50.2500	022.50.2500	024.50.2500	2715	2285	190	2649	2351	56	33	8	178	47	120	0.5	20	2816	138	2188	110	1700
020.50.2800	022.50.2800	024.50.2800	3015	2585	190	2949	2651	56	33	8	178	47	120	0.5	20	3116	153	2488	125	1900
020.60.3150	022.60.3150	024.60.3150	3428	2872	226	3338	2962	56	45	8	214	56	150	0.5	22	3537.6	158	2758.8	126	3300
020.60.3550	022.60.3550	024.60.3550	3828	3272	226	3738	3362	56	45	8	214	56	150	0.5	22	3933.6	176	3176.8	145	3700
020.60.4000	022.60.4000	024.60.4000	4278	3722	226	4188	3812	60	45	10	214	56	150	0.5	25	4395	173	3610	145	4200
020.60.4500	022.60.4500	024.60.4500	4778	4222	226	4688	4312	60	45	10	214	56	150	0.5	25	4895	193	4110	165	4700
