Mounted, Insert Ball Unit, Stainless Steel Ss UC UK Na SA Sb Ucf UCP UCFL Housing Pillow Block Agricultural Machinery Bearing

Pillow Block Bearings/ Mounted Bearings/ Plummer Block- 1)UCFL series; 2)UCP series; 3)UCF series; 4)UCT series ; 5)UCFC series

Plummer Block / Pillow Block Bearing At Factory Price For Sale

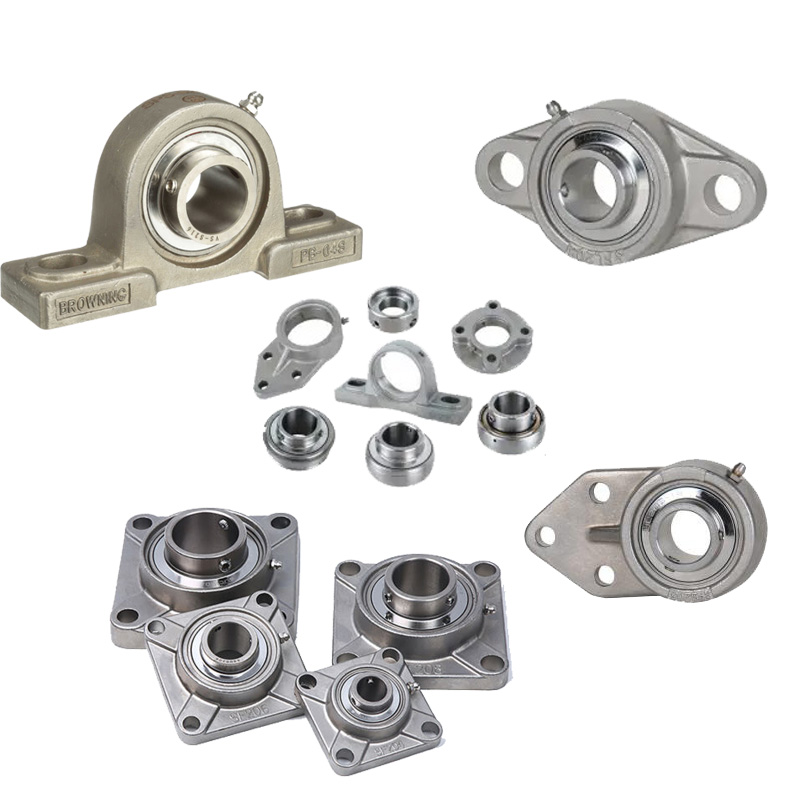

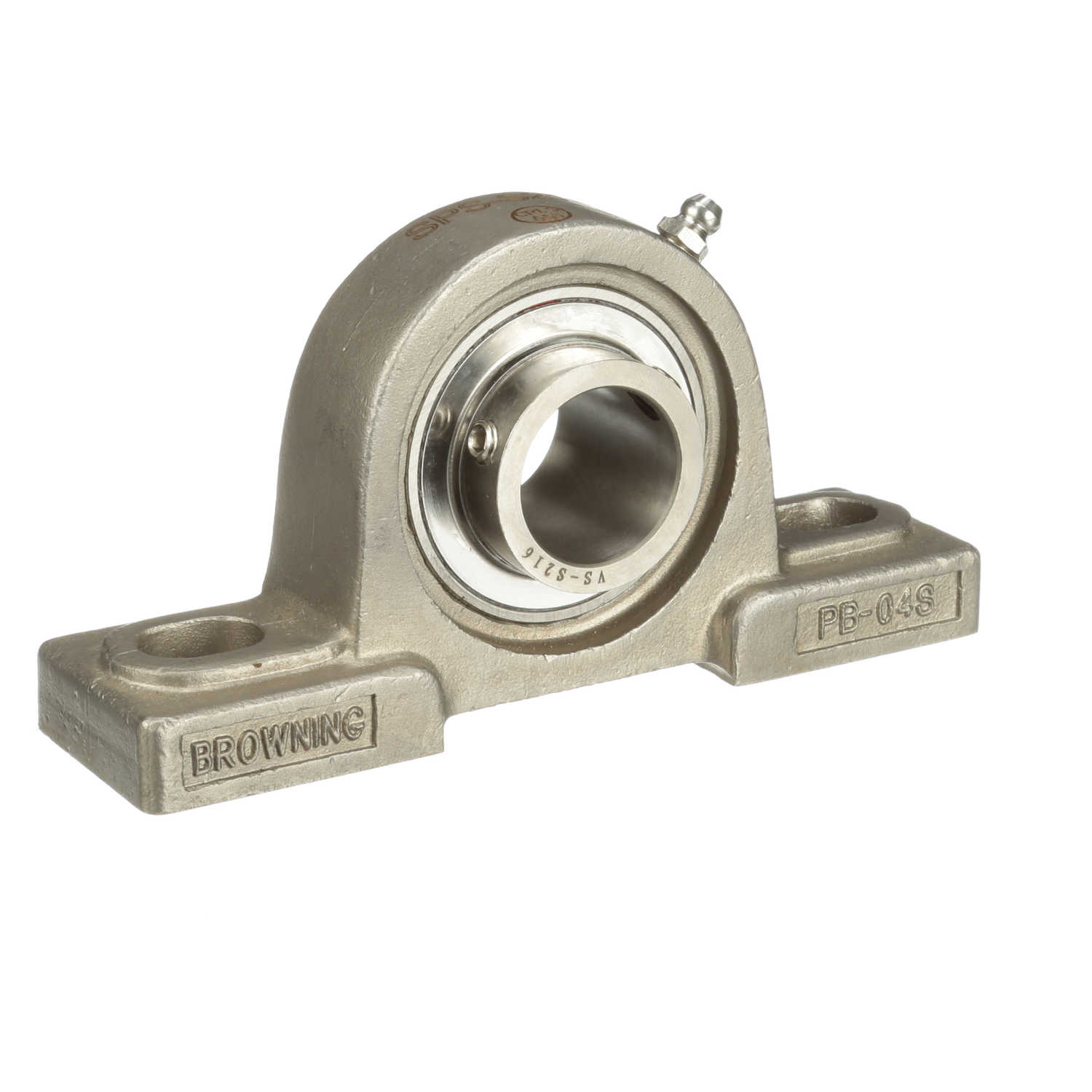

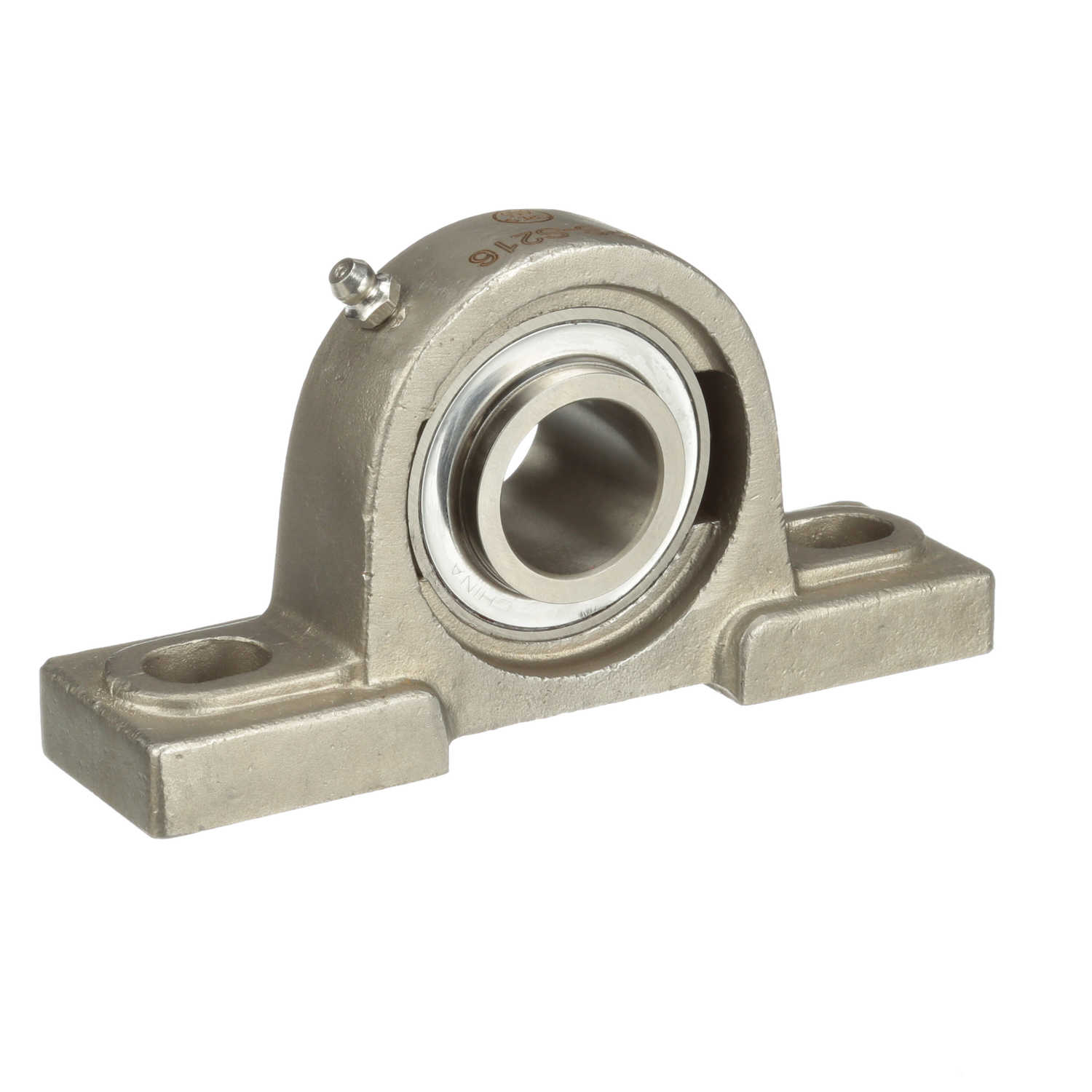

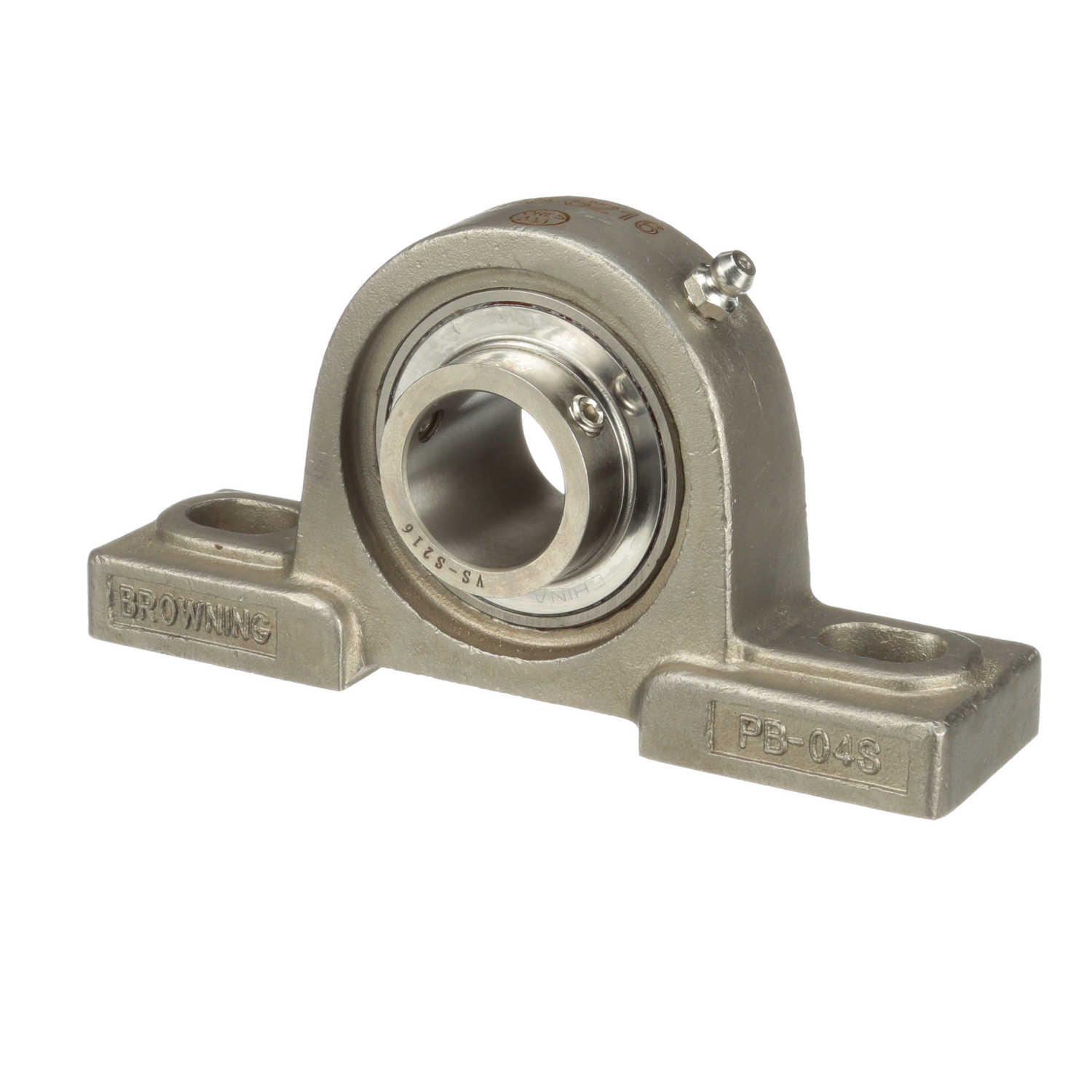

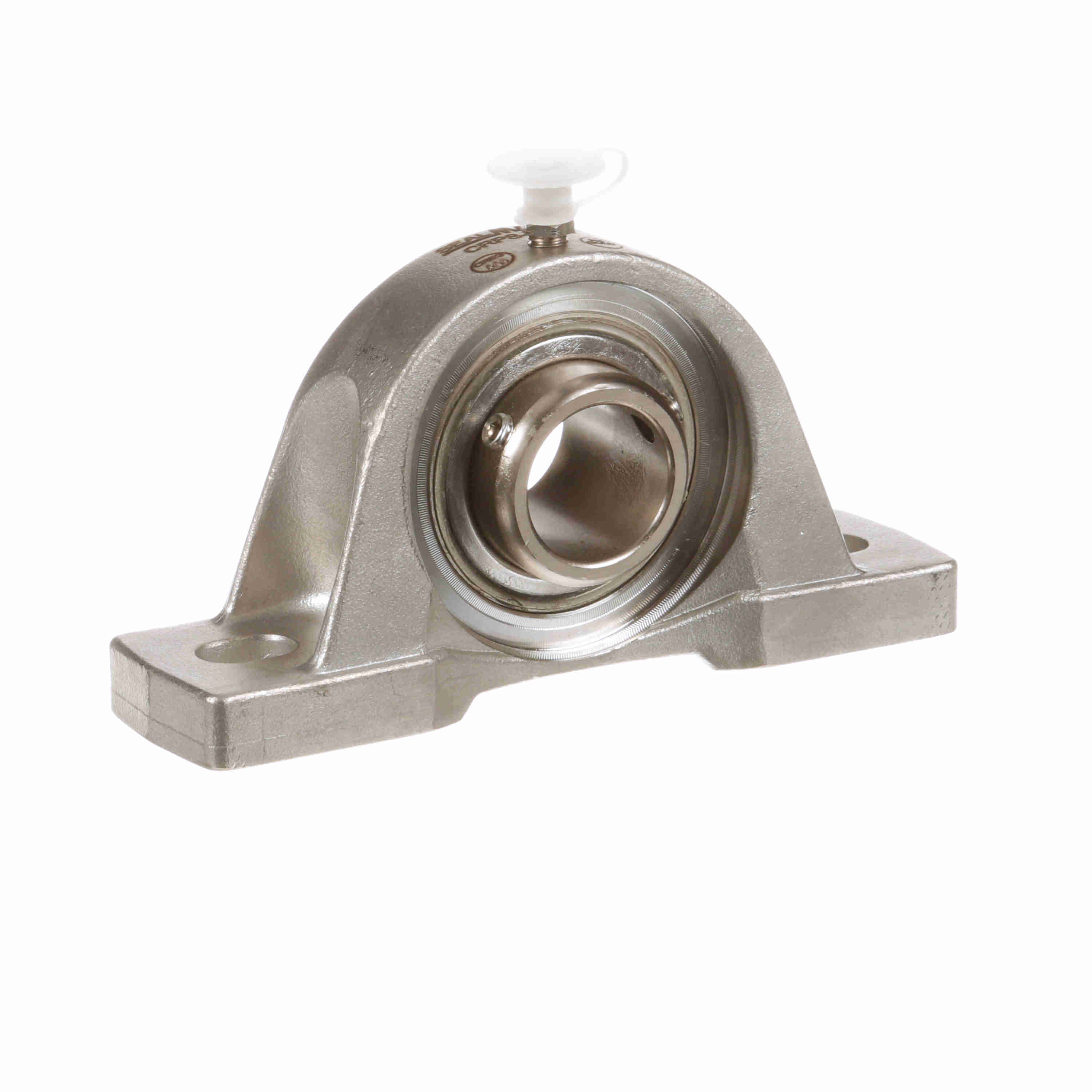

Pillow Block Bearing is also called Plummer Block or Mounted Bearings, which consist of double sealed spherical ball bearings and cast (or steel punched) housings.

The internal structure of the pillow block bearings is the same as deep groove ball bearings, but its inner ring wider than the outer ring. Outer ring has a spherical outer surface, matching with the concave spherical surface can be self-aligning.

Inquire Now

Product Details

Pillow Block Bearings

Deep Groove Ball Bearings

Bearing No.	Weight	UCP	UCF	UCT	UCFL	UCPA	UCFA	UCPH
	KG

UC201	0.16	UCP201	UCF201	UCT201	UCFL201	UCPA201	UCFA201	UCPH201
UC202	0.18	UCP202	UCF202	UCT202	UCFL202	UCPA202	UCFA202	UCPH202
UC203	0.19	UCP203	UCF203	UCT203	UCFL203	UCPA203	UCFA203	UCPH203
UC204	0.21	UCP204	UCF204	UCT204	UCFL204	UCPA204	UCFA204	UCPH204
UC205	0.29	UCP205	UCF205	UCT205	UCFL205	UCPA205	UCFA205	UCPH205
UC206	0.31	UCP206	UCF206	UCT206	UCFL206	UCPA206	UCFA206	UCPH206
UC207	0.49	UCP207	UCF207	UCT207	UCFL207	UCPA207	UCFA207	UCPH207
UC208	0.63	UCP208	UCF208	UCT208	UCFL208	UCPA208	UCFA208	UCPH208
UC209	0.68	UCP209	UCF209	UCT209	UCFL209	UCPA209	UCFA209	UCPH209
UC210	0.79	UCP210	UCF210	UCT210	UCFL210	UCPA210	UCFA210	UCPH210
UC211	1.04	UCP211	UCF211	UCT211	UCFL211	UCPA211	UCFA211	UCPH211
UC212	1.47	UCP212	UCF212	UCT212	UCFL212	UCPA212	UCFA212	UCPH212
UC213	1.73	UCP213	UCF213	UCT213	UCFL213	UCPA213	UCFA213	UCPH213
UC214	2.08	UCP214	UCF214	UCT214	UCFL214	UCPA214	UCFA214	UCPH214
UC215	2.25	UCP215	UCF215	UCT215	UCFL215	UCPA215	UCFA215	UCPH215
UC216	2.86	UCP216	UCF216	UCT216	UCFL216	UCPA216	UCFA216	UCPH216
UC217	3.42	UCP217	UCF217	UCT217	UCFL217	UCPA217	UCFA217	UCPH217
UC218	4.4	UCP218	UCF218	UCT218	UCFL218	UCPA218	UCFA218	UCPH218
Bearing No.	Weight	UCP	UCF	UCT	UCFL	UCPA	UCFC	UCPH
	kg
UC 305	0.45	UCP305	UCF305	UCT305	UCFL305	UCPA305	UCFC305	UCPH305
UC 306	0.57	UCP306	UCF306	UCT306	UCFL306	UCPA306	UCFC306	UCPH306
UC 307	0.72	UCP307	UCF307	UCT307	UCFL307	UCPA307	UCFC307	UCPH307
UC 308	1	UCP308	UCF308	UCT308	UCFL308	UCPA308	UCFC308	UCPH308
UC 309	1.3	UCP309	UCF309	UCT309	UCFL309	UCPA309	UCFC309	UCPH309
UC 310	1.67	UCP310	UCF310	UCT310	UCFL310	UCPA310	UCFC310	UCPH310
UC 311	2.1	UCP311	UCF311	UCT311	UCFL311	UCPA311	UCFC311	UCPH311
UC 312	2.62	UCP312	UCF312	UCT312	UCFL312	UCPA312	UCFC312	UCPH312
UC 313	3.19	UCP313	UCF313	UCT313	UCFL313	UCPA313	UCFC313	UCPH313
UC 314	3.88	UCP314	UCF314	UCT314	UCFL314	UCPA314	UCFC314	UCPH314
UC 315	4.68	UCP315	UCF315	UCT315	UCFL315	UCPA315	UCFC315	UCPH315
UC 316	5.5	UCP316	UCF316	UCT316	UCFL316	UCPA316	UCFC316	UCPH316
UC 317	6.67	UCP317	UCF317	UCT317	UCFL317	UCPA317	UCFC317	UCPH317
UC 318	7.5	UCP318	UCF318	UCT318	UCFL318	UCPA318	UCFC318	UCPH318
UC 319	8.8	UCP319	UCF319	UCT319	UCFL319	UCPA319	UCFC319	UCPH319
UC 320	10.94	UCP320	UCF320	UCT320	UCFL320	UCPA320	UCFC320	UCPH320
UC 322	14.5	UCP322	UCF322	UCT322	UCFL322	UCPA322	UCFC322	UCPH322
UC 324	18.75	UCP324	UCF324	UCT324	UCFL324	UCPA324	UCFC324	UCPH324

I have all the models you need, these are just some of them, please contact us now

Pillow Block Bearings

Deep Groove Ball Bearings

Pillow Block Bearings Widely used in various industries, our bearings meet the requirements of your project！

Pillow Block Bearings

Deep Groove Ball Bearings

1.FREE SAMPLES:
contact us by email or trade manager, we will send the free sampls according to your request.

2. World Class Bearing:We provide our customers with all type of indigenous bearing with world class quality.

3. OEM or Non Stand Bearings: Any requirement for Non standard bearings is Easily Fulfilled by us due to
 its vast knowledge and links in the industry.

4. Genuine products With Excellent Quality: Company has always proved the
 100% quality products it provides with genuine intent.

5.After Sales Service and technical Assistance: Company provides after sales service and technical assistance
 as per the customers requirement and needs.

6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.

7. Cost Saving: We provide long-life, shock-resistant and high reliability bearings with
 excellent quality and better performance. Resulting in increased cost saving.

8.Attending customer queries promptly: We believe that if customer are satisfied then it proves our worth well. Customers are always given quick support.

Deep Groove Ball Bearings
