I have all the models you need, these are just some of them, please contact us now

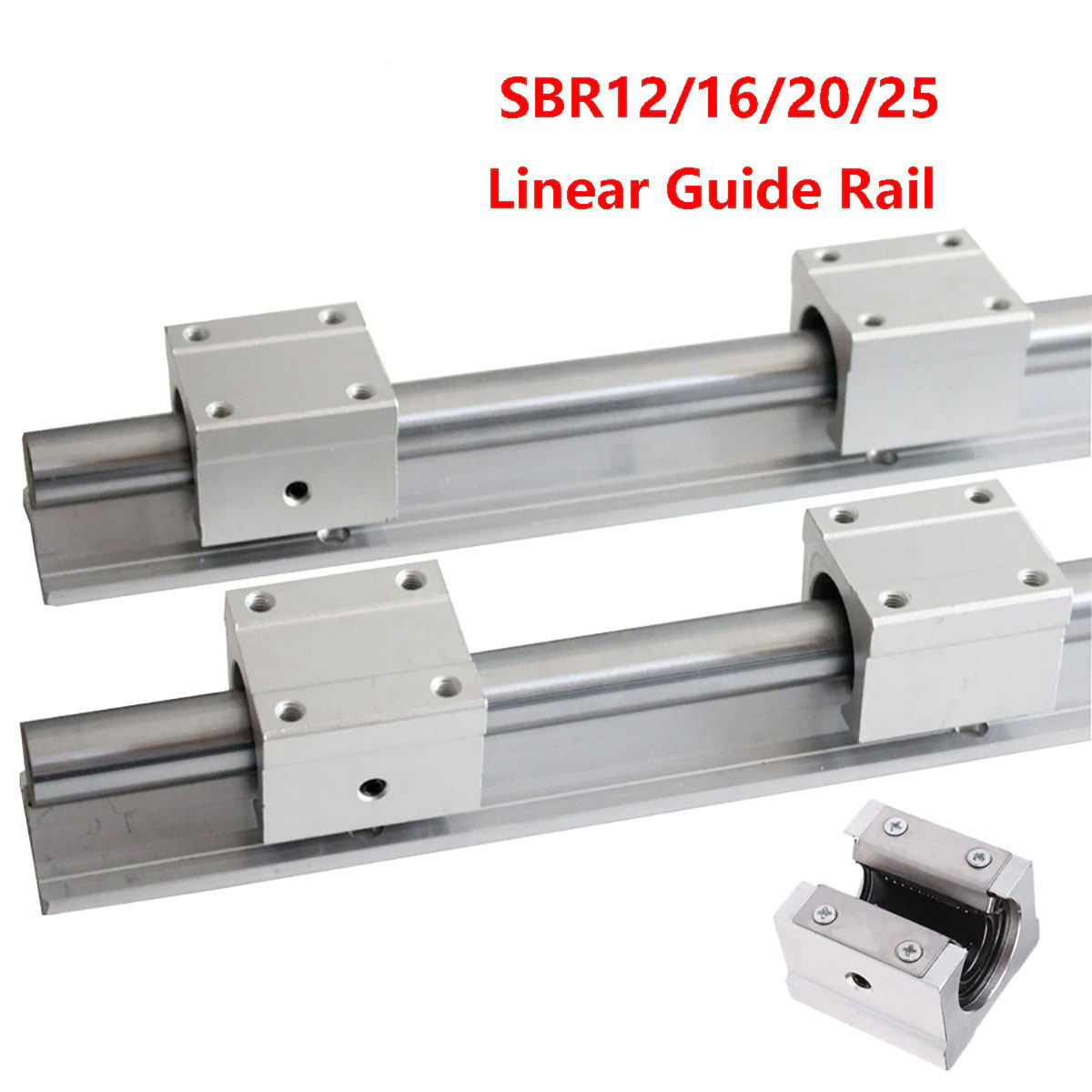

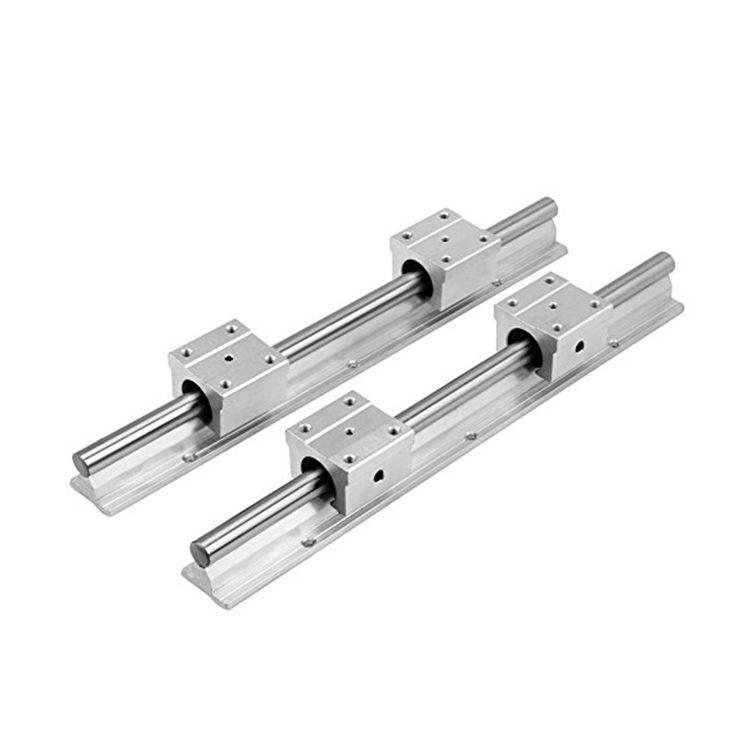

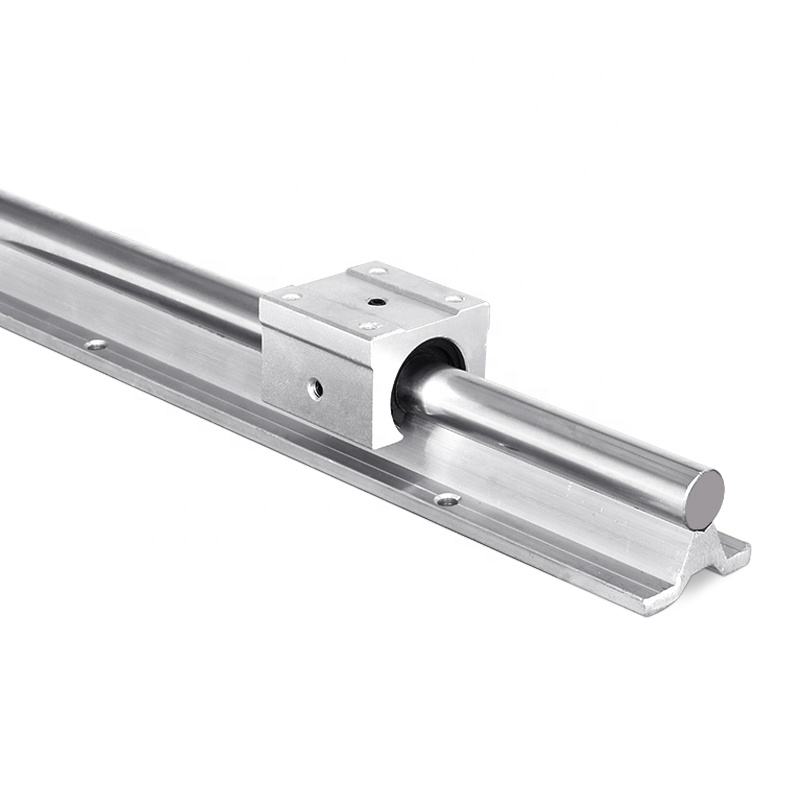

| Support rail unit-SBR…S + SBR…UU (CE + SME…GUU) |
|
|
| Part No. |
|
| Mass (kg) |
| Rail | NB |
| Case | Ref NB | Case | Rail(kg/m) |
| SBR10S | CE10 |
| SBR10 UU | SME10GUU | 0.065 | - |
| SBR12S | CE12 |
| SBR12 UU | SME12GUU | 0.09 | 1.59 |
| SBR13S | CE13 |
| SBR13 UU | SME13GUU | 0.1 |
|
| SBR16S | CE16 |
| SBR16 UU | SME16GUU | 0.15 | 2.55 |
| SBR20S | CE20 |
| SBR20 UU | SME20GUU | 0.2 | 3.5 |
| SBR25S | CE25 |
| SBR25 UU | SME25GUU | 0.45 | 5.3 |
| SBR30S | CE30 |
| SBR30 UU | SME30GUU | 0.63 | 7.4 |
| SBR35S | CE35 |
| SBR35 UU | SME35GUU | 0.92 | 10.05 |
| SBR40S | CE40 |
| SBR40 UU | SME40GUU | 1.33 | 13.1 |
| SBR50S | CE50 |
| SBR50UU | SME50UU | 3 | 20.65 |
|
|
|
|
|
|
|

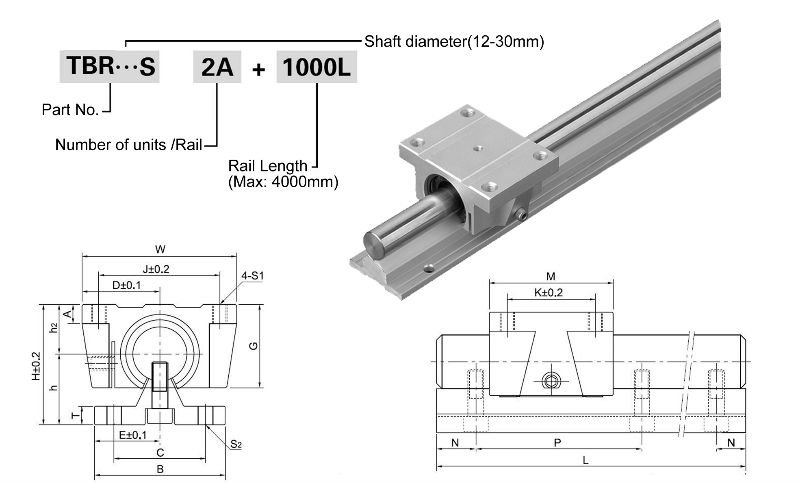

| Support rail unit-TBR…S + TBR…UU |
|
|
|
| Part No. |
| Shaft | Load rating | Mass (kg) |
| Rail | Case | d(mm) | C(N) | Co(N) | Case | Rail(kgf/m) |
| TBR16S | TBR16 UU | Ø16 | 392 | 490 | 0.18 | 2.45 |
| TBR20S | TBR20 UU | Ø20 | 784 | 1176 | 0.3 | 3.6 |
| TBR25S | TBR25 UU | Ø25 | 1568 | 2352 | 0.6 | 5.6 |
| TBR30S | TBR30 UU | Ø30 | 1764 | 2940 | 0.9 | 8 |
Bearings Widely used in various industries, our bearings meet the requirements of your project！
1.FREE SAMPLES:
contact us by email or trade manager, we will send the free sampls according to your request.
2. World Class Bearing:We provide our customers with all type of indigenous bearing with world class quality.
3. OEM or Non Stand Bearings: Any requirement for Non standard bearings is Easily Fulfilled by us due to
its vast knowledge and links in the industry.
4. Genuine products With Excellent Quality: Company has always proved the
100% quality products it provides with genuine intent.
5.After Sales Service and technical Assistance: Company provides after sales service and technical assistance
as per the customers requirement and needs.
6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.
7. Cost Saving: We provide long-life, shock-resistant and high reliability bearings with
excellent quality and better performance. Resulting in increased cost saving.
8.Attending customer queries promptly: We believe that if customer are satisfied then it proves our worth well. Customers are always given quick support.
