LR Bearings

Short Description:

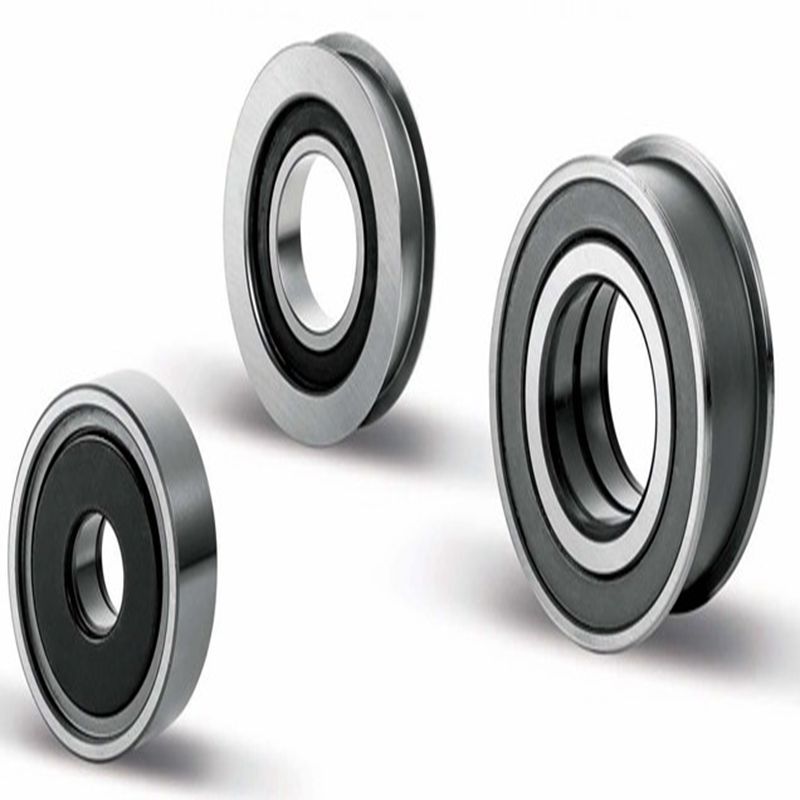

BLS track roller bearings include mast rollers and chain pulleys, and york type track rollers. They are essentially cylindrical roller or needle roller bearings which have a thick-walled outer race.The pulleys are available with a flat runner surface or a crowned one, which can be designed according to customer’s application. They can roll directly on thetray under heavy load and shock load. They are greased for life. Under normal operating conditions, they are maintenance-free, while they should be re-lubricated under severe working condition to prolong the working lifespan.Yoke type track rollers can support high radial loads and axial loads arising from misalignments and skewed running and are suitable for cam drives, slideways, conveying equipment etc. The bearings are available with or without an inner ring as well as in open and sealed versions.

Inquire Now Next Product

Product Details

Deep Groove Ball Bearings

I have all the models you need, these are just some of them, please contact us now

Principal Dimensions			Bearing No.			Basic Load Ratings		Mass
(mm)			BLS			(N)		Mass
d	D	B	KDD	KDDU	NPPU	Cr	Cor	(kg)
5	17	7			LR 50/5 NPPU	1650	950	0.01
6	19	9			LR 50/6 NPPU	2650	1310	0.02
7	22	10			LR 50/7 NPPU	3300	1690	0.02
8	24	11			LR 50/8 NPPU	4200	2360	0.03
10	28	12	LR 5000 KDD	LR 5000 KDDU	LR5000 NPPU	4750	2850	0.03
10	32	14	LR 5200 KDD	LR 5200 KDDU	LR 5200 NPPU	6800	4050	0.07
12	30	12			LR 5001 NPPU	4950	3100	0.03
	35	15.9	LR 5201 KDD	LR 5201 KDDU	LR 5201 NPPU	8600	5100	0.08
	42	19	LR 5301 KDD	LR 5301 KDDU	LR 5301 NPPU	11300	7100	0.12
15	35	13			LR 5002 NPPU	6500	4100	0.05
	40	15.9	LR 5202 KDD	LR 5202 KDDU	LR 5202 NPPU	9800	6200	0.11
	47	19	LR 5302 KDD	LR 5302 KDDU	LR 5302 NPPU	14600	9200	0.15
17	40	14			LR 5003 NPPU	7700	5200	0.07
	47	17.5	LR 5203 KDD	LR 5203 KDDU	LR 5203NPPU	12600	8200	0.17
	52	22.2	LR 5303 KDD	LR 5303 KDDU	LR 5303 NPPU	17200	11100	0.21
20	47	16			LR 5004 NPPU	11500	7700	0.12
	52	20.6	LR 5204 KDD	LR 5204 KDDU	LR 5204 NPPU	15800	10500	0.23
	62	22.2	LR 5304 KDD	LR 5304 KDDU	LR 5304 NPPU	21100	14500	0.34
25	52	16			LR 5005 NPPU	11600	8100	0.15
	62	20.6	LR 5205 KDD	LR 5205 KDDU	LR 5205 NPPU	18500	13000	0.34
	72	25.4	LR 5305 KDD	LR 5305 KDDU	LR 5305 NPPU	27500	19500	0.5
30	62	19			LR 5006 NPPU	15800	11800	0.25
	72	23.8	LR 5206 KDD	LR 5206 KDDU	LR 5206 NPPU	24600	21400	0.51
	80	30.2	LR 5306 KDD	LR 5306 KDDU	LR 5306 NPPU	36500	26500	0.67
35	68	20			LR 5007 NPPU	17600	13100	0.3
	80	27	LR 5207 KDD	LR 5207 KDDU	LR 5207 NPPU	30500	22400	0.66
	90	34.9	LR 5307 KDD	LR 5307 KDDU	LR 5307 NPPU	44500	33000	0.97
40	75	21			LR 5008 NPPU	18400	14600	0.37
	85	30.2	LR 5208 KDD	LR 5208 KDDU	LR 5208 NPPU	34500	25500	0.75
	100	36.5	LR 5308 KDD	LR 5308 KDDU	LR 5308 NPPU	56000	42000	1.2
