Uc208 Low Price Cheap Price

Insert Bearings are used inside pillow block and flange housings or in custom housed applications.

They are most commonly produced with a spherical OD to allow for misalignment, but are also available with a cylindrical OD.

Standard configurations are lubricated with a multipurpose lithium based grease, and allow for re-lubrication.

Special configurations are also available such as free spinning design and a black oxide finish.

In addition to our standard items and configurations listed below, Bls excels at manufacturing customized bearings to meet specific application requirements.

Inquire Now Next Product

Product Details

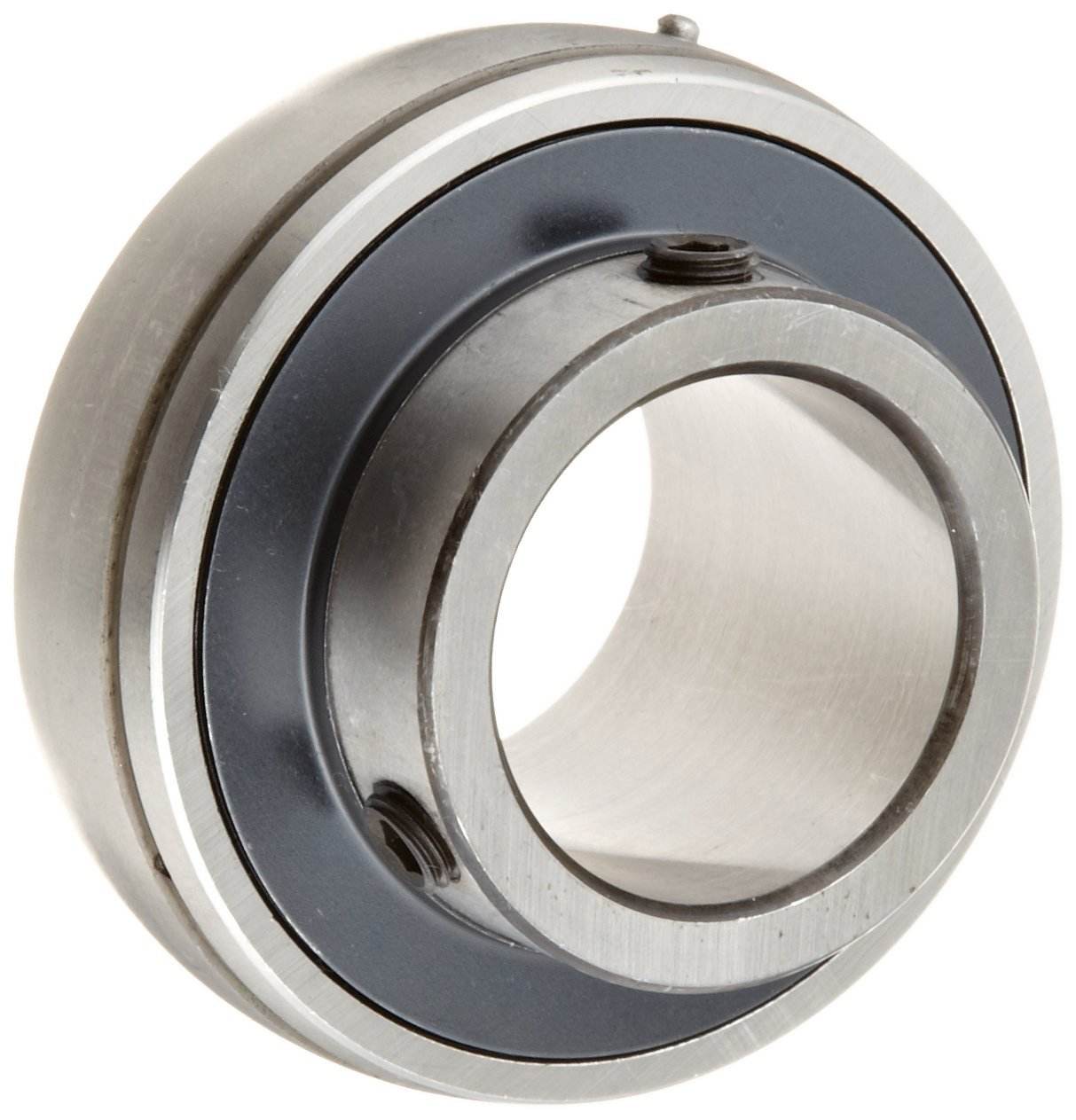

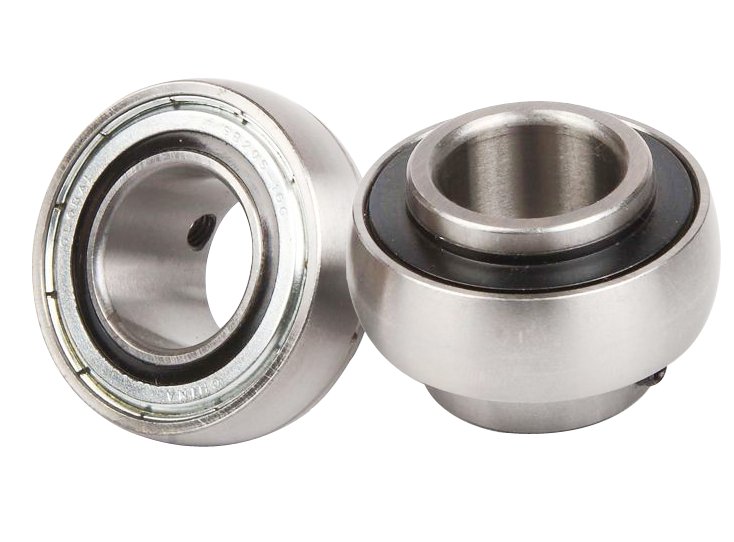

Uc 200 Series Insert Bearing

Deep Groove Ball Bearings

I have all the models you need, these are just some of them, please contact us now

Bearing No.	d		Dimensions（mm）
	(mm)	(in.)	D	Bi	Be	n	m	G	ds
UCW201	12		40	27.4	14	11.5	15.9	4	M5x0.8
UCW202	15		40	27.4	14	11.5	15.9	4	M5x0.8
UCW203	17		40	27.4	14	11.5	15.9	4	M5x0.8
UC201	12		47	31	17	12.7	18.3	5	M6x1.0
UC201-8	12.7	0.5	47	31	17	12.7	18.3	5	1/4-28UNF
UC202	15		47	31	17	12.7	18.3	5	M6x1.0
UC202-10	15.875	0.625	47	31	17	12.7	18.3	5	1/4-28UNF
UC203	17		47	31	17	12.7	18.3	5	M6x1.0
UC203-11	17.463	0.6875	47	31	17	12.7	18.3	5	1/4-28UNF
UC204-12	19.05	0.75	47	31	17	12.7	18.3	5	1/4-28UNF
UC204	20		47	31	17	12.7	18.3	5	M6x1.0
UC205-14	22.225	0.875	52	34	17	14.3	19.7	5.5	1/4-28UNF
UC205-15	23.813	15/16	52	34	17	14.3	19.7	5.5	1/4-28UNF
UC205	25		52	34	17	14.3	19.7	5.5	M6x1.0
UC205-16	25.4	1	52	34	17	14.3	19.7	5.5	1/4-28UNF
UC206-18	28.575	1.125	62	38.1	19	15.9	22.2	5.5	1/4-28UNF
UC206	30		62	38.1	19	15.9	22.2	5.5	M6x1.0
UC206-19	30.163	1.1875	62	38.1	19	15.9	22.2	5.5	1/4-28UNF
UC206-20	31.75	1.25	62	38.1	19	15.9	22.2	5.5	1/4-28UNF
UC207-20	31.75	1.25	72	42.9	20	17.5	25.4	6.5	5/16-24UNF
UC207-21	33.338	1.3125	72	42.9	20	17.5	25.4	6.5	5/16-24UNF
UC207-22	34.925	1.375	72	42.9	20	17.5	25.4	6.5	5/16-24UNF
UC207	35		72	42.9	20	17.5	25.4	6.5	M8x1.0
UC207-23	36.513	1.4375	72	42.9	20	17.5	25.4	6.5	5/16-24UNF
UC208-24	38.1	1.5	80	49.2	21	19	30.2	8	5/16-24UNF
UC208-25	39.688	1.5625	80	49.2	21	19	30.2	8	5/16-24UNF
UC208	40		80	49.2	21	19	30.2	8	M8x1.0
UC209-26	41.275	1.625	85	49.2	22	19	30.2	8	5/16-24UNF
UC209-27	42.863	1.6875	85	49.2	22	19	30.2	8	5/16-24UNF
UC209-28	44.45	1.75	85	49.2	22	19	30.2	8	5/16-24UNF

Uc 200 Series Insert Bearing

Deep Groove Ball Bearings

Pillow Block Bearings Widely used in various industries, our bearings meet the requirements of your project！

Pillow Block Bearings

Deep Groove Ball Bearings

1.FREE SAMPLES:
contact us by email or trade manager, we will send the free sampls according to your request.

2. World Class Bearing:We provide our customers with all type of indigenous bearing with world class quality.

3. OEM or Non Stand Bearings: Any requirement for Non standard bearings is Easily Fulfilled by us due to
 its vast knowledge and links in the industry.

4. Genuine products With Excellent Quality: Company has always proved the
 100% quality products it provides with genuine intent.

5.After Sales Service and technical Assistance: Company provides after sales service and technical assistance
 as per the customers requirement and needs.

6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.

7. Cost Saving: We provide long-life, shock-resistant and high reliability bearings with
 excellent quality and better performance. Resulting in increased cost saving.

8.Attending customer queries promptly: We believe that if customer are satisfied then it proves our worth well. Customers are always given quick support.

Deep Groove Ball Bearings

Products Pdf

Tags: Uc208 Low Price Cheap Price, Uc208

Inquiry
