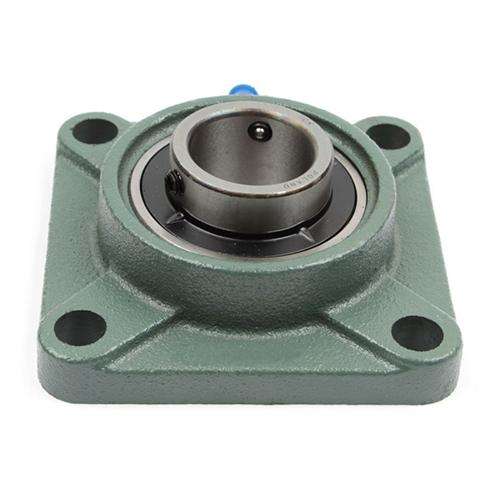

UCF300 Pillow Block Bearing

Pillow Block Bearings/ Mounted Bearings/ Plummer Block- 1)UCFL series; 2)UCP series; 3)UCF series; 4)UCT series ; 5)UCFC series

Plummer Block / Pillow Block Bearing At Factory Price For Sale

Pillow Block Bearing is also called Plummer Block or Mounted Bearings, which consist of double sealed spherical ball bearings and cast (or steel punched) housings.

The internal structure of the pillow block bearings is the same as deep groove ball bearings, but its inner ring wider than the outer ring. Outer ring has a spherical outer surface, matching with the concave spherical surface can be self-aligning.

Inquire Now Next Product

Product Details

Ucf Series Pillow Block Bearing

Deep Groove Ball Bearings

I have all the models you need, these are just some of them, please contact us now

Bearing No.	Boundary Dimensions			Load Ratings		Reference Speed	Weight
Description	d	L	J	Dynamic Cr	Static C0r
	mm	mm	mm	kN	kN	RPM	kg
UCF305	25	110	80	22.46	11.57	2800	1.2
UCF306	30	125	95	27.14	15.2	2600	1.8
UCF307	35	125	100	33.53	19.22	2200	2.2
UCF308	40	150	112	40.96	24.01	2000	2.9
UCF309	45	160	125	53.33	32.19	1800	3.5
UCF310	50	175	132	62.38	38.32	1700	4.8
UCF311	55	185	140	72.05	44.97	1400	5.6
UCF312	60	193	150	82.33	52.16	1300	6.7
UCF313	65	208	166	94.54	60.82	1200	7.8
UCF314	70	226	178	104.7	68.13	1100	10.1
UCF315	75	236	184	113.97	78.66	1000	11.1
UCF316	80	250	196	123.46	88.18	970	12.8
UCF317	85	260	204	133.16	98.25	950	15.4
UCF318	90	280	216	144.67	110.59	900	19
UCF319	95	290	228	156.68	122.07	850	20.6
UCF320	100	310	242	173.14	140.67	800	25.7
UCF321	105	310	242	189.41	165.62	750	26
UCF322	110	340	266	206.8	179.9	650	38
UCF324	120	370	290	228	208.6	500	50
UCF326	130	410	320	274.2	273.7	400	66
UCF328	140	450	350	296.9	306.5	300	90

Pillow Block Bearings

Ucf Series Pillow Block Bearing

Deep Groove Ball Bearings

Pillow Block Bearings Widely used in various industries, our bearings meet the requirements of your project！

Pillow Block Bearings

Deep Groove Ball Bearings

1.FREE SAMPLES:
contact us by email or trade manager, we will send the free sampls according to your request.

2. World Class Bearing:We provide our customers with all type of indigenous bearing with world class quality.

3. OEM or Non Stand Bearings: Any requirement for Non standard bearings is Easily Fulfilled by us due to
 its vast knowledge and links in the industry.

4. Genuine products With Excellent Quality: Company has always proved the
 100% quality products it provides with genuine intent.

5.After Sales Service and technical Assistance: Company provides after sales service and technical assistance
 as per the customers requirement and needs.

6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.

7. Cost Saving: We provide long-life, shock-resistant and high reliability bearings with
 excellent quality and better performance. Resulting in increased cost saving.

8.Attending customer queries promptly: We believe that if customer are satisfied then it proves our worth well. Customers are always given quick support.

Deep Groove Ball Bearings
