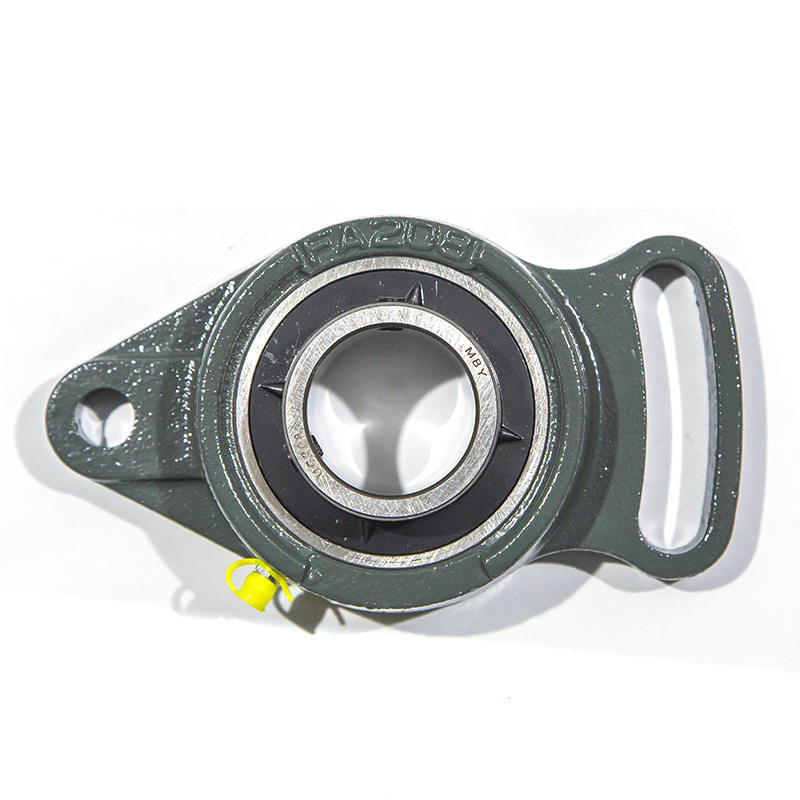

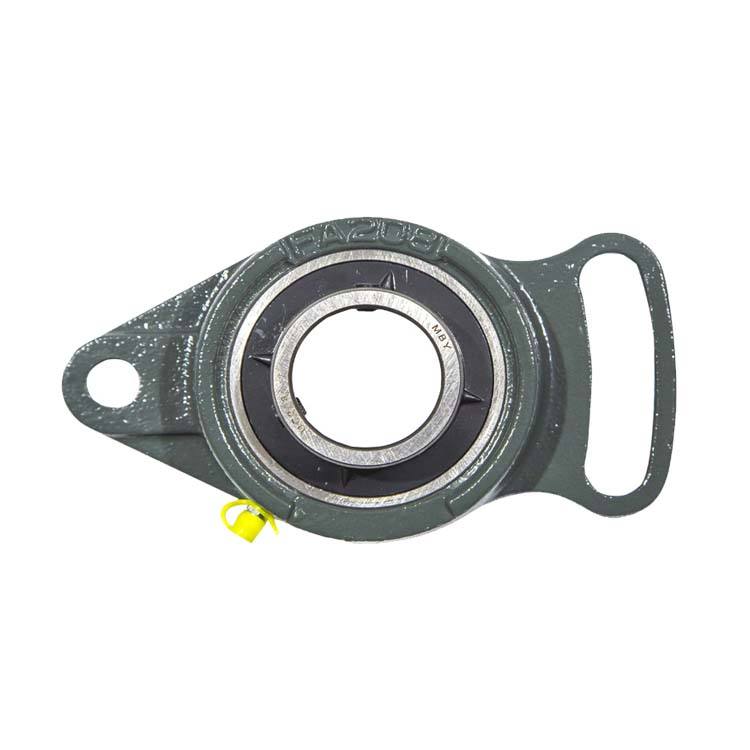

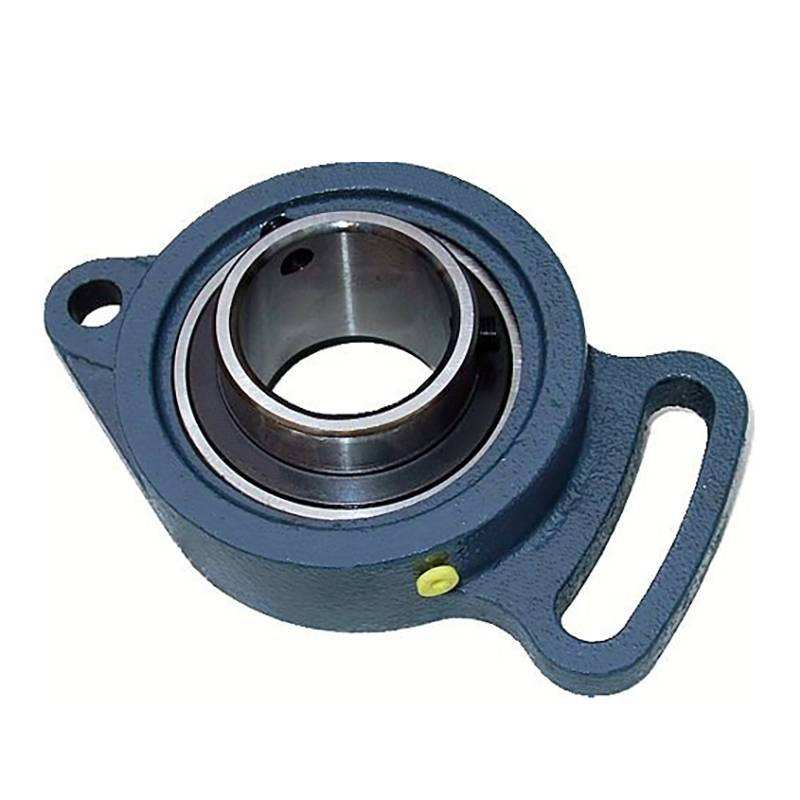

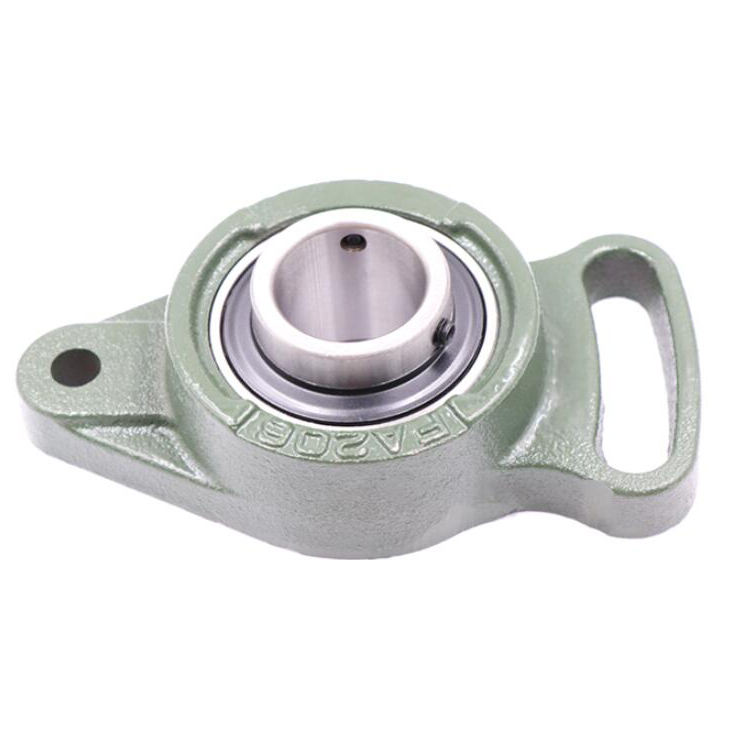

UCFA Series Pillow Block Bearing
Pillow Block Bearings/ Mounted Bearings/ Plummer Block- 1)UCFL series; 2)UCP series; 3)UCF series; 4)UCT series ; 5)UCFC series
Plummer Block / Pillow Block Bearing At Factory Price For Sale
Pillow Block Bearing is also called Plummer Block or Mounted Bearings, which consist of double sealed spherical ball bearings and cast (or steel punched) housings.
The internal structure of the pillow block bearings is the same as deep groove ball bearings, but its inner ring wider than the outer ring. Outer ring has a spherical outer surface, matching with the concave spherical surface can be self-aligning.
I have all the models you need, these are just some of them, please contact us now
| | Bolt Size mm | Bearing NO. | Housing NO. | weight(kg) |
NO. | d | a |
|
|
|
|
UCFA 201 | 12 | 98 | M8 | UC201 | FA201 | 0.46 |
UCFA 201-8 | 1/2 | 3-55/64 | 5/16 | UC201-8 | FA201 | 0.45 |
UCFA 202 | 15 | 3-55/64 | 5/16 | UC202 | FA202 | 0.45 |
UCFA 202-9 | 9/16 | 3-55/64 | 5/16 | UC202-9 | FA202 | 0.45 |
UCFA 202-10 | 5/8 | 3-55/64 | 5/16 | UC202-10 | FA202 | 0.45 |
UCFA 203 | 17 | 3-55/64 | 5/16 | UC203 | FA203 | 0.44 |
UCFA 203-11 | 11/16 | 3-55/64 | 5/16 | UC203-11 | FA203 | 0.43 |
UCFA 204 | 20 | 3-55/64 | 5/16 | UC204 | FA204 | 0.42 |
UCFA 204-12 | 3/4 | 3-55/64 | 5/16 | UC204-12 | FA204 | 0.42 |
UCFA 205 | 25 | 124 | M10 | UC205 | FA205 | 0.65 |
UCFA 205-13 | 13/16 | 4-7/8 | 3/8 | UC205-13 | FA205 | 0.68 |
UCFA 205-14 | 7/8 | 4-7/8 | 3/8 | UC205-14 | FA205 | 0.67 |
UCFA 205-15 | 15/16 | 4-7/8 | 3/8 | UC205-15 | FA205 | 0.65 |
UCFA 205-16 | 1 | 4-7/8 | 3/8 | UC205-16 | FA205 | 0.64 |
UCFA 206 | 30 | 141 | M10 | UC206 | FA206 | 0.95 |
UCFA 206-17 | 1-1/16 | 5-35/64 | 3/8 | UC206-17 | FA206 | 0.98 |
UCFA 206-18 | 1-1/8 | 5-35/64 | 3/8 | UC206-18 | FA206 | 0.97 |
UCFA 206-19 | 1-3/16 | 5-35/64 | 3/8 | UC206-19 | FA206 | 0.95 |
UCFA 206-20 | 1-1/4 | 5-35/64 | 3/8 | UC206-20 | FA206 | 0.94 |
UCFA 207 | 35 | 155 | M12 | UC207 | FA207 | 1.33 |
UCFA 207-20 | 1-1/4 | 6-7/64 | 7/16 | UC207-20 | FA207 | 1.4 |
UCFA 207-21 | 1-5/16 | 6-7/64 | 7/16 | UC207-21 | FA207 | 1.37 |
UCFA 207-22 | 1-3/8 | 6-7/64 | 7/16 | UC207-22 | FA207 | 1.34 |
UCFA 207-23 | 1-7/16 | 6-7/64 | 7/16 | UC207-23 | FA207 | 1.31 |
UCFA 208 | 40 | 171 | M12 | UC208 | FA208 | 1.73 |
UCFA 208-24 | 1-1/2 | 6-53/64 | 7/16 | UC208-24 | FA208 | 1.77 |
UCFA 208-25 | 1-9/16 | 6-53/64 | 7/16 | UC208-25 | FA208 | 1.74 |
UCFA 209 | 45 | 179 | M14 | UC209 | FA209 | 1.98 |
UCFA 209-26 | 1-5/8 | 7-3/64 | 1/2 | UC209-26 | FA209 | 2.08 |
UCFA 209-27 | 1-11/16 | 7-3/64 | 1/2 | UC209-27 | FA209 | 2.04 |
UCFA 209-28 | 1-3/4 | 7-3/64 | 1/2 | UC209-28 | FA209 | 2 |
UCFA 210 | 50 | 189 | M14 | UC210 | FA210 | 2.12 |
UCFA 210-29 | 1-13/16 | 7-7/16 | 1/2 | UC210-29 | FA210 | 2.24 |
UCFA 210-30 | 1-7/8 | 7-7/16 | 1/2 | UC210-30 | FA210 | 2.19 |
UCFA 210-31 | 1-15/16 | 7-7/16 | 1/2 | UC210-31 | FA210 | 2.14 |
UCFA 210-32 | 2 | 7-7/16 | 1/2 | UC210-32 | FA210 | 2.1 |
UCFA 211 | 55 | 216 | M14 | UC211 | FA211 | 3.11 |
UCFA 211-32 | 2 | 8-1/2 | 1/2 | UC211-32 | FA211 | 3.26 |
UCFA 211-33 | 2-1/16 | 8-1/2 | 1/2 | UC211-33 | FA211 | 3.2 |
UCFA 211-34 | 2-1/8 | 8-1/2 | 1/2 | UC211-34 | FA211 | 3.16 |
UCFA 211-35 | 2-3/16 | 8-1/2 | 1/2 | UC211-35 | FA211 | 3.09 |
UCFA 212 | 60 | 240 | M16 | UC212 | FA212 | 3.76 |
UCFA 212-36 | 2-1/4 | 9-29/64 | 5/8 | UC212-36 | FA212 | 3.89 |
UCFA 212-37 | 2-5/16 | 9-29/64 | 5/8 | UC212-37 | FA212 | 3.81 |
UCFA 212-38 | 2-3/8 | 9-29/64 | 5/8 | UC212-38 | FA212 | 3.74 |
UCFA 212-39 | 2-7/16 | 9-29/64 | 5/8 | UC212-39 | FA212 | 3.67 |
UCFA 213 | 65 | 250 | M16 | UC213 | FA213 | 4.7 |
UCFA 213-40 | 2-1/2 | 9-27/32 | 5/8 | UC213-40 | FA213 | 4.79 |
UCFA 213-41 | 2-9/16 | 9-27/32 | 5/8 | UC213-41 | FA213 | 4.7 |
Pillow Block Bearings Widely used in various industries, our bearings meet the requirements of your project！
1.FREE SAMPLES:
contact us by email or trade manager, we will send the free sampls according to your request.
2. World Class Bearing:We provide our customers with all type of indigenous bearing with world class quality.
3. OEM or Non Stand Bearings: Any requirement for Non standard bearings is Easily Fulfilled by us due to
its vast knowledge and links in the industry.
4. Genuine products With Excellent Quality: Company has always proved the
100% quality products it provides with genuine intent.
5.After Sales Service and technical Assistance: Company provides after sales service and technical assistance
as per the customers requirement and needs.
6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.
7. Cost Saving: We provide long-life, shock-resistant and high reliability bearings with
excellent quality and better performance. Resulting in increased cost saving.
8.Attending customer queries promptly: We believe that if customer are satisfied then it proves our worth well. Customers are always given quick support.
