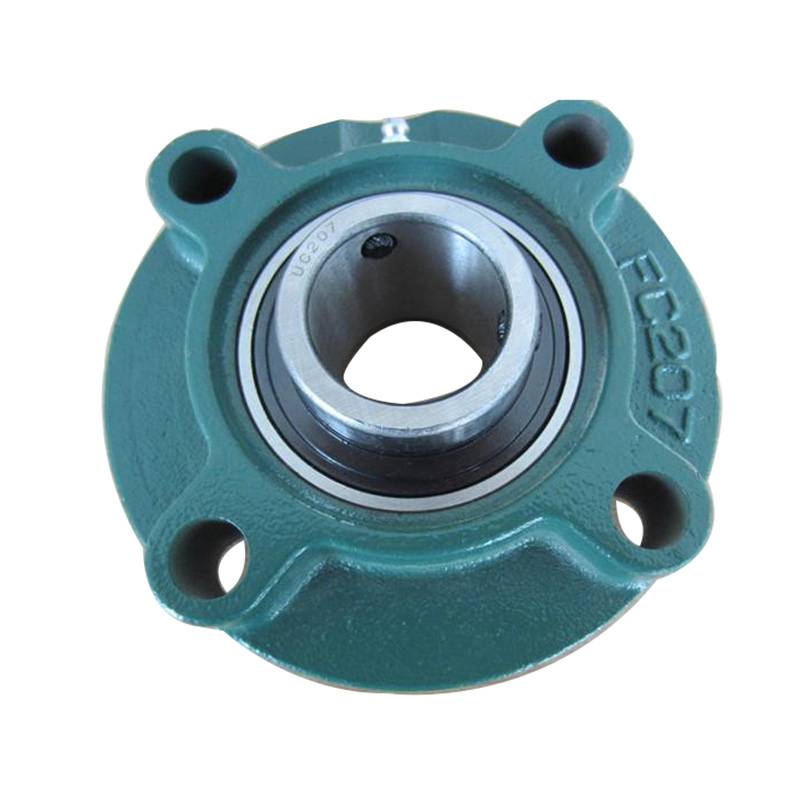

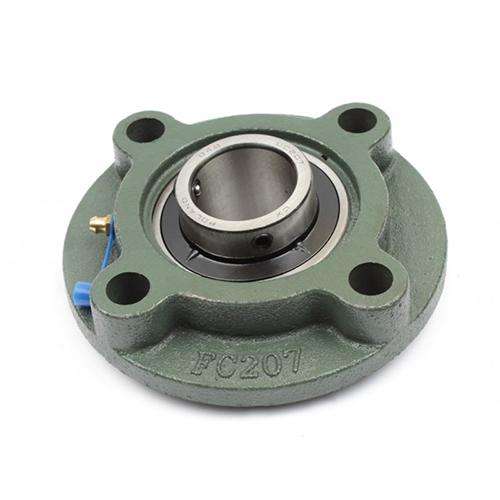

High Precise Pillow Block Bearing Ucfc

Short Description:

The base surface is provided with a circular boss, which can be placed in the circular hole of the rack, so the installation precision is high and the positioning is accurate.

A lug bearing with a lug is a bearing product composed of a bearing, a lug bearing with a lug bearing and a lug bearing with a lug bearing on the mounting surface.

Inquire Now

Product Details

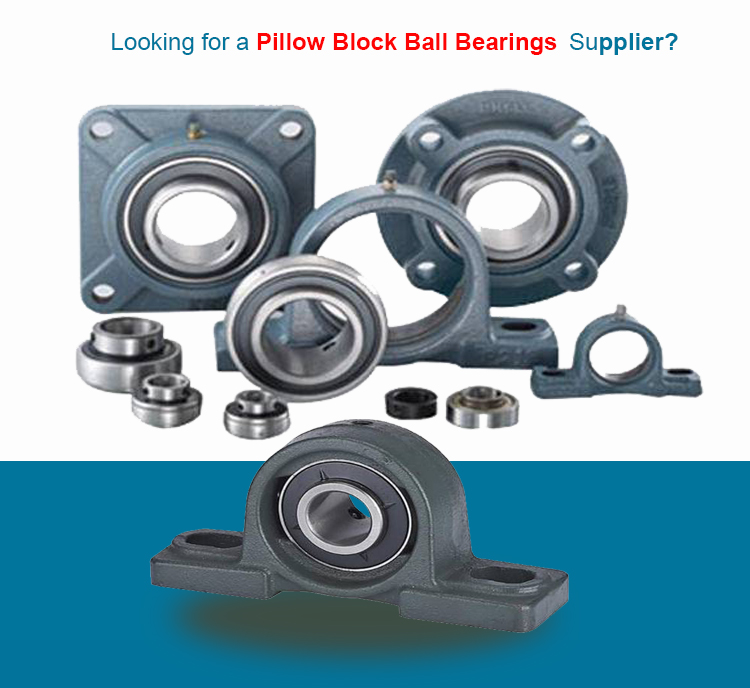

Pillow Block Bearings


Bearing Unit		Shaft Dia.			Dimensions(in.)or (mm)																		Bolt Used		Bearing		Housing		Weight
		d
NO.		(in.)		(mm)	a		p		e		i	l		s	j	k	g	f	z		Bi	n	(mm)	(in.)	NO.		NO.		(kg)
UCFC	201			12	3	15/16	3	5/64	2	11/64	25/64	1		15/32	13/64	9/32	13/16	2.4409	1	1/8	1.2205	0.5000	M10	3/8	UC	201	FC	201	0.72
	201-8	1/2			100		78		55.116		10	25.5		12	5	7	20.5	12.7	28.3		31	12.7				201-8
UCFC	202			15	3	15/16	3	5/64	2	11/64	25/64	1		15/32	13/64	9/32	13/16	2.4409	1	1/8	1.2205	0.5000	M10	3/8	UC	202	FC	202	0.7
	202-10	5/8			100		78		55.116		10	25.5		12	5	7	20.5	12.7	28.3		31	12.7				202-10
UCFC	203			17	3	15/16	3	5/64	2	11/64	25/64	1		15/32	13/64	9/32	13/16	2.4409	1	1/8	1.2205	0.5000	M10	3/8	UC	203	FC	203	0.68
	203-10	11/16			100		78		55.116		10	25.5		12	5	7	20.5	12.7	28.3		31	12.7				203-11
UCFC	204-12	3/4			3	15/16	3	5/64	2	11/64	25/64	1		15/32	13/64	9/32	13/16	2.4409	1	1/8	1.2205	0.5000	M10	3/8	UC	204-12	FC	204	0.67
	204			20	100		78		55.116		10	25.5		12	5	7	20.5	12.7	28.3		31	12.7				204
UCFC	205-14	7/8																							UC	205-14
	205-15	15/16			4	17/32	3	35/64	2	1/2	25/64	1	1/16	15/32	15/64	9/32	53/64	2.7559	1	5/32	1.3425	0.5630	M10	3/8		205-15	FC	205	0.95
	205			25	115		90		63.6		10	2/7		12	6	7	21	70	29.7		34.1	14.3				205
	205-16	1																								205-16
UCFC	206-18	1	1/8																						UC	206-18
	206			30	4	29/32	3	15/16	2	25/32	25/64	1	7/32	15/32	5/16	5/16	29/32	3.1486	7	9/32	1.5000	0.6260	M10	3/8		206	FC	206	1.22
	206-19	1	3/16		125		100		70.7		10	31		12	8	8	23	80	32.2		38.1	15.9				206-19
	206-20	1	1/4																							206-20
UCFC	207-20	1	1/4
