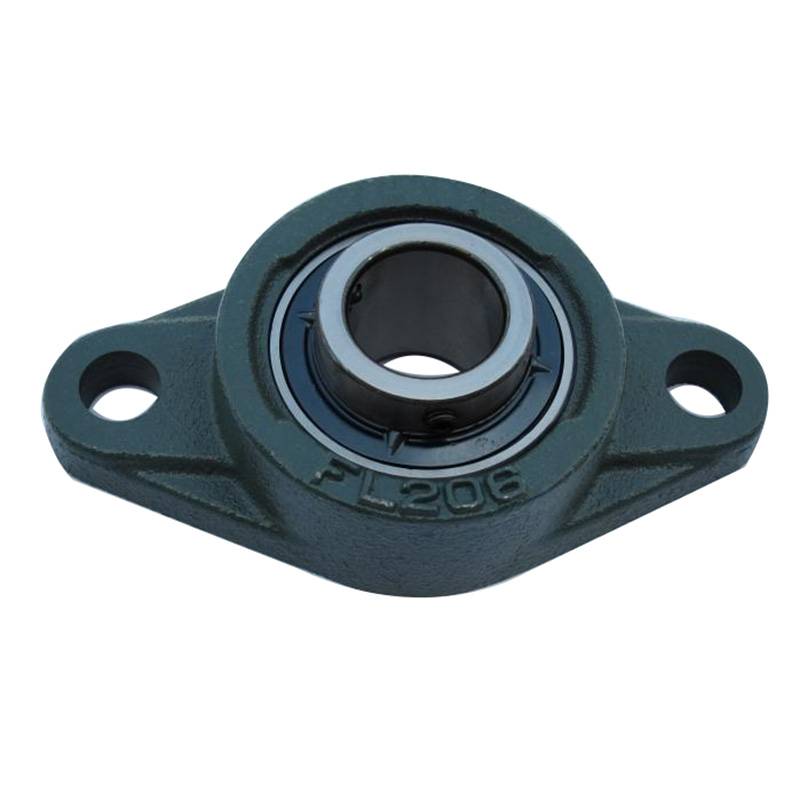

Ucfl 200 Stainless Steel Insert Bearing Block

Short Description:

The structure is light and easy to install, suitable for small area of the transmission parts. The center distance of the two bolt holes is consistent with the center distance of the square seat diagonal bolt holes of the same type.

UCFL main applications: installation of small spacing size of machinery, roller conveyor, food machinery, pharmaceutical machinery, etc.

Inquire Now

Product Details

Pillow Block Bearings

Bearing Unit No.		Shaft Dia		Dimensions (in.)or (mm)										Bolt Used		Bearing		Housing		Weight
		d		Dimensions (in.)or (mm)										Bolt Used		No.		No.		(kg)
		(in.)	(mm)	a	e	i	g	l	s	b	z	Bi	n	(mm)	(in.)
UCFL	201		12	4 7/16	3 35/64	19/32	7/16	1	15/32	2 3/8	1 5/16	1.2205	0.5000	M10	3/8	UC	201	FL	201	0.45
UCFL	201-8	1/2		113	90	15	11	25.5	12	60	33.3	31.0	12.7				201-8
UCFL	202		15	4 7/16	3 35/64	19/32	7/16	1	15/32	2 3/8	1 5/16	1.2205	0.5000	M10	3/8	UC	202	FL	202	0.43
UCFL	202-10	5/8		113	90	15	11	25.5	12	60	33.3	31.0	12.7				202-10
UCFL	203		17	4 7/16	3 35/64	19/32	7/16	1	15/32	2 3/8	1 5/16	1.2205	0.5000	M10	3/8	UC	203	FL	203	0.41
UCFL	203-11	11/16		113	90	15	11	25.5	12	60	33.3	31.0	12.7				203-11
UCFL	204-12	3/4		4 7/16	3 35/64	19/32	7/16	1	15/32	2 3/8	1 5/16	1.2205	0.5000	M10	3/8	UC	204-12	FL	204	0.4
UCFL	204		20	113	90	15	11	25.5	12	60	33.3	31.0	12.7				204
UCFL	205-14	7/8														UC	205-14
	205-15	15/16		5 1/8	3 57/64	5/8	1/2	1 1/16	5/8	2 11/16	1 13/32	1.3386	0.5630	M14	1/2		205-15	FL	205	0.56
	205		25	130	99	16	13	27	16	68	35.7	34	14.3				205
	205-16	1															205-16
UCFL	206-18	1 1/8														UC	206-18
	206		30	5 13/16	4 39/64	45/64	1/2	1 7/32	5/8	3 5/32	1 19/32	1.5000	0.6260	M14	1/2		206	FL	206	0.84
	206-19	1 3/16		148	117	18	13	31	16	80	40.2	38.1	15.9				206-19
	206-20	1 1/4															206-20
UCFL	207-20	1 1/4														UC	207-20
	207-21	1 5/16		6 11/32	5 1/8	3/4	9/16	1 11/32	5/8	3 17/32	1 3/4	1.6890	0.6890	M14	1/2		207-21
	207-22	1 3/8		161	130	19	14	34	16	90	44.4	42.9	17.5				207-22	FL	207	1.05
	207		35														207
	207-23	1 7/16															207-23
UCFL	208-24	1 1/2		6 7/8	5 43/64	53/64	9/16	1 13/32	5/8	3 15/16	2 1/32	1.9370	0.7480			UC	208-24
	208-25	1 9/16		175	144	21	14	36	16	112	51.2	49.2	19.0	M14	1/2		208-25	FL	208	1.4
	208		40														208
UCFL	209-26	1 5/8														UC	209-26
	209-27	1 11/16		7 13/32	5 53/64	55/64	19/32	1 1/2	3/4	4 1/4	2 1/16	1.9370	0.7480	M16	5/8		209-27	FL	209	1.72
	209-28	1 3/4		188	148	22	15	38	19	108	52.2	49.2	19.0				209-28
	209		45														209
UCFL	210-30	1 7/8														UC	210-30
	210-31	1 15/16		7 3/4	6 3/16	55/64	19/32	1 9/16	3/4	4 17/32	2 5/32	2.0315	0.7480	M16	5/8		210-31	FL	210	1.93
	210		50	197	157	22	15	40	19	115	54.6	51.6	19.0				210
	210-32	2															210-32
UCFL	211-32	2														UC	211-32
	211-34	2 1/8		8 13/16	7 1/4	63/64	23/32	1 11/16	3/4	5 1/8	2 5/16	2.1890	0.8740	M16	5/8		211-34	FL	211	2.8
	211		55	224	184	25	18	43	19	130	58.4	55.6	22.2				211
	211-35	2 3/16															211-35
UCFL	212-36	2 1/4														UC	212-36
	212		60	9 27/32	7 61/64	1 9/64	23/32	1 7/8	29/32	5 1/2	2 23/32	2.5630	1.0000	M20	3/4		212	FL	212	3.56
	212-38	2 3/8		250	202	29	18	48	23	140	68.7	65.1	25.4				212-38
	212-39	2 7/16															212-39
UCFL	213-40	2 1/2		10 5/32	8 17/64	1 3/16	25/32	1 31/32	29/32	6 3/32	2 3/4	2.5630	1.0000	M20	3/4	UC	213-40	FL	213	4.3
UCFL	213		65	258	210	30	20	50	23	155	69.7	65.1	25.4				213
UCFL	214-44	2 3/4		10 7/16	8 1/2	1 7/32	25/32	2 1/8	29/32	6 5/16	2 31/32	2.9370	1.1890	M20	3/4	UC	214-44	FL	214	5.1
UCFL	214		70	265	216	31	20	54	23	160	75.4	74.6	30.2				214
UCFL	215		75	10 13/16	8 55/64	1 11/32	25/32	2 7/32	29/32	6 1/2	3 3/32	3.0630	1.3110	M20	3/4	UC	215	FL	215	5.6
UCFL	215-48	3		275	225	34	20	56	23	165	78.5	77.8	33.3				215-48
UCFL	216		80	11 13/32	9 11/64	1 11/32	25/32	2 9/32	63/64	7 3/32	3 9/32	3.2520	1.3110	M20	7/8	UC	216	FL	216	7.9
UCFL	216-50	3 1/8		290	233	34	20	58	25	180	83.3	82.6	33.3				216-50
UCFL	217-52	3 1/4		12	9 49/64	1 27/64	7/8	2 15/32	63/64	7 15/32	3 7/16	3.3740	1.3425	M20	7/8	UC	217-52	FL	217	9.6
UCFL	217		85	305	248	36	22	63	25	190	87.6	85.7	34.1				217
UCFL	218-56	3 1/2		12 19/32	10 7/16	1 37/64	29/32	2 11/16	63/64	8 11/16	3 25/32	3.7795	1.5630	M20	7/8	UC	218-56	FL	218	9.7
UCFL	218		90	320	265	40	23	68	25	205	96.3	96	39.7				218
