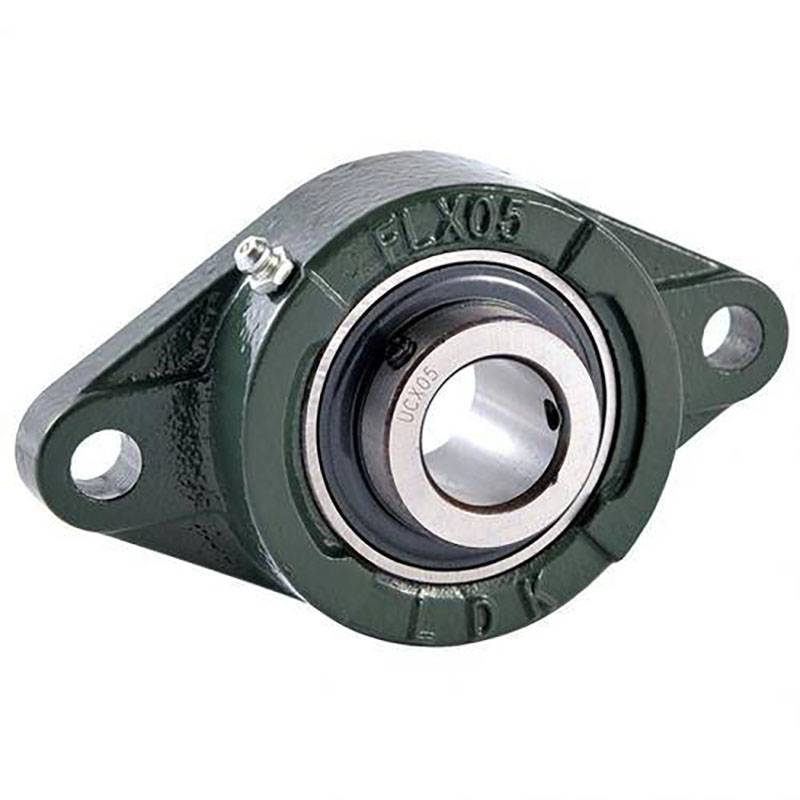

Ucfl X00 Pillow Block Bearings Manufacturers

Short Description:

The structure is light and easy to install, suitable for small area of the transmission parts. The center distance of the two bolt holes is consistent with the center distance of the square seat diagonal bolt holes of the same type

UCFL main applications: installation of small spacing size of machinery, roller conveyor, food machinery, pharmaceutical machinery, etc

Inquire Now Next Product

Product Details

Pillow Block Bearings

Bearing Unit		Shaft Dia.			Dimensions(in.)or (mm)																Bolt Used		Bearing		Housing		Weight
		d
NO.		(in.)		(mm)	a		e		i		g	l		s	b		z		Bi	n	(mm) (in.)		NO.		NO.		(kg)
UCFL	X05			25	5	9/16	4	39/64	45/64		1/2	1	3/16	15/32	3	9/32	1	19/32	1.5000	0.6260			UC	X05
	X05-14	7/8			141		117		18		13	30		12	83		40.2		38.1	15.9	M10	3/8		X05-14	FL	X05	1.0
	X05-16	1																						X05-16
UCFL	X06			30																			UC	X06
	X06-18	1	1/16		6	5/32	5	1/8	3/4		9/16	1	11/32	5/8	3	3/4	1	3/4	1.6890	0.6890	M14	1/2		X06-18	FL	X06	1.4
	X06-19	1	3/16		155		130		19		14	34		16	95		44.4		42.9	17.5				X06-19
	X06-20	1	1/4																					X06-20
UCFL	X07-20	1	1/4																				UC	X07
	X07-22	1	3/8		6	23/32	5	43/64	53/64		9/16	1	1/2	5/8	4	1/8	2	1/32	1.9370	0.7480	M14	1/2		X07-22	FL	X07	1.9
	X07			35	171		144		21		14	38		16	105		51.2		42.9	19.0				X07
	X07-23	1	7/16																					X07-23
UCF	X08-24	1	1/2		7	1/16	5	53/64	55/64		9/16	1	9/16	5/8	4	3/8	2	1/16	1.9370	0.7480	M14	1/2	UC	X08-24	FL	X08	2.0
	X08			40	179		148		22		14	40		16	111		52.2		49.2	19.0				X08
UCFL	X09-26	1	5/8																				UC	X09-26
	X09-27	1	11/16		7	7/16	6	3/16	29/32		9/16	1	9/16	5/8	4	9/16	2	3/16	2.0315	0.7480	M14	1/2		X09-27	FL	X09	2.4
	X09-28	1	3/4		189		157		23		14	40		16	116		55.6		51.6	19.0				X09-28
	X09			45																				X09
UCFL	X10-31	1	15/16		8	1/2	7	1/4	1	1/32	25/32	1	23/32	3/4	5	1/4	2	11/32	2.1890	0.8740			UC	X10-31
	X10			50	216		184		26		20	44		19	133		59.4		55.6	22.2	M14	5/8		X10	FL	X10	3.7
	X10-32	2																						X10-32
