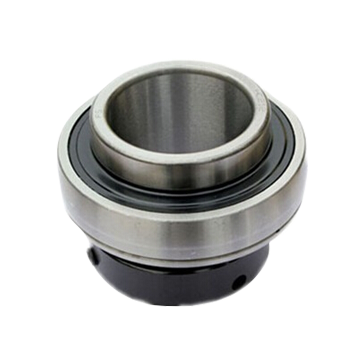

Uk 200 Series Insert Bearing

Insert Bearings are used inside pillow block and flange housings or in custom housed applications.

They are most commonly produced with a spherical OD to allow for misalignment, but are also available with a cylindrical OD.

Standard configurations are lubricated with a multipurpose lithium based grease, and allow for re-lubrication.

Special configurations are also available such as free spinning design and a black oxide finish.

In addition to our standard items and configurations listed below, Bls excels at manufacturing customized bearings to meet specific application requirements.

Inquire Now

Product Details

Insert Bearings

Deep Groove Ball Bearings

I have all the models you need, these are just some of them, please contact us now

Bearing No.	d1		Dimensions（mm）								Basic Load Rating (kN)
	(in.)	(mm)	D	L	d	Bi	Be	T	Y	W	Dynamic	Static
UK205+H2305		20	52	35	25	25	17	4.2	8	38	1400	750
UK205+HE2305	3/4	20	52	35	25	25	17	4.2	8	38	1400	750
UK206+H2306		25	62	38	30	28	19	5.2	8	45	1900	1100
UK206+HS2306	7/8	25	62	38	30	28	19	5.2	8	45	1900	1100
UK207+H2307		30	72	43	35	30	20	5.6	9	52	2550	1500
UK207+HS2307	1 1/8	30	72	43	35	30	20	5.6	9	52	2550	1500
UK208+H2308		35	80	46	40	31	21	6.2	10	58	2950	1800
UK208+HE2308	1 1/4	35	80	46	40	31	21	6.2	10	58	2950	1800
UK209+H2309		40	85	50	45	33	22	6.3	11	65	3180	2050
UK209+HA2309	1 7/16	40	85	50	45	33	22	6.3	11	65	3180	2050
UK210+H2310		45	90	55	50	35	24	6.5	12	70	3500	2300
UK210+HA2310	1 11/16	45	90	55	50	35	24	6.5	12	70	3500	2300
UK211+H2311		50	100	59	55	37	25	7	12	75	4350	2900
UK211+HS2311	1 7/8	50	100	59	55	37	25	7	12	75	4350	2900
UK212+H2312		55	110	62	60	39	27	7	13	80	4750	3250
UK212+HA2312	2 1/16	55	110	62	60	39	27	7	13	80	4750	3250
UK213+H2313		60	120	65	65	40	28	8.5	14	85	5700	4000
UK213+HA2313	2 3/16	60	120	65	65	40	28	8.5	14	85	5700	4000
UK215+H2315		65	130	73	75	45	30	9.2	15	98	6600	4950
UK215+HE2315	2 1/2	65	130	73	75	45	30	9.2	15	98	6600	4950
UK216+H2316		70	140	78	80	48	33	9.6	17	105	7150	5400
UK216+HE2316	2 3/4	70	140	78	80	48	33	9.6	17	105	7150	5400
UK217+H2317		75	150	82	85	50	35	10.5	18	110	8300	6350
UK217+HE2317	3	75	150	82	85	50	35	10.5	18	110	8300	6350
UK218+H2318		80	160	66	90	52	37	11.1	18	120	9500	7100
UK218+HS2318	3 1/8	80	160	66	90	52	37	11.1	18	120	9500	7100
