Single Row Ball and Roller Water Pump Bearings - WR Series

Short Description:

BLS Water pump bearings basically consist of standard double row bearings, ball-ball type and ball-roller type. Water pump bearings do not have an inner ring but instead have raceways directly machined into the shaft. Therefore, there is additional space for rolling elements enabling higher specific load-carrying capability than conventional single bearings. Water pump bearings can support both large axial and radial loads. The high load carrying capacity and high rotation speed enable the large flow of the water pump.MBY Water pump bearings are well greased and sealed to ensure high dependability. And the ends of their shaft normally extend beyond the outer ring on both sides. The length and diameter of these extended sections can be matched to the specific application. They are predominantly used in automotive water pump.

BLS Water pump bearings a includes:
Single row ball and roller water pump bearing ( WR..series)
Double-row ball water pump bearing - WB1630
Double-row ball water pump bearing - WB1940
Double-row ball water pump bearing - WB1938
Double-row ball water pump bearing - WB1226
Double-row ball water pump bearing - WB1224
double-row ball water pump bearings
single-row ball and single roller water pump bearings

Inquire Now

Product Details

Deep Groove Ball Bearings

Single Row Ball and Roller Water Pump Bearings - WR Series

I have all the models you need, these are just some of them, please contact us now

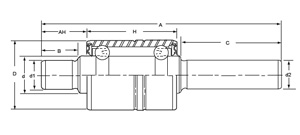

Bearing Designation	Boundary Dimensions (mm)
WD	D	H	A	AH	d	d1	d2	B	C
WR1230104	58	62.5	152		25		17		62
WR1630079	30	28	79	14	16		12		34.5
WR1630083	30	28	82.7	17.7	16		12		34.5
WR1630084	30	30	84		15.918		12		36.6
WR1630085	30	30	85	17	15.918		12.038		36
WR1630085-1	30	30	85	17	15.918		12		12.038
WR1630087C	30	38.8	86.5	13.5	15.918		12		32.7
WR1630087C-2	30	38.8	86.5	13.5	15.918		12		32.7
WR1630091	30	38.89	91		15.918		12		36
WR1630091-2	30	38.89	90.5	14.81	15.918		12		34.5
WR1630092	30	38.89	92		16		12
WR1630093	30	38.9	93		15.918		12		33
WR1630093-1	30	38.9	93.6		15.918		12		38
WR1630095	30	33.38	95		15.918		12		37
WR1630095-1	30	30	95.5	16.5	15.918		12		46.5
WR1630096	30	38.9	95.5		15.918
WR1630096-2	30	38.9	95.8		15.918		12		38.5
WR1630096-3	30	38.9	96.52		15.918
WR1630096	30	38.9	98	17	15.918
WR1630100	30	46	100	17	16		12		34
WR1630101	30	38.9	101		15.918
WR1630102-2	30	38.9	102.2		15.918		12		37.5
WR1630102-3	30	38.89	101.5		15.918		12.038		41.65
WR1630102C	30	38.9	101.5		15.918
WR1630104	30	38.89	104.5	17.5	15.918	12	12	16	45.5
WR1630105-1	30	39	104.2	16.9	15.918				46.5
WR1630105C	30	38.8	104.5	16.5	15.918		12		48.2
WR1630106	30	38.9	106.2		15.918		12		41.4
WR1630106-1	30	38.9	105.7	17.5	15.918	12	12	16	46.7
WR1630106-2	30	38.89	106	30	15.918		12
WR1630106-3	30	38.9	106.3		15.918		12		39.9
WR1630106C	30	38.89	105.65	16.25	15.918	12	12	14.5	48.15
WR1630107	30	38.89	107	21.5	15.918		12		43
WR1630110	30	38.9	109.5		15.918	12.038	12.038	14	51.5
WR1630110-1	30	38.89	110		15.918
WR1630115-1	30	38.9	115.4		15.918		12		46.1
WR1630117	30	38.89	116.6		15.918
WR1630124	30	38.9	124	35	15.918	12	12	33	48
WR1630133	30	38.89	103.12		15.918
WR1630133	30	38.9	132.7		15.918
WR1630134-1	30	38.89	103.12	27.94	15.918
WR1630136	30	38.9	135.8		15.918		12		61.9
WR1630139	30	38.89	139	23.11	15.918
WR1630148	30	38.89	148	28.48	15.918
WR1635096	35	38.9	96		15.918	12.038	12.038	15	37
WR1635101	35	39	101	25	17.5	15.918	12	23.5	33.8
WR1635101-2	35	39	100.5	24	15.918		12		36
WR1635101A-1	35	39	101		15.918		12		34.8
WR1635103	35	39	103.2	26.5	18	15.918	12	24.5	35.7
WR1635106	35	39	106	42	17.5	15.918	12	28.5	34.8
WR1635112	35	39	112		17.5	15.918	12	41.5	40.5
WR1635123	35	56	122.6		18		12		35.2
WR1635124	35	39	124	30	17.5	15.918	12	39.5	28.5
WR1638099	38.1	41.275	99	19.5	19	15.918	12	17.5	36
WR1638101	38.1	37	101		19	15.918	12	23.2	36.8
WR1638117	38.1	41.3	117.2		19		15.918		47.4
WR1638117-1	38.1	54	117.2		19		15.918		43
WR1638117-2	38.1	41.3	117.2		19		15.918		48
WR1638120	38.1	54	120.7		19		15.918		38.4
WR1638123	38.1	54	123		19	15.918	15.918	13.5	35.5
WR1638125	38.1	54	125.3		19		15.918		40
WR1638126	38.1	54	126		19	15.918	15.918	14	39
WR1638126-1	38.1	54	126		19	15.918	12	26.5	37
WR1638128	38.1	54	127.7		19		15.918		40
WR1638129	38.1	54	128.6		19		15.918		54.5
WR1638129-1	38.1	54	128.7		19		15.918		41.7
WR1638129-3	38.1	54	129		19		15.918		42.1
WR1638133	38.1	54	133		19	15.918	15.918	12	45
WR1638134	38.1	54	134.2	22.4	19		15.918		49.7
WR1638134-1	38.1	54	134		19		15.918		47.5
WR1638135	38.1	54	135		19		15.918		41
WR1638135-1	38.1	54	135		19		15.918		41.4
WR1638136-3	38.1	54	135		19		15.918		56
WR1638136-4	38.1	54	136.5		19		15.918		58.5
WR1638139	38.1	54	139.2		19		15.918		46.5
WR1638145	38.1	54	144.5		19		15.918		46
WR1638151	38.1	54	150.5		19	15.918	15.918	14	49
WR1638154	38.1	54	154.4	21.5	19	15.918	15.918	9.5	57
WR1638155	38.1	54	155.1		19		15.918	9.5	59.7
WR1638157	38.1	54	156.5		19	15.918	15.918		53
WR1638158	38.1	54	158.1		19	15.918	15.918	15	57
WR1638165	38.1	54	165.3		19		15.918	14.3	70.4
WR1638166	38.1	54	166.5	35	19		15.918		64
WR2040105	40	42	105		20		15.918		40.5
WR2040112	40	44	111.5		20		15.918		41
WR2040151	40	50	151		20		16		44
WR2242111	42	46	110.8		22		12		33.8
WR2242115	42	46	115.5		20		13		38.5
WR2242136	42	56	138.5		22		15.918		52.5
WR2247165	47	62.5	165		22		17		55.5
WR2552133	52	52	133		25		15.92		50
WR2552138	52	56	92		25		15.92		50
WR2552138-4	52	56	138		25		15.92		50
WR2552138C	52	56	138		25		15.92		50
WR2552140-1	52	52	140		25		15.92		47
WR2552143	52	56	143		25		15.92		50
WR2552145-1	52	52	145		25		15.92		62
WR2552150	52	56	150		25		15.92		57
WR2552153	52	56	153		25		15.92		54.5
WR2552155	52	70	155		25		15.92		50
WR2552162	52	56	162		25		15.92		59
WR2552163	52	56	163		25		15.92		50
WR2552163-1	52	56	163		25		15.92		50
WR2552164	52	56	164		25		15.92		64
WR2552165	52	56	165		25		15.92		54.5
WR2552165	52	78	165.5		25		15.918		50.5
WR2552208	55	56	208		25	M14	15.92	18	50
WR2555127A	55	60	127		25		15.92		40.9
WR2555145	58	60	145		25	19	15.92	28.5	50
WR3258133	58	52	133		25		15.92		51
WR3258140	58	52	140		25		15.92		51
WR3258155	58	70	155		25		15.918		51
