Double-row Ball Water Pump Bearings - WD1226 Seires

Short Description:

BLS Water pump bearings basically consist of standard double row bearings, ball-ball type and ball-roller type. Water pump bearings do not have an inner ring but instead have raceways directly machined into the shaft. Therefore, there is additional space for rolling elements enabling higher specific load-carrying capability than conventional single bearings. Water pump bearings can support both large axial and radial loads. The high load carrying capacity and high rotation speed enable the large flow of the water pump.MBY Water pump bearings are well greased and sealed to ensure high dependability. And the ends of their shaft normally extend beyond the outer ring on both sides. The length and diameter of these extended sections can be matched to the specific application. They are predominantly used in automotive water pump.

BLS Water pump bearings a includes:
Single row ball and roller water pump bearing ( WR..series)
Double-row ball water pump bearing - WB1630
Double-row ball water pump bearing - WB1940
Double-row ball water pump bearing - WB1938
Double-row ball water pump bearing - WB1226
Double-row ball water pump bearing - WB1224
double-row ball water pump bearings
single-row ball and single roller water pump bearings

Inquire Now Next Product

Product Details

Deep Groove Ball Bearings

Double-row Ball Water Pump Bearings - WD1226 Seires

I have all the models you need, these are just some of them, please contact us now

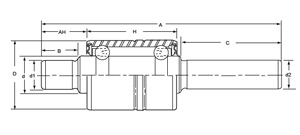

Bearing Designation				Boundary Dimensions (mm)
	NSK	FAG	KOYO	D	H	A	AH	d
WB1226086				26	39	86	12	12
WB1226090			WPB12090BRS	26	39	89.5	16.5	12
WB1226090-1			WPB12090ARS	26	39	90	14	12
WB1226091			WPB12091RS	26	39	91	17	12
WB1226093				26	39	93	16	12
WB1226093 -1			WPB12093RS	26	39	92.5	16.5	12
WB1226094Y				26	39	94	21.5	12
WB1226095	BWF26-4	WS2372	S16140R-5RS	26	39	94.5	21.5	12
WB1226098			WPB12098-3RS	26	39	97.3	17.5	12
WB1226099			S16140CRS	26	39	99	25	12
WB1226102			S16140R-3RS	26	39	102.5	21.5	12
WB1226103			WPB12104ARS	26	39	103.5	17.5	12
WB1226103-1	BWF26-11	WS2407	WPB12103RS	26	39	103.5	21.5	12
WB1226104				26	39	103.8	17.5	12
WB1226105				26	39	104.4		12
WB1226106			WPB12106RS	26	39	105.5	16.5	12
WB1226114			WPB12114RS	26	39	113.5	17.5	12
WB1226117				26	39	117	26	12

Deep Groove Ball Bearings

Deep Groove Ball Bearings Widely used in various industries, our bearings meet the requirements of your project！

Deep Groove Ball Bearings

1.FREE SAMPLES:
contact us by email or trade manager, we will send the free sampls according to your request.

2. World Class Bearing:We provide our customers with all type of indigenous bearing with world class quality.

3. OEM or Non Stand Bearings: Any requirement for Non standard bearings is Easily Fulfilled by us due to
 its vast knowledge and links in the industry.

4. Genuine products With Excellent Quality: Company has always proved the
 100% quality products it provides with genuine intent.

5.After Sales Service and technical Assistance: Company provides after sales service and technical assistance
 as per the customers requirement and needs.

6. Quick Delivery: The company provides just-in-time delivery with its streamlined supply chain.

7. Cost Saving: We provide long-life, shock-resistant and high reliability bearings with
 excellent quality and better performance. Resulting in increased cost saving.

8.Attending customer queries promptly: We believe that if customer are satisfied then it proves our worth well. Customers are always given quick support.
