Double-row Ball Water Pump Bearings - WB1224 Series

Short Description:

BLS Water pump bearings basically consist of standard double row bearings, ball-ball type and ball-roller type. Water pump bearings do not have an inner ring but instead have raceways directly machined into the shaft. Therefore, there is additional space for rolling elements enabling higher specific load-carrying capability than conventional single bearings. Water pump bearings can support both large axial and radial loads. The high load carrying capacity and high rotation speed enable the large flow of the water pump.MBY Water pump bearings are well greased and sealed to ensure high dependability. And the ends of their shaft normally extend beyond the outer ring on both sides. The length and diameter of these extended sections can be matched to the specific application. They are predominantly used in automotive water pump.

BLS Water pump bearings a includes:
Single row ball and roller water pump bearing ( WR..series)
Double-row ball water pump bearing - WB1630
Double-row ball water pump bearing - WB1940
Double-row ball water pump bearing - WB1938
Double-row ball water pump bearing - WB1226
Double-row ball water pump bearing - WB1224
double-row ball water pump bearings
single-row ball and single roller water pump bearings

Inquire Now Next Product

Product Details

Deep Groove Ball Bearings

Double-row Ball Water Pump Bearings - WB1224 Series

I have all the models you need, these are just some of them, please contact us now

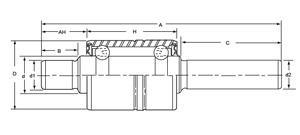

Bearing Designation			Boundary Dimensions (mm)
	FAG	RHP	D	H	A	AH	d
WB1224079	395671B		24	33.38	78.83	17	12.038
WB1224080	416787C		24	33.38	80	14.2	12.738
WB1224081-1	412619AA	FPS732	24	33.38	83	16.39	12.738
WB1224083			24	25	83.57	21	12
WB1224083-1	395835		24	33.38	82.73	16	12.038
WB1224084	395726		24	33.38	83.9	22.2	12.038
WB1224085			24	27	85	21	12.038
